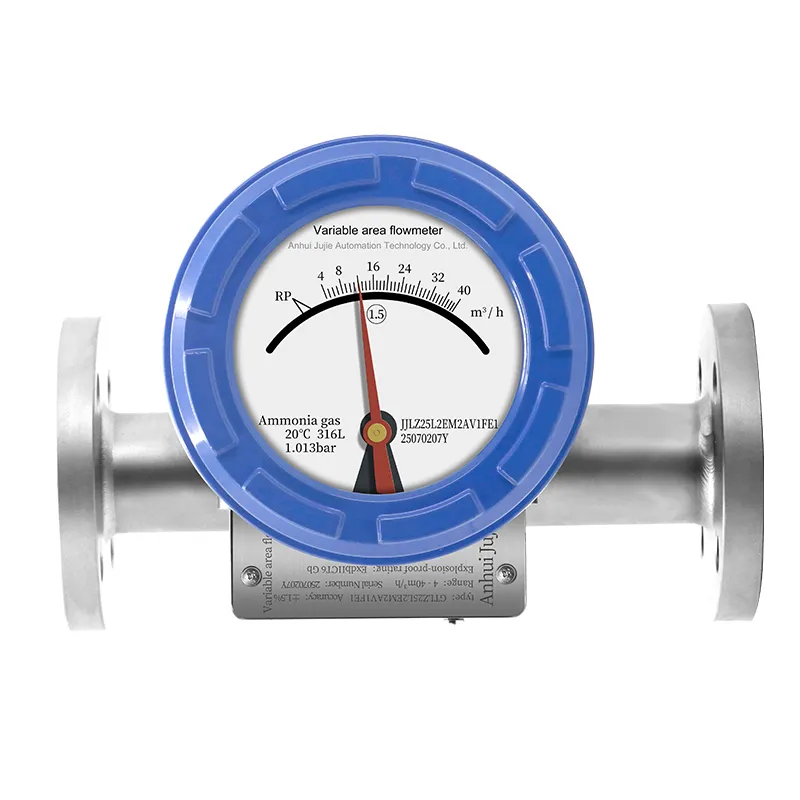

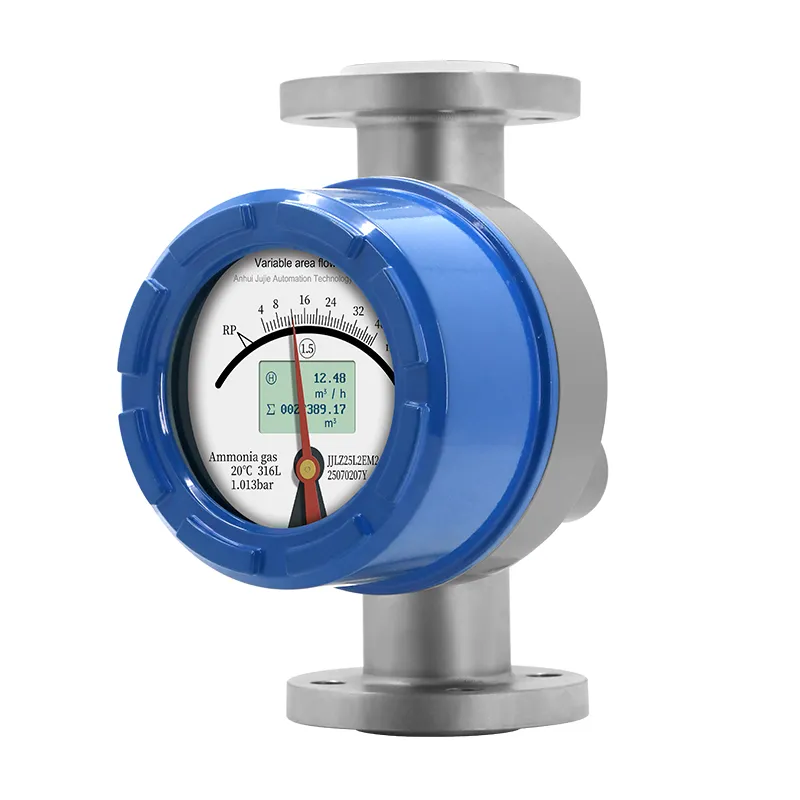

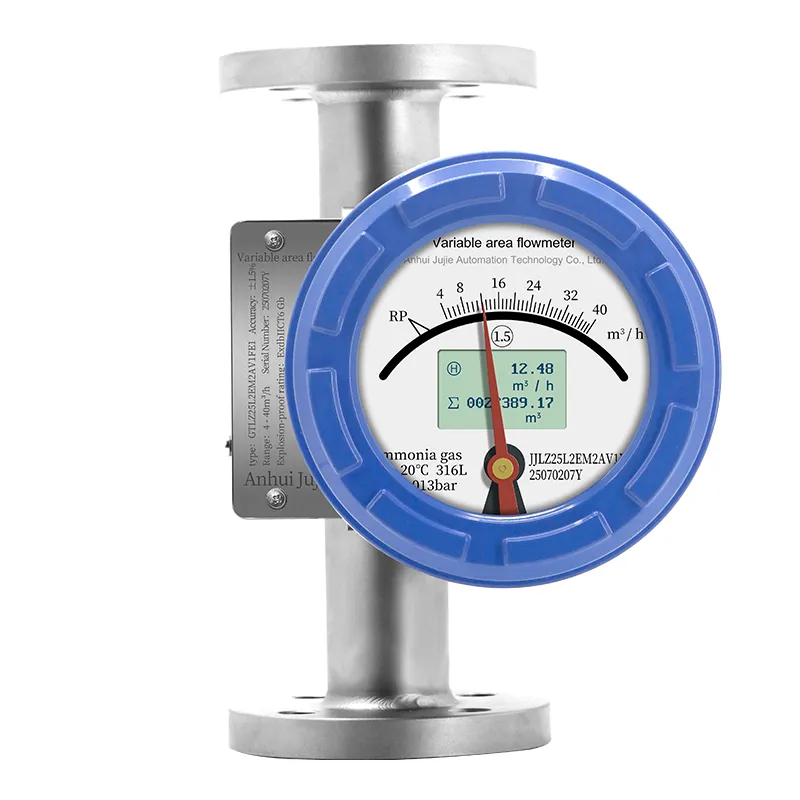

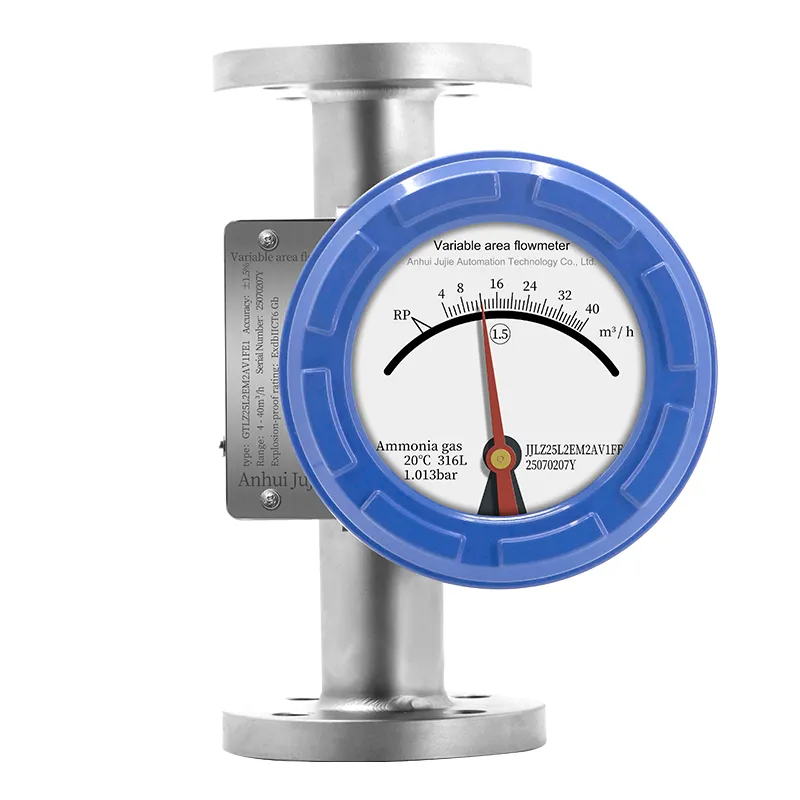

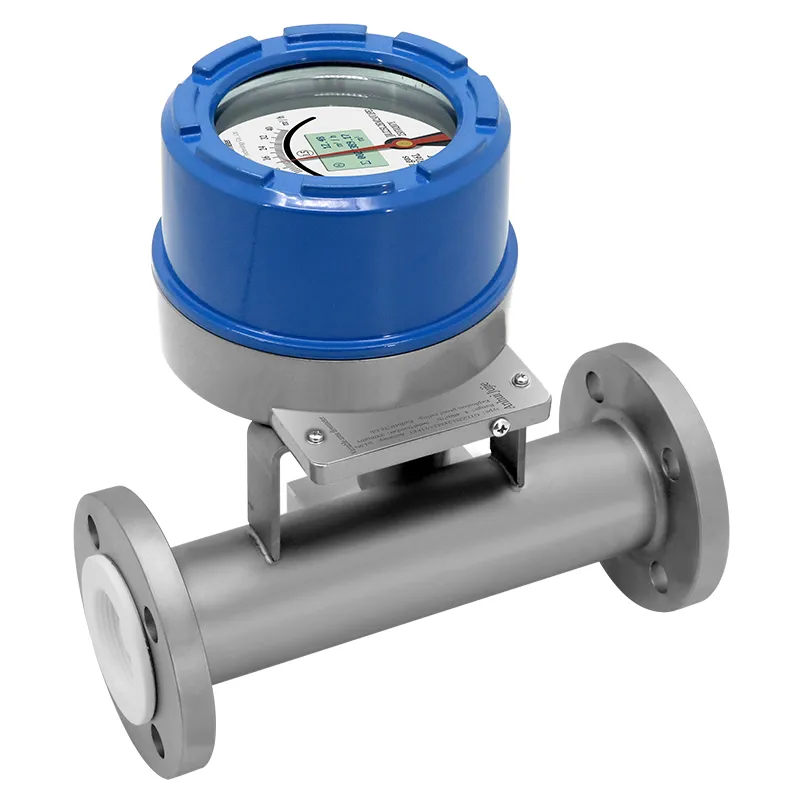

Metal Tube Rotameter

Name: Metal Tube Rotameter
Brand: Anhui Jujie Automation Technology Co., LTD.
Availability: InStock

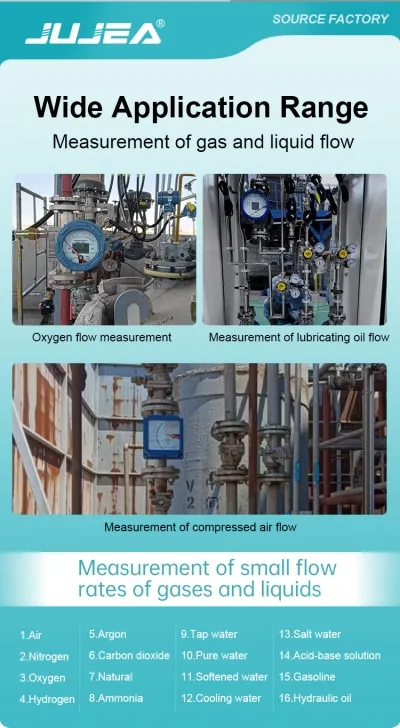

Designed for on‑site process flow monitoring, the metal tube rotameter supports multiple mounting orientations to fit complex pipeline layouts. With customizable wetted materials such as PTFE and stainless steel, it handles various corrosive fluids while delivering dependable measurement for low‑flow liquid and gas applications.

Send Mail

Features of Metal Tube Rotameter

Multiple wetted material options

Wetted parts can be configured in 304, 316L stainless steel, PTFE or titanium alloy. This flexibility allows the meter to cope with weak‑acid, alkaline and other corrosive liquid and gas media on site.

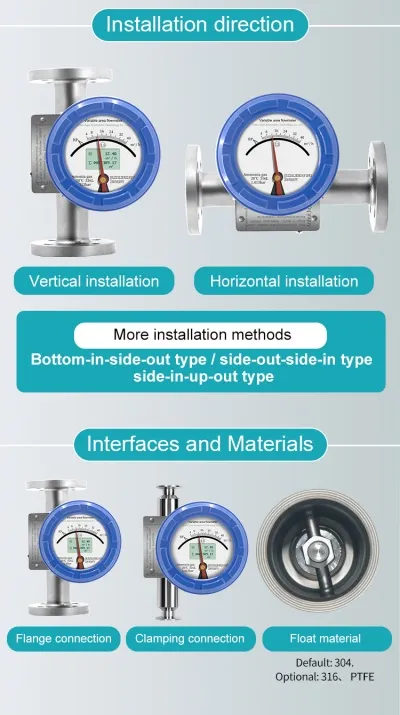

Flexible multi‑direction installation

Available in vertical, horizontal, bottom‑in side‑out and side‑in side‑out configurations. Various connection types including flange, internal thread and sanitary clamp suit diverse field piping requirements.

Magnetic non‑contact transmission

Float displacement is transferred via magnetic coupling with no direct mechanical linkage. It reduces internal wear, lowers failure risk and extends instrument service lifetime under continuous operation.

Optional alarm function

Upper‑limit and lower‑limit flow alarm switches are selectable. Relay signals can trigger interlock actions, helping operators respond promptly to abnormal liquid or gas flow conditions.

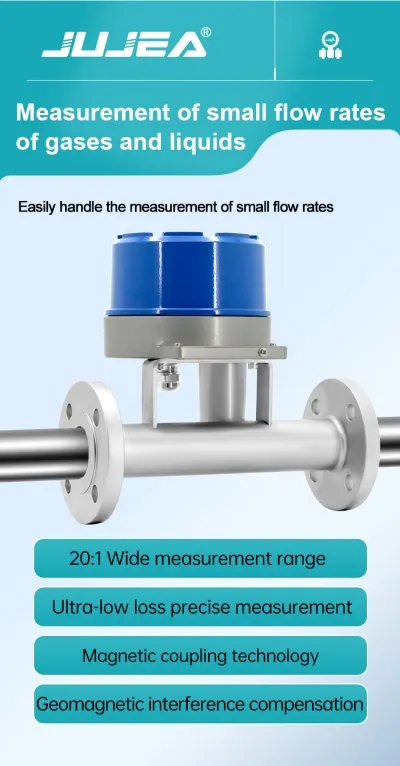

Wide measuring scope for small flow

Well‑suited for low‑flow liquid and gas measurement. Its 10:1 standard rangeability covers common process conditions without demanding long upstream and downstream straight pipe runs.

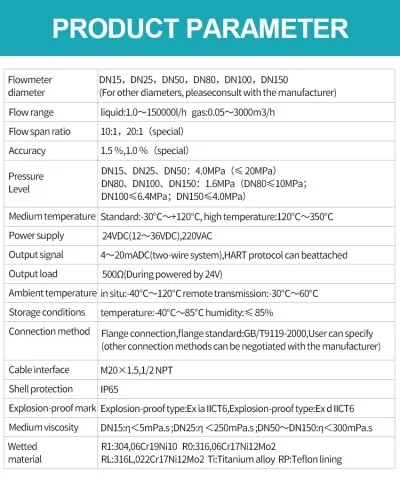

Specification of Metal Tube Rotameter

Flowmeter diameter	DN15, DN25, DN50, DN80, DN100, DN150 (customizable available)

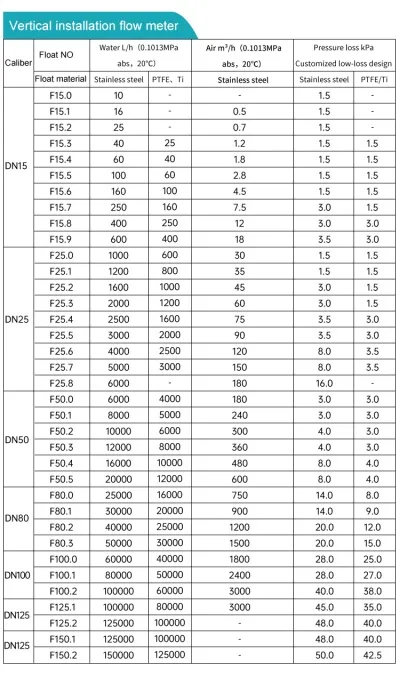

Flow range	Liquid: 1.0 - 150,000 L/h; Gas: 0.05 - 3,000 m³/h
Range ratio	10:1, 20:1 (Special )
Accuracy	Level 1.5, Level 1.0 (Special)
Pressure rating	DN15、DN25、DN50：4.0MPa（Maximum 20MPa）；DN80、DN100、DN150：1.6MPa（Maximum ：DN80：10MPa；DN100：6.4MPa；DN150：4.0MPa）
Medium temperature	Standard: -30℃ ~ +120℃, High Temperature: 120℃ ~ 350℃
Power supply	24VDC (12 ~ 36VDC) , 220VAC
Output signal	4 ~ 20 mA DC (two-wire system), with the option of adding HART protocol
Output load	500Ω (with 24V power supply)
Ambient temperature	Local type: -40℃ ~ 120℃ ; Remote type: -30℃ ~ 60℃
Storage conditions	Temperature: -40℃ ~ 85℃ ; Humidity: ≤ 85%
Connection method	Flange connection, flange standard: GB/T9119-2000, customizable option available
Cable interface	M20×1.5, 1/2 NPT
Shell protection	IP65
Explosion-proof marking	Explosion-proof type: Ex ia IIC T6, Flameproof type: Ex d IIC T6
Medium viscosity	DN15: η < 5mPa.s ; DN25: η < 250mPa.s ; DN50 ~ DN150: η < 300mPa.s
Contact material	R1: 304, 06Cr19Ni10 ; R0: 316, 06Cr17Ni12Mo2
Contact material	RL: 316L, 022Cr17Ni12Mo2 ; Ti: Titanium alloy ; RP: PTFE liner

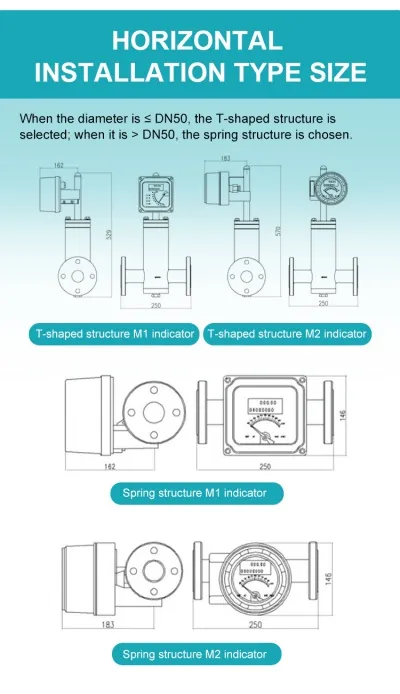

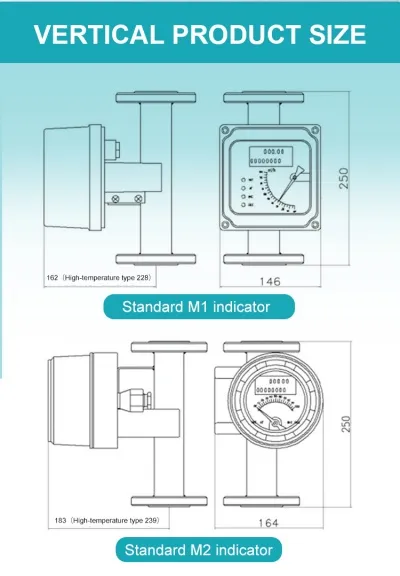

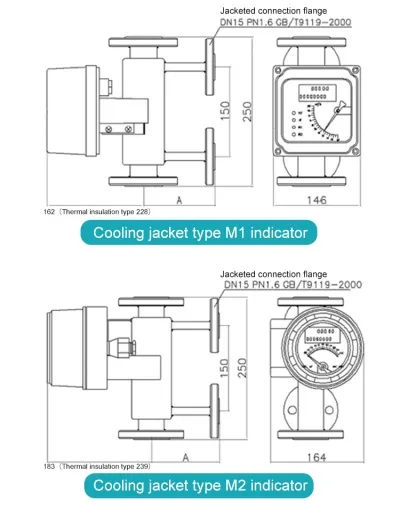

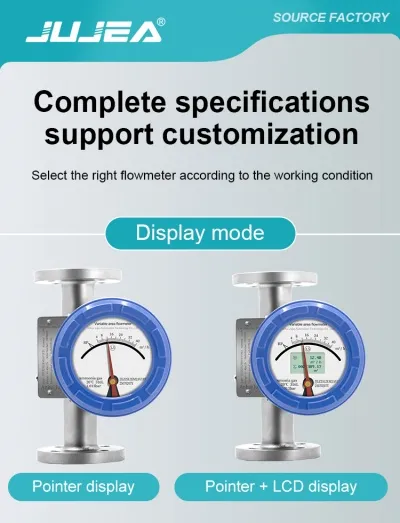

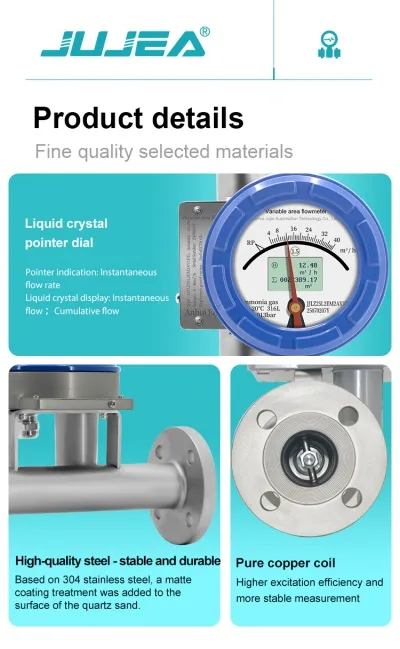

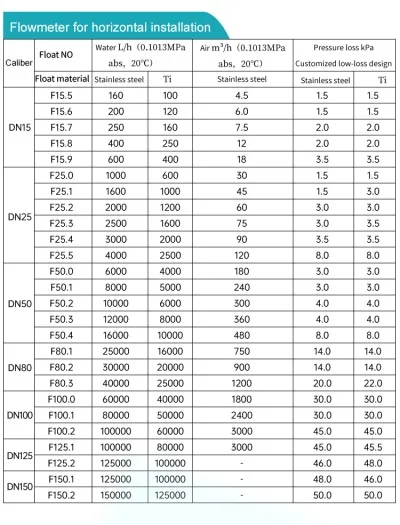

Diagram of Metal Tube Rotameter
