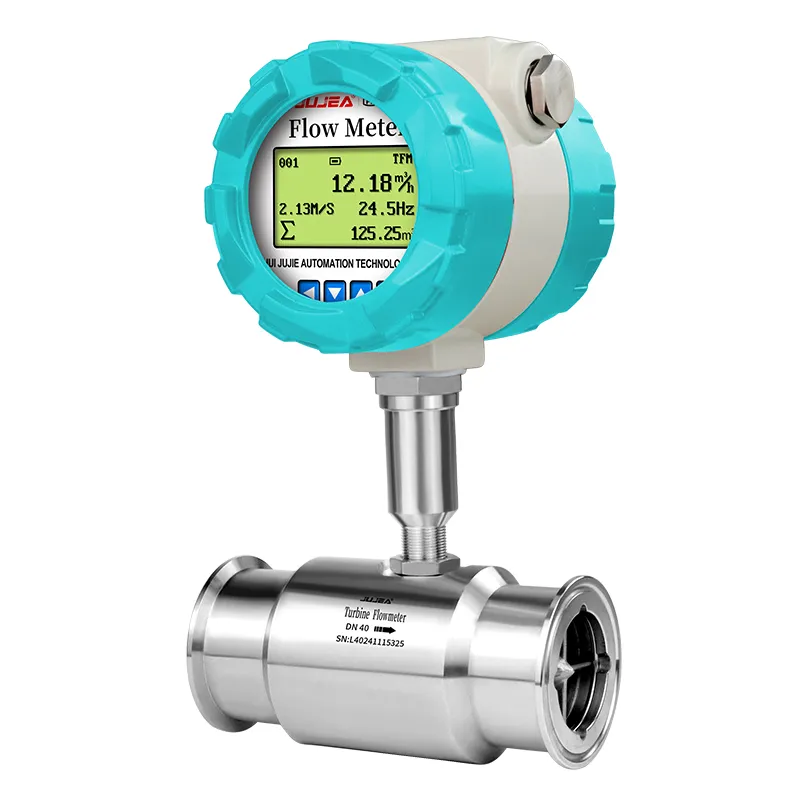

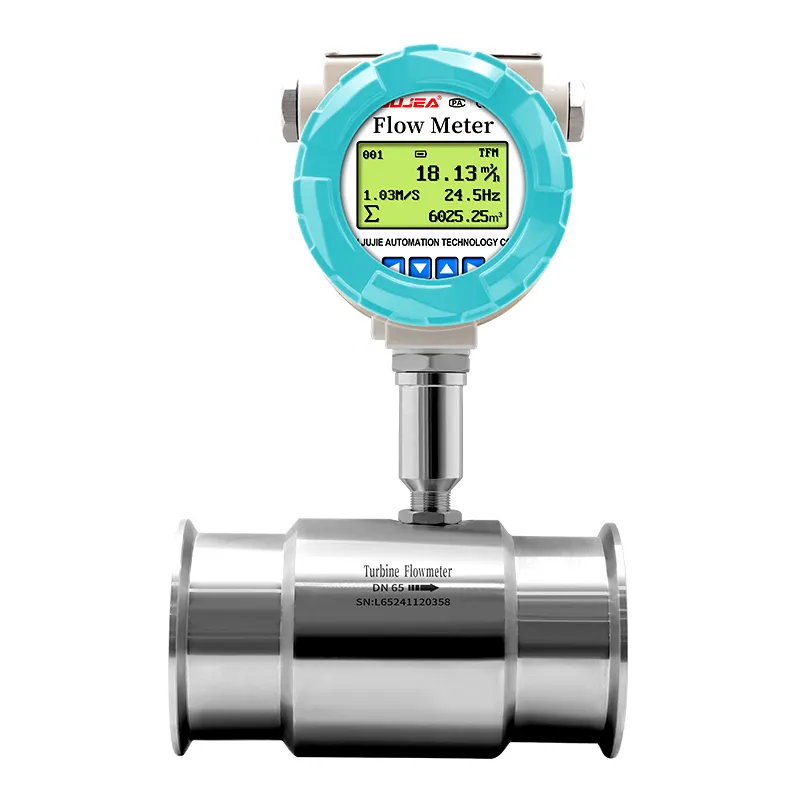

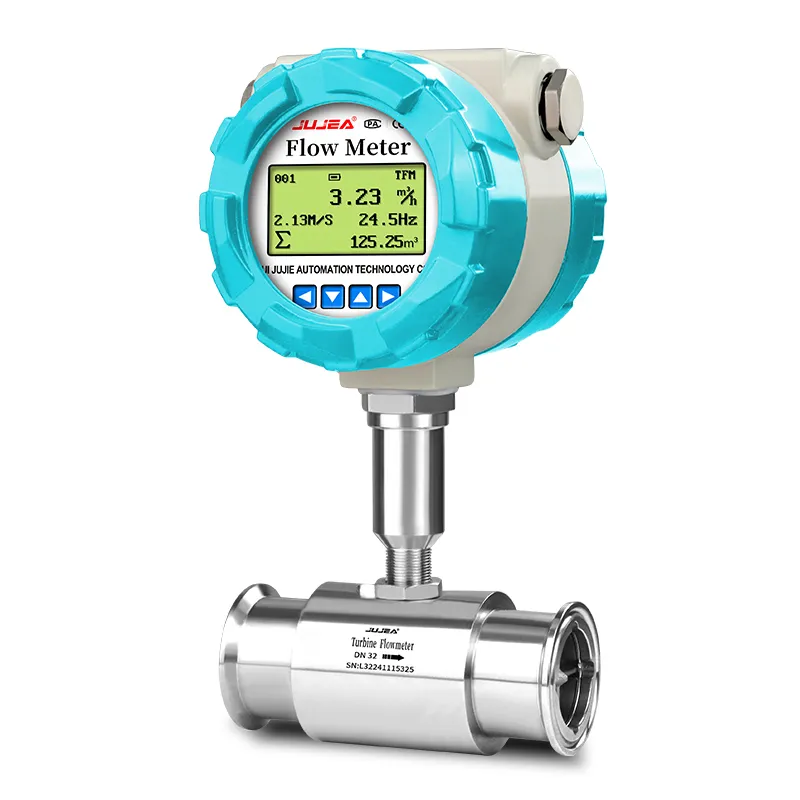

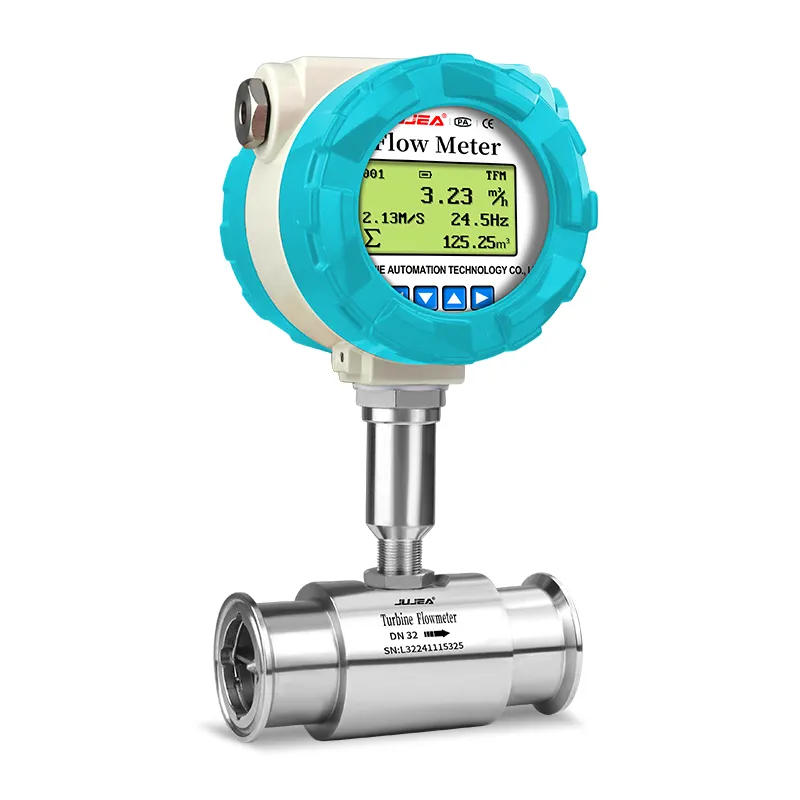

Sanitary turbine flow meters adopt full 316L stainless steel and quick-clamp connections, compliant with food & pharmaceutical hygiene standards. No dead corners, easy CIP/SIP cleaning, with multiple signal outputs for beverage, dairy and biopharmaceutical liquid measurement.
Full 316L stainless steel wetted parts, mirror polishing without dead angles
Tri-clamp sanitary quick connection, easy disassembly & cleaning
Support CIP/SIP in-place sterilization for food, dairy, pharmacy
±0.5% high accuracy, 10:1 wide turndown measuring range
Multiple outputs: pulse, 4-20mA, RS485 Modbus RTU
High-temperature resistant design, medium temp up to 180℃
IP65 waterproof housing, optional explosion-proof version
Small flow DN4~DN80 complete sanitary caliber selection
| Measured Medium | Impurity-free, low-viscosity, non-strongly corrosive liquid | |||
| Execution Standard | Turbine flow sensor (JB/T9246-2016) | |||
| Verification Regulation | Turbine flowmeter (JJG1037-2008) | |||
| Instrument Caliber and Connection Method | Clamp connection type: DN4-DN200; Clamp hoop connection type: DN4-DN100 | |||
| Accuracy Class and Corresponding Repeatability | Accuracy class*1 | ±1%R | ±0.5%R | ±0.2%R (customization required) |
| Repeatability | ≤0.33% | ≤0.17% | ≤0.07% | |
| Range Ratio | 6:1, 10:1, 20:1 | |||
| Verification Conditions | Verification device | Standard meter method liquid flow verification device; Static mass method liquid flow verification device | ||
| Environmental conditions | Ambient temperature: 20℃; Relative humidity: 65% | |||
| Operating Conditions | Medium temperature | Standard: -20℃~80℃; T: -40℃~180℃ | ||
| Ambient temperature | -20℃~60℃ | |||
| Relative humidity | 5%~90% | |||
| Atmospheric pressure | 86Kpa~106Kpa | |||
| Output Function | Signal output | Pulse signal, 4-20mA signal | ||
| Communication output | RS485 communication, HART protocol | |||
| Working Power Supply | External power supply | +24VDC, suitable for 4-20mA output, pulse output, RS485, etc | ||
| Internal power supply | CM0, CM4 (1 set of 3.6V 19Ah lithium battery) | |||
| Signal Line Interface | N type | Hirschmann connector DIN43650 or aviation plug CX165P | ||
| Full series | Metal waterproof buckle internal thread M20×1.5 | |||
| Explosion-proof Grade | ExdIIC T6 Gb | |||
| Protection Grade | IP65 or higher (customizable) | |||
