Turbidity Transmitters

Name: Turbidity Transmitters
Brand: Anhui Jujie Automation Technology Co., LTD.
Availability: InStock

Online turbidity transmitter with LCD display matches turbidity sensors. It offers dual 4-20mA, RS485 and three relays, supporting multi-point calibration for water plant and sewage online monitoring.

Send Mail

Features of Turbidity Transmitters

Large LCD screen, real-time display of turbidity, temperature and equipment running status
Supports multi-point standard calibration and on-site water sample calibration modes
Dual 4-20mA analog outputs + RS485 Modbus RTU digital communication
Three groups of relay outputs for high/low alarm and automatic sensor cleaning control
Hysteresis value adjustable to avoid frequent relay switching
IP65 waterproof host, supports panel, wall and pipe three installation ways
Wide-range AC85~265V / DC9~36V dual universal power supply
Password lock function to prevent unauthorized parameter modification
Adjustable screen brightness, backlight timing and data refresh speed
Built-in historical data storage and query function, compatible with full series turbidity sensors

Specification of Turbidity Transmitters

Measurement Range	Turbidity: 0-200-400-2000-4000 NTU; Temperature: 0-50°C
Display Mode	The LCD displays the concentration value, output current, time and relay status.
Measurement Unit	Turbidity: NTU; Temperature: °C
Resolution rate	Turbidity: 0.01 NTU; Temperature: 0.1°C
Measurement Accuracy	Turbidity: ±1.0% FS; Temperature: ±0.3°C
Reproducibility	±1.0%
Power Consumption	≤3 W
Ambient Temperature	-20 to 50°C; Relative Humidity: ≤90% RH
Analog Output	2 channels of 4-20 mA, load resistance 750 Ω
Switch Output	3-way relay, contact capacity 250 VAC/5 A
Communication Output	Standard configuration: RS485 Modbus RTU
Protection Grade	IP65
Net Weight of the Instrument	0.8 kg
Power Supply	AC 85-265 V±10% or 9-36 VDC
Overall Dimensions	144144118 mm; Opening size: 138*138 mm
Ambient Temperature	-10 to 60°C; Relative Humidity: ≤90% RH; No strong magnetic field interference in the surrounding environment

Diagram of Turbidity Transmitters

Turbidity Transmitters for Silo Level Measurement

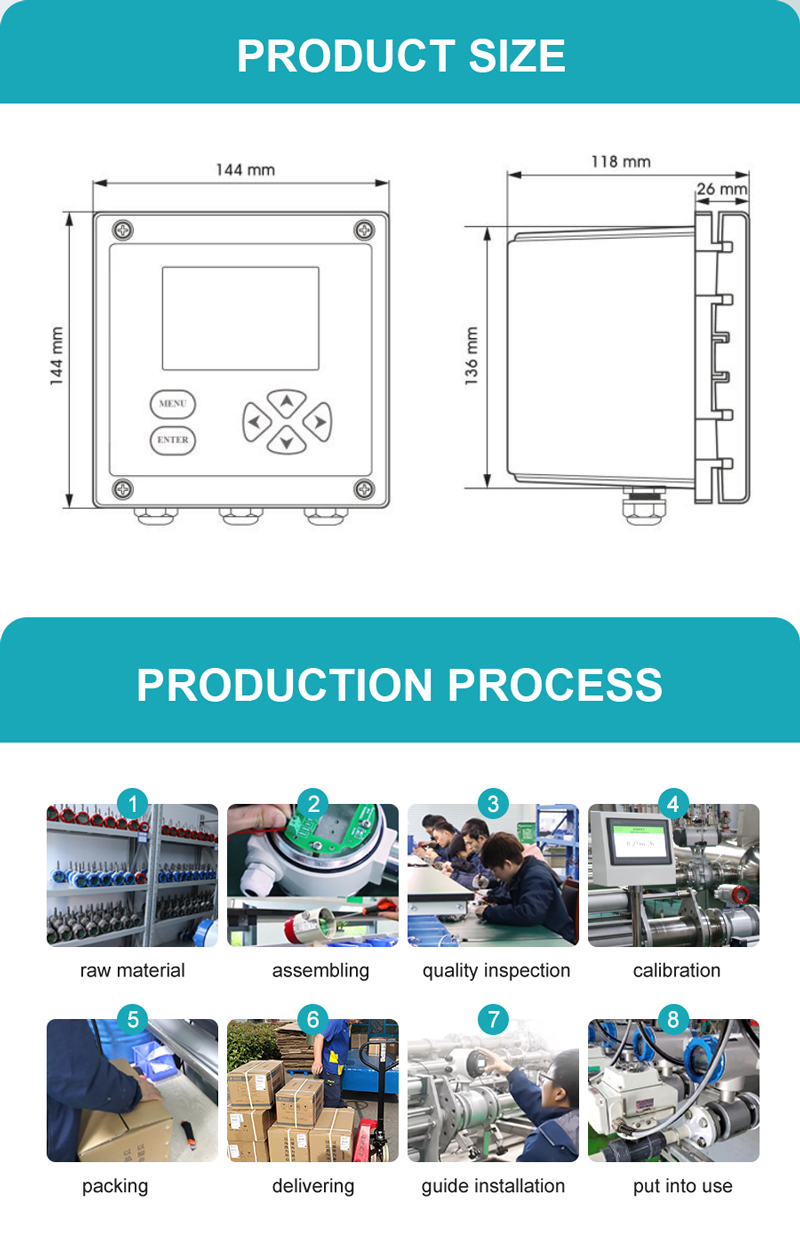

Turbidity Transmitters for Sight Glass Level Measurement
