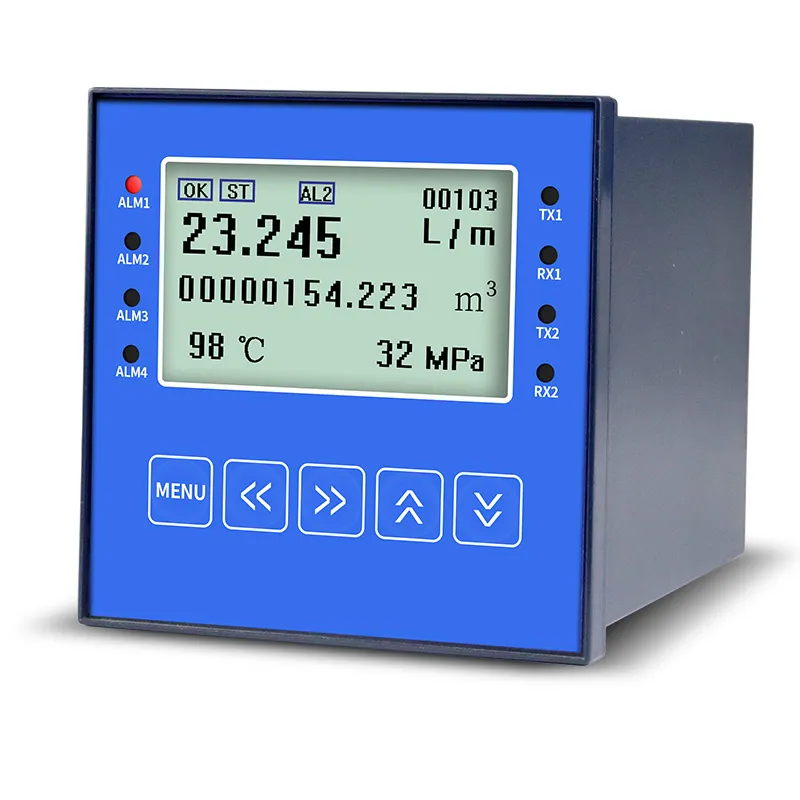

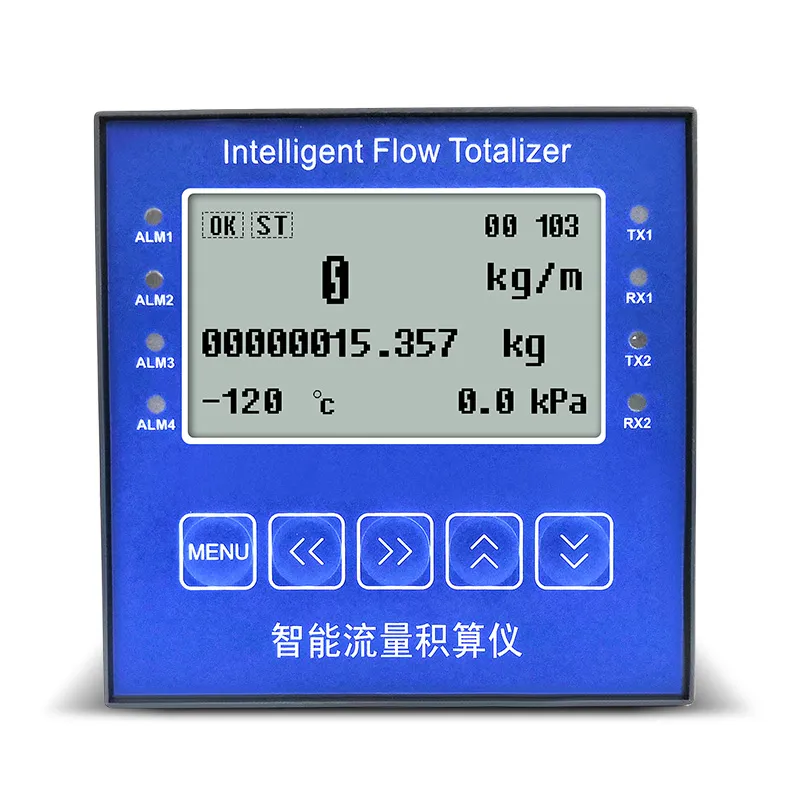

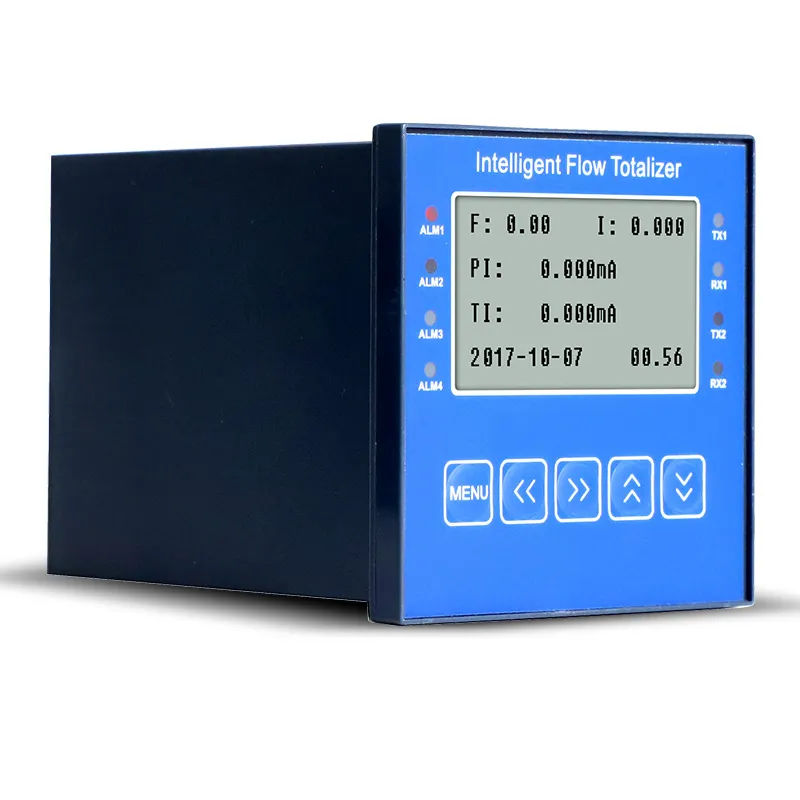

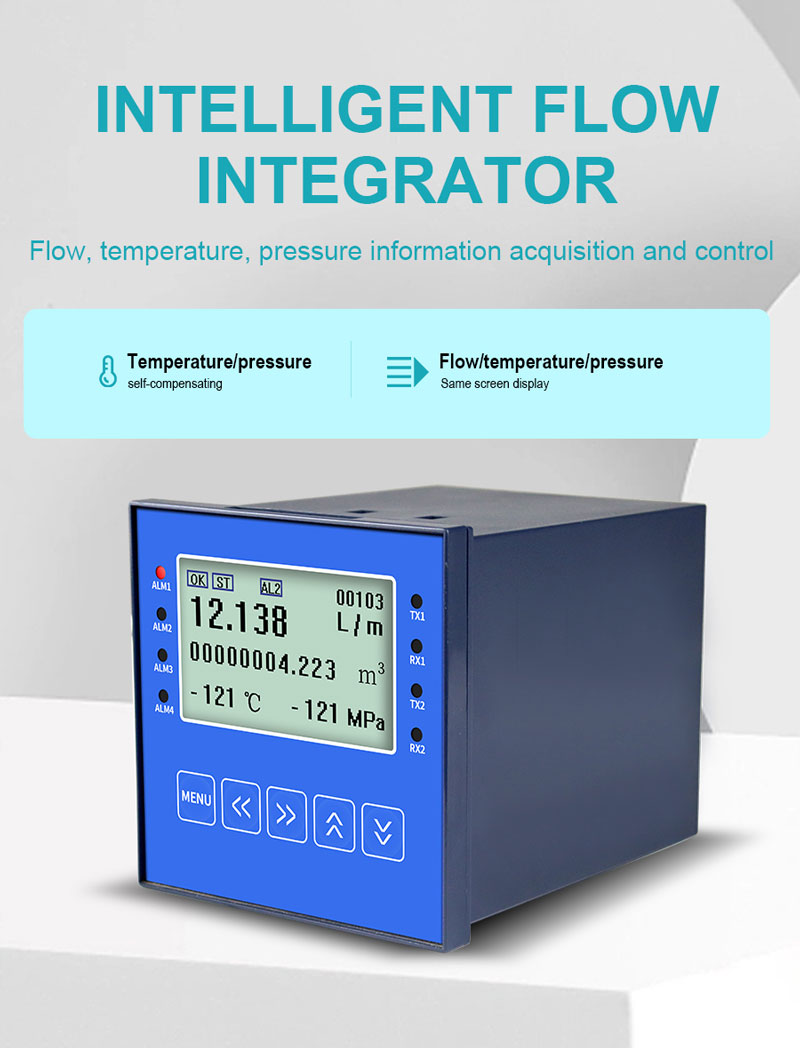

96×96 panel-mounted flow totalizer supports pulse/4-20mA flow and Pt100 signals, with full fluid temperature-pressure compensation. It features USB data export, dual alarm relays and RS485 Modbus for industrial metering settlement.

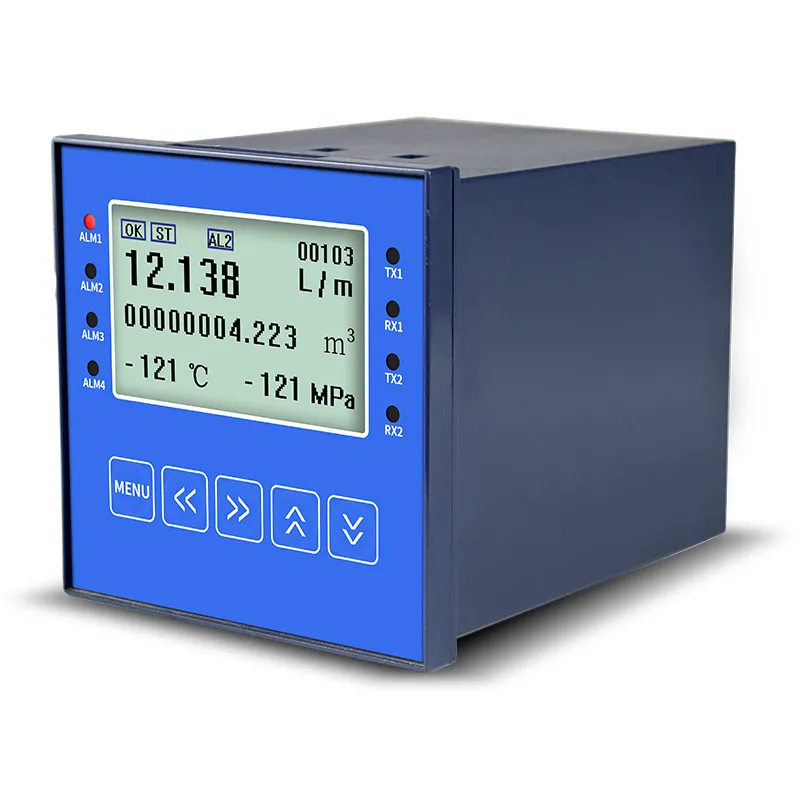

Standard 96×96 embedded panel size, compact body fits common control cabinet installation

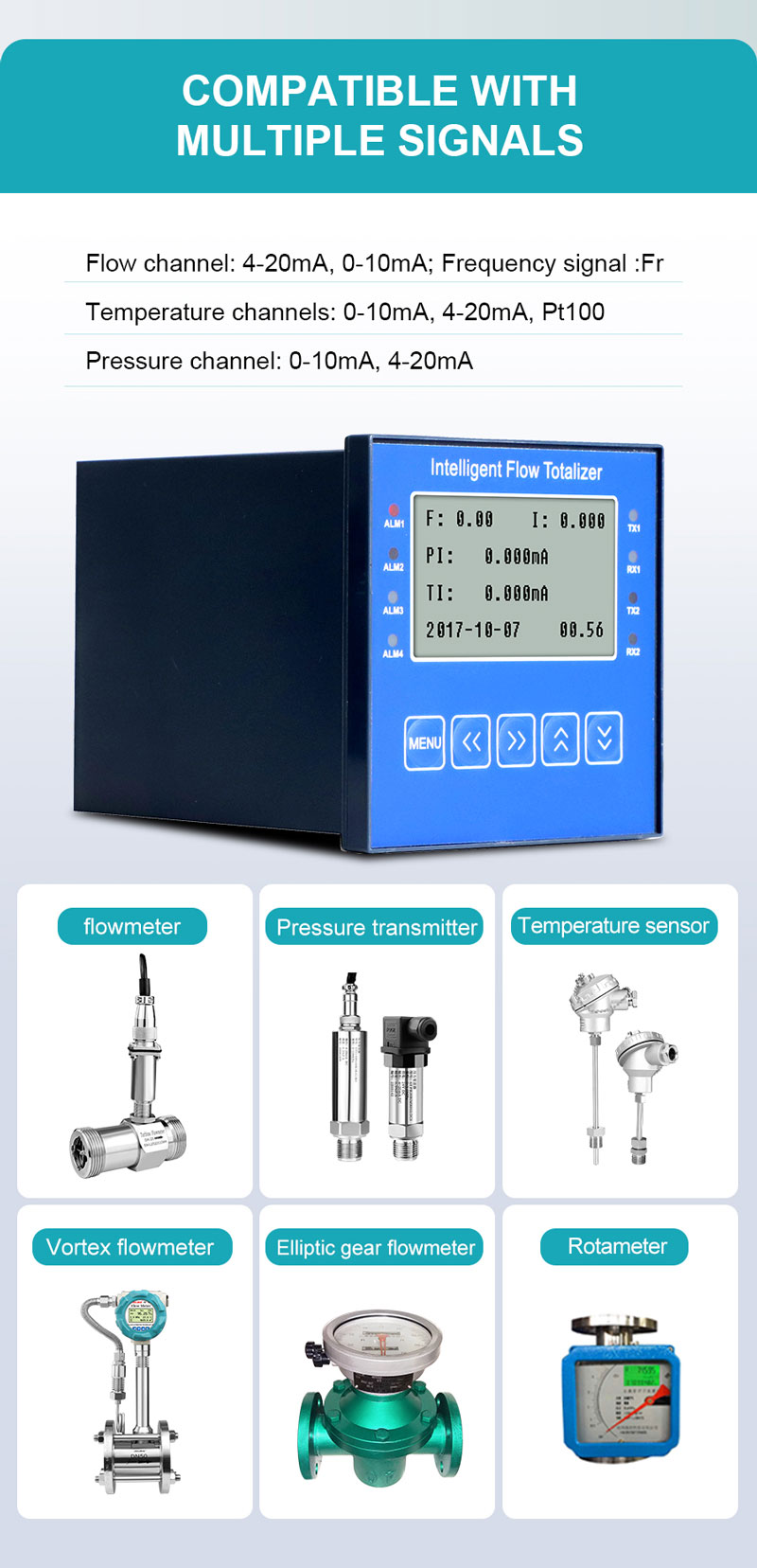

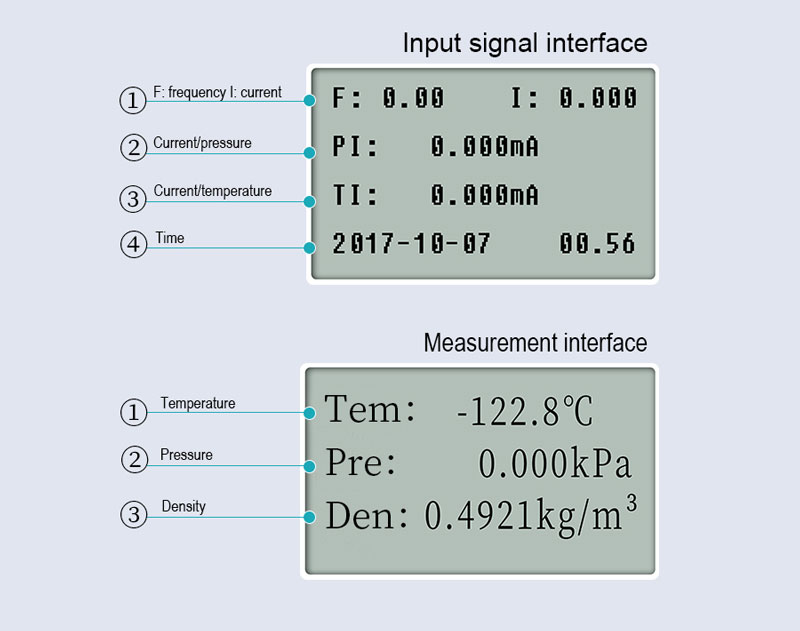

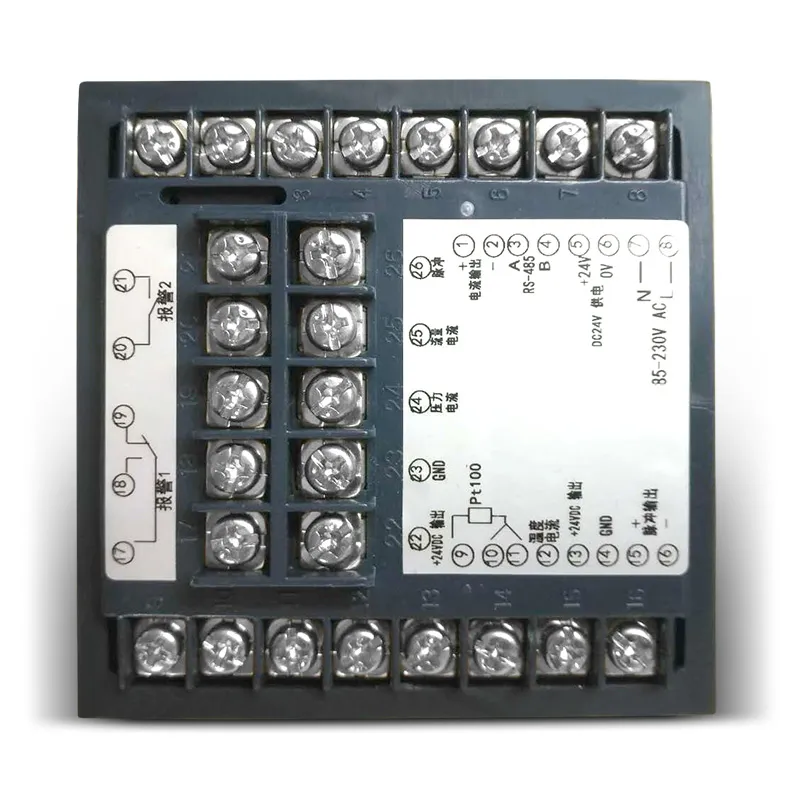

Multi-signal compatible: pulse, 4-20mA flow input, Pt100 / 4-20mA temp & pressure signals

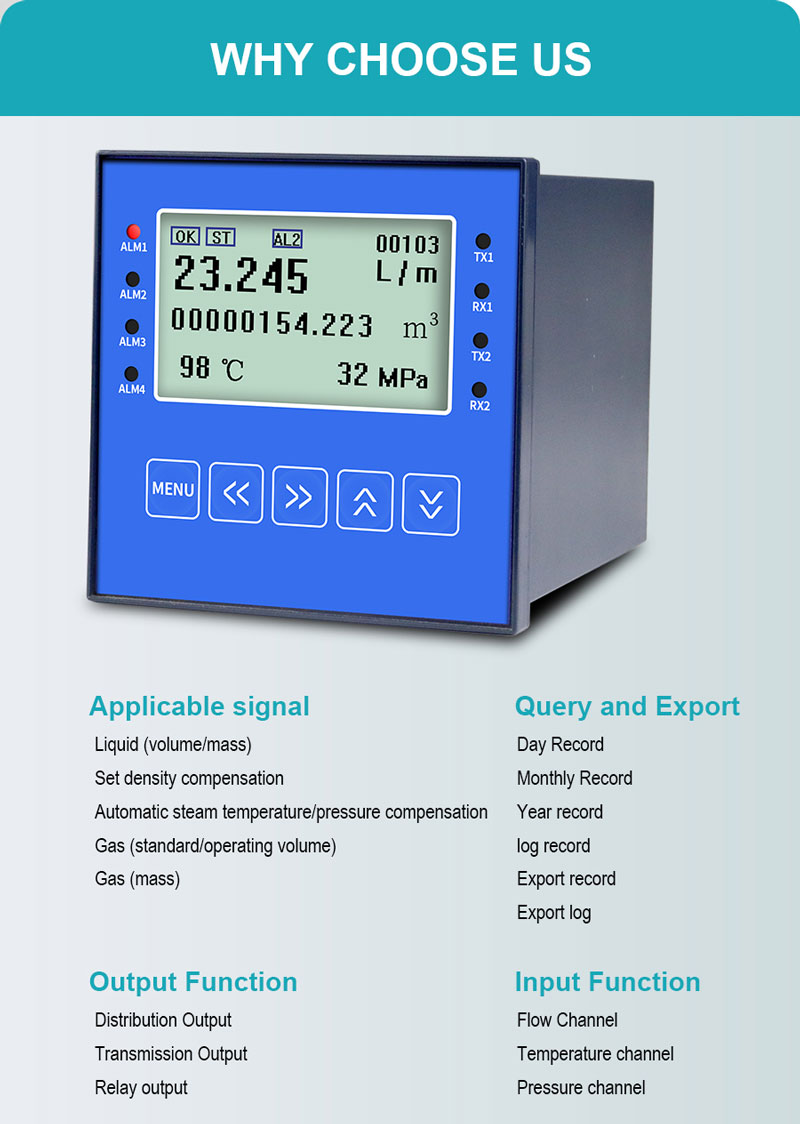

Rich fluid compensation modes: liquid, saturated/superheated steam, general gas, natural gas
Supports all mainstream flowmeters: vortex, turbine, orifice, V-cone, electromagnetic etc.
Dual relay alarm outputs for high/low flow, temperature and pressure abnormal conditions
4-20mA analog retransmission & RS485 Modbus RTU for upper computer linkage
USB interface exports daily/monthly/year flow records as CSV for Excel viewing
Multi-unit switching: m³, L, t, kg, Nm³ to match different measurement scenarios
Built-in complete calibration functions for current, temperature sensor on-site correction
Multi-layer password protection for parameter setting, calibration and data clearing operations
| Channels | Flow/Temperature/Pressure |
| Size | 96*96mm |
| Hole Size | 92*92mm |
| Transport | RS485 Communication and USB |
| Signal Input | Analog input, Thermocouple: K, E, B, J, N, T, S type, Pt100, Pt1000; Current: 0-10mA, 4~20mA; Waveform: Rectangular, sine, triangle wave, Amplitude: Greater than 4V; Frequency: 0~10KHZ |
| Signal Output | Analog output: DC 0~10mA, DC 4~20mA; Communication interface: RS232, RS485, Ethernet; Switching output: Relay switching output AC220V, DC24V; Feed output: DC24V, DC12V |
| Accuracy | 0.2%FS+1d or 0.5%FS+1d; Frequency conversion: +1 pulse (LMS), better than 0.2% |
| Range | Flow rate and compensation: 999999~99999; Cumulative traffic: 0~9999999.999 |

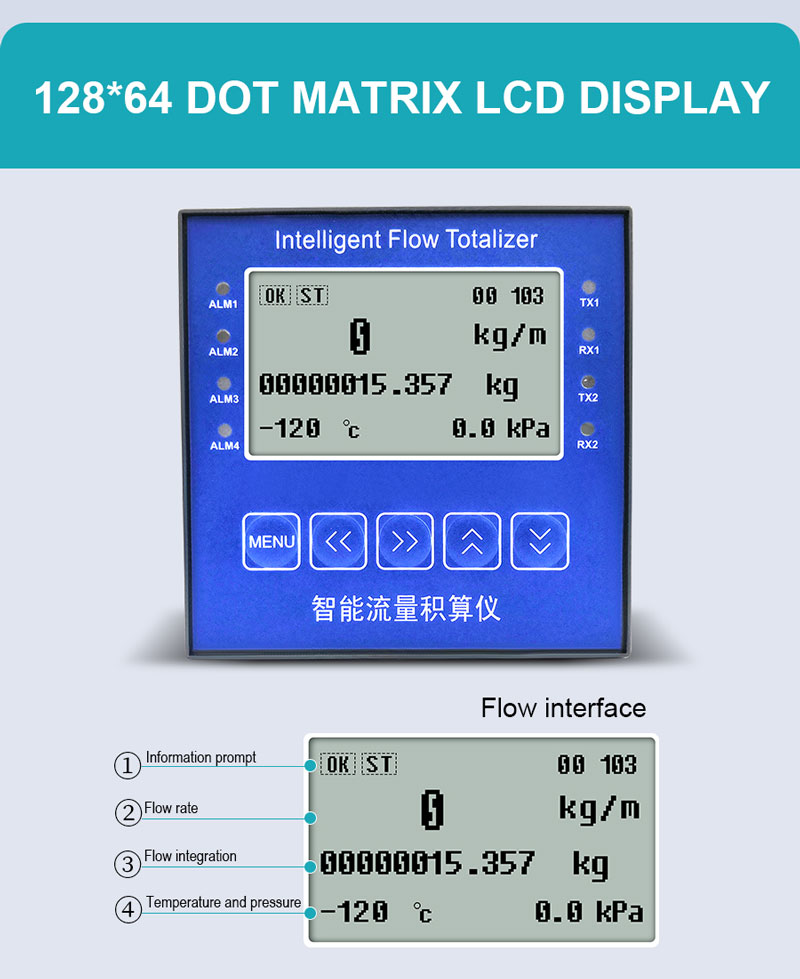

| Display | Backlit 128*64 dot matrix LCD display |
| Alarm | Alarm output, LCD and LED output indication; With relay control (alarm); Alarm type: Flow, temperature, pressure upper and lower limits |
| Printer | Print to serial thermal printer via RS232 interface, up to 8 times a day |
| Power | 220VAC, 24VDC; Backup battery: +12V, 20AH, works about 72 hours |
| Consumption | ≤10W |
| Protection | Data save after power failure; Automatic reset when working abnormality, self-recovery fuse; Ambient temperature: -20~60℃; Relative humidity: ≤85%RH (no condensation), important data protection |
