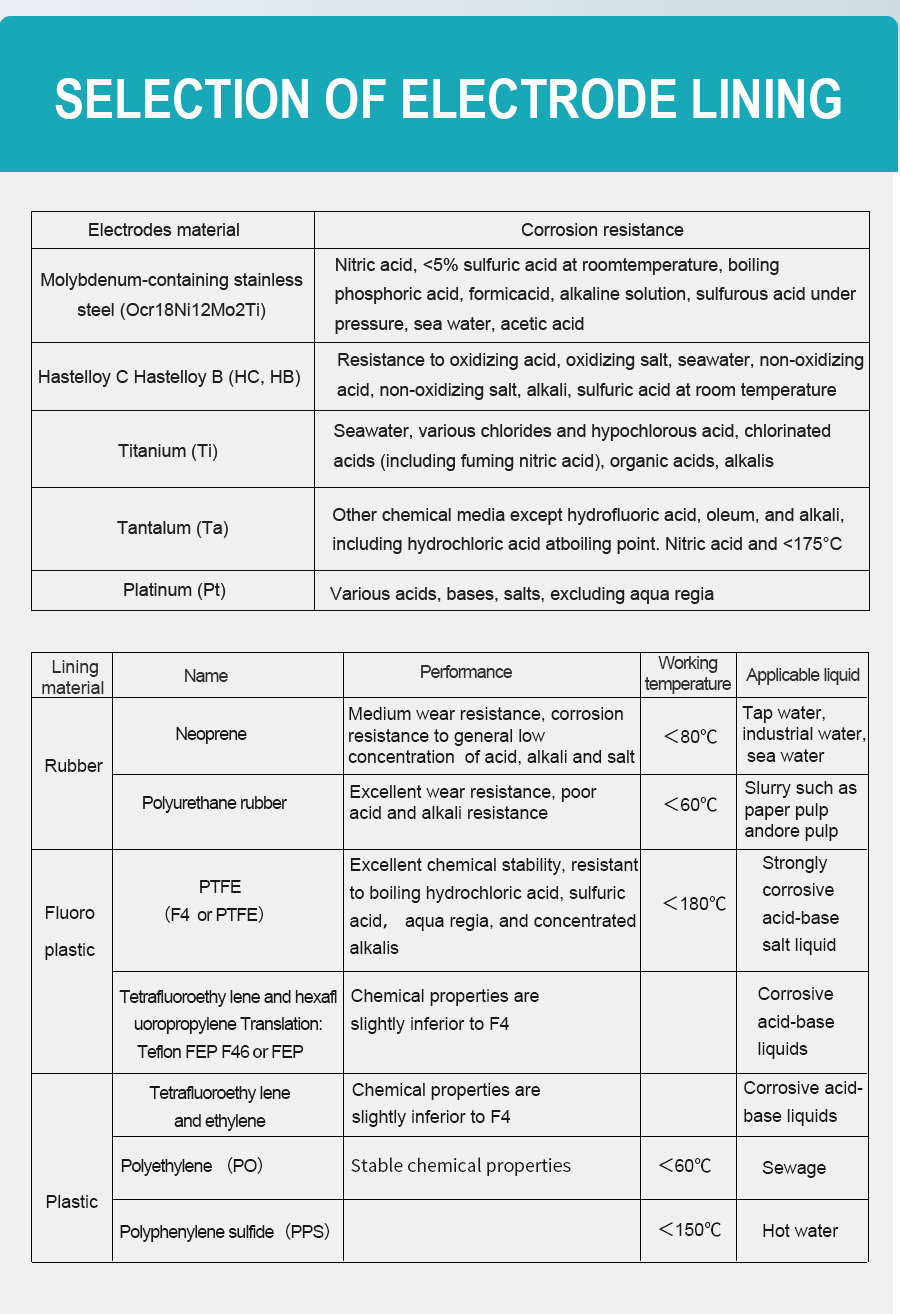

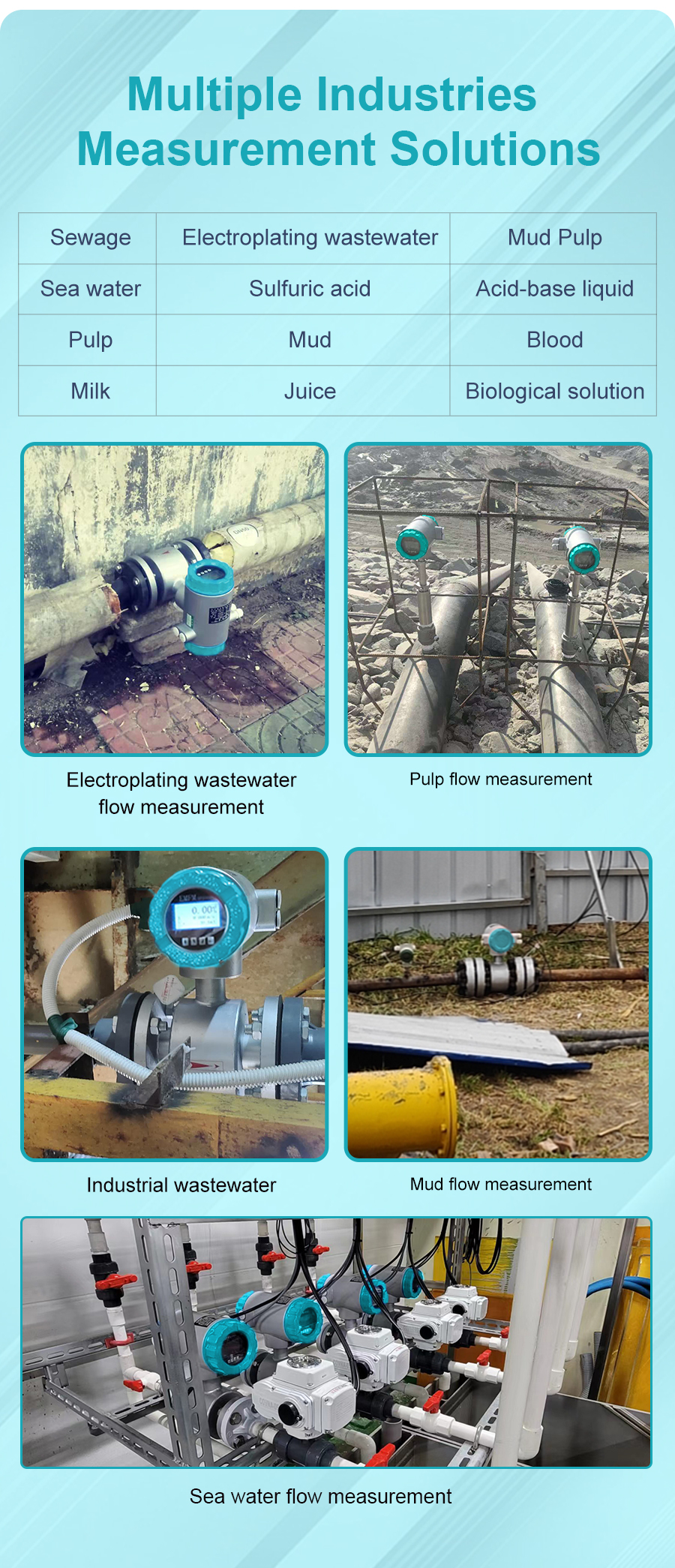

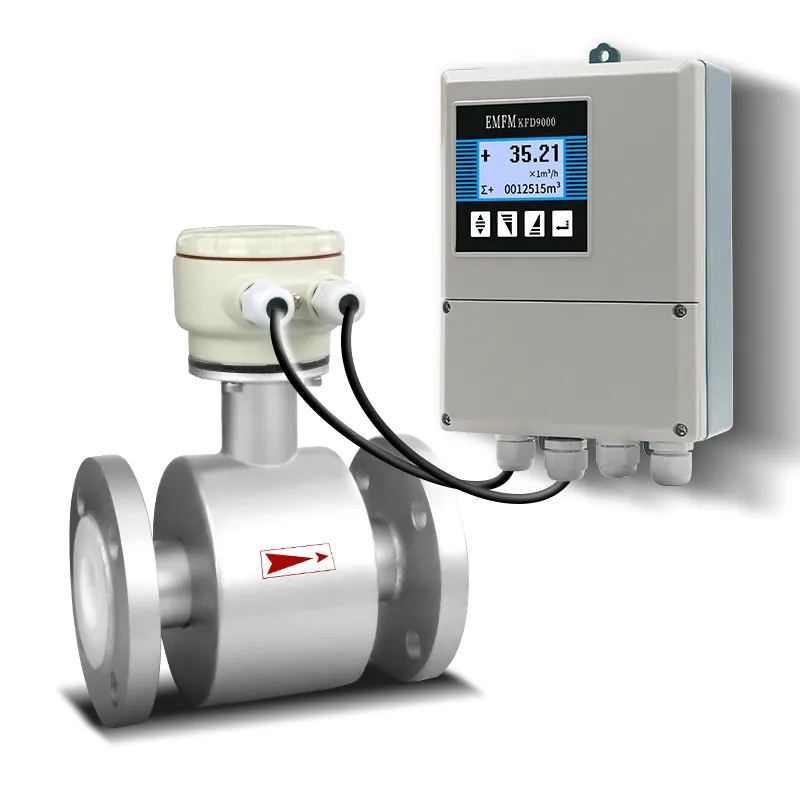

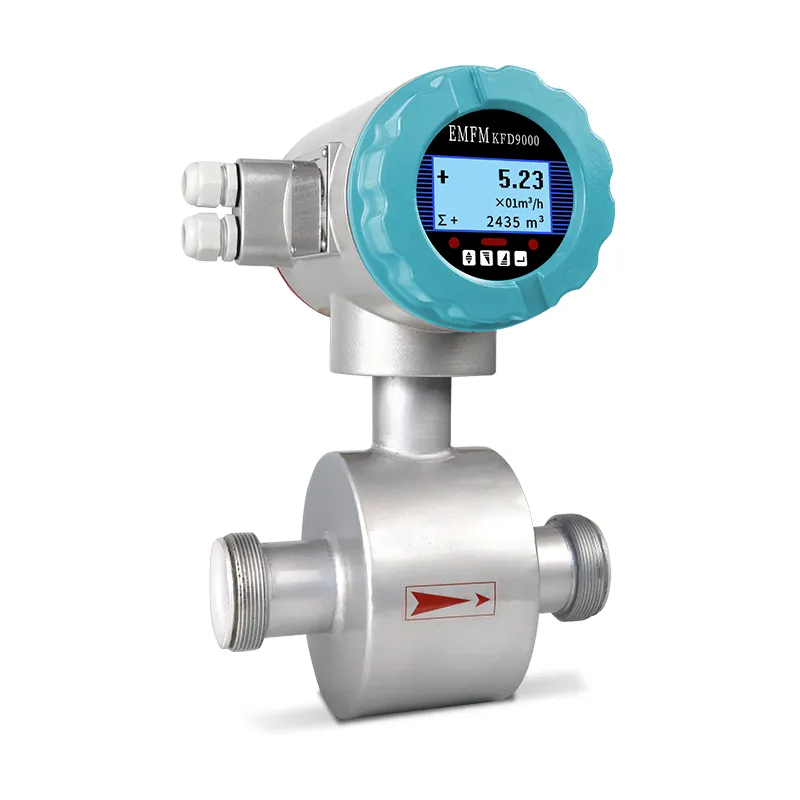

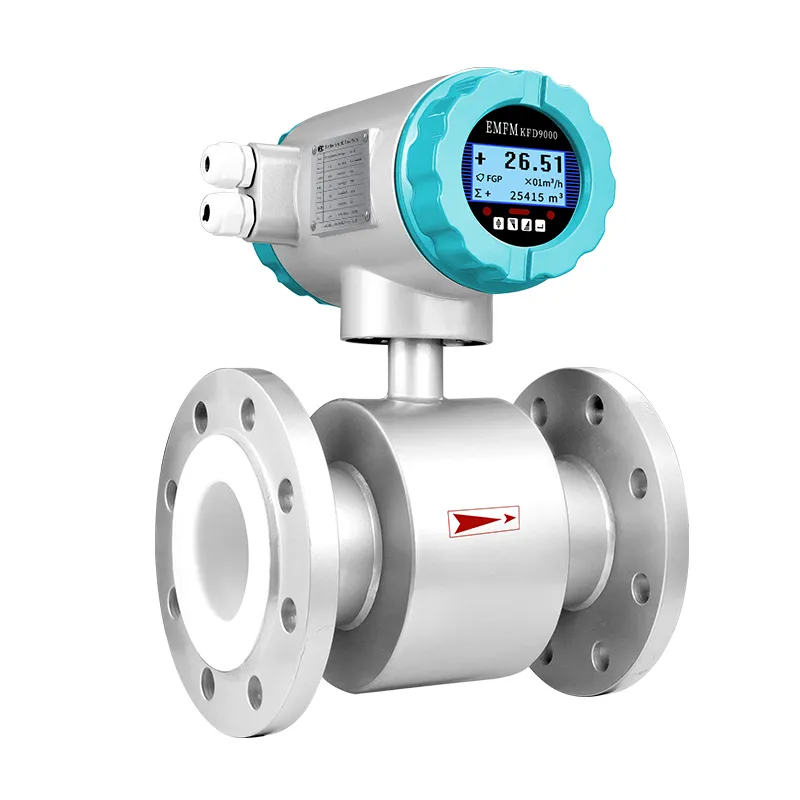

This electromagnetic flowmeter accurately measures all conductive liquids including acid, alkali slurry and sanitary fluid. Equipped with PTFE lining and HC/SS316l electrodes, it features zero pressure loss and bidirectional measurement, widely used in chemical wastewater, food beverage and environmental protection pipeline metering.
Zero pressure loss, no flow obstruction inside the tube
Supports bidirectional flow measurement
Strong resistance to acid, alkali and corrosion liquid
4-20mA, pulse, Hart and RS485 Modbus for industrial automation.

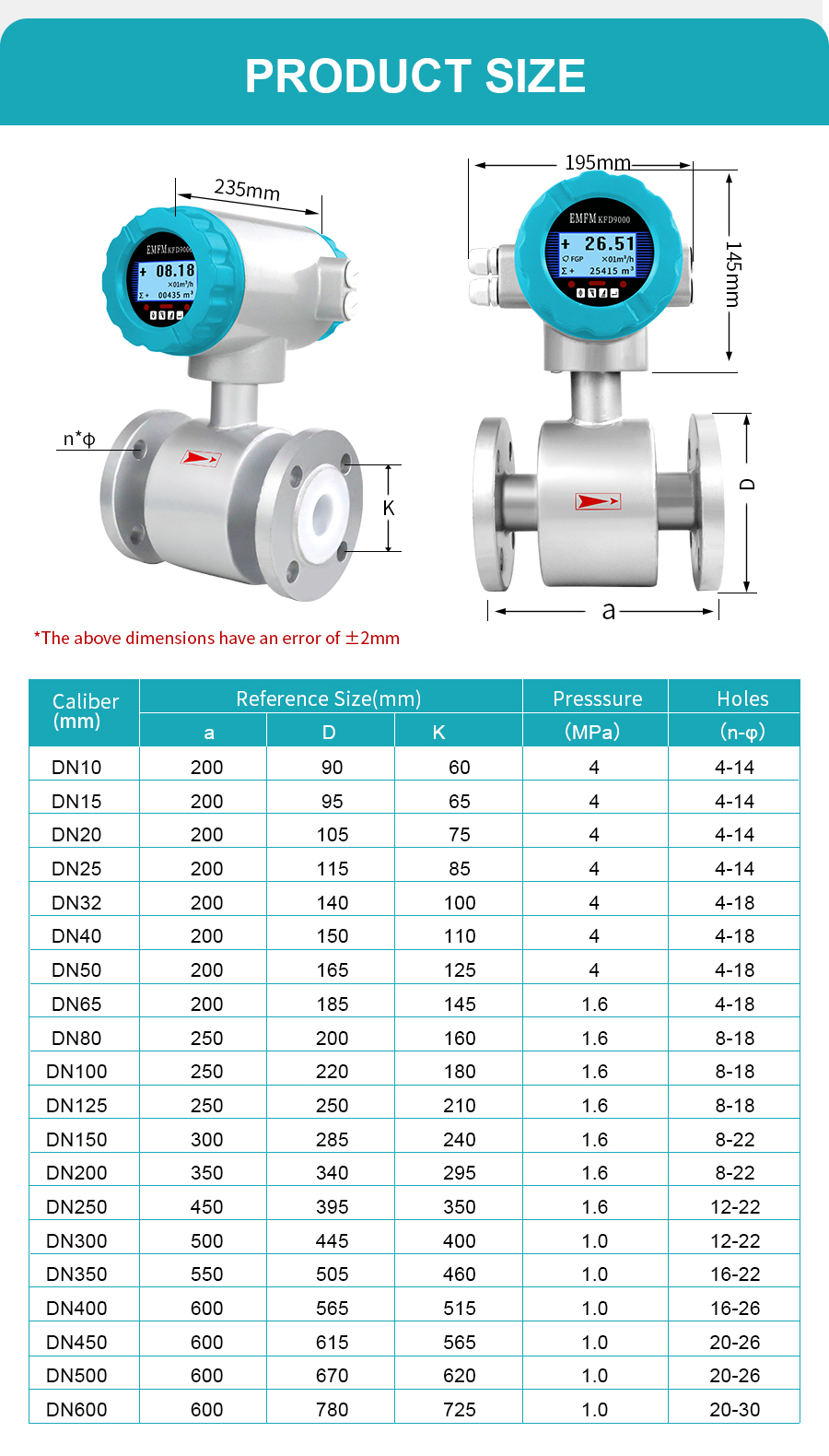

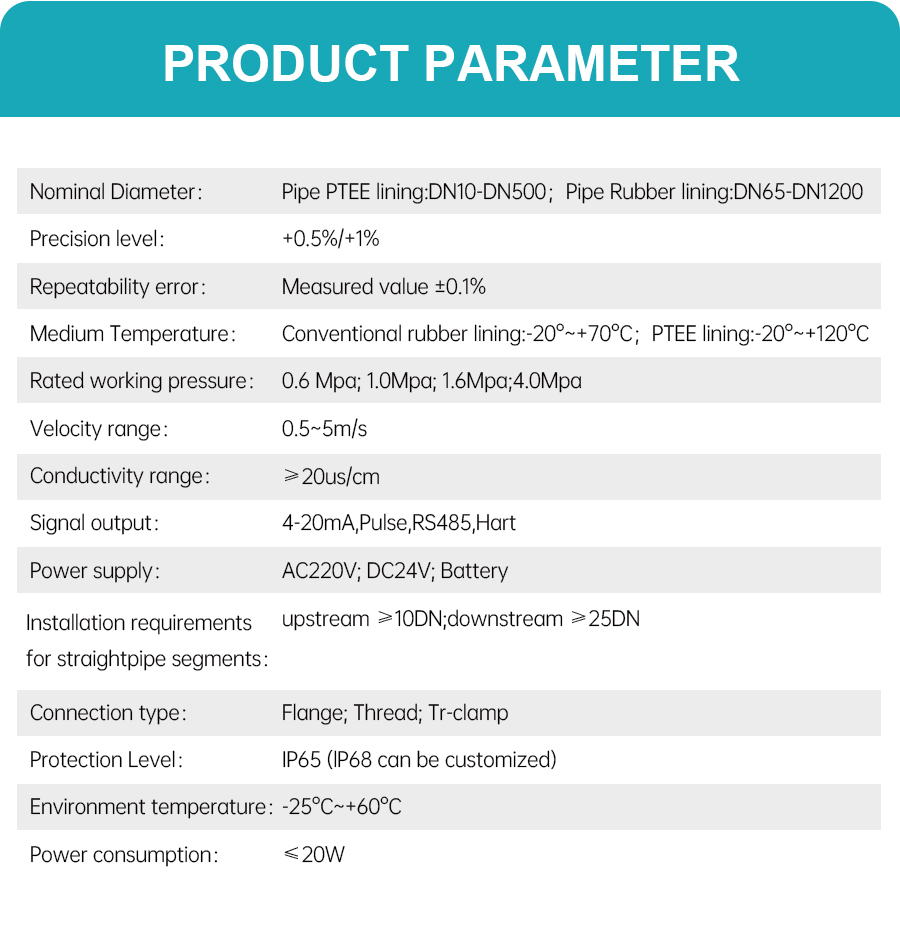

| Nominal Diameter (mm) | Pipe type with PTFE lining: DN10 ~ DN500; Pipe type with rubber lining: DN65 ~ DN1200 |
| Accuracy Class | Class 0.5; Class 1.0 |
| Medium Temperature | Ordinary rubber lining: -20 ~ +70℃; PTFE lining: -20 ~ +120℃ |
| Pressure Class | 0.6MPa, 1.0MPa, 1.6MPa, 4.0MPa (higher pressure can be customized) |

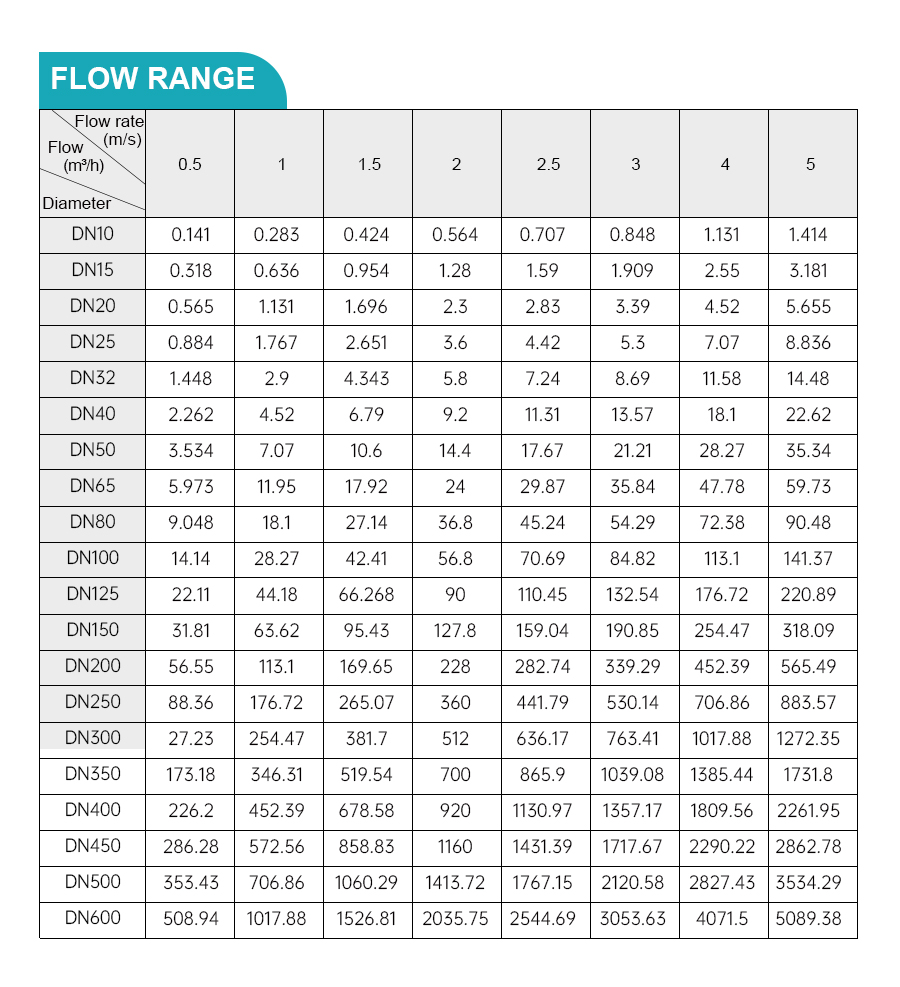

| Flow Measurement Range | The flow measurement range corresponds to a flow velocity range of 0.5～5m/s |
| Conductivity Range | Fluid conductivity ≥50μs/cm, the conductivity of water is in the range of 200-800μs/cm |
| Signal Output | Pulse, 4-20mA, RS485 |
| Digital Frequency Output | The frequency can be set within 1-5000Hz, the maximum collector current is 250mA when the external power supply ≤35V is turned on |
| Power Supply | 220V, DC24V; Battery power supply |

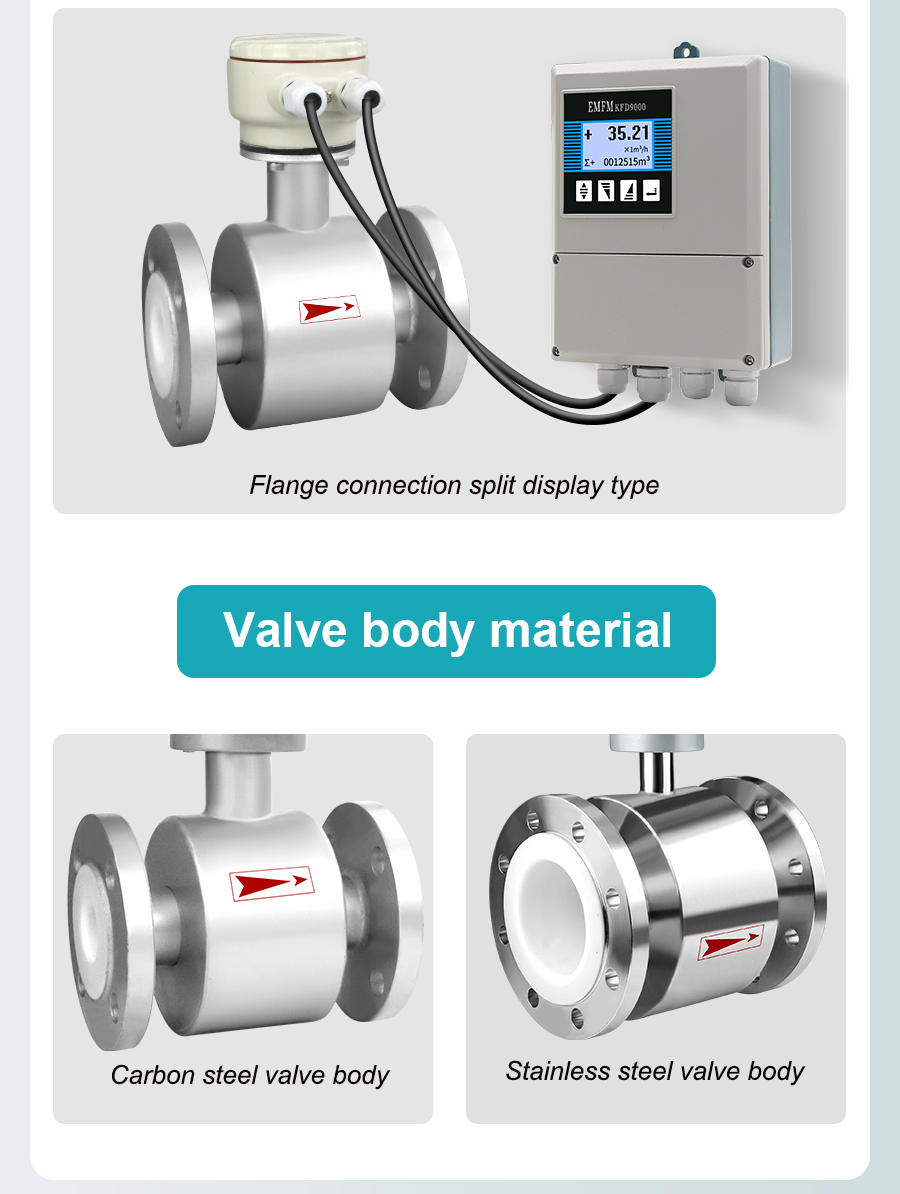

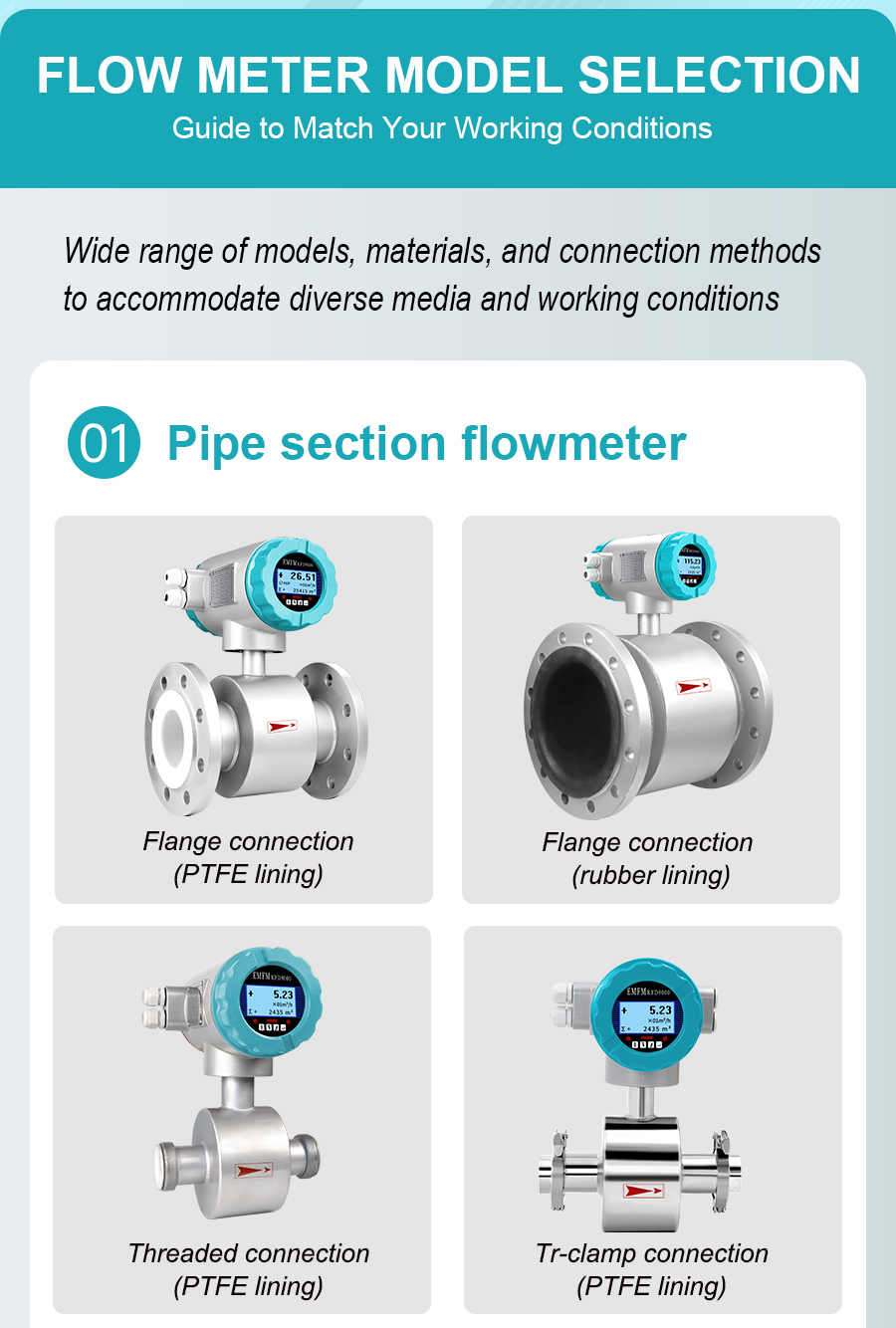

| Connection Method | Flange, thread, clamp |
| Explosion-proof Mark | Ex db mb IIC T6 Gb |
| Ambient Temperature and Humidity | -25℃ ~ +60℃; 5%RH～95%RH |
| Total Power Consumption | <20W |
