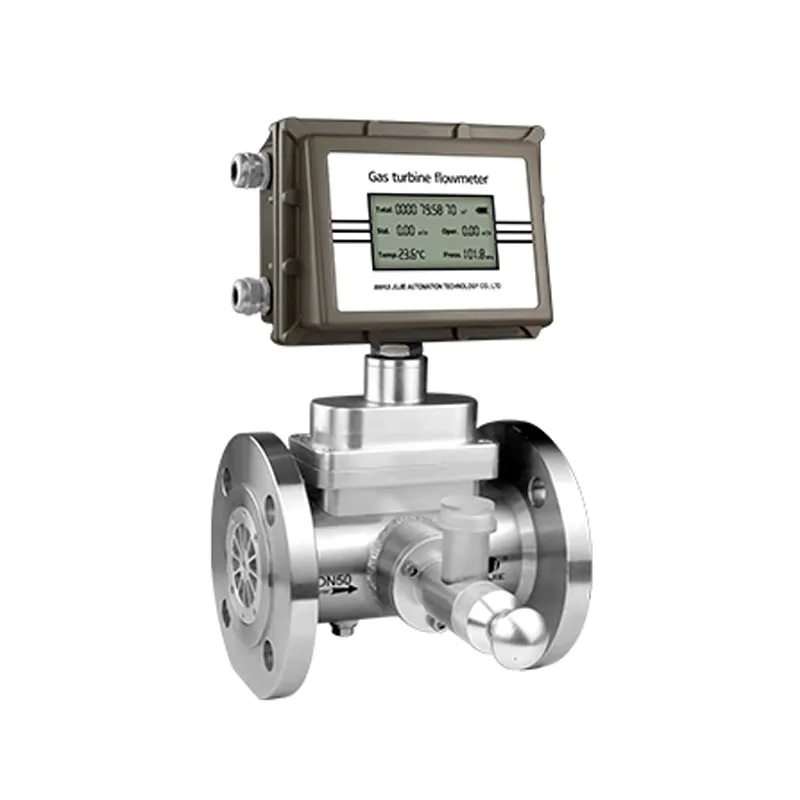

This integrated T&P compensated gas turbine flowmeter adopts turbine rotation sensing, automatically converts working flow to standard volume. Stainless steel body with multi outputs, ideal for natural gas, compressed air and industrial gas trade metering.
Built-in temperature & pressure auto compensation, direct standard gas volume output
High precision up to 1.0 grade, excellent repeatability for gas trade settlement
Integrated rectifier structure, stable flow field, low pressure loss
304 stainless measuring tube, aluminum alloy anti-wear turbine impeller
Multiple signal outputs: pulse, 4-20mA, RS485 Modbus, IC card interface
Large LCD screen, displays instantaneous, daily and total standard gas flow
ExdⅡCT6 explosion-proof & IP65 protection for hazardous gas sites
Multi-point linear correction function, easy on-site parameter calibration
Password lock to prevent unauthorized data modification
| Accuracy Class | Class 1.0, Class 1.5 |
| Meter Material | 304 stainless steel or aluminum alloy |
| Medium Temperature | -20℃ ~ +80℃ |
| Operating Conditions | Ambient temperature: -30 ~ +60℃; Relative humidity: 5 ~ 95%; Atmospheric pressure: 86kPa ~ 106kPa |
| Power Supply | 3.6V lithium battery, 24VDC |
| Connection | Flange connection / Thread connection |
| Signal Output | Pulse signal, 4-20mA current signal, RS485 communication |
| Explosion-proof Grade | Ex db IIC T6 Gb |
| Protection Grade | IP65 |
| Pressure Rating | 1.6MPa (standard), 2.5MPa, 4.0MPa, 6.3MPa |
