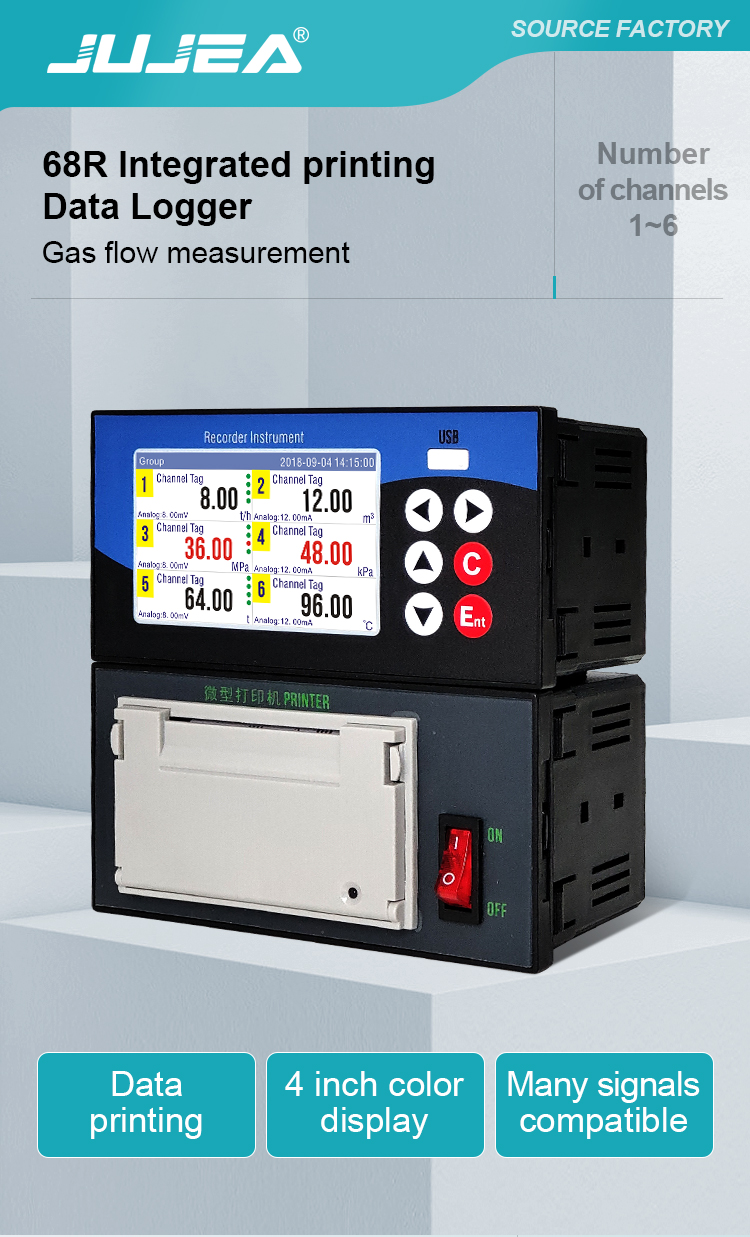

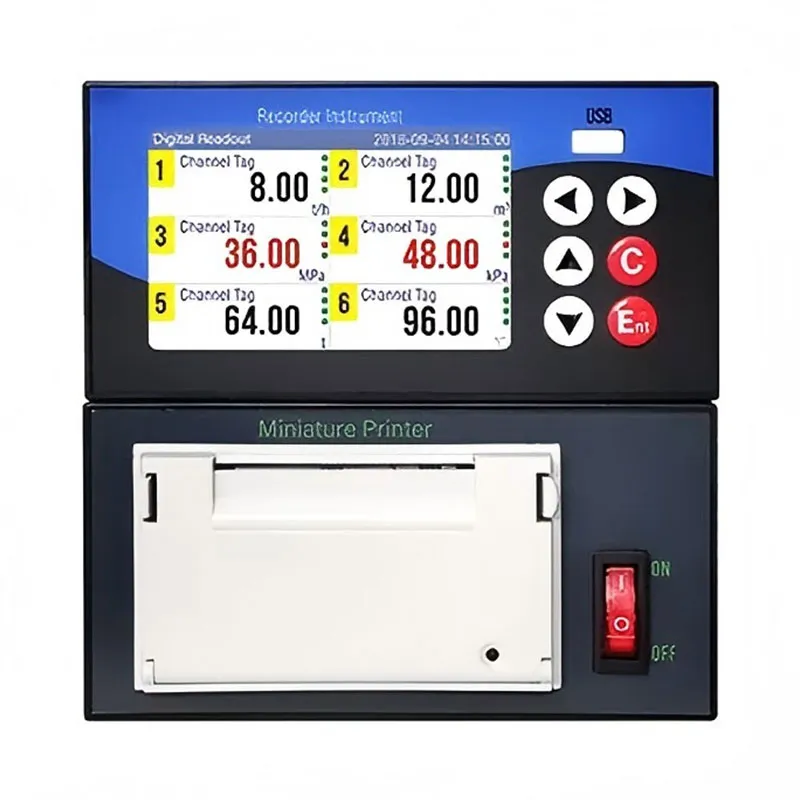

GT68PR Data Logger

Name: GT68PR Data Logger
Brand: Anhui Jujie Automation Technology Co., LTD.
Availability: InStock

GT68PR integrated printing data logger adopts 6 isolated universal input channels, 4-inch color LCD, built-in ribbon printer, supports curve/data print, USB backup, Modbus communication for industrial temperature pressure recording.

Send Mail

Features of GT68PR Data Logger

Built-in integrated ribbon micro printer, supporting data list & real-time curve two printing modes

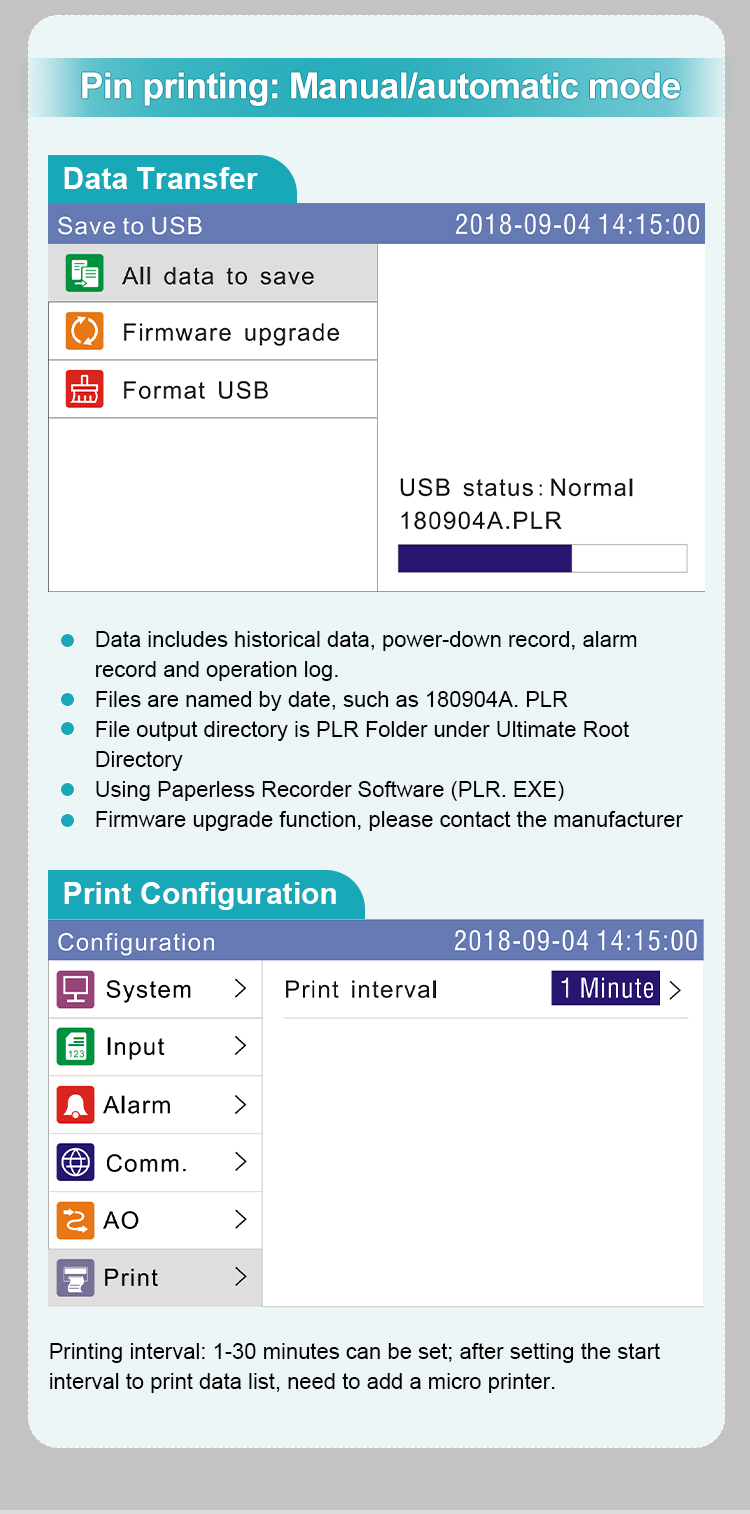

Custom print parameters: adjustable print interval, editable channel tags, project title and time stamp
Support automatic timed printing and manual selective printing of historical data segments

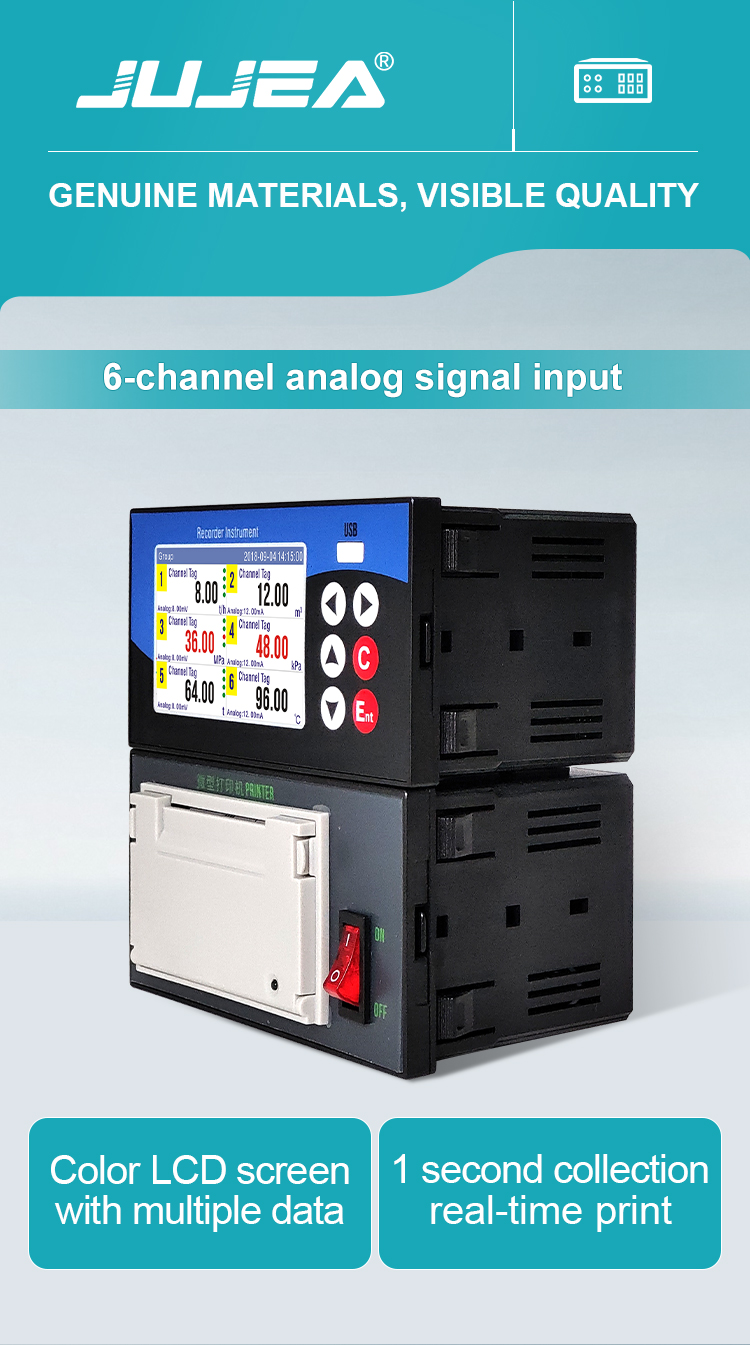

Six fully isolated universal signal channels, compatible with TC, Pt100, 4-20mA and voltage signals

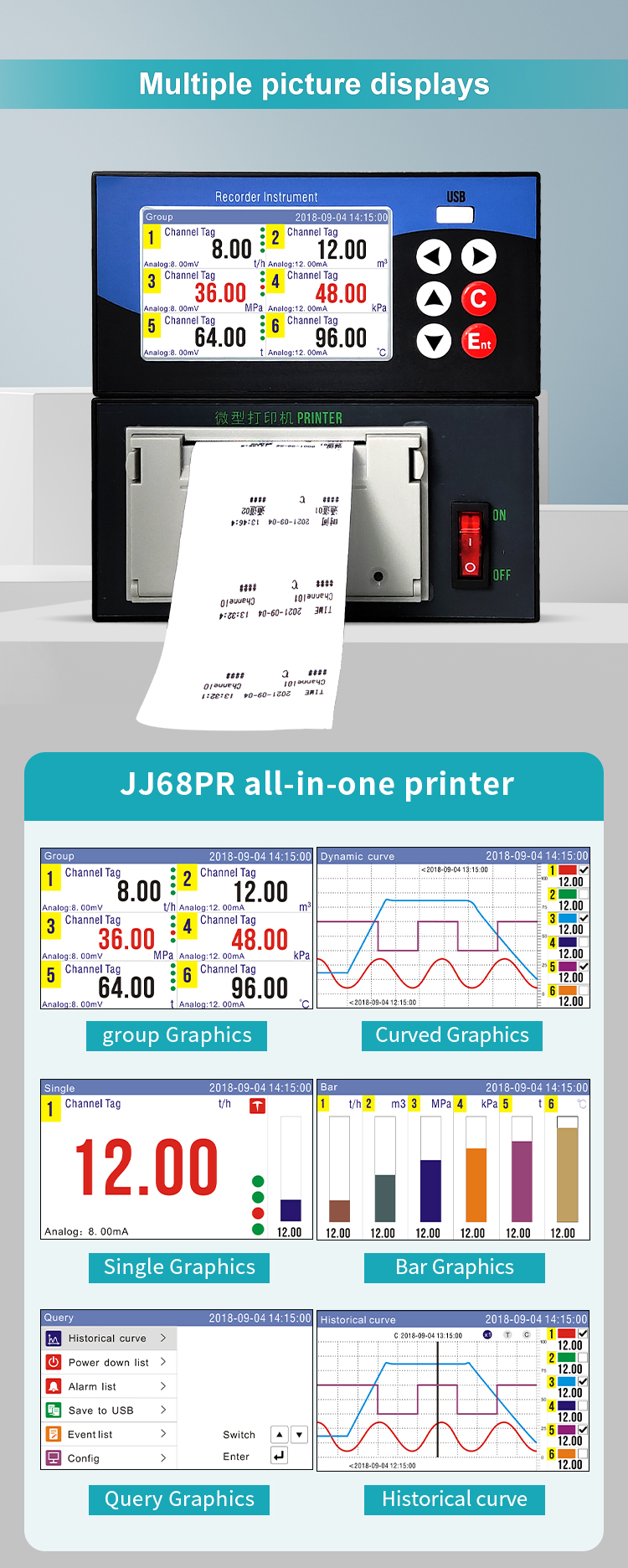

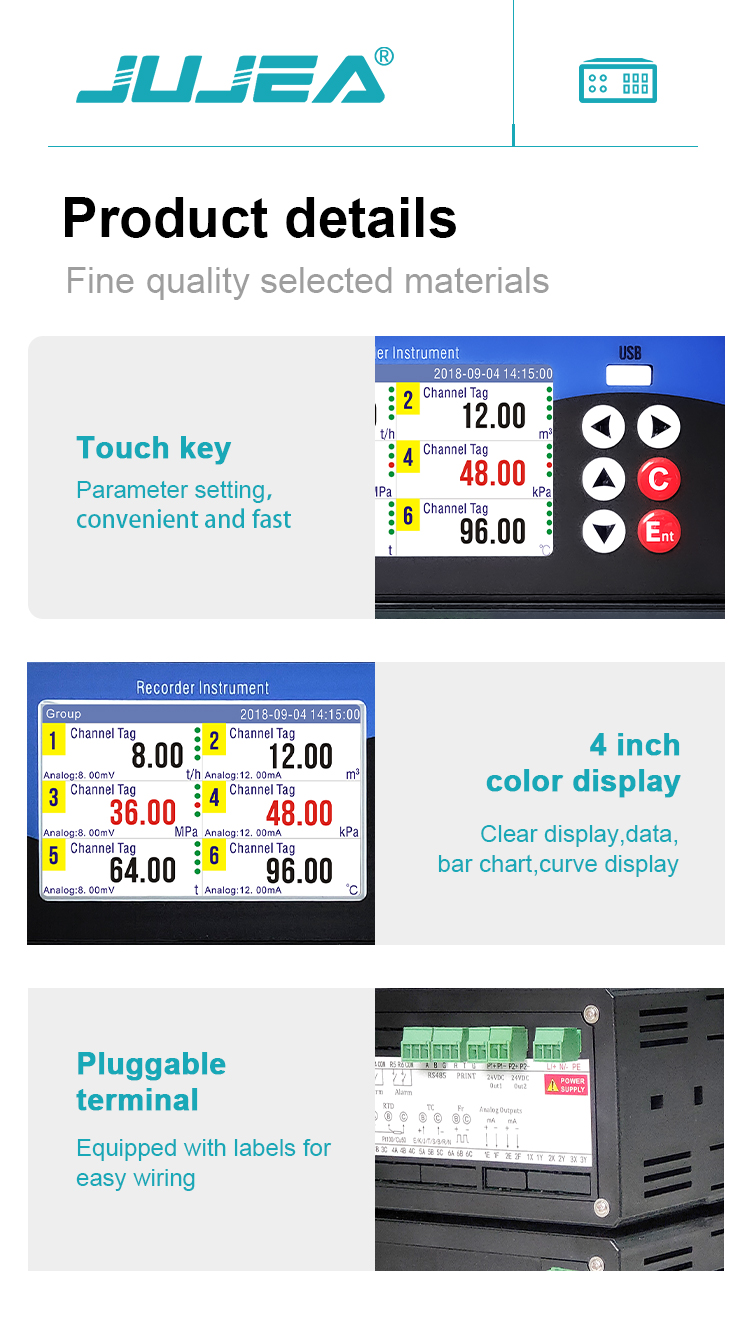

4-inch color multi-view LCD: digital grouping, single value, bar chart and real-time curve display
Large 128Mb storage, stores 900,000 measurement records plus alarm/power-off logs

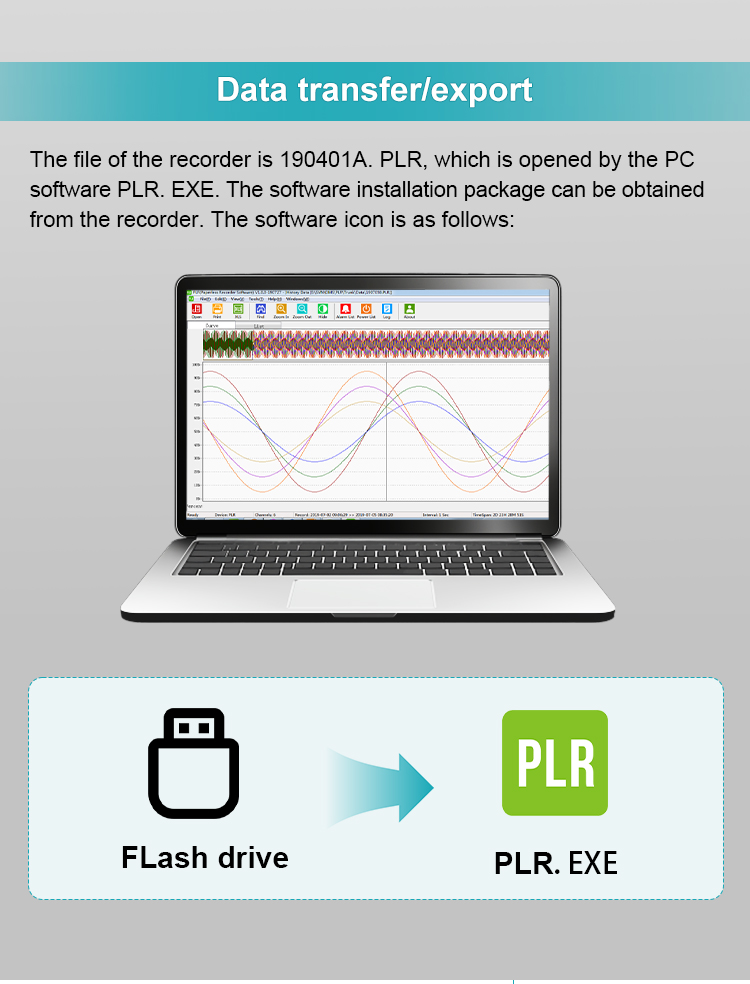

USB one-click data export to U disk, files readable by matching PC analysis software
Multiple communication: RS485 Modbus RTU + RJ45 Ethernet for upper system interconnection

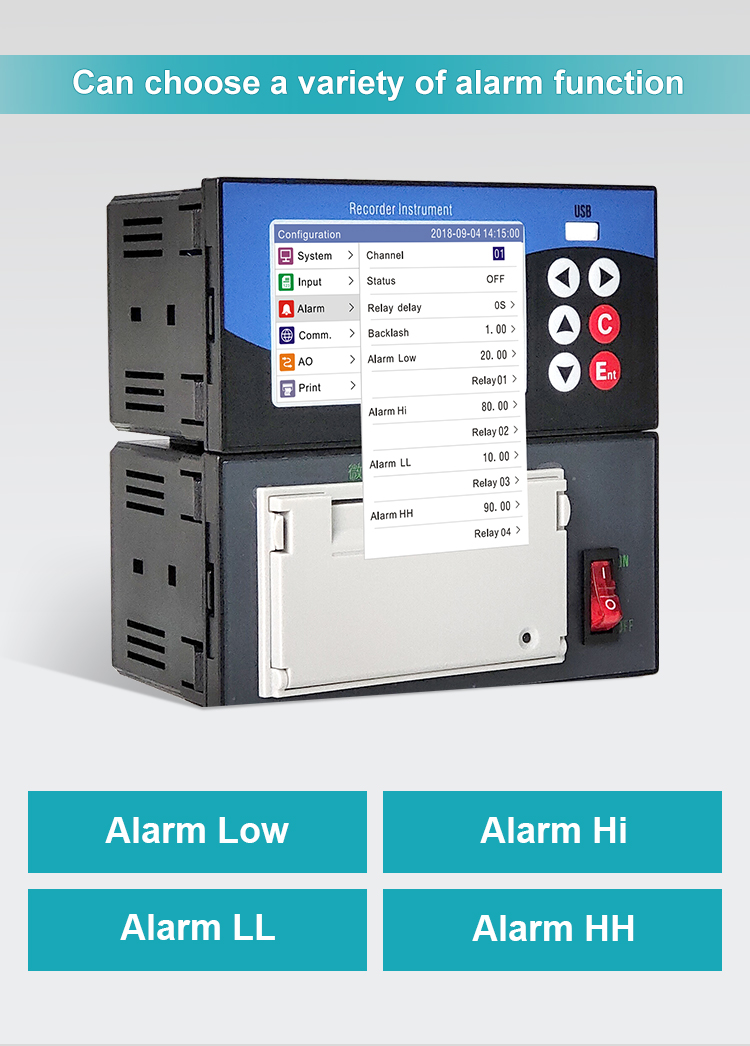

Six relay alarm contacts and dual 4-20mA retransmission outputs for field linkage control
Standard 152×157 panel cutout, dual AC/DC wide power supply for cabinet embedded installation

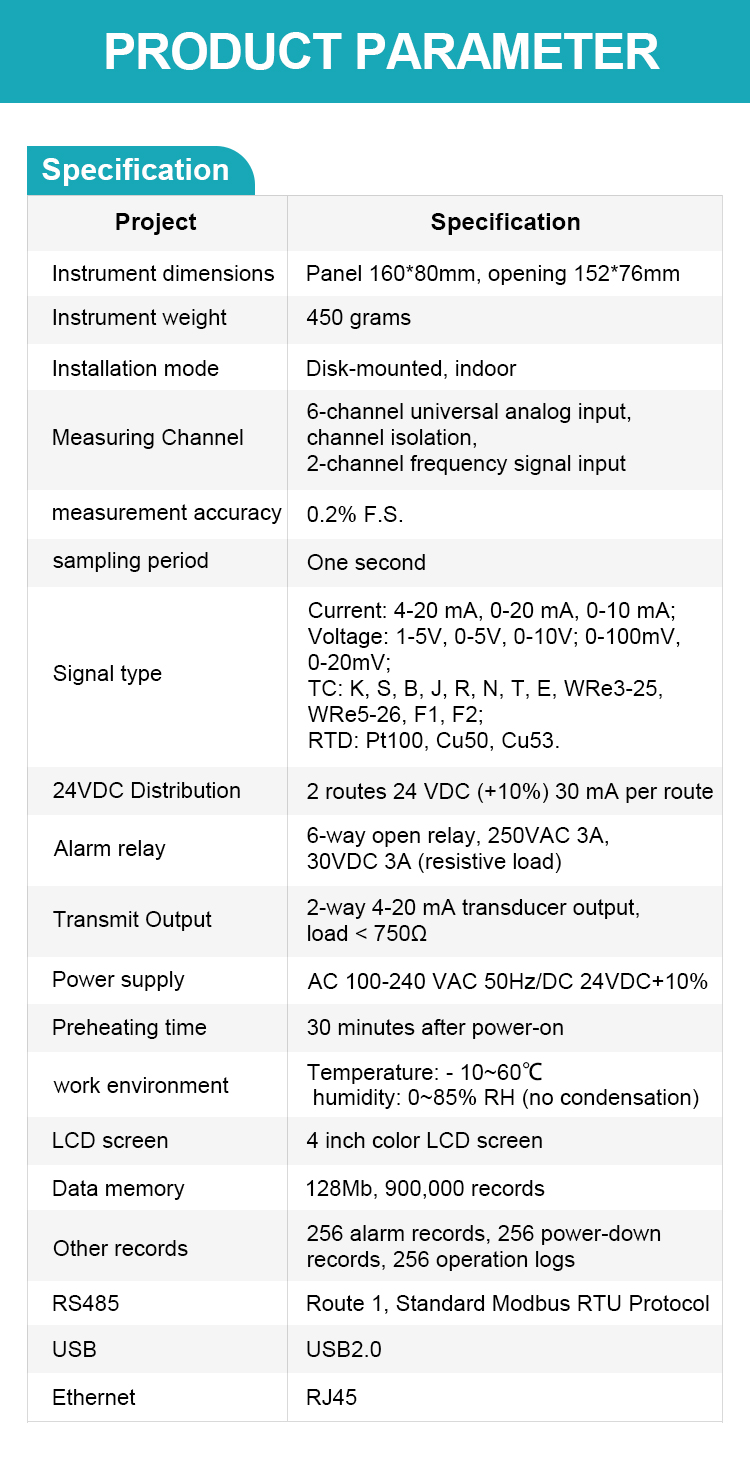

Specification of GT68PR Data Logger

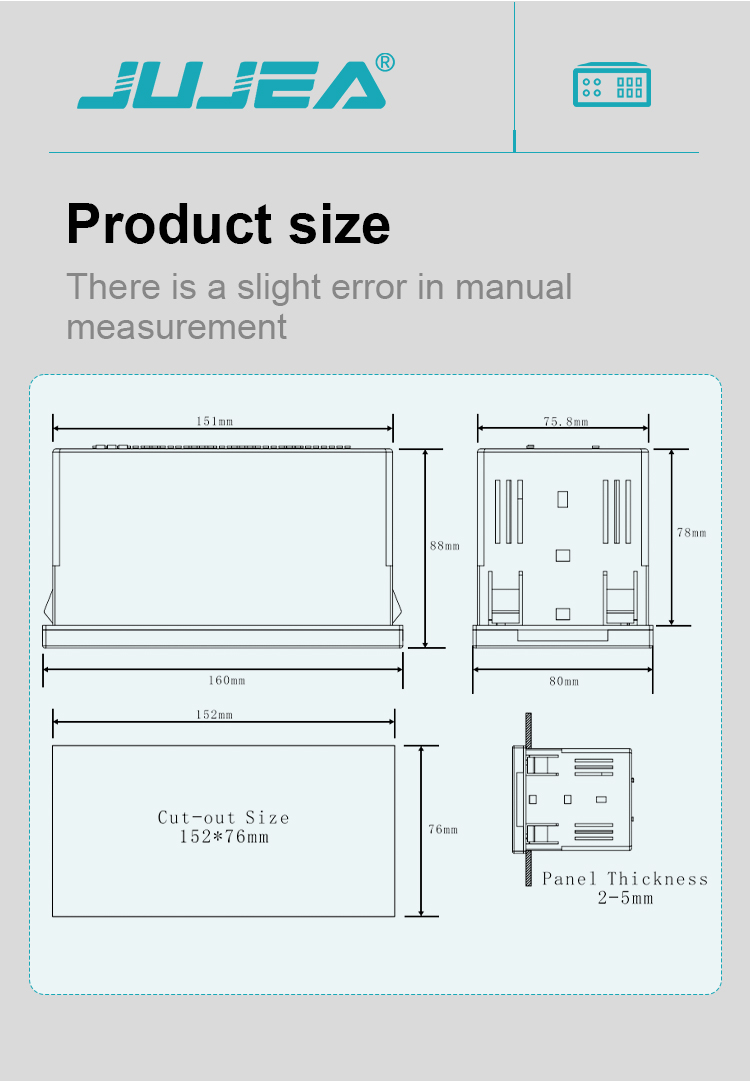

Meter Dimensions	Panel 160160mm, Opening 152157mm
Meter Weight	450 g
Installation Method	Panel-mounted, indoor, panel IP40 protection class
Measurement Channels	6 universal analog inputs (frequency signals need to be customized)
Sampling Period	1 second
Measurement Accuracy	0.2% F.S.
Temperature Drift Index	≤100PPM/℃
Power Supply EFT Index	Non-isolated: 1000V; Isolated: 2000V
Signal EFT Index	Non-isolated: 500V; Isolated: 1000V
Electrostatic ESD Index	Contact discharge: 4000V; Air discharge: 8000V
Surge Index	AC: 2000V; DC: 1000V
Withstand Voltage	Between measurement input terminals: 400V; Between protective ground and measurement terminals: 1000V
Insulation Resistance	≥500MΩ
24VDC Power Distribution	2 channels of 24VDC±10%, 30mA per channel
Alarm Relay*	6 normally open relays, 250VAC 3A, 30VDC 3A (resistive load)
Transmission Output*	2 channels of 4-20mA transmission output, load ≤750Ω, accuracy 0.2%
Power Supply	AC 100-240VAC 50/60Hz, DC 24VDC±10%, maximum power 10W
Warm-up Time	30 minutes after power-on
Working Environment	Temperature: -10~60℃, Humidity: 0~85%RH (non-condensing)
Display Screen	4-inch color LCD, 800*480 resolution
Recording Interval	1 second, 2 seconds, 5 seconds, 10 seconds, 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour
Data Memory	16MB, 900,000 records
Other Records	256 alarm records, 256 power-off records, 256 operation logs
RS485	1 RS485 interface, standard Modbus RTU protocol
Print*	1 micro printer interface, 3.3V TTL level interface
USB	USB2.0 supports large-capacity USB flash drives
Print Mode	Dot matrix ribbon printer
Recording Paper	Width: 57mm roll paper; Outer diameter 30mm
Print Width	Effective width 48mm
Usage Environment	Temperature: 0~50℃; Humidity: 10~85%
