GT68R Data Logger

Name: GT68R Data Logger
Brand: Anhui Jujie Automation Technology Co., LTD.
Availability: InStock

GT68PR all-in-one recorder equips built-in thermal printer and 6 isolated universal channels, supporting TC/RTD/current/voltage signals. It features color LCD, USB data backup, relay alarms and RS485 Modbus for industrial process recording.

Send Mail

Features of GT68R Data Logger

Six fully isolated universal analog channels, compatible with TC, Pt100, 4-20mA, voltage and frequency signals

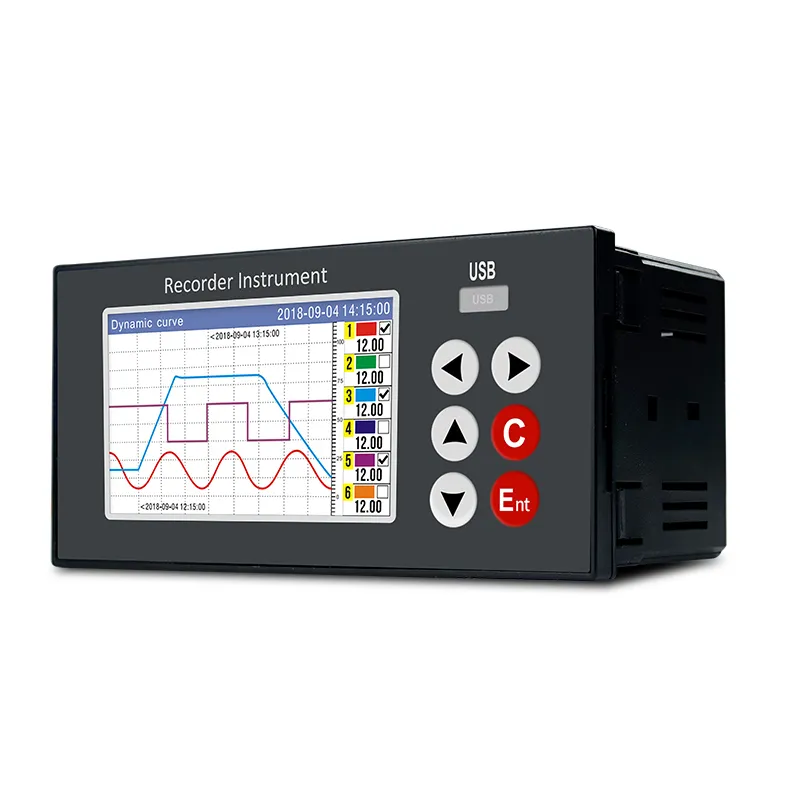

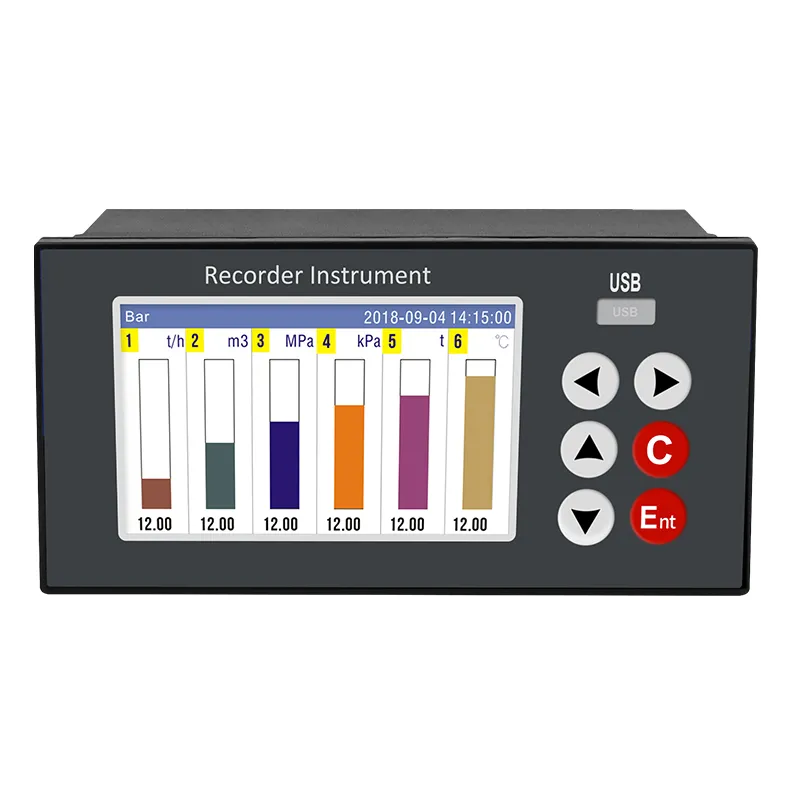

4-inch high-definition color LCD, supports multi-display modes: digital grouping, single value, bar chart and real-time curve
Built-in thermal printing module, customizable print interval to output process data and curves on site
Massive 128Mb local storage, stores up to 900,000 records plus 256 alarm/power-off/event logs
Dual 4-20mA retransmission outputs and six relay contacts for upper/lower limit interlock alarm
Dual 24VDC sensor power supply to directly power field transmitters without extra adapters
Multiple communication ports: RS485 Modbus, RJ45 Ethernet and USB for data export & firmware upgrade
USB disk offline backup, export recorded data as readable files for PC analysis software
Digital filtering and linear K/B correction to stabilize jittery field measurement signals
Standard 152×76 panel cutout, dual AC/DC wide power supply for cabinet embedded installation

Specification of GT68R Data Logger

Measuring Channel	6 channels of analog signal input
Measurement Accuracy	0.2% F.S
Sampling Period	1 second
Power Distribution Output	2 channels, 24VDC±10%, 30mA per channel
Alarm Relay	6 normally open relays, 250VAC 3A, 30VDC 3A (resistive load)
Transmission Output	2 channels of 4-20mA transmission output, load ≤750Ω
Power Supply	AC220V±10% 50Hz / 24VDC±10%
Warm-up Time	30 minutes after power-on
Working Environment	Temperature: -10~60℃, Humidity: 0-85%RH (non-condensing)
LCD Screen	4-inch color LCD display
Data Memory	16Mb, 900,000 records
Other Records	256 alarm records, 256 power failure records, 256 operation logs
Recording Interval	1 second, 2 seconds, 5 seconds (default), 10 seconds, 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour
RS485	1 channel, standard Modbus RTU protocol
USB	USB2.0

Diagram of GT68R Data Logger

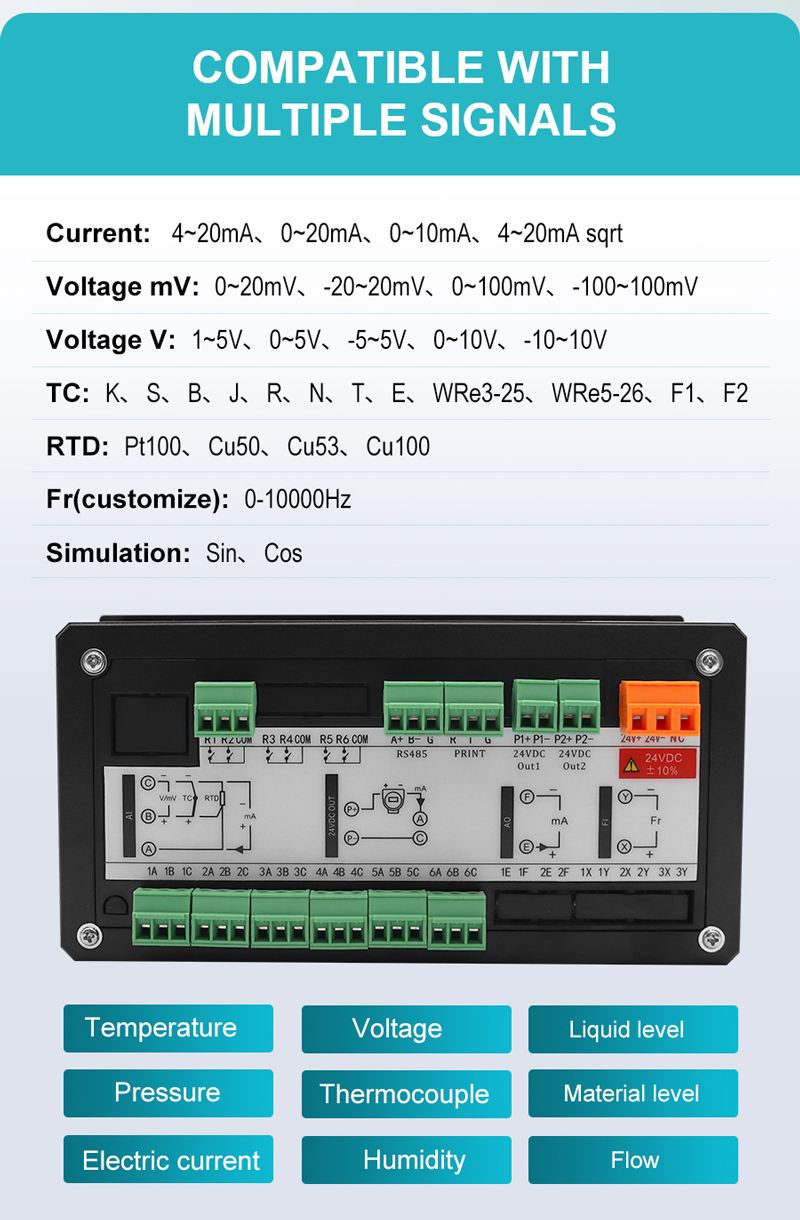

Gt68r Data Logger for Distillation Column Instrumentation

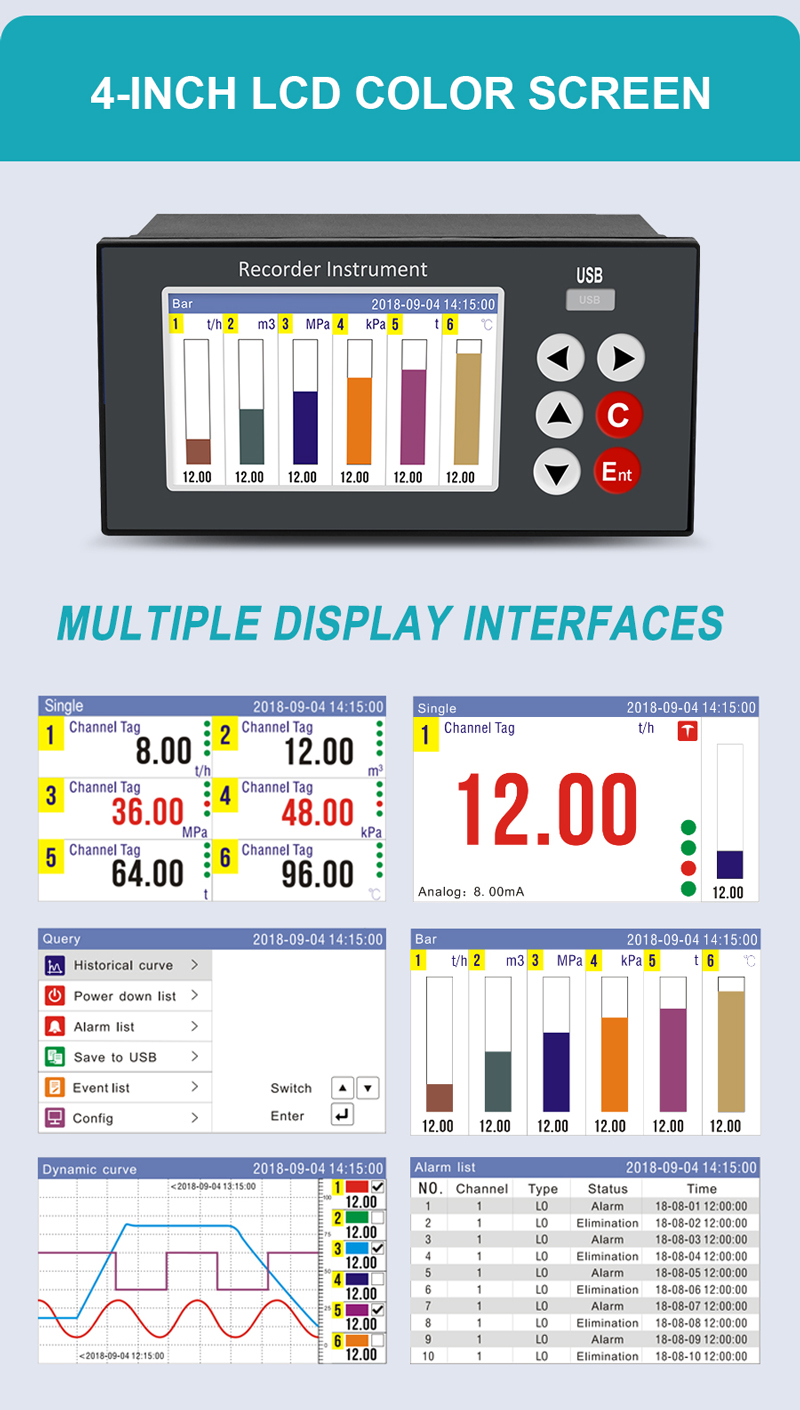

GT68R Data Logger for Digital Mass Flow Meter
