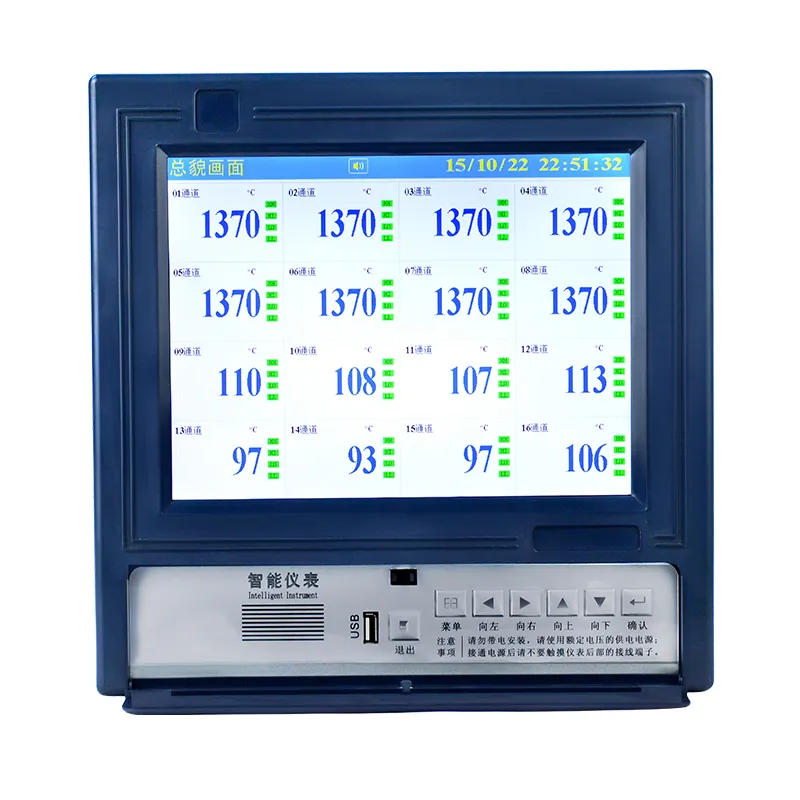

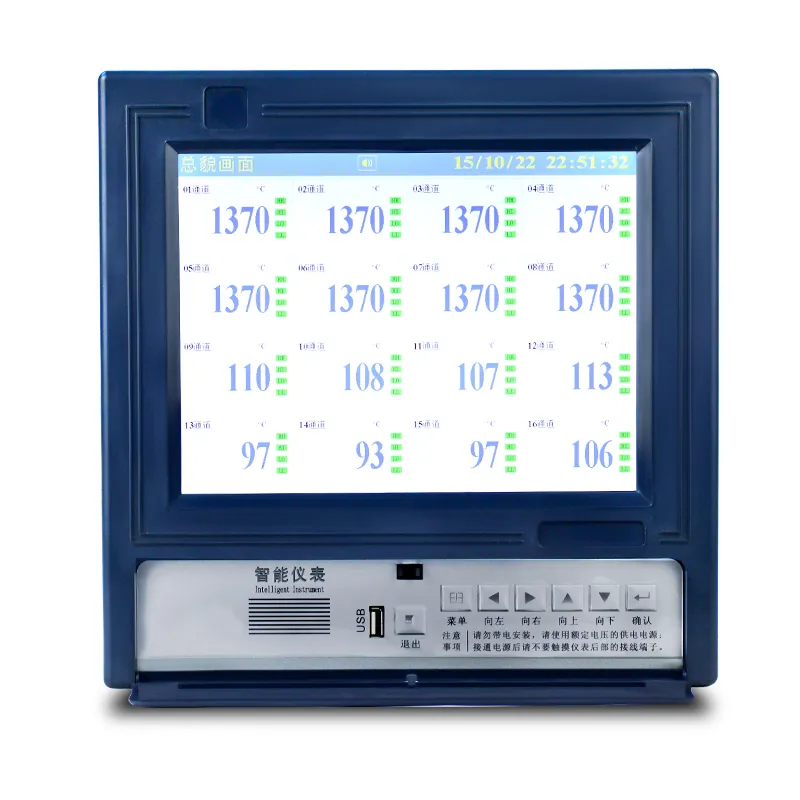

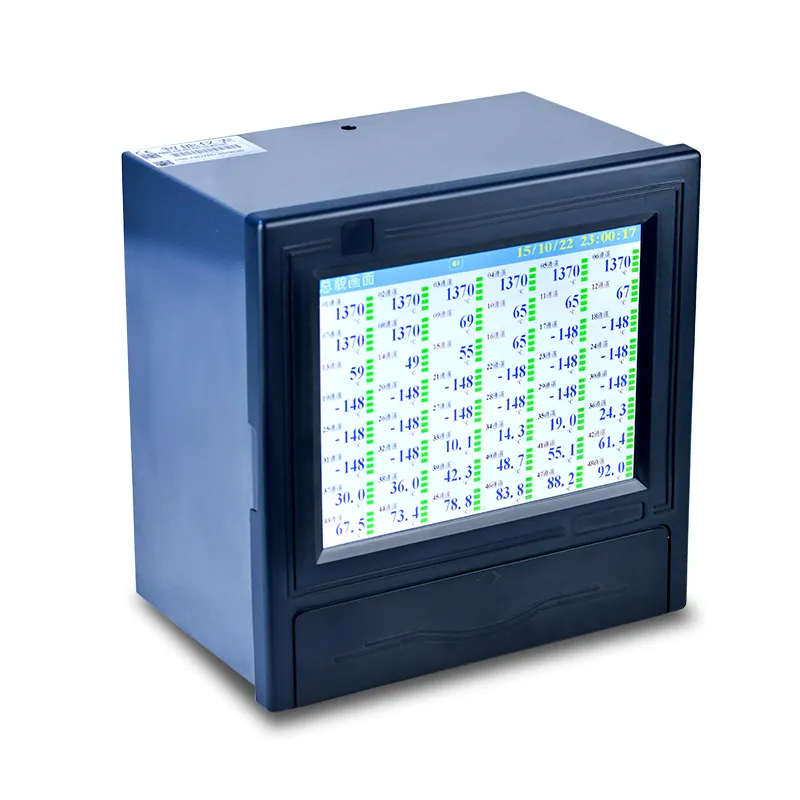

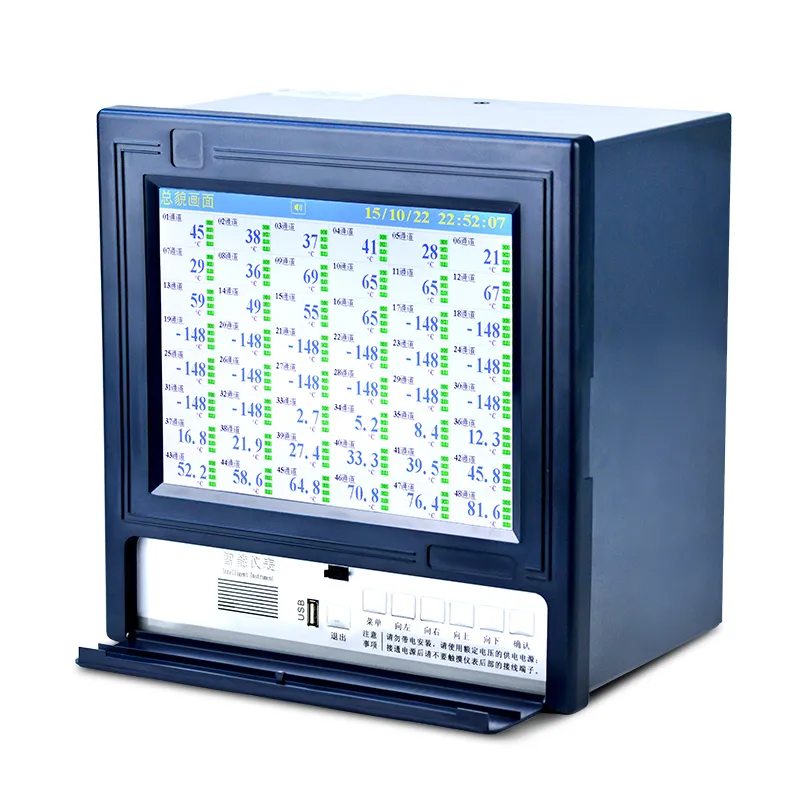

GT80R Data Logger

Name: GT80R Data Logger
Brand: Anhui Jujie Automation Technology Co., LTD.
Availability: InStock

GT80R large-screen industrial paperless logger adopts 10.4-inch TFT LCD, supports up to 48 universal input channels, equipped multi-output and RS232/485 communication, with USB backup and optional printer for multi-parameter industrial recording.

Send Mail

Features of GT80R Data Logger

10.4-inch 800×600 high-definition color TFT large screen, ultra-large viewing area, clear multi-channel simultaneous display
Max 48 fully universal isolated analog channels, compatible with TC, RTD, 4-20mA, voltage, mV and pulse frequency signals
Multiple display modes: full-channel numeric overview, bar chart, real-time & historical trend curve, alarm & power-off log query
Rich configurable outputs: up to 8-channel 4-20mA analog retransmission, multi-group relay alarm contacts for interlock control
Built-in up to 16 groups of 24VDC transmitter power supply, directly power field two-wire transmitters without external adapters
Dual serial communication (RS232+RS485 Modbus RTU), supports upper computer networking and optional external thermal printer
Optional 64–248MB large-capacity local flash memory, long-term store measurement, alarm and power-down records, permanent data retention after power failure
USB2.0 interface for U-disk offline data export, export historical records and production reports for PC analysis

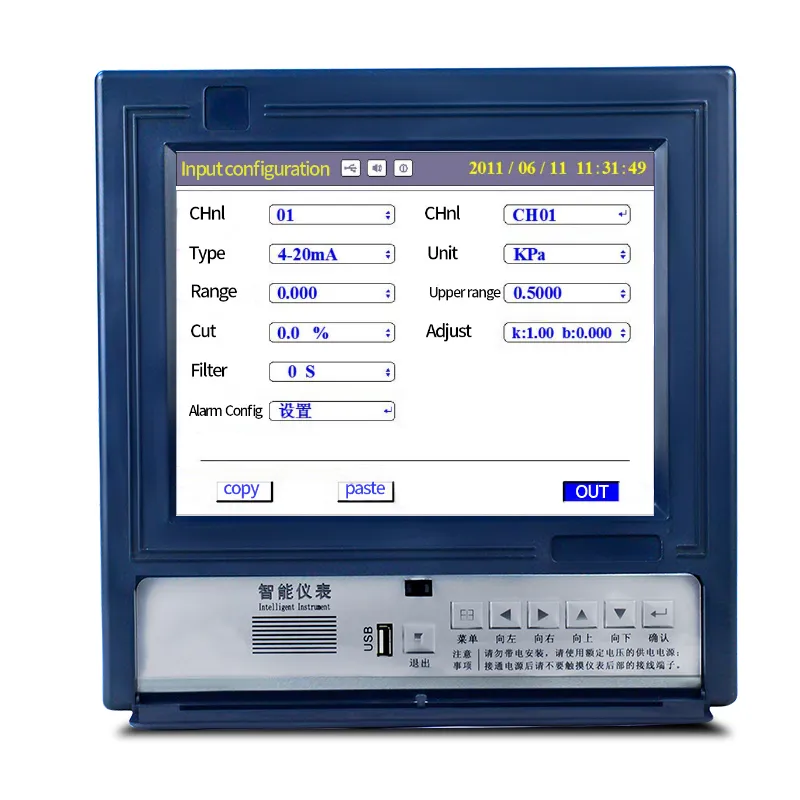

1-second high-speed scanning cycle, independent digital filtering and linear K/B correction to stabilize fluctuating field signals
Multi-level password authority management (operator & administrator), prevent unauthorized modification of calibration and flow parameters
Standard 280×280 embedded panel installation, wide 100–240VAC universal power supply, stable for heavy industrial environments
Russian operating system optional, multi-language switching to meet overseas CIS market demand
Complete industrial flow calculation function, supports liquid, gas, saturated & superheated steam temperature-pressure compensation accumulation
Timed automatic printing & manual selective printing, output real-time data and historical curves on site

Specification of GT80R Data Logger

Display Screen	10.4-inch true color TFT LCD. Real-time display accuracy: ±0.2% FS, Recall accuracy: ±0.2% F.S.
Storage	Large-capacity parallel NAND FLASH flash memory chip stores historical data, and serial FRAM memory chip stores information. Communication interface: RS232C, RS485, Modbus RTU protocol
Communication	Ethernet interface: standard RJ-45 Ethernet interface; Printing interface: RS232C directly connected to the micro printer, baud rate 1200.
Recorder Function	Recording capacity: 64/128/192/248MB (FLASH capacity optional); Recording interval: 1 second to 240 seconds, divided into 11 levels: 1/2/4/8/12/24/36/60/120/180/240 seconds optional; Recording time: The length of recording time is related to FLASH memory capacity, input points, and recording interval.
Data Transfer	Supports USB1.1, 2.0 USB flash drives, and data transfer from 1G to 32G USB flash drives.
Power Supply	Support 220VAC, 24VDC, 12VDC; Power-off protection: Built-in memory protection parameters and historical data, saved after power-off.
Protective Function	Clock protection: integrated hardware clock, can run accurately even after power failure.
Working Environment	Temperature: 0~50℃; Humidity: 0~85%RH (no condensation).

Diagram of GT80R Data Logger

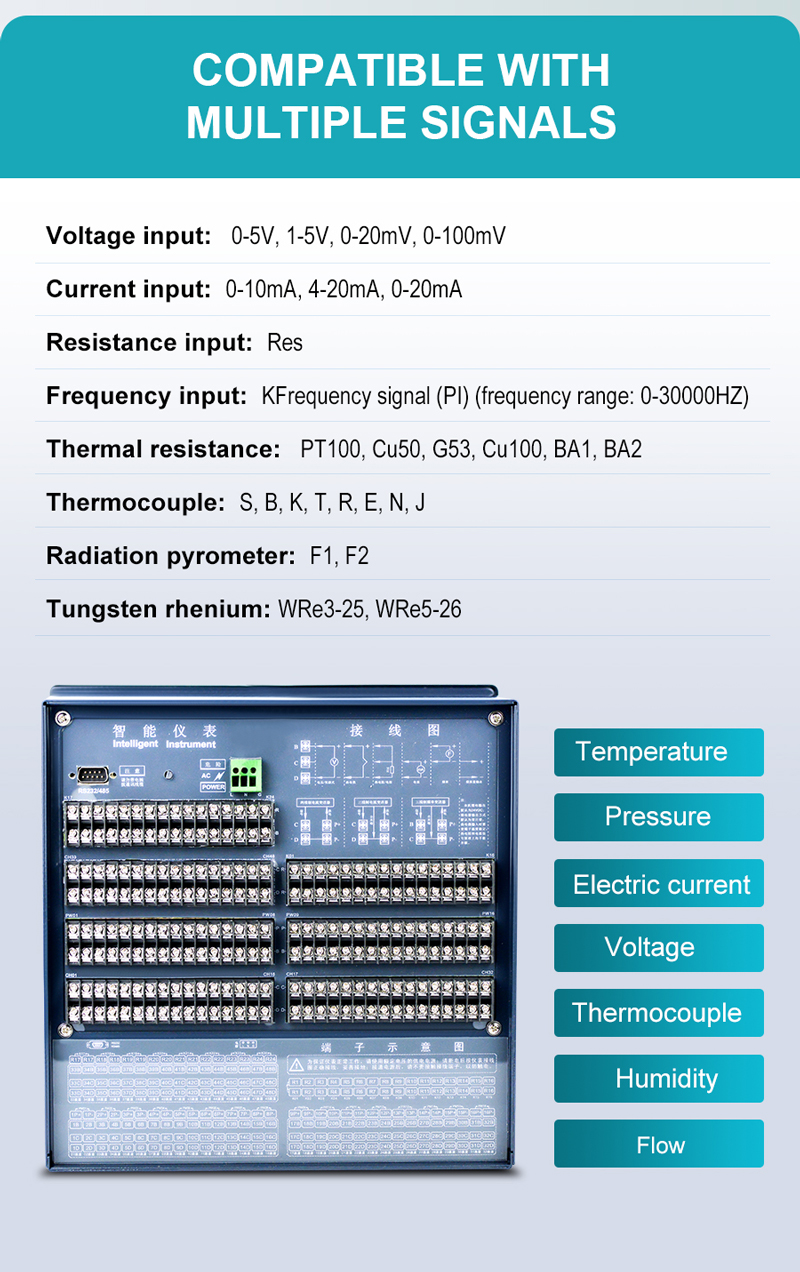

GT80R Data Logger for Instrumentation for Instrumentation Control Loop

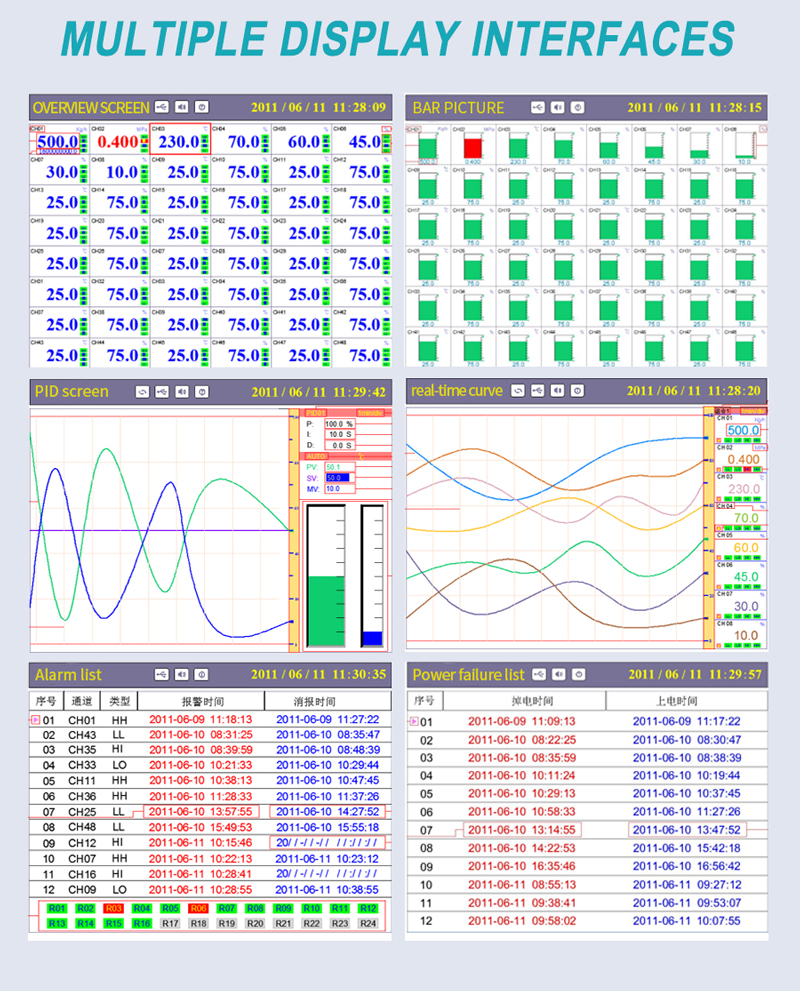

GT80R Data Logger for Instrumentation for Instrumentation Automation and Process Control
