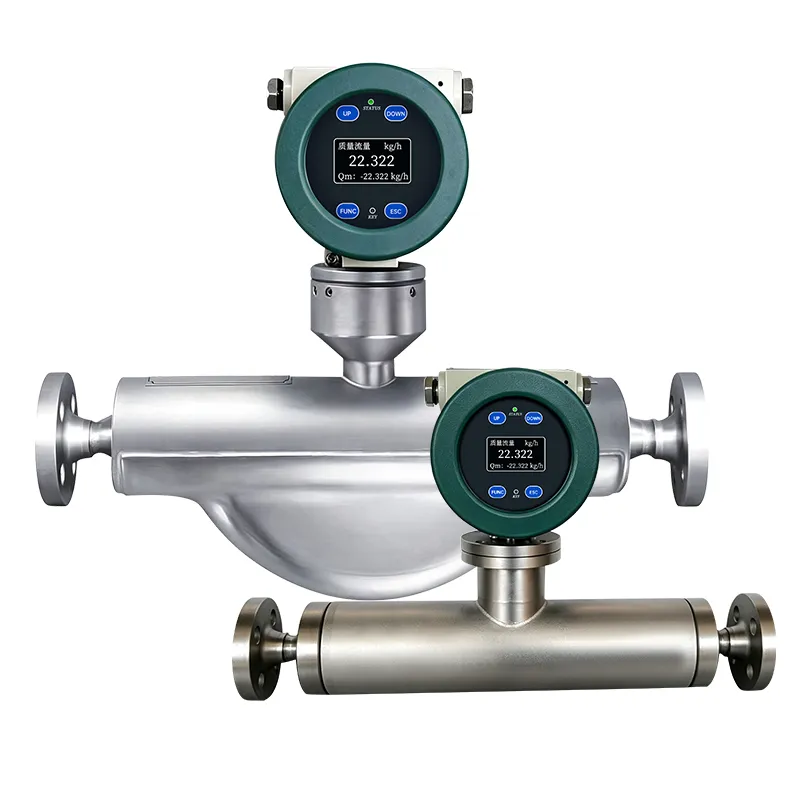

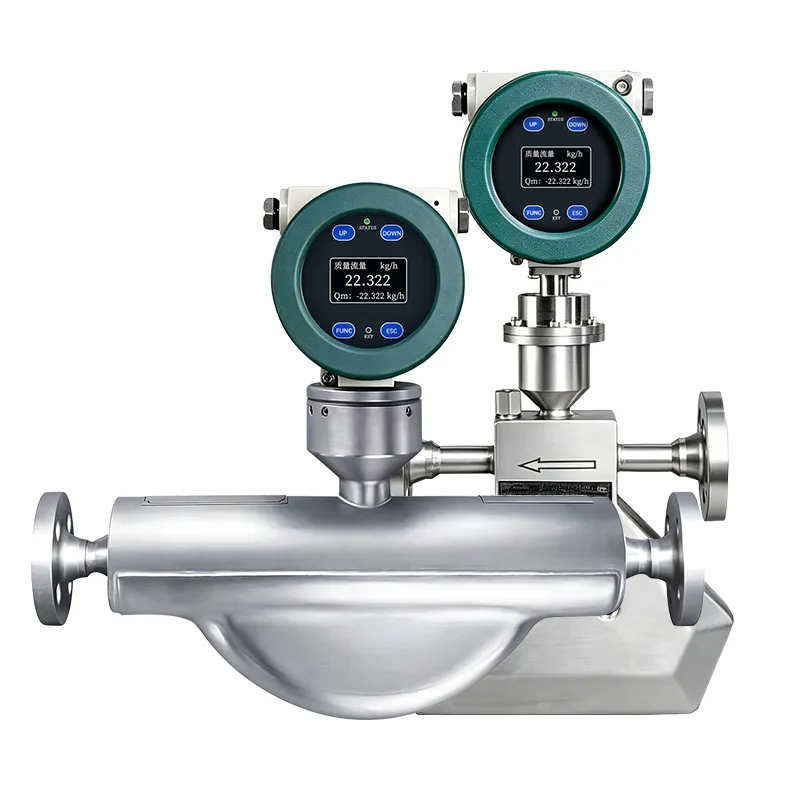

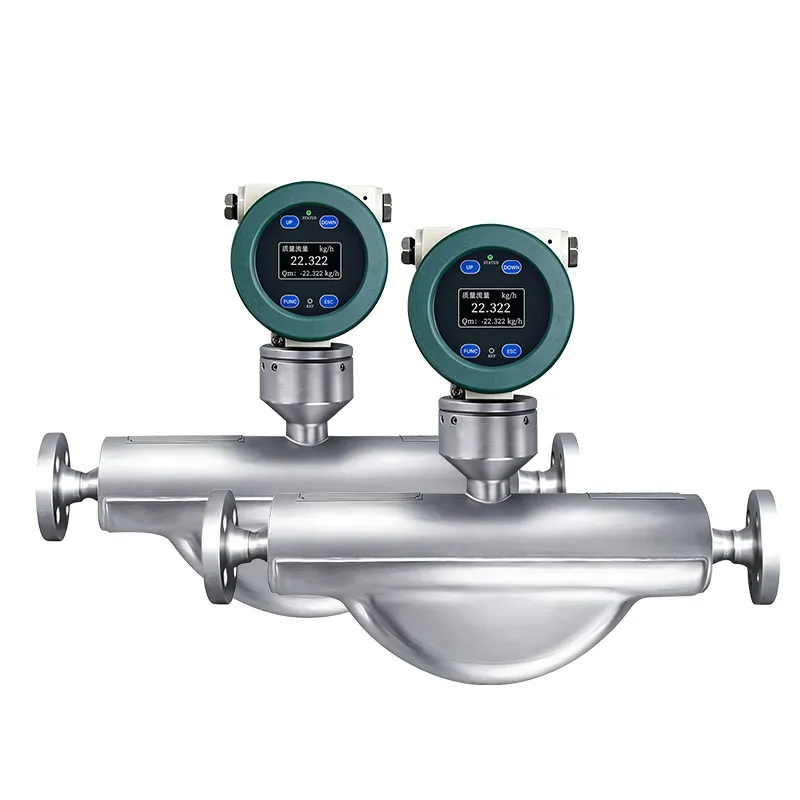

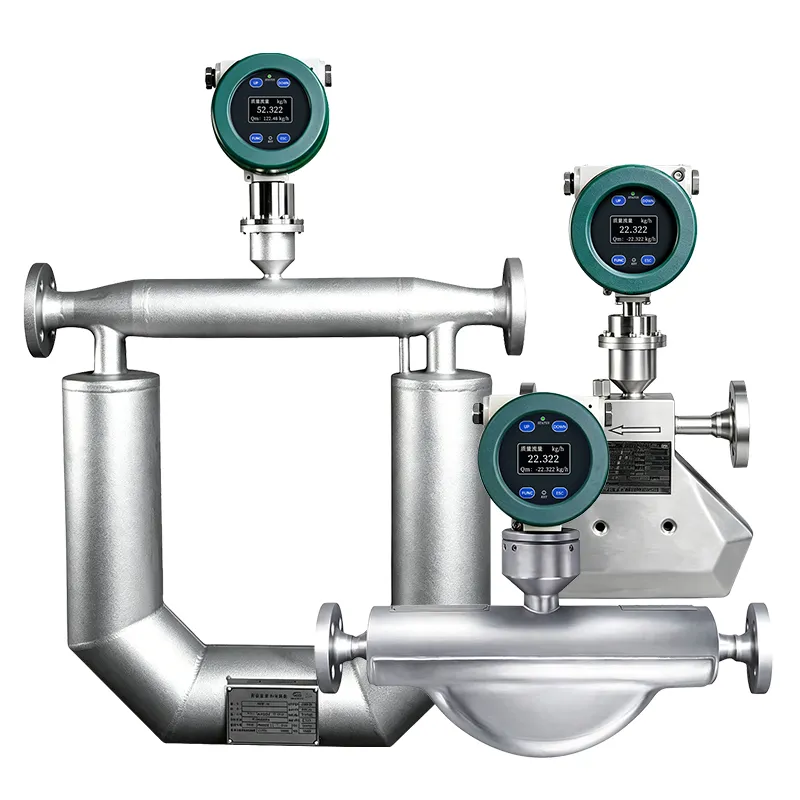

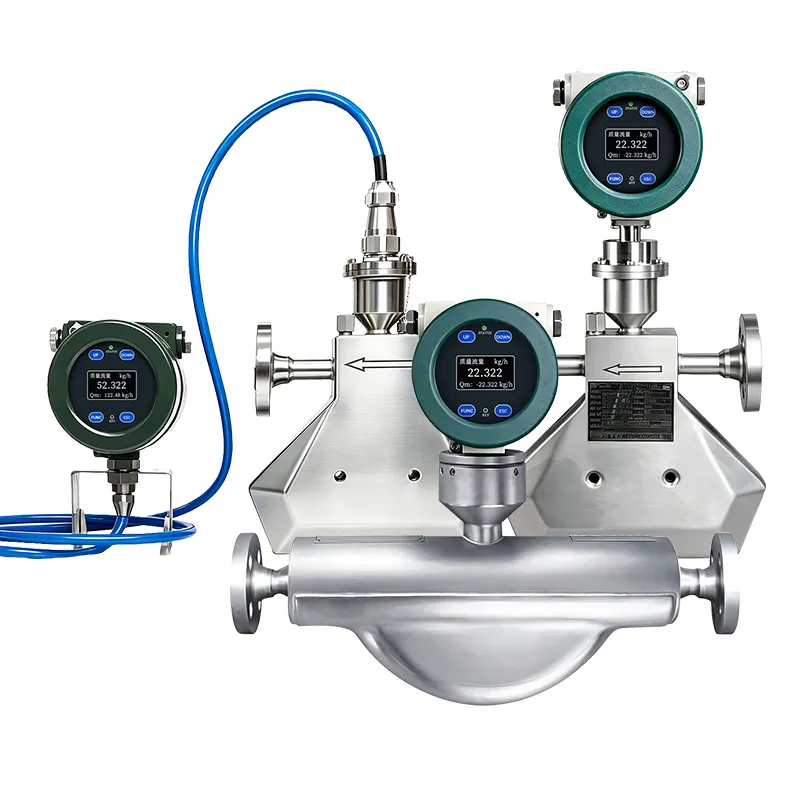

Micro-bending Coriolis mass flow meter adopts Coriolis principle, directly measures mass flow, medium density and temperature. SS316L measuring tube, high precision 0.1~0.5%, no straight pipe requirement, fits slurry, high-viscosity liquid, with 4-20mA, pulse and RS485 outputs.
Based on Coriolis force principle, directly measure mass flow without temperature/pressure compensation
Simultaneously detect medium density and temperature for concentration conversion
High measuring accuracy up to ±0.1%, repeatability superior to half accuracy grade

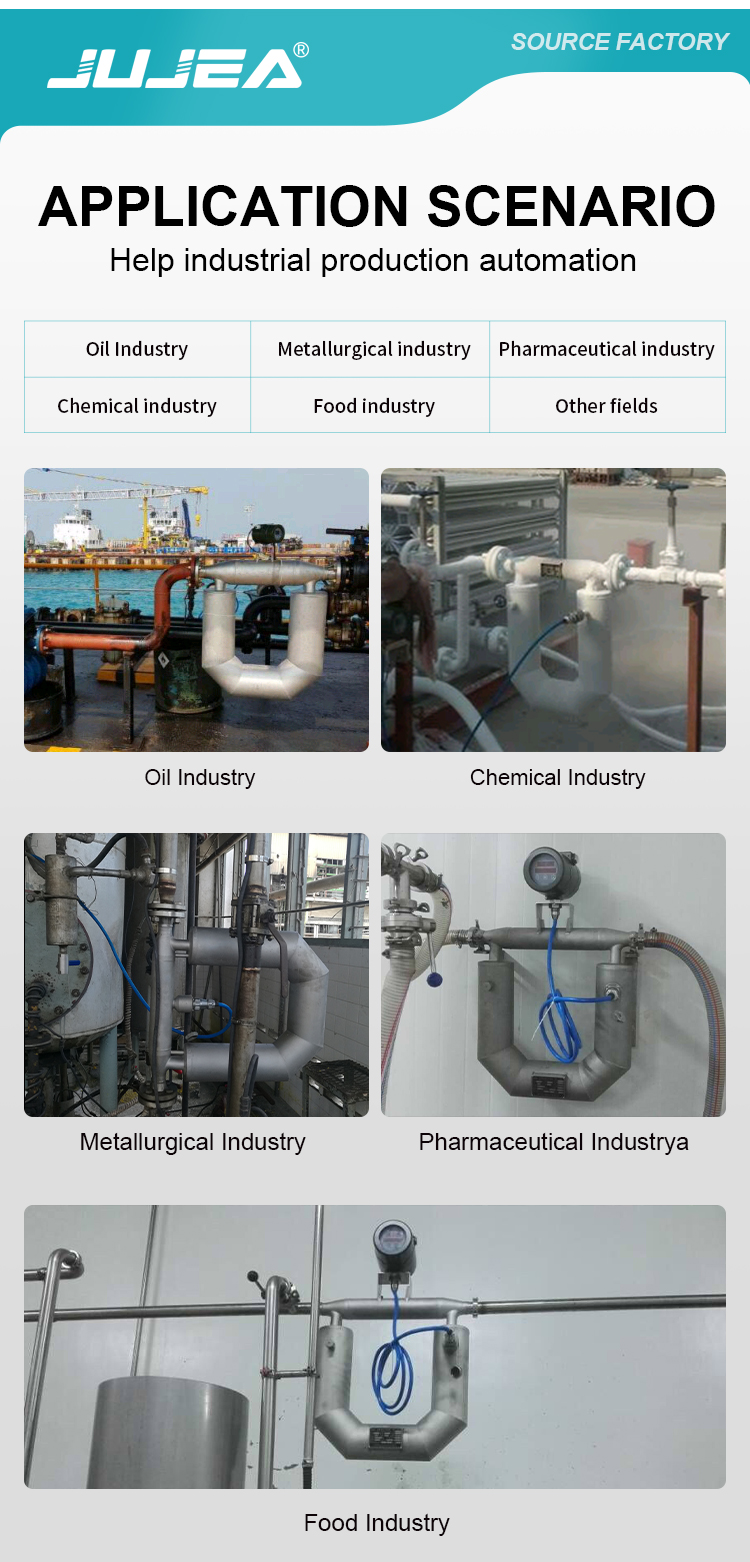

Wide applicability: gas,liquid, slurry, suspension and high-viscosity media

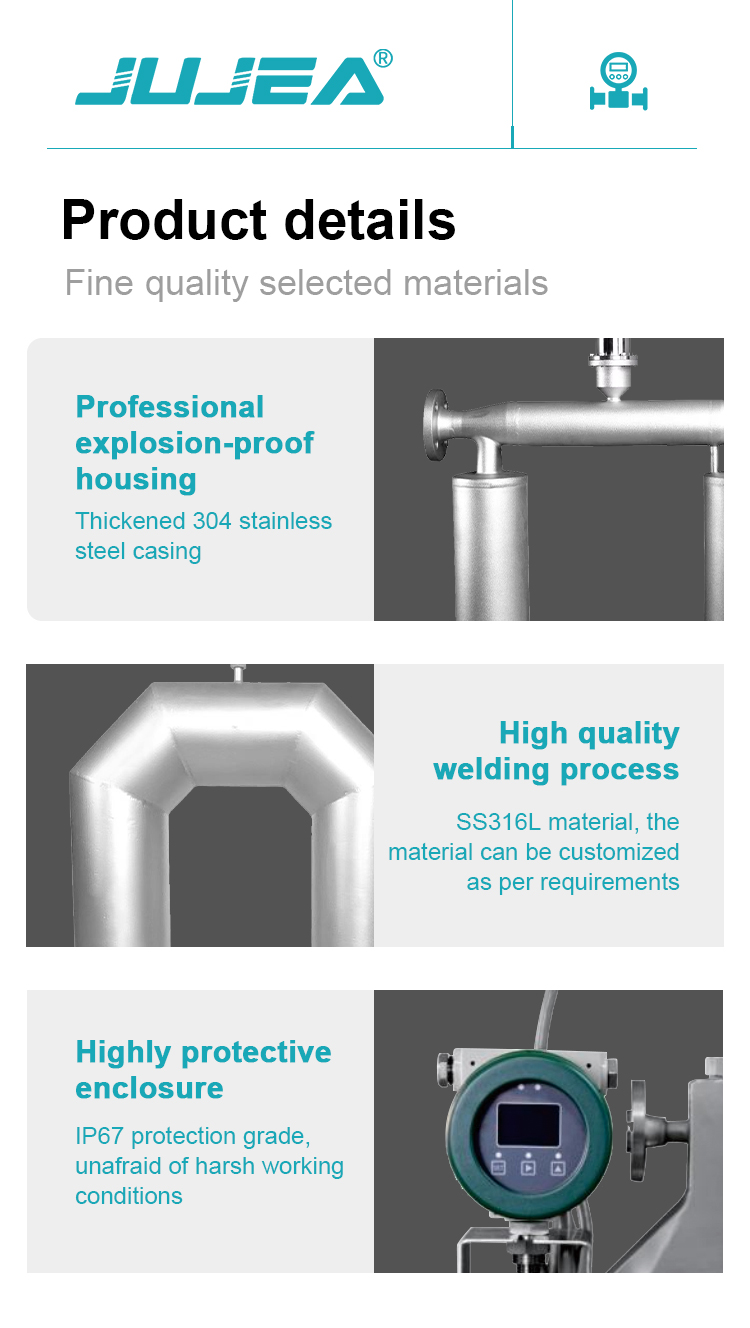

SS316L measuring tube, SS304 housing, optional sanitary flange structure

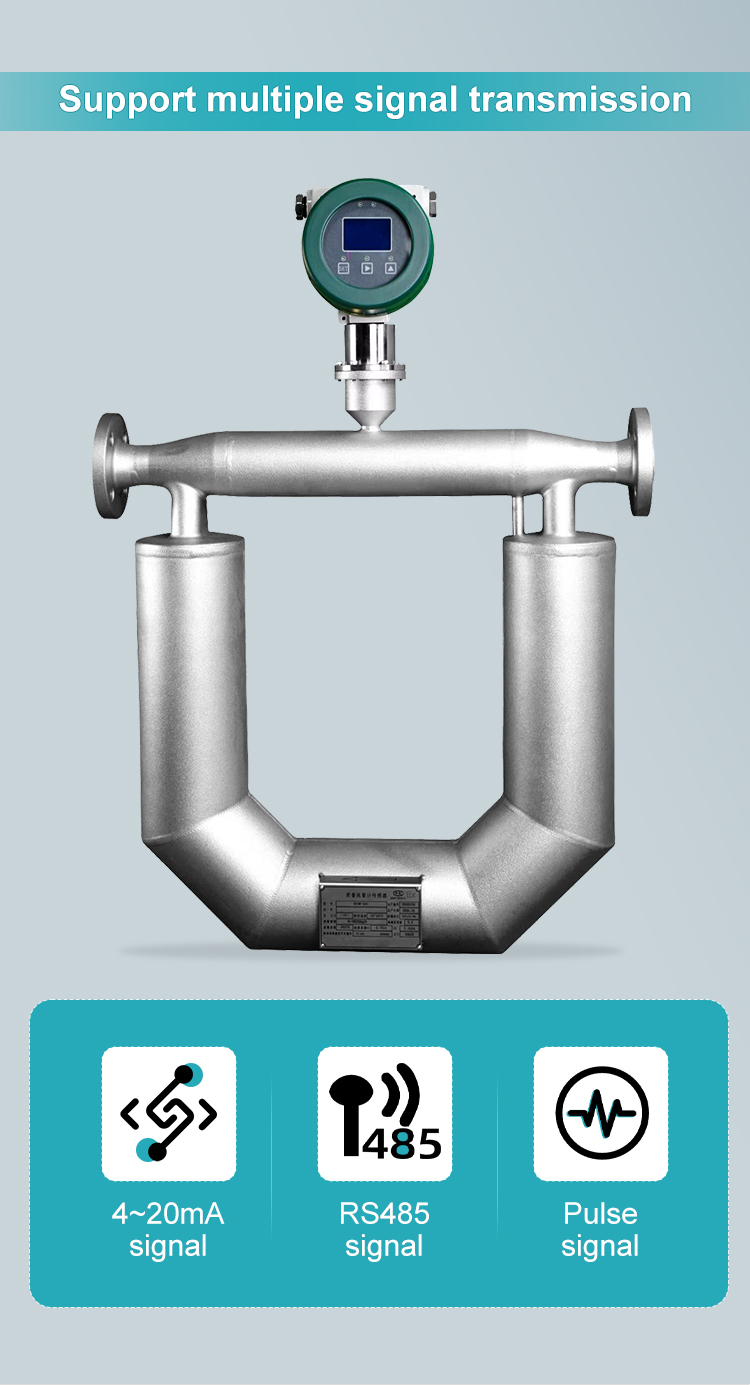

Multiple signal outputs: 4-20mA, frequency pulse, Modbus RS485 / HART
Medium temperature range -50~200℃, max working pressure up to 4.0MPa

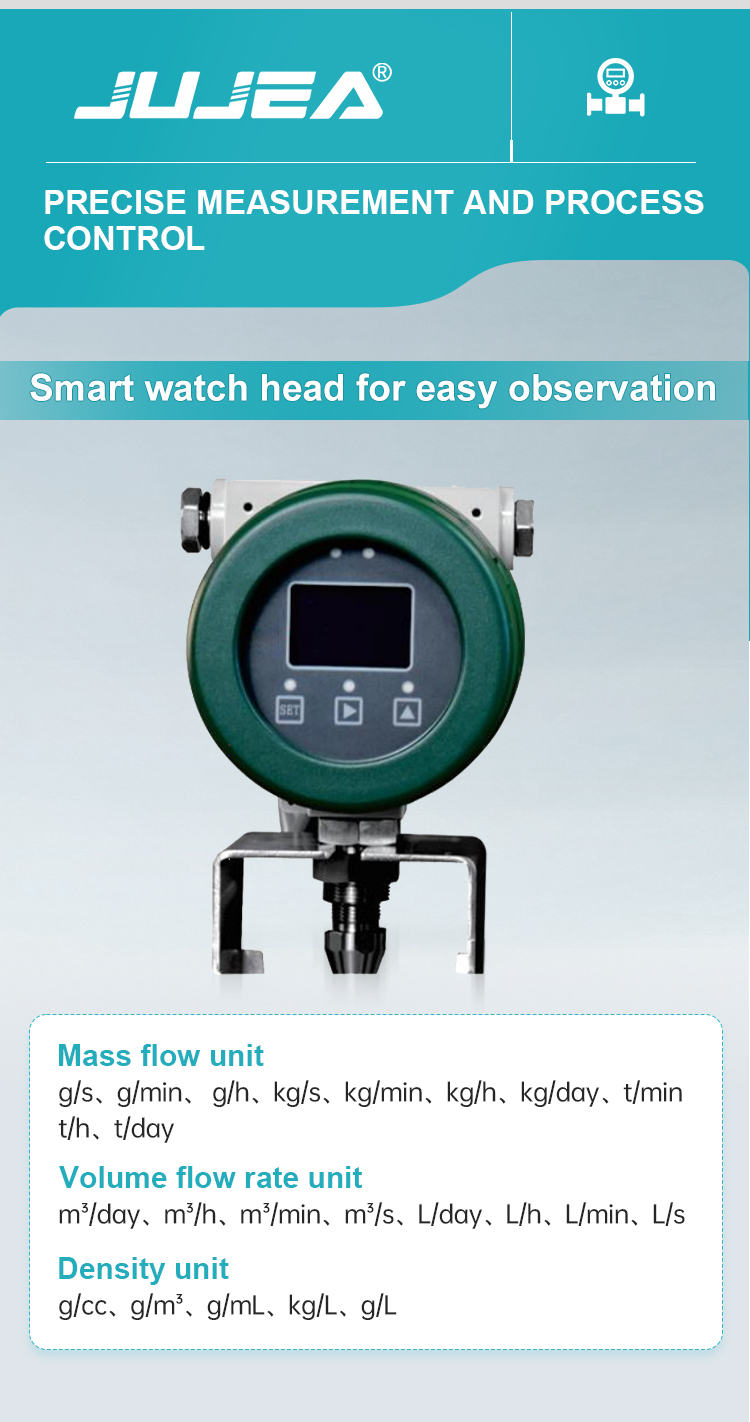

Integrated local touch LCD, real-time display mass/volume flow, density and totalizer
Explosion-proof ExdbiaⅡCT6 grade, suitable for flammable and explosive industrial sites

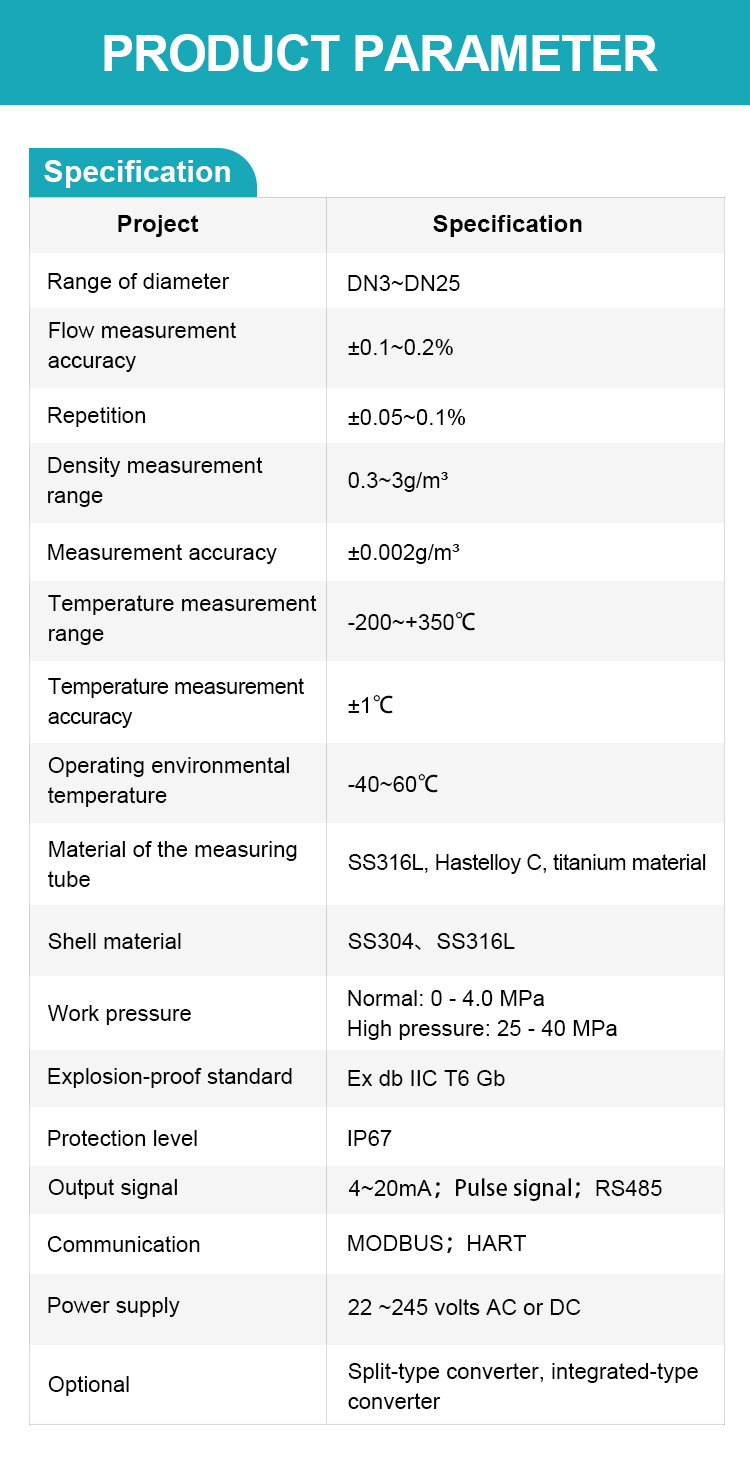

| Measuring Caliber Range | DN3~DN25 |
| Flow Measurement Accuracy | ±0.1~0.2% |
| Repeatability | ±0.05~0.1% |
| Density Measurement Range | 0.3~3g/m³ |
| Measurement Accuracy | ±0.002g/m³ |
| Temperature Measurement Range | -200~+350°C |
| Measurement Accuracy | ±1°C |
| Operating Ambient Temperature | -40~60°C |
| Measuring Tube Material | SS316L, Hastelloy C, Titanium |
| Housing Material | SS304, SS316L |
| Working Pressure | Conventional 0~4.0MPa; High pressure 25~40MPa |
| Explosion-proof Standard | Ex db IIC T6 Gb |
| Protection Class | IP67 |
| Output Signal | 4~20mA; Pulse signal; RS485 |
| Communication | MODBUS; HART |
| Power Supply | 22~245V AC or DC |

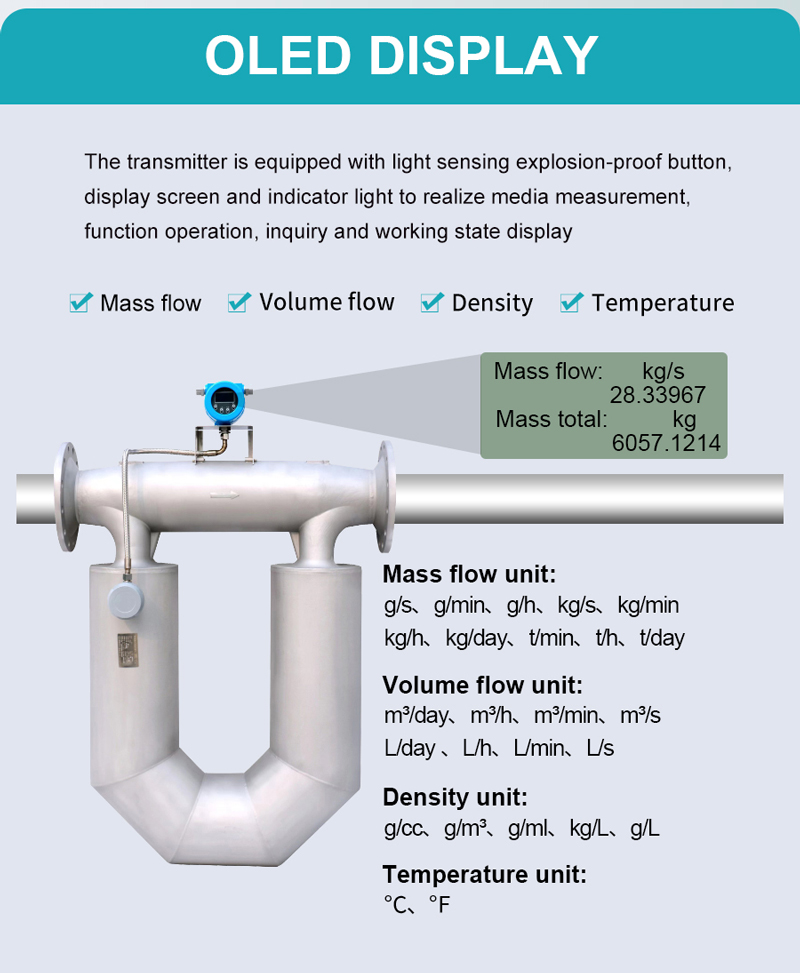

| LCD Display Content | Instantaneous flow, cumulative flow, temperature, density, concentration, positive and negative cumulative; with power-off data saving and data loss recovery function. |
| Optional | Split converter, integrated converter |
