Straight tube Coriolis mass flow meter adopts straight vibrating tube design based on Coriolis principle. It directly measures mass flow, density and temperature, with SS316L measuring tube, wide temp range -200~300℃, high precision and multiple industry signal outputs.
Straight single measuring tube design, no medium residue inside, easy CIP cleaning
Directly measure mass flow, medium density and temperature simultaneously
High measurement accuracy up to ±0.1%, excellent repeatability
No requirement for front and rear straight pipe sections, flexible installation
SS316L measuring tube, applicable for low-temperature to high-temperature media (-200℃~300℃)
Strong anti-vibration performance, stable measurement under pipeline vibration
Multiple connection options: flange, thread, sanitary tri-clamp
Support 4-20mA, pulse frequency, RS485 Modbus and HART signals
Wide turndown ratio 10:1~20:1, fit slurry, oil, chemical and cryogenic liquid
Explosion-proof Exd[ia]ⅡCT6, integrated touch LCD for on-site data viewing
Low pressure loss, simple structure and low maintenance cost
| Measuring Caliber Range | DN3~DN25 |
| Flow Measurement Accuracy | ±0.1~0.2% |
| Repeatability | ±0.05~0.1% |
| Density Measurement Range | 0.3~3g/m³ |
| Measurement Accuracy | ±0.002g/m³ |
| Temperature Measurement Range | -200~+350°C |
| Measurement Accuracy | ±1°C |
| Operating Ambient Temperature | -40~60°C |
| Measuring Tube Material | SS316L, Hastelloy C, Titanium |
| Housing Material | SS304, SS316L |
| Working Pressure | Conventional 0~4.0MPa; High pressure 25~40MPa |
| Explosion-proof Standard | Ex db IIC T6 Gb |
| Protection Class | IP67 |
| Output Signal | 4~20mA; Pulse signal; RS485 |
| Communication | MODBUS; HART |
| Power Supply | 22~245V AC or DC |

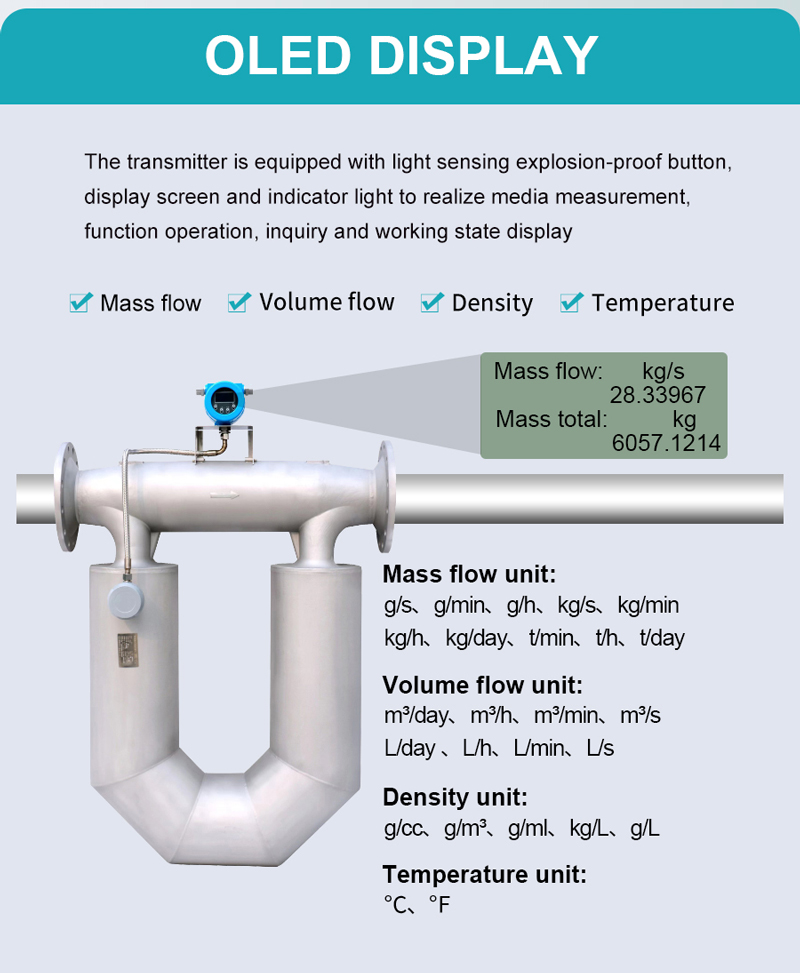

| LCD Display Content | Instantaneous flow, cumulative flow, temperature, density, concentration, positive and negative cumulative; with power-off data saving and data loss recovery function. |

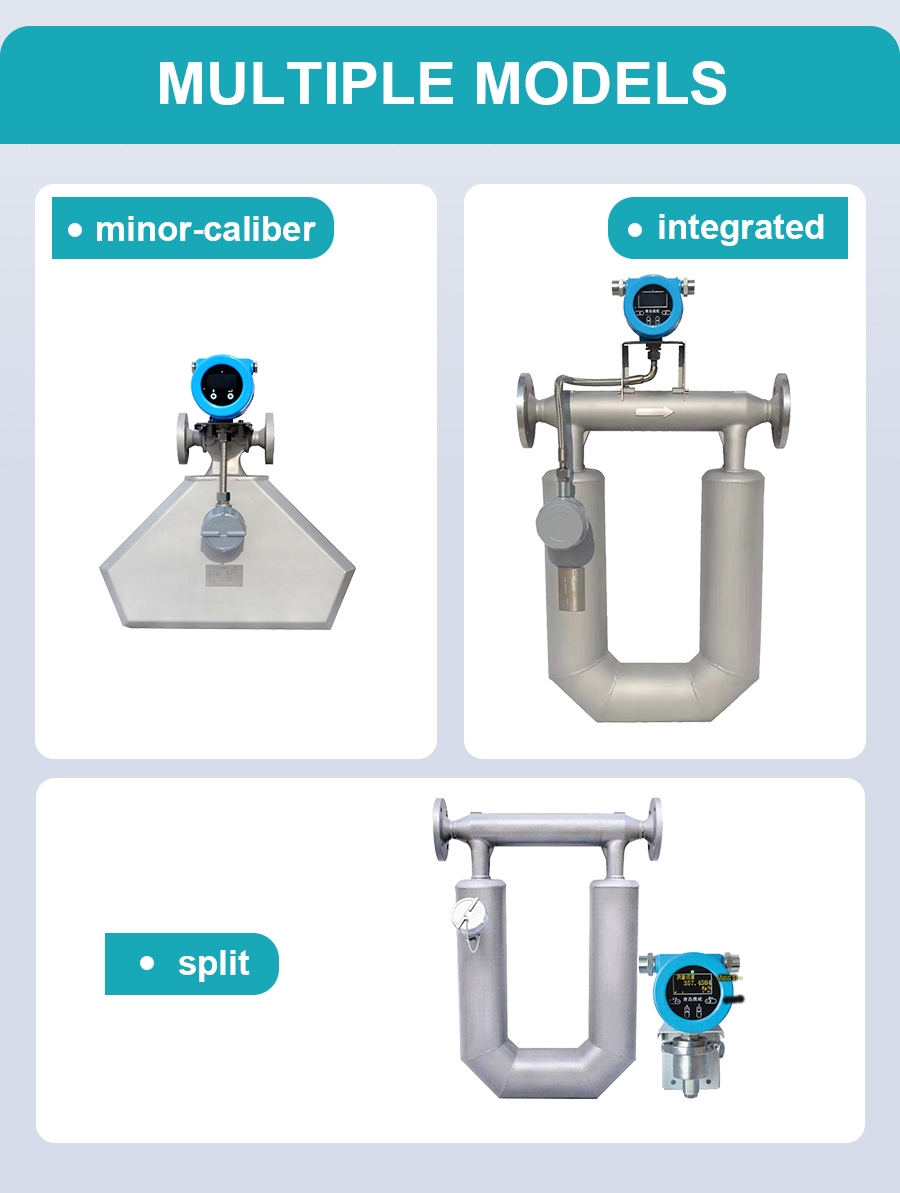

| Optional | Split converter, integrated converter |
