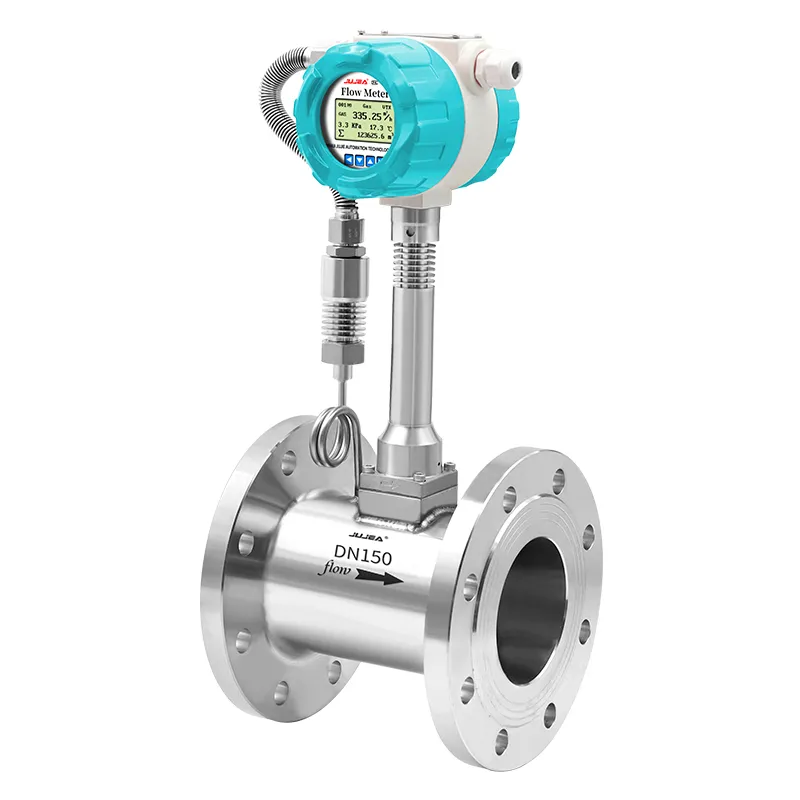

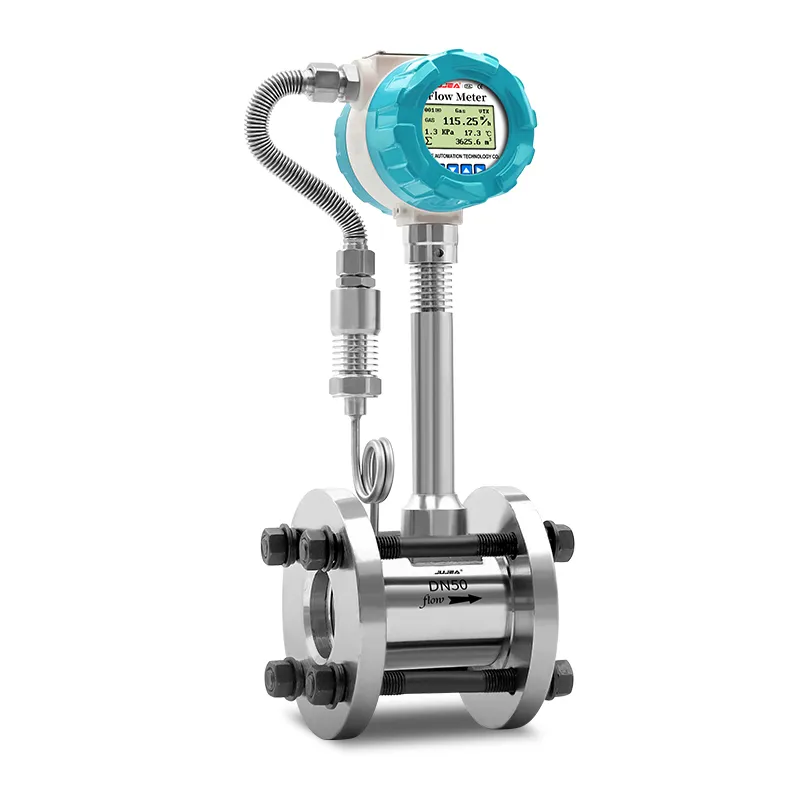

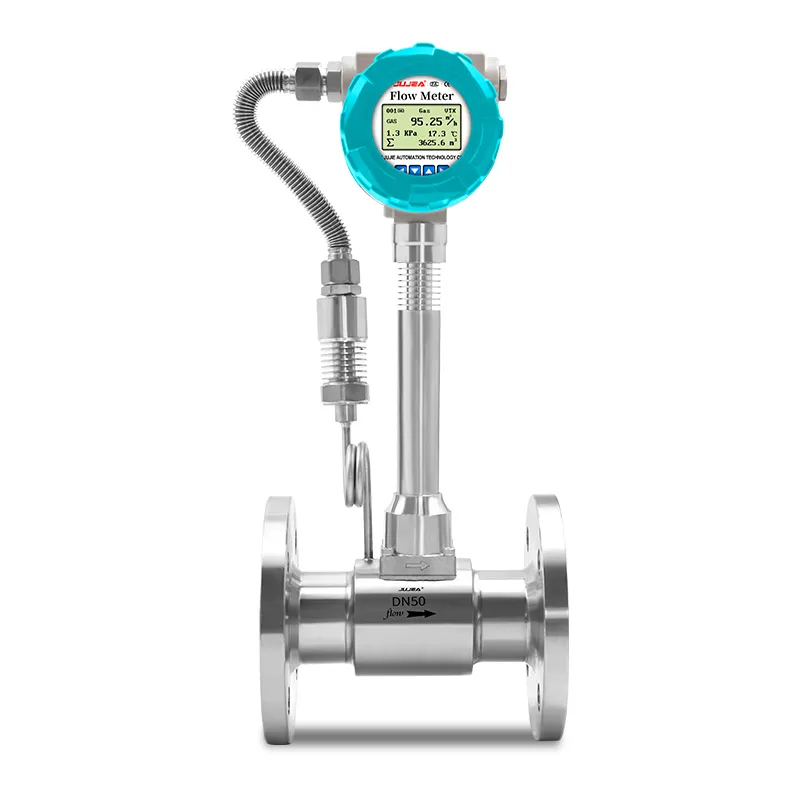

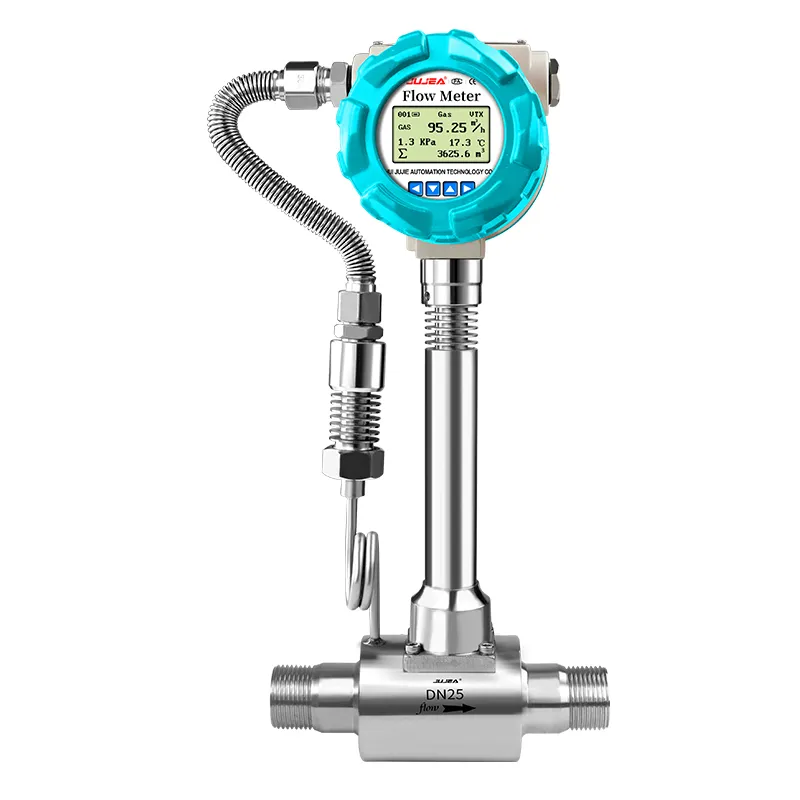

Temperature and pressure integrated vortex flow meter equips built-in PT100 and pressure sensor, automatically compensates gas/steam density, outputs real standard volume flow with RS485, applicable for variable temperature-pressure steam and gas pipelines.
Built-in PT100 temperature and pressure integrated sensors
Auto density compensation for gas & steam, output standard flow
Adapts working conditions with fluctuating temp and pressure
Stainless steel measuring body, no moving parts, stable performance

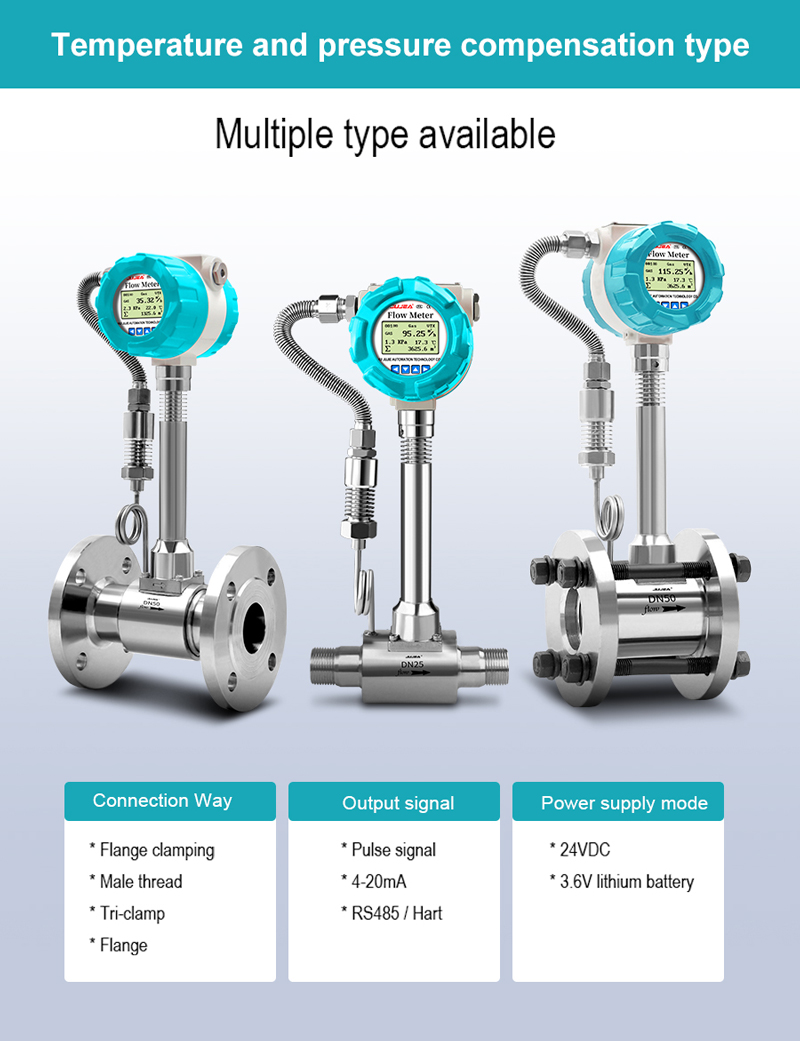

Supports 4-20mA, pulse and Modbus RS485 communication
Full LCD display for instantaneous flow, temp, pressure and total

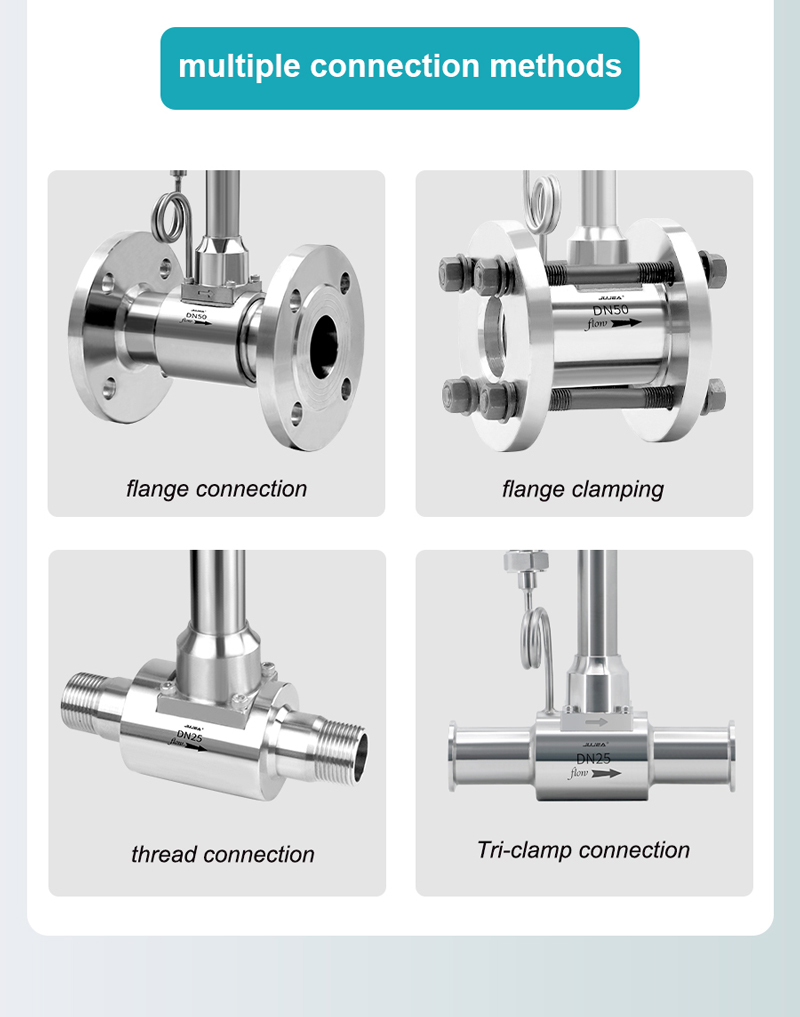

Multiple connection types: thread, clamp, flange for DN15–300
High turndown ratio, widely used for steam and industrial gas metering
| Nominal Diameter DN | 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300... |
| Pressure Rating | 1.6 MPa (For pressure higher than 1.6 MPa, order by agreement) |
| Medium and Temperature | Medium: Liquid, general gas, steam; Temperature: -20~250℃; 250~350℃ |
| Body Material | SS304; SS316L (order by agreement) |
| Allowable Vibration Acceleration | 0.2g |
| Accuracy | Class 1.0; Class 1.5; Class 2.5 |
| Turndown Ratio | 1:6; 1:10; 1:20 |
| Power Supply Voltage | 3.6V lithium battery; DC24V |
| Output Signal | Pulse, 4~20mA, RS485, Hart protocol |
| Explosion-proof Mark | ExdII CT6 Gb |
| Protection Class | IP65; IP68 |
| Environmental Conditions | Temperature: -20~55℃; Relative humidity: 5~95%; Atmospheric pressure: 86~106KPa |
| Display | No display; LCD display |
| Electrical Interface | M20X1.5; NPT1/2 |
