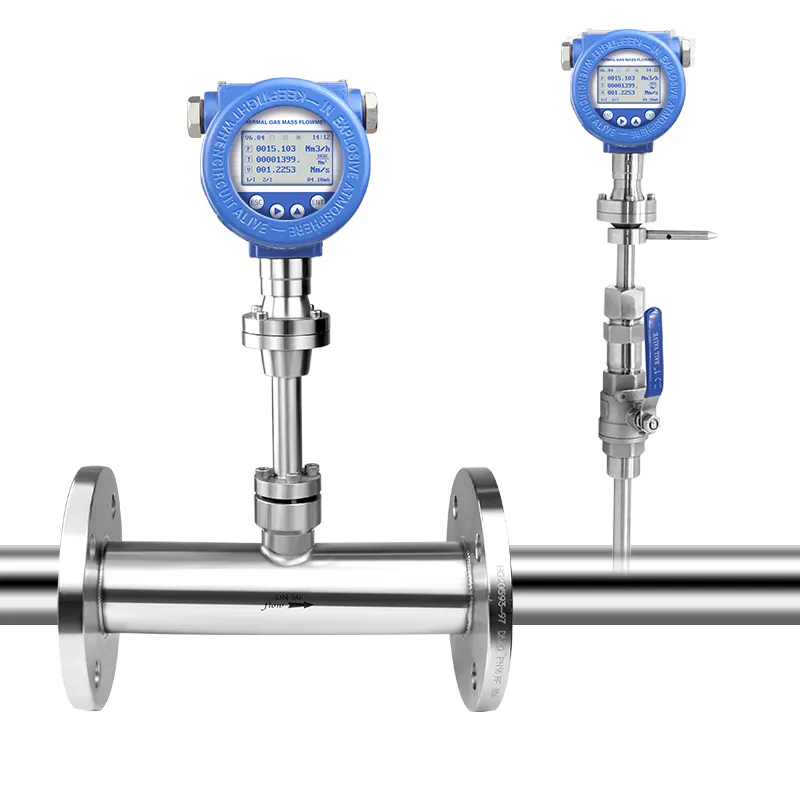

Insertion Gas Flow Meter

Name: Insertion Gas Flow Meter
Brand: Anhui Jujie Automation Technology Co., LTD.
Availability: InStock

Insertion thermal gas mass flow meter adopts plug-in probe design, suitable for large-diameter gas pipelines. Direct mass measurement without T&P compensation, easy hot-tap installation, ideal for biogas, compressed air and industrial gas monitoring.

Send Mail

Features of Insertion Gas Flow Meter

Plug-in structure, hot tapping installation without pipeline shutdown
Applicable pipe diameter DN25~DN2000, cover large industrial pipelines

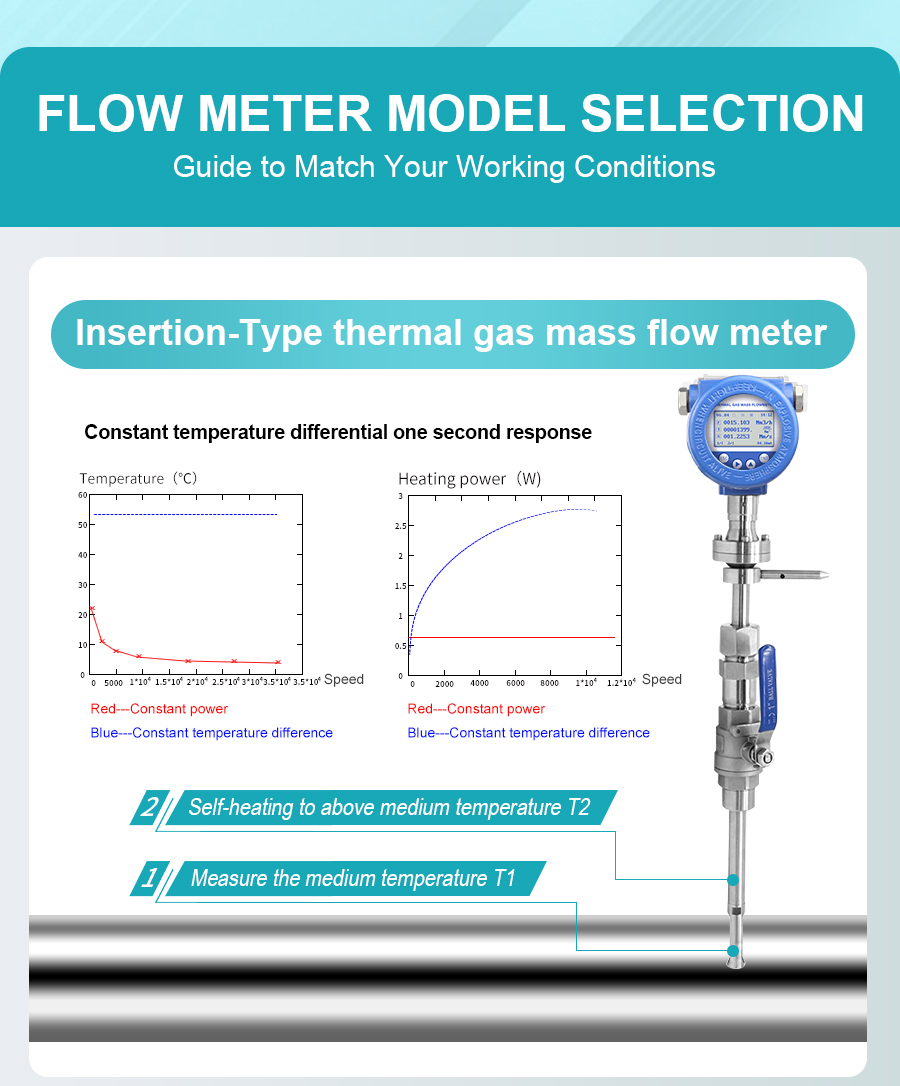

Thermal diffusion principle, direct mass flow output, no compensation needed
Ultra-low flow detection down to 0.1Nm/s, wide turndown ratio
Hastelloy/316L anti-corrosion probe, adapt biogas & trace corrosive gas
Multi-signal output: 4-20mA, RS485 Modbus, dual relay alarms
Low pressure loss, no blockage, long service life with low upkeep
Compact probe, small space requirement for complex pipe layouts

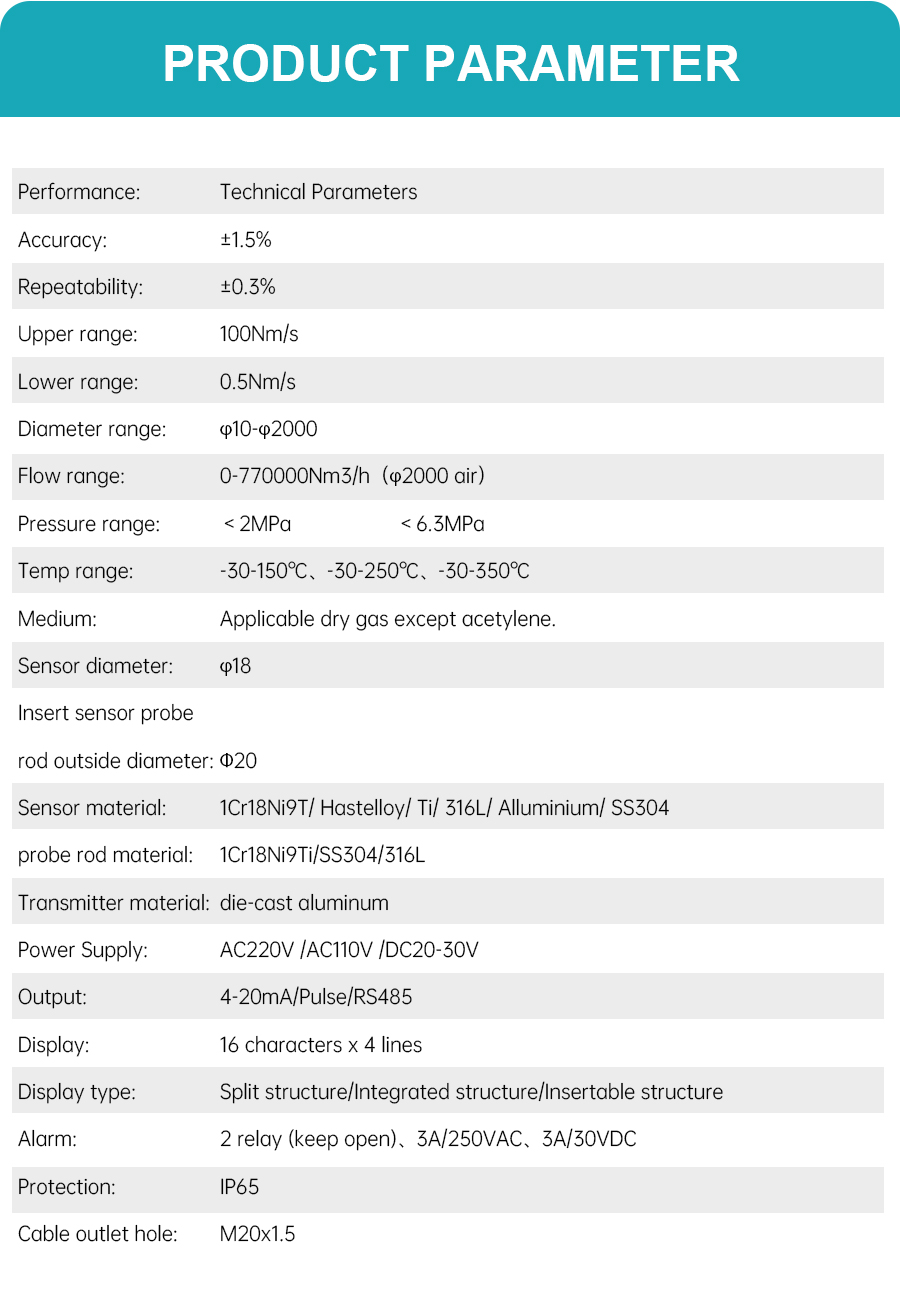

Specification of Insertion Gas Flow Meter

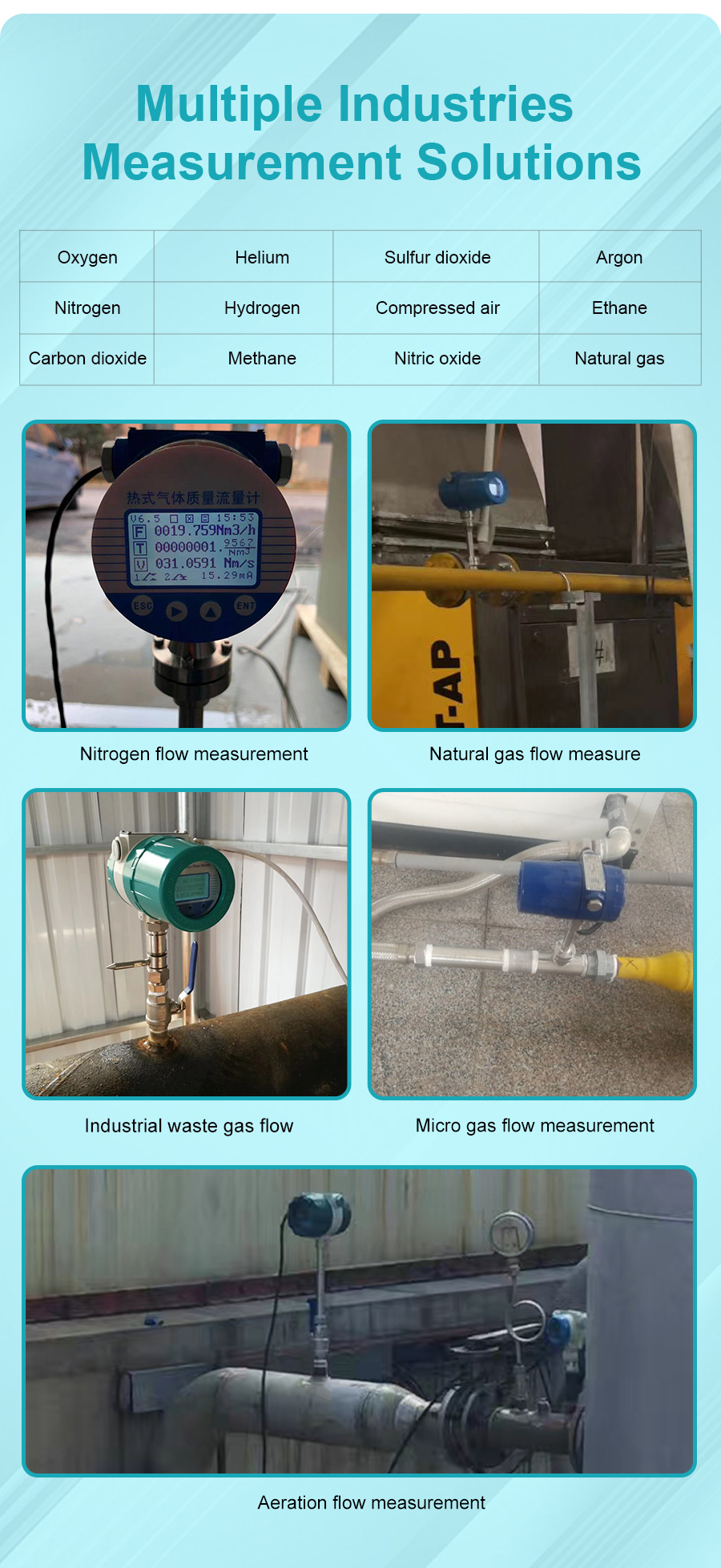

Measuring Medium	Various gases (excluding acetylene)

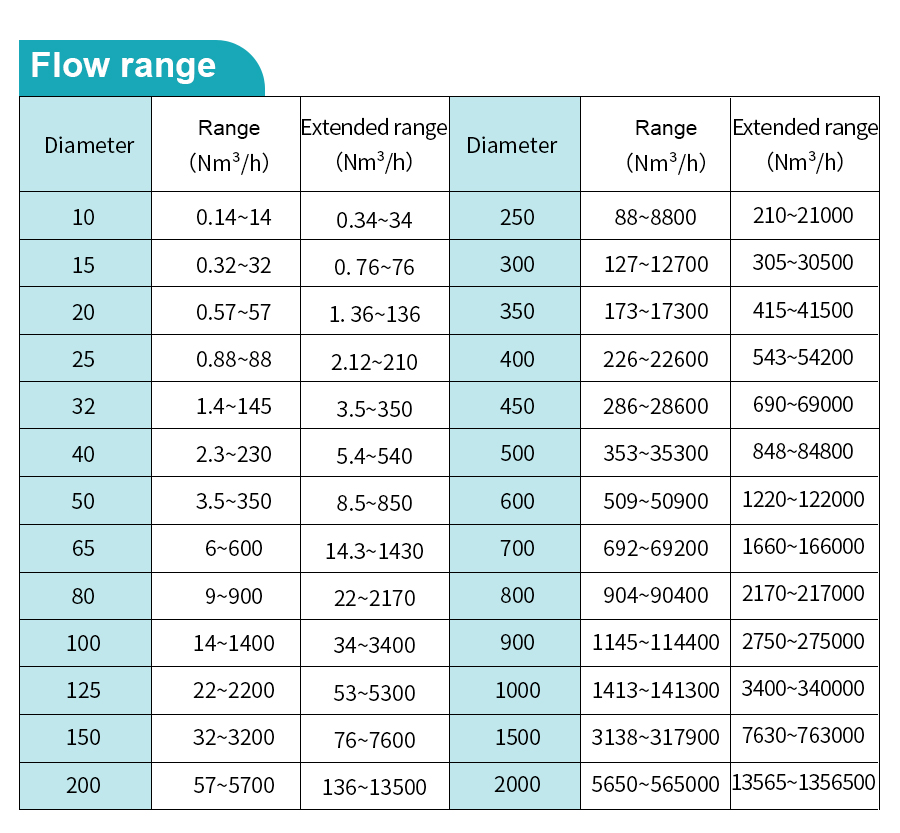

Pipe Diameter Range	DN15~2000mm
Flow Velocity Range	0.1~100Nm/s
Accuracy	Insertion type: 2.5%
Working Temperature	Sensor: normal temperature type -10 ~ +200℃, high temperature type: -10 ~ +350℃; Converter: -20 ~ +45℃
Working Pressure	Medium pressure ≤ 4MPa
Power Supply	Integrated type (DC24V or AC220V ≤ 18W); Split type (AC220V ≤ 19W)
Response Speed	1s
Output Signal	4-20mA (opto-isolated, maximum load 500Ω); RS-485 (opto-isolated), HART protocol
Pipe Material	Carbon steel, stainless steel, plastic, etc.
Display	Integrated type: four-line Chinese liquid crystal display
Display Content	Mass flow, standard volume flow, cumulative flow, standard time, cumulative operating time, medium temperature, standard flow velocity, etc.
Primary Meter Protection Class	IP67
Sensor Material	Stainless steel
