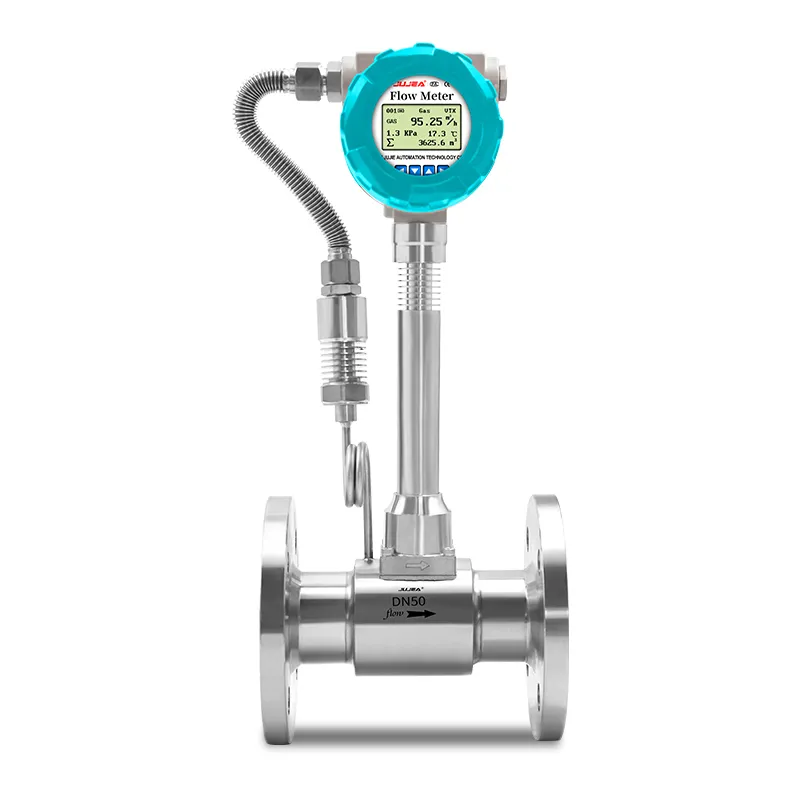

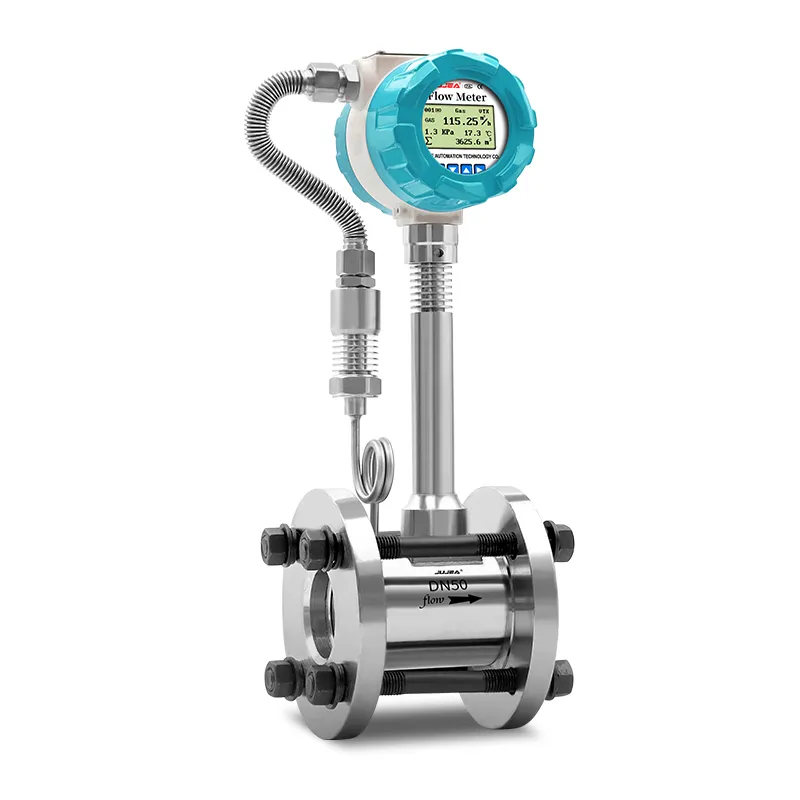

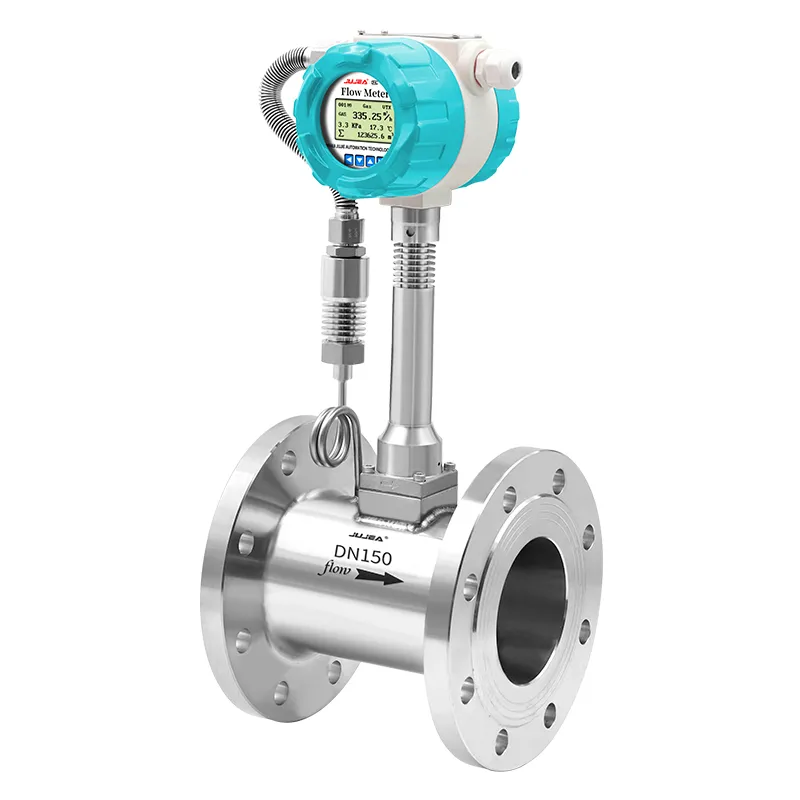

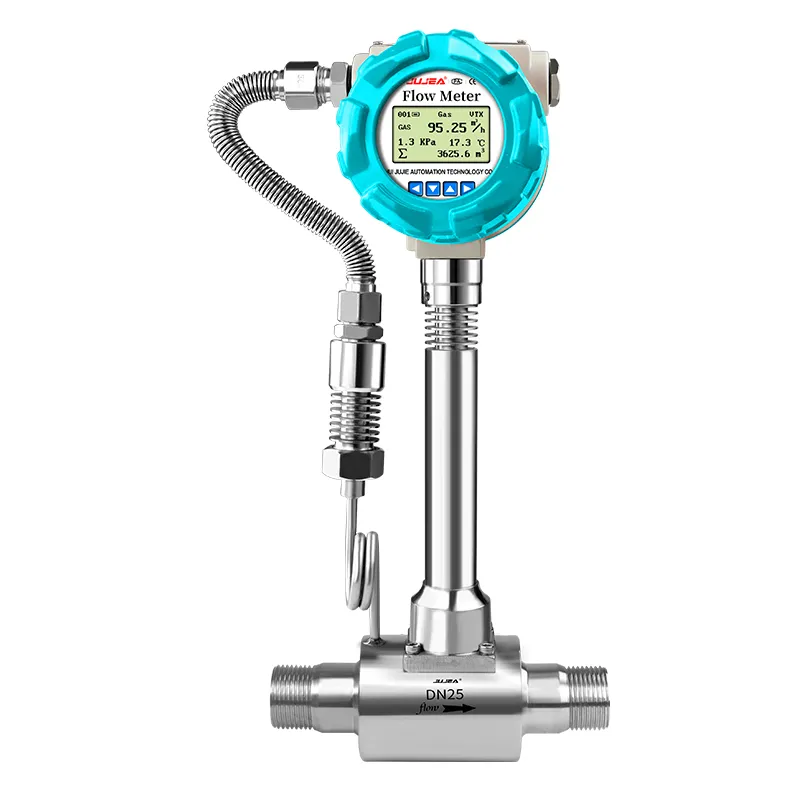

Vortex nitrogen flow meter adopts Karman vortex principle, optional integrated T&P compensation, directly outputs standard nitrogen volume. Stainless steel wetted parts with ExdII CT6 explosion-proof, ideal for industrial nitrogen pipeline continuous measurement.
Suitable for pure nitrogen, mixed nitrogen and inert gas flow measurement
Optional built-in temperature & pressure auto compensation for standard flow output
Full SS304/316L flow body, corrosion-resistant to dry nitrogen
No moving internal parts, low pressure loss, long service life
Wide turndown ratio up to 15:1, stable low-flow detection
Multi signals: pulse, 4-20mA, isolated RS485 Modbus / HART
ExdII CT6 explosion-proof & IP65 protection for nitrogen workshops
LCD display for instantaneous & cumulative standard nitrogen flow
Flange/clamp/thread multi connection, DN15~DN300 full calibers
| Nominal Diameter DN | 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300... |
| Pressure Rating | 1.6 MPa (For pressure higher than 1.6 MPa, order by agreement) |
| Medium and Temperature | Medium: Liquid, general gas, steam; Temperature: -20~250℃; 250~350℃ |
| Body Material | SS304; SS316L (order by agreement) |
| Allowable Vibration Acceleration | 0.2g |
| Accuracy | Class 1.0; Class 1.5; Class 2.5 |
| Turndown Ratio | 1:6; 1:10; 1:20 |
| Power Supply Voltage | 3.6V lithium battery; DC24V |
| Output Signal | Pulse, 4~20mA, RS485, Hart protocol |
| Explosion-proof Mark | ExdII CT6 Gb |
| Protection Class | IP65; IP68 |
| Environmental Conditions | Temperature: -20~55℃; Relative humidity: 5~95%; Atmospheric pressure: 86~106KPa |
| Display | No display; LCD display |
| Electrical Interface | M20X1.5; NPT1/2 |
