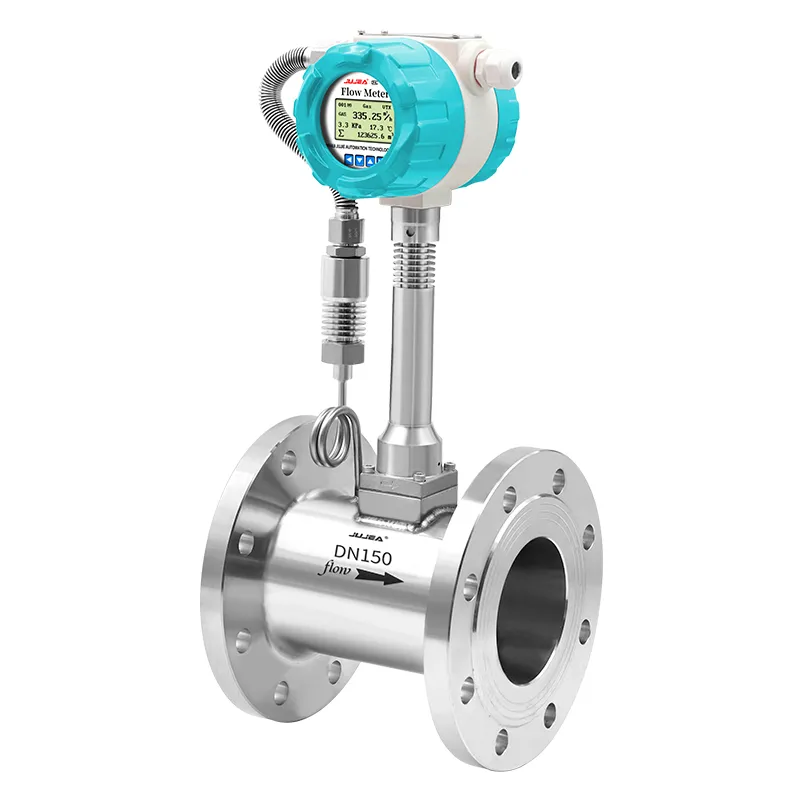

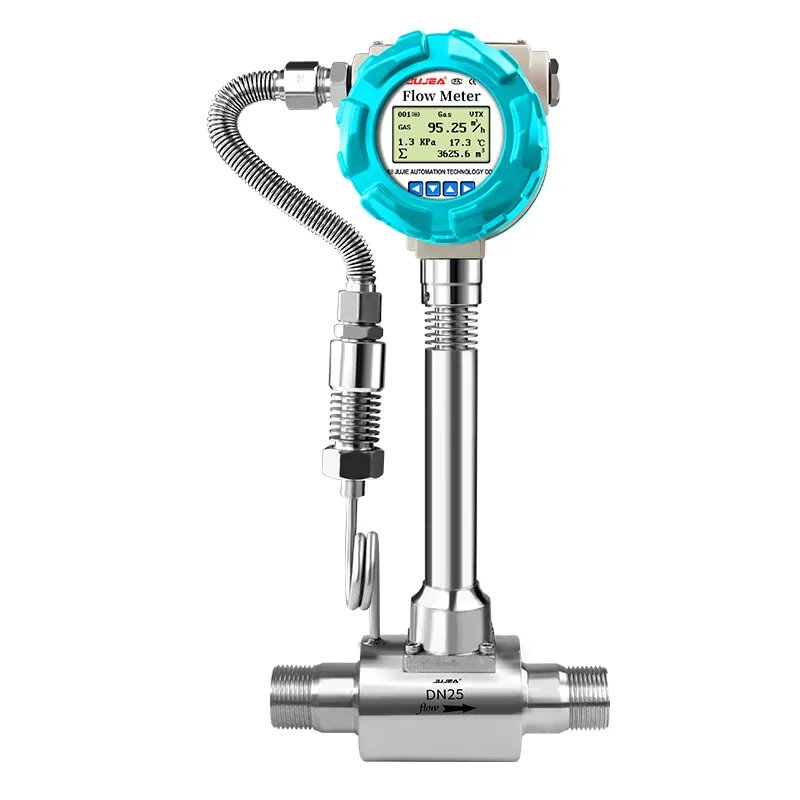

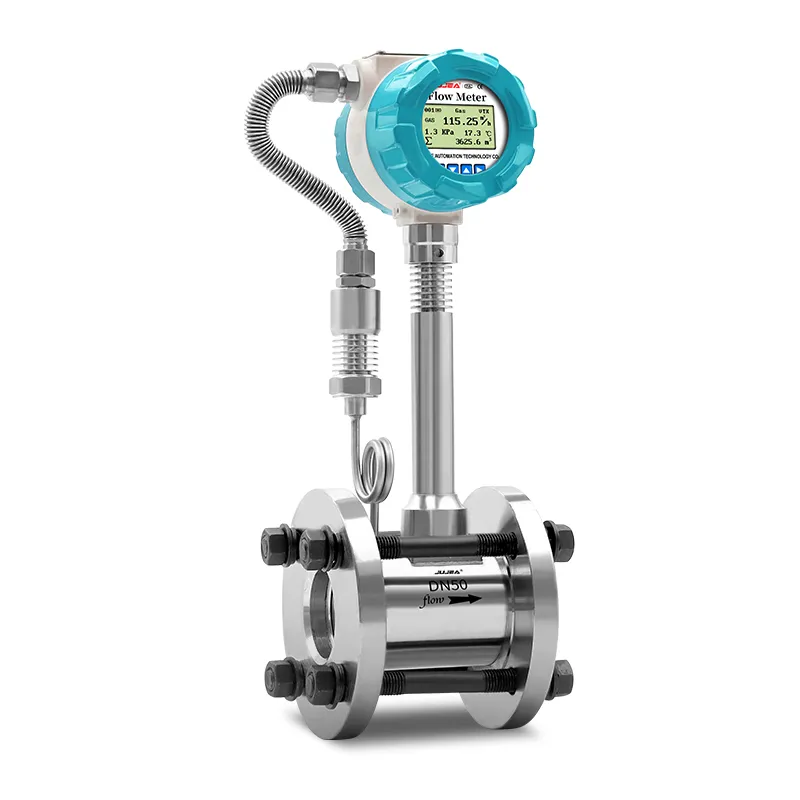

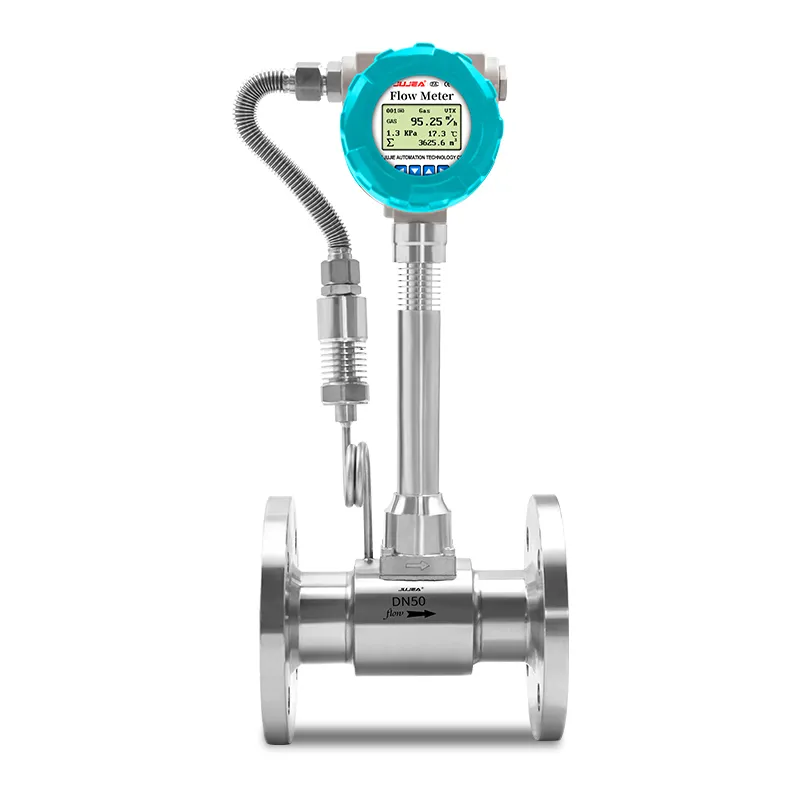

JUJEA vortex steam flow meter adopts Karman vortexprinciple, equipped with built-in temperature & pressurecompensation module. It accurately measures saturatedand superheated steam mass flow, with stainless steelbody and anti-vibration circuit. Supports pulse/4-20mA/RS485 output for boiler and heat supply pipelines.
Built-in temperature and pressure automatic compensation, directly output accurate steam mass flow.
Stainless steel measuring body, resistant to 350℃ high temperature and high pressure steam medium.
Anti-vibration optimized sensor design, stable signal on boiler and heating pipeline sites.
Multiple signal outputs: 4-20mA, pulse and RS485 Modbus for automatic data collection.
No movable internal parts, low maintenance cost and long service life for heat supply trade metering.
| Nominal Diameter DN | 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300... |
| Pressure Rating | 1.6 MPa (For pressure higher than 1.6 MPa, order by agreement) |
| Medium and Temperature | Medium: Liquid, general gas, steam; Temperature: -20~250℃; 250~350℃ |
| Body Material | SS304; SS316L (order by agreement) |
| Allowable Vibration Acceleration | 0.2g |
| Accuracy | Class 1.0; Class 1.5; Class 2.5 |
| Turndown Ratio | 1:6; 1:10; 1:20 |
| Power Supply Voltage | 3.6V lithium battery; DC24V |
| Output Signal | Pulse, 4~20mA, RS485, Hart protocol |
| Explosion-proof Mark | ExdII CT6 Gb |
| Protection Class | IP65; IP68 |
| Environmental Conditions | Temperature: -20~55℃; Relative humidity: 5~95%; Atmospheric pressure: 86~106KPa |
| Display | No display; LCD display |
| Electrical Interface | M20X1.5; NPT1/2 |
