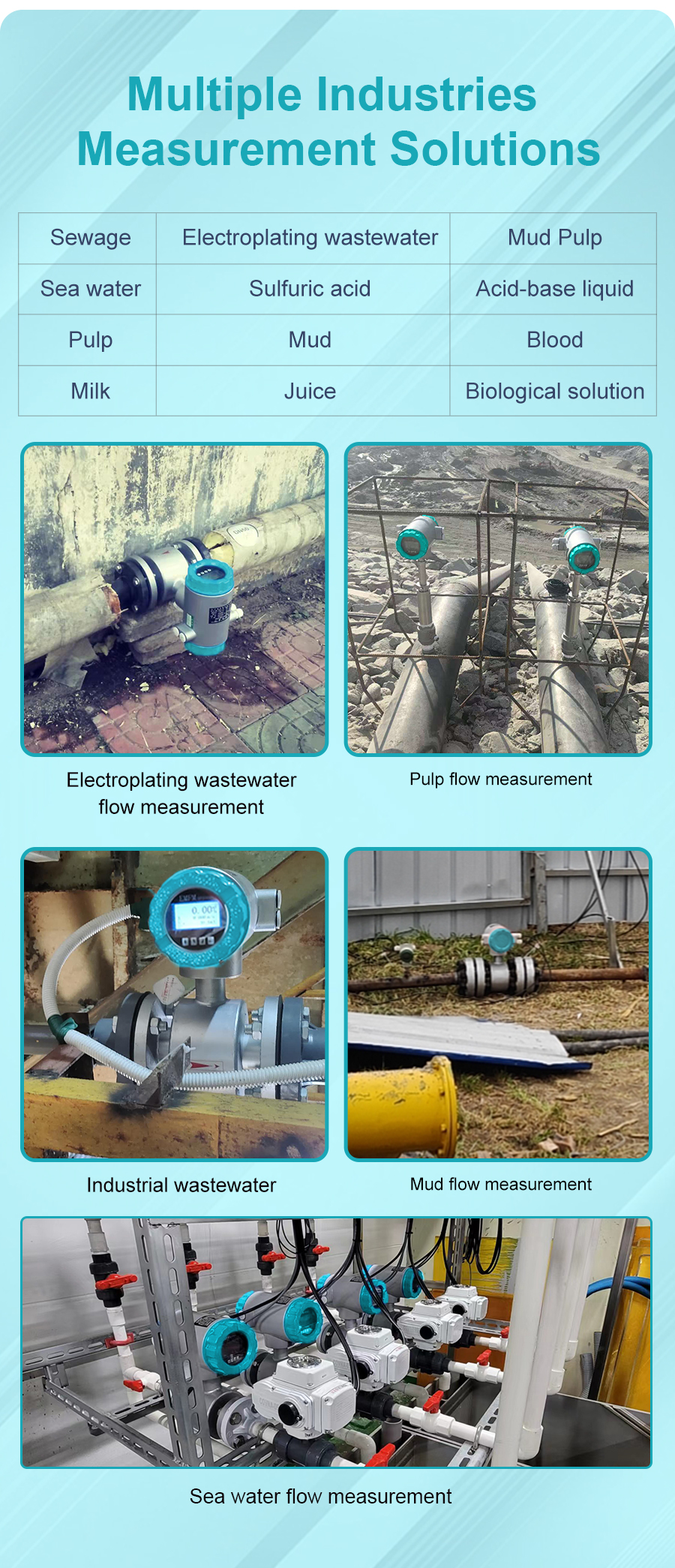

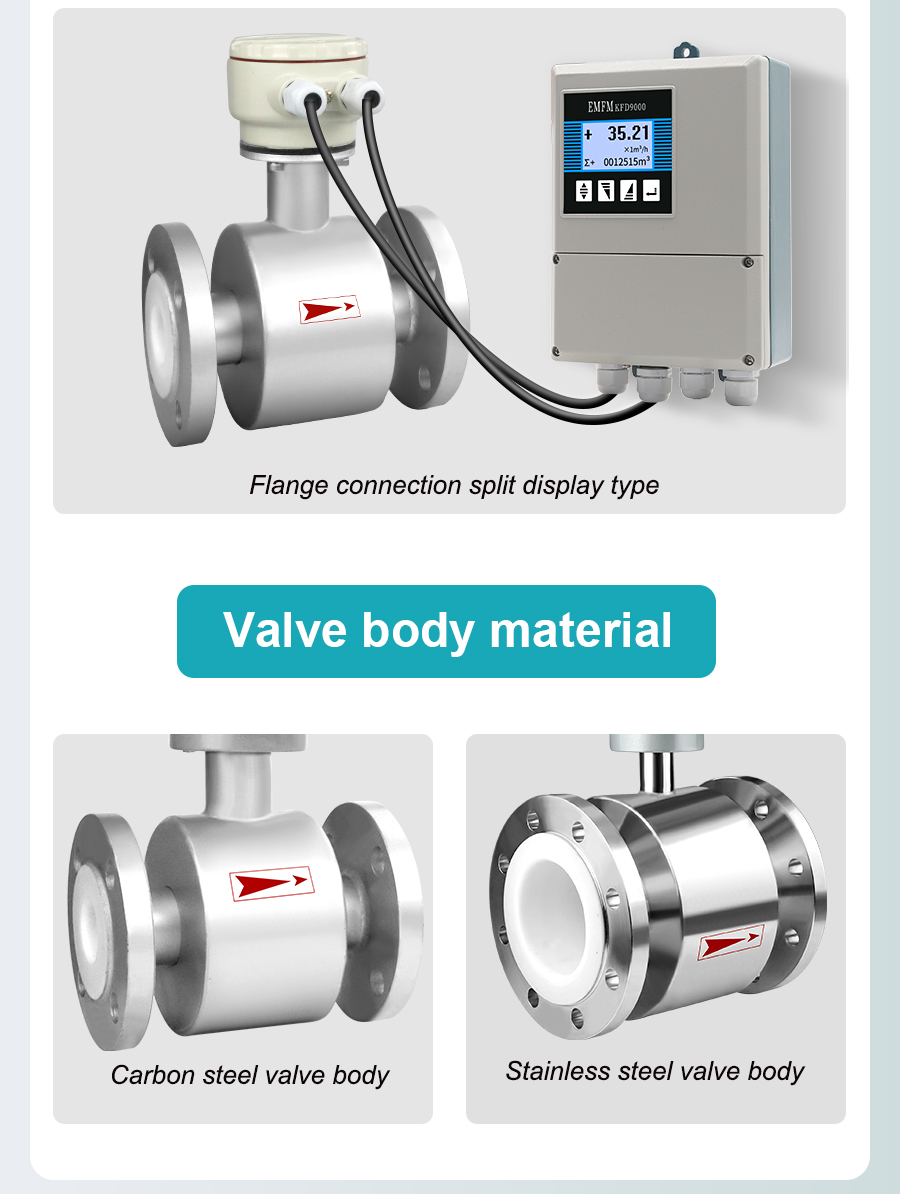

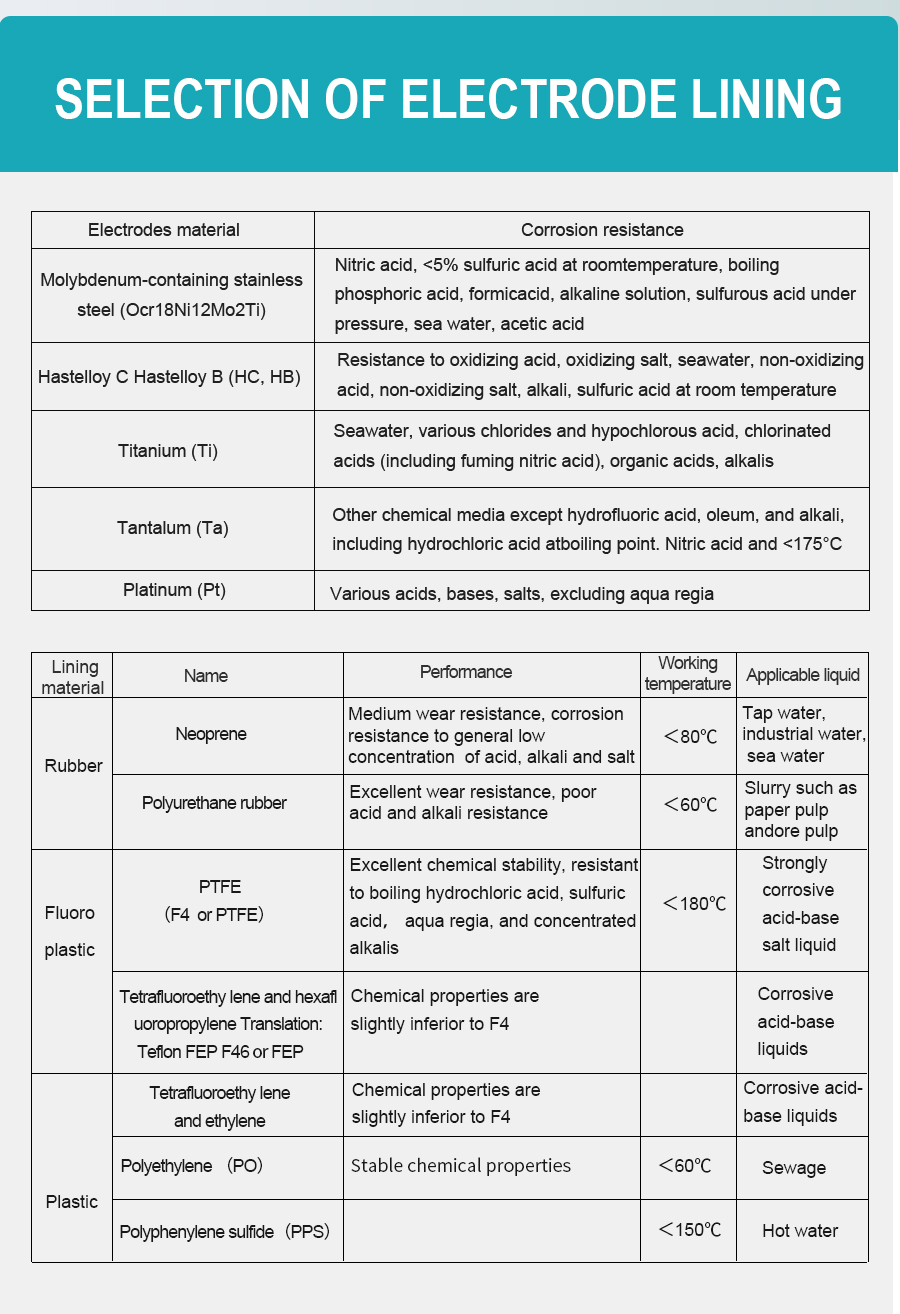

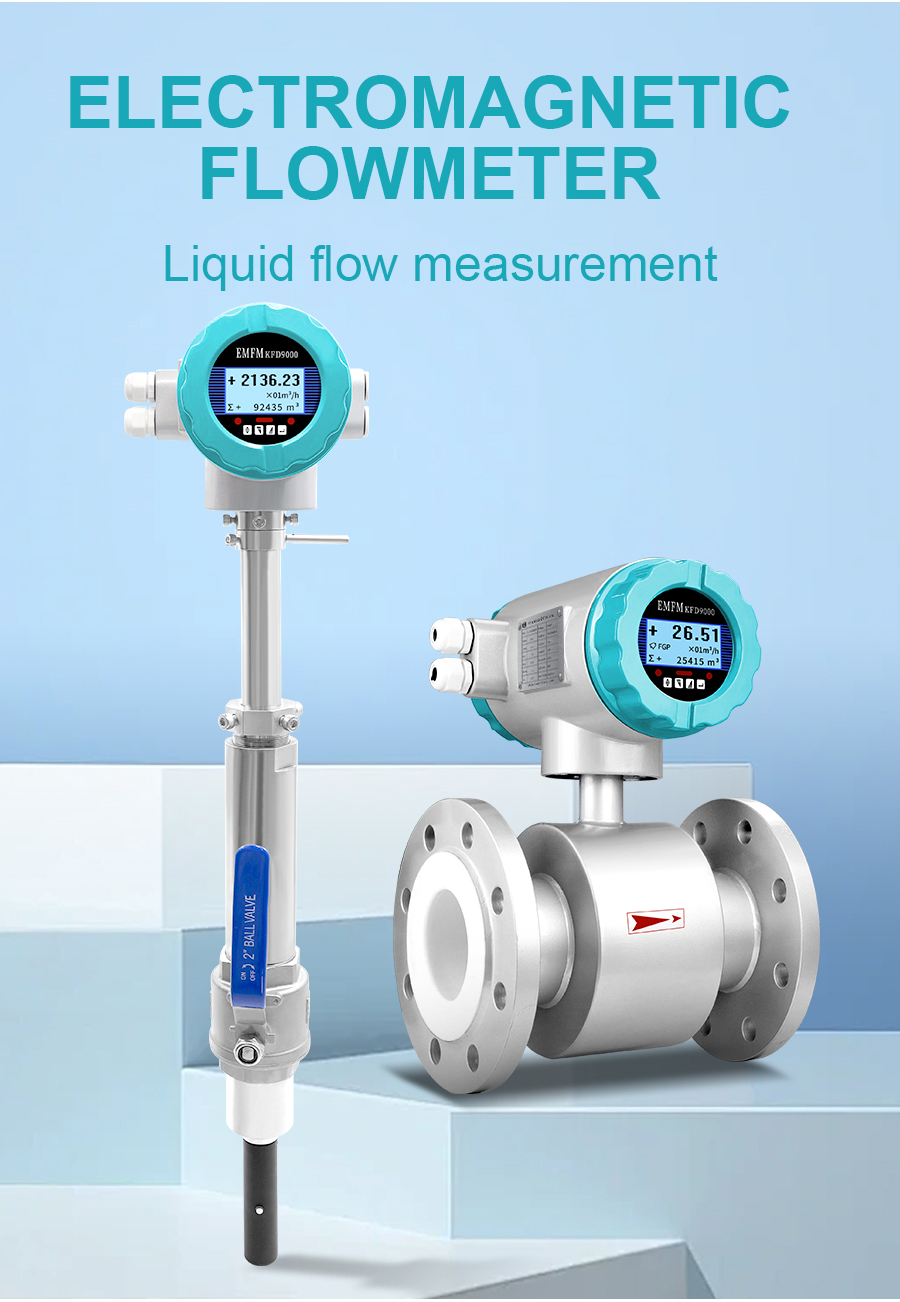

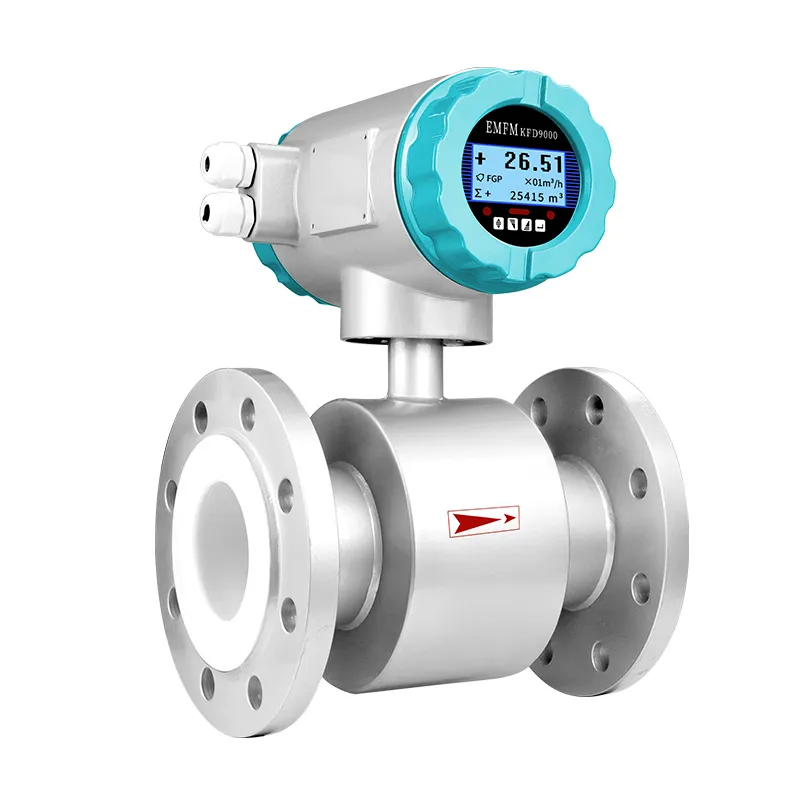

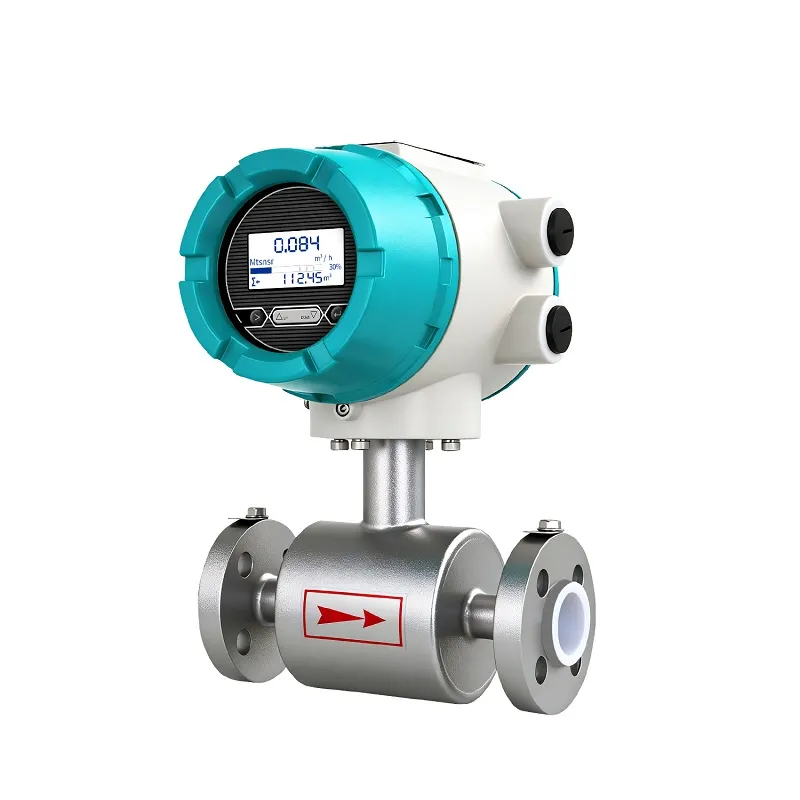

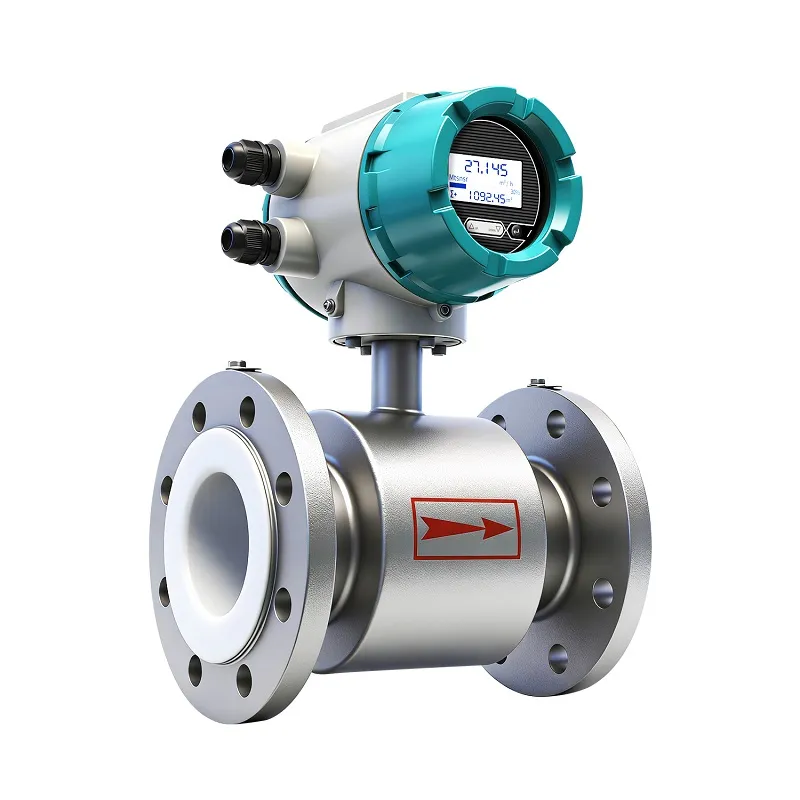

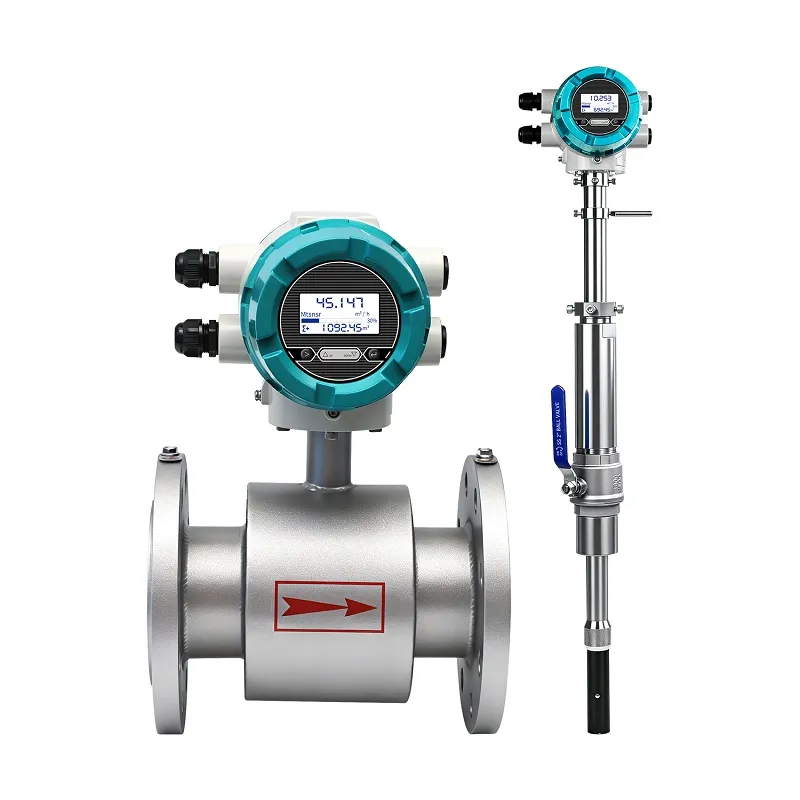

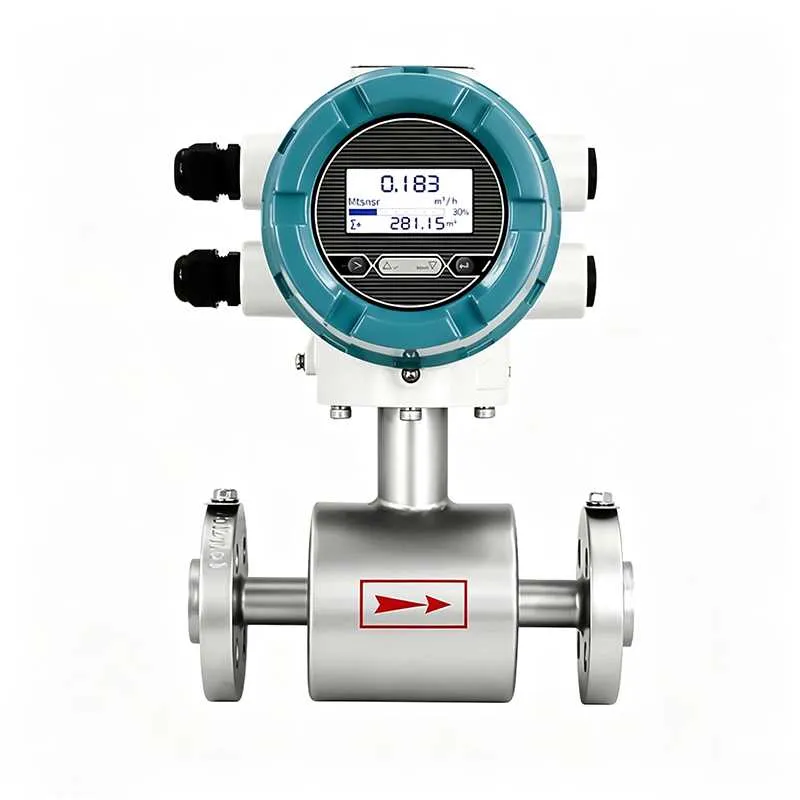

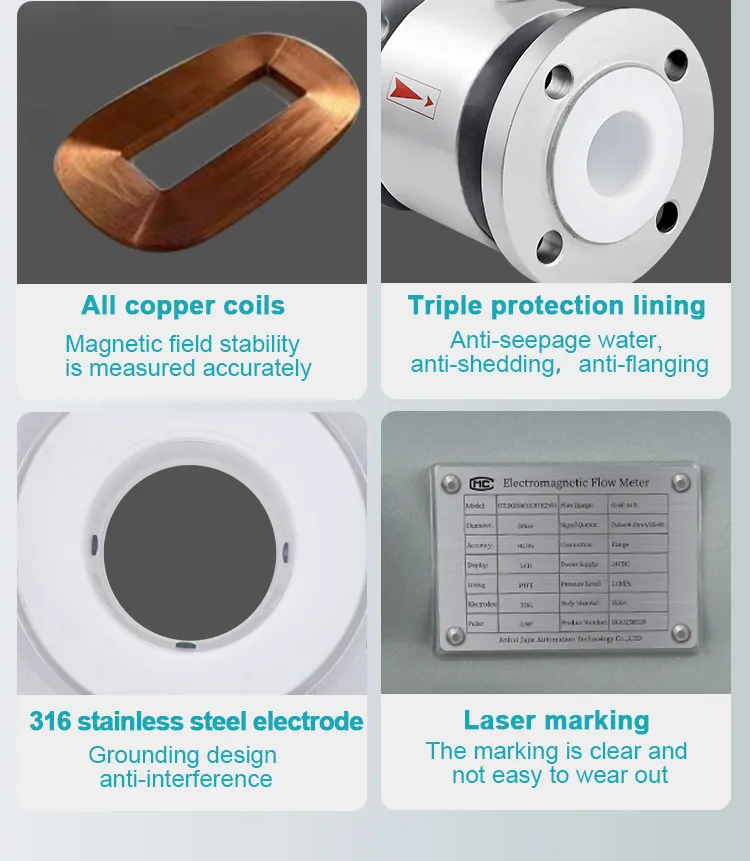

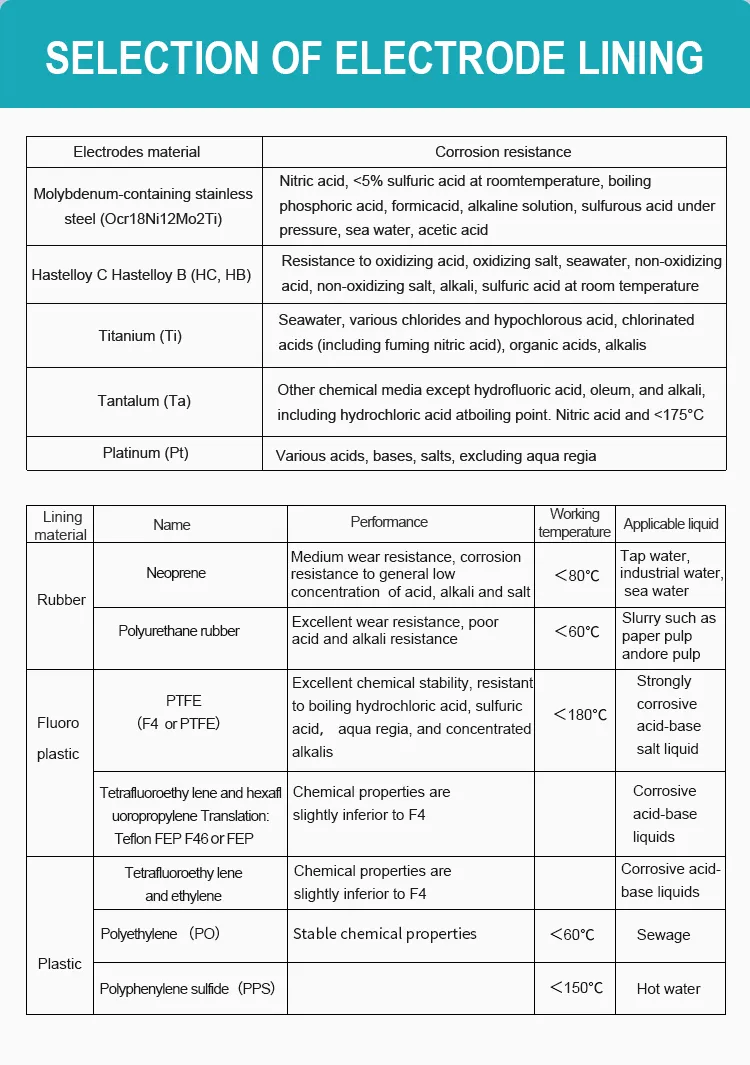

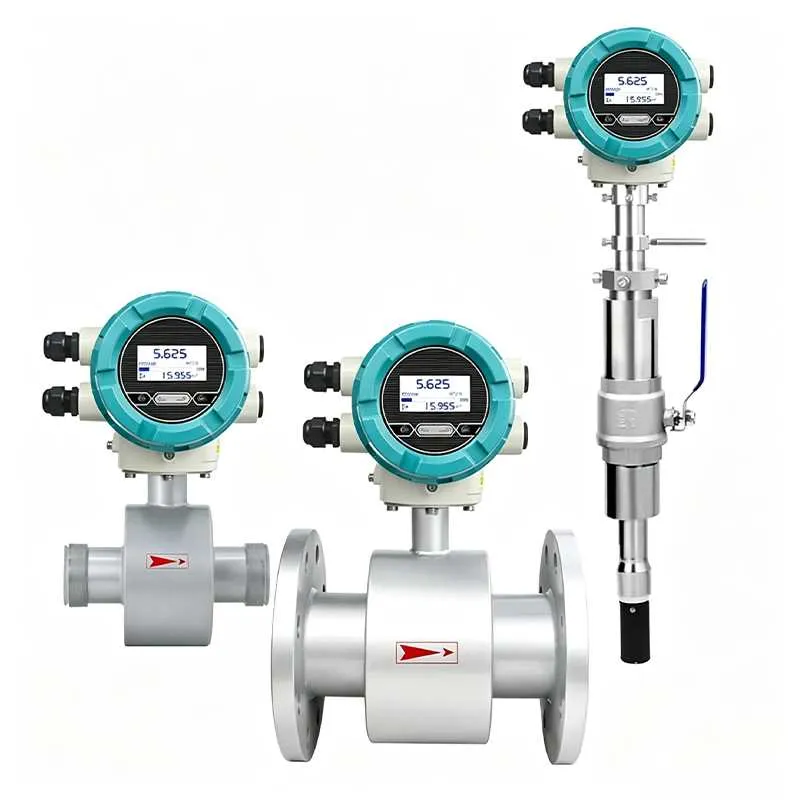

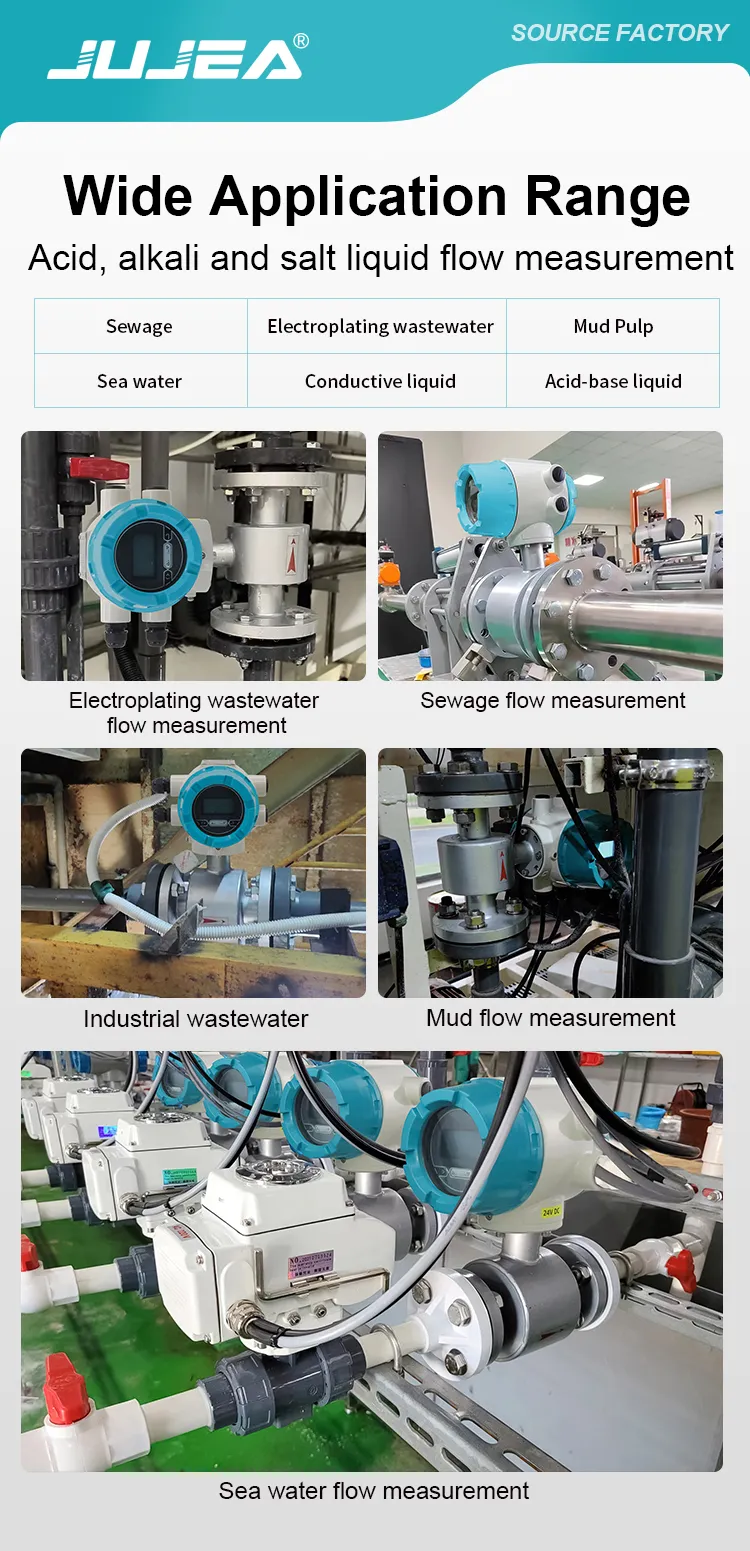

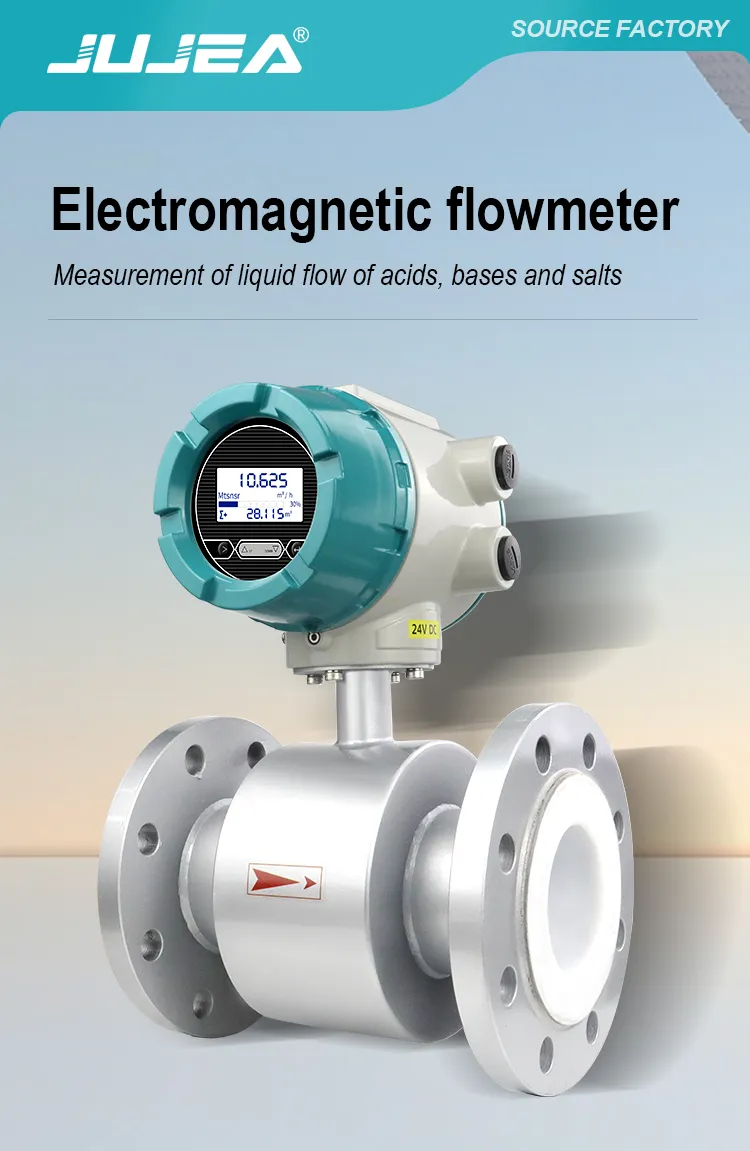

Cost-effective carbon steel electromagnetic flowmeter uses carbon housing with full isolation lining to avoid corrosion and signal interference. optional PTFE/rubber lining and corrosion-resistant electrodes. It covers DN15–DN1200, delivers 0.5% high precision, with 4-20mA, RS485 and HART outputs for water, sewage and general industrial conductive fluids.
Sufficient mechanical rigidity: Carbon steel pipe body meets standard pressure grades (0.6/1.0/1.6/4.0MPa), reliable structural strength for common pipeline loads.

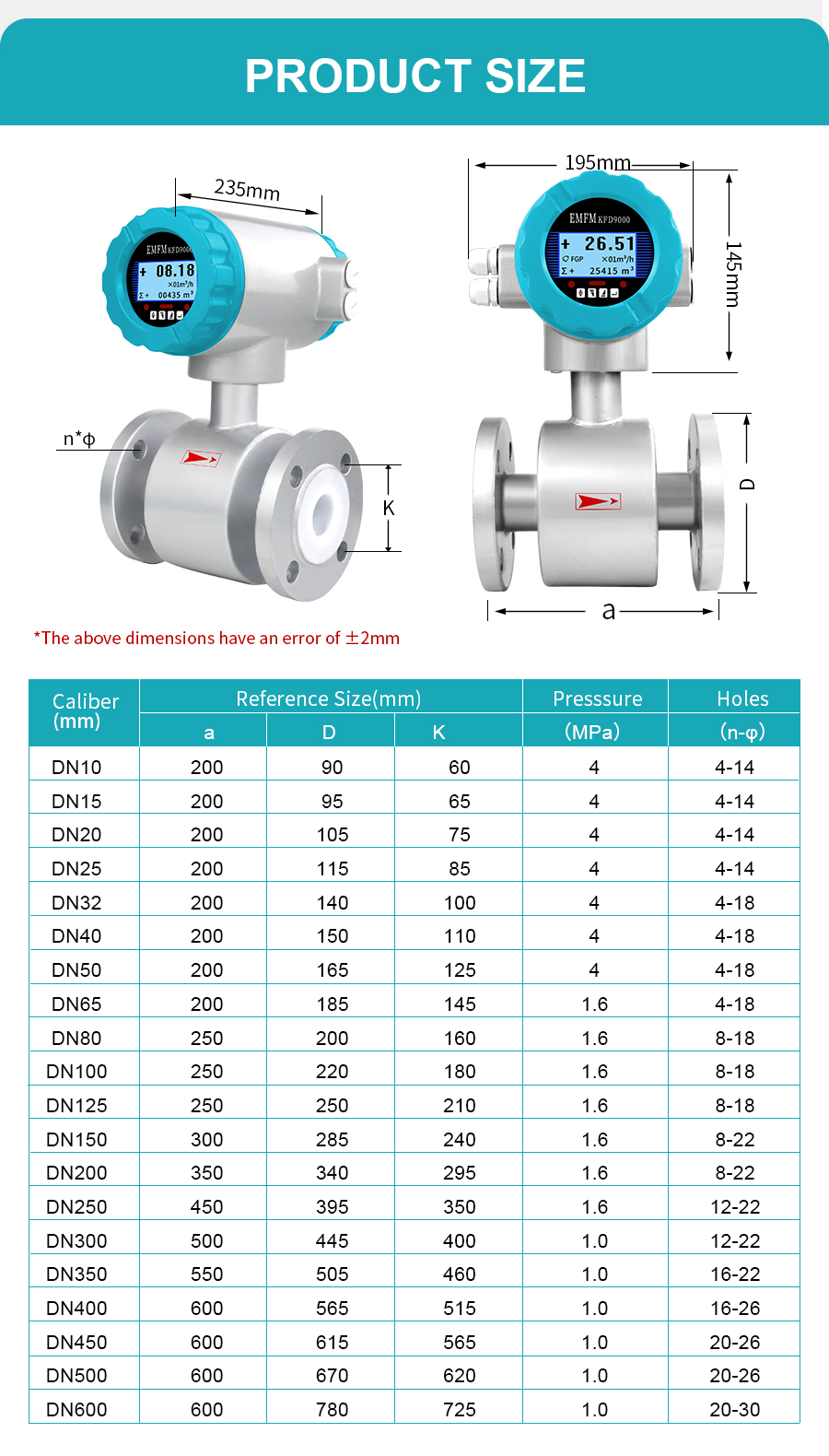

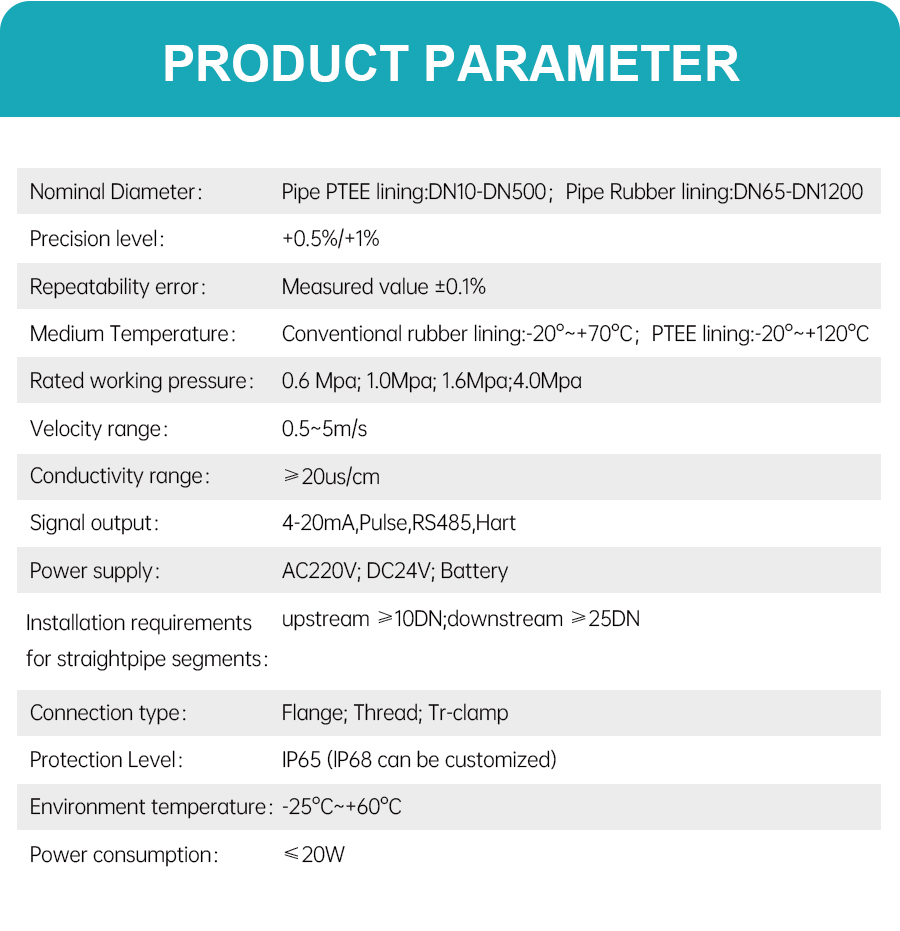

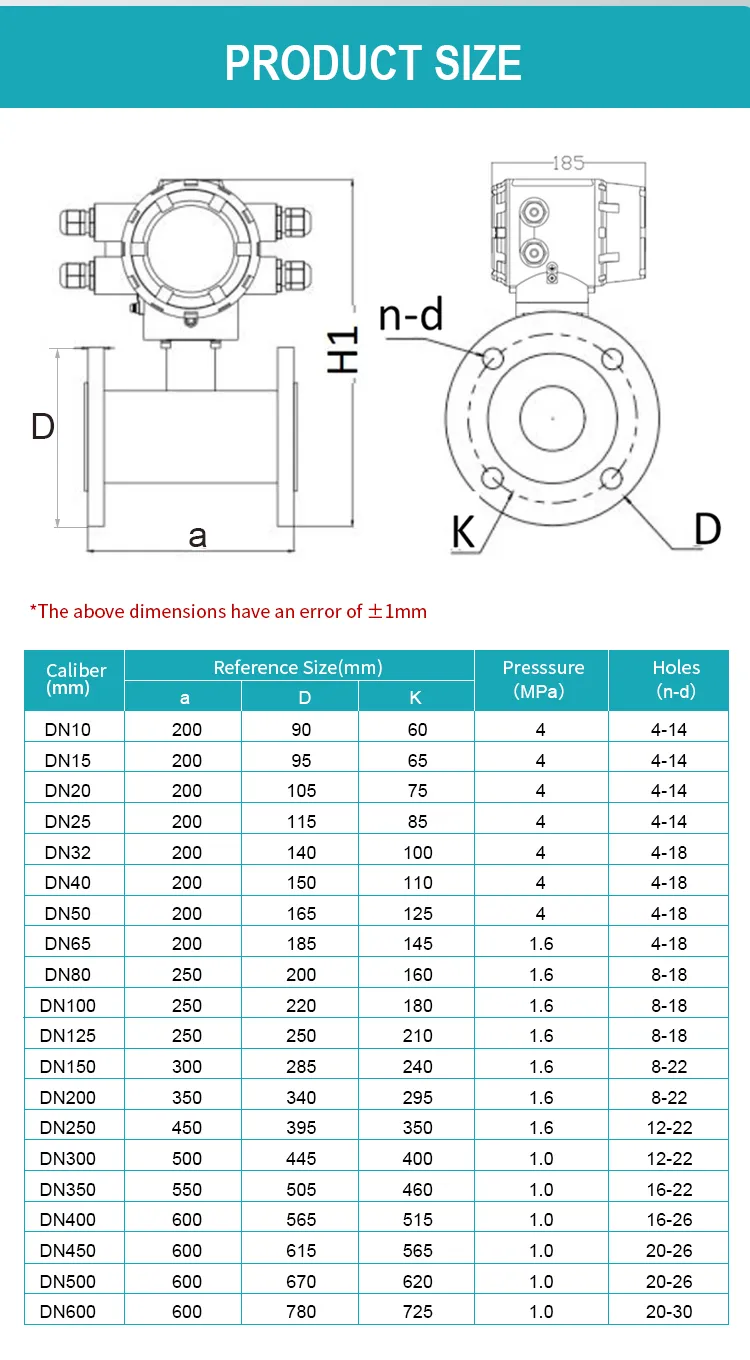

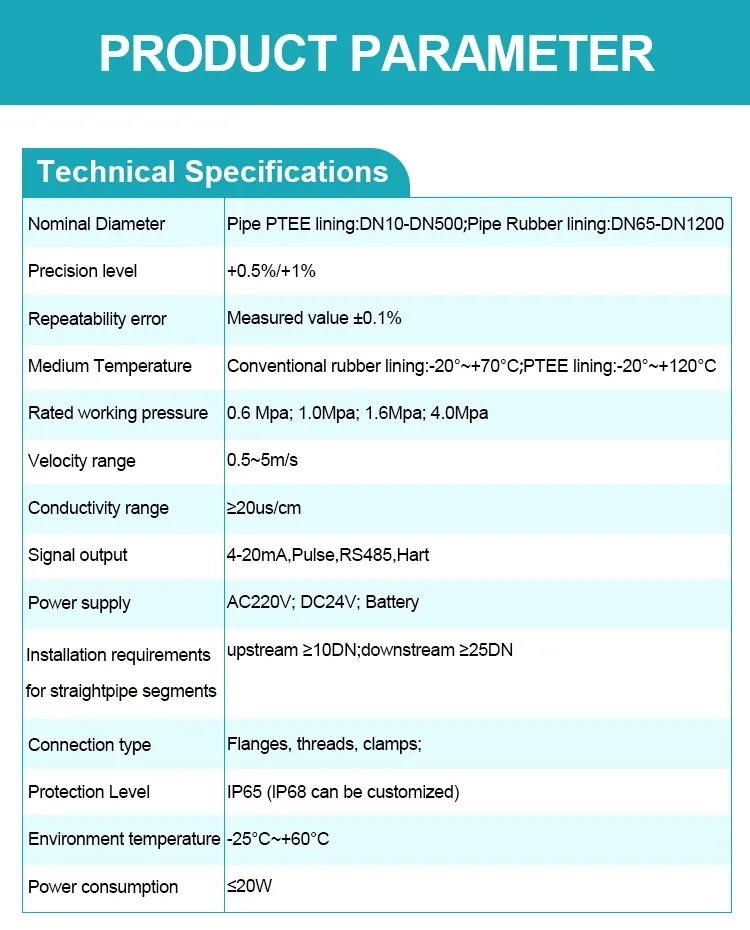

| Nominal Diameter (mm) | Pipe type with PTFE lining: DN10 ~ DN500; Pipe type with rubber lining: DN65 ~ DN1200 |
| Accuracy Class | Class 0.5; Class 1.0 |
| Medium Temperature | Ordinary rubber lining: -20 ~ +70℃; PTFE lining: -20 ~ +120℃ |
| Pressure Class | 0.6MPa, 1.0MPa, 1.6MPa, 4.0MPa (higher pressure can be customized) |

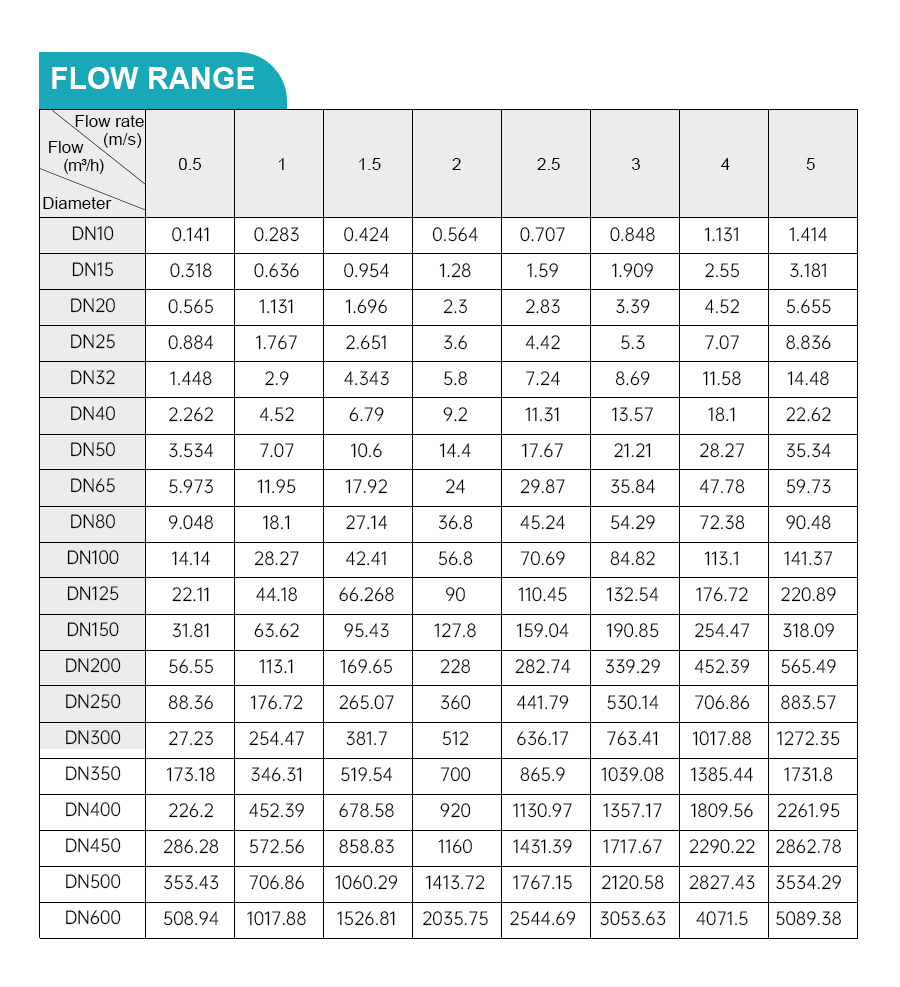

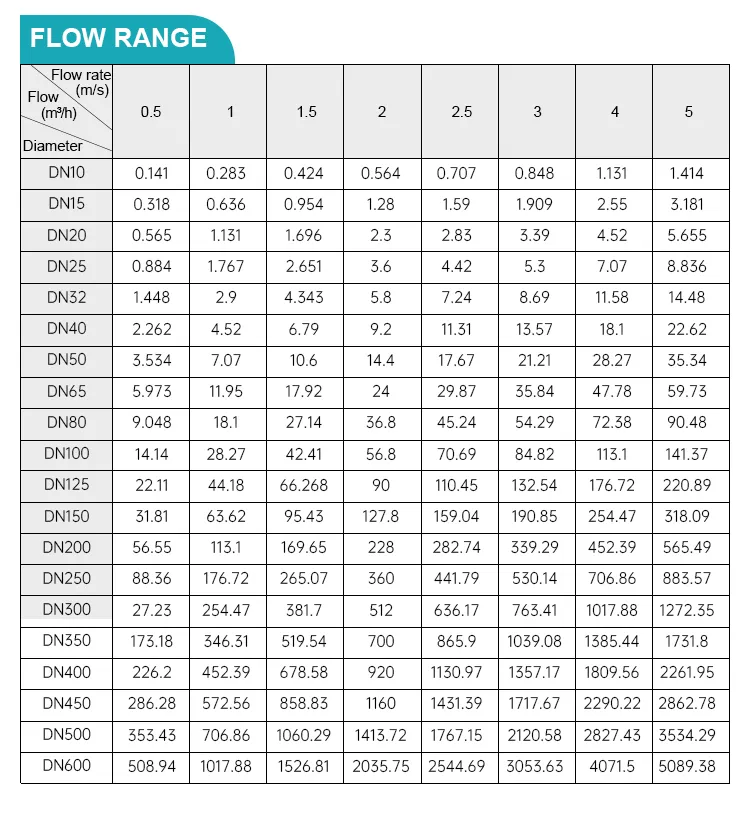

| Flow Measurement Range | The flow measurement range corresponds to a flow velocity range of 0.5～5m/s |
| Conductivity Range | Fluid conductivity ≥50μs/cm, the conductivity of water is in the range of 200-800μs/cm |
| Signal Output | Pulse, 4-20mA, RS485 |
| Digital Frequency Output | The frequency can be set within 1-5000Hz, the maximum collector current is 250mA when the external power supply ≤35V is turned on |
| Power Supply | 220V, DC24V; Battery power supply |

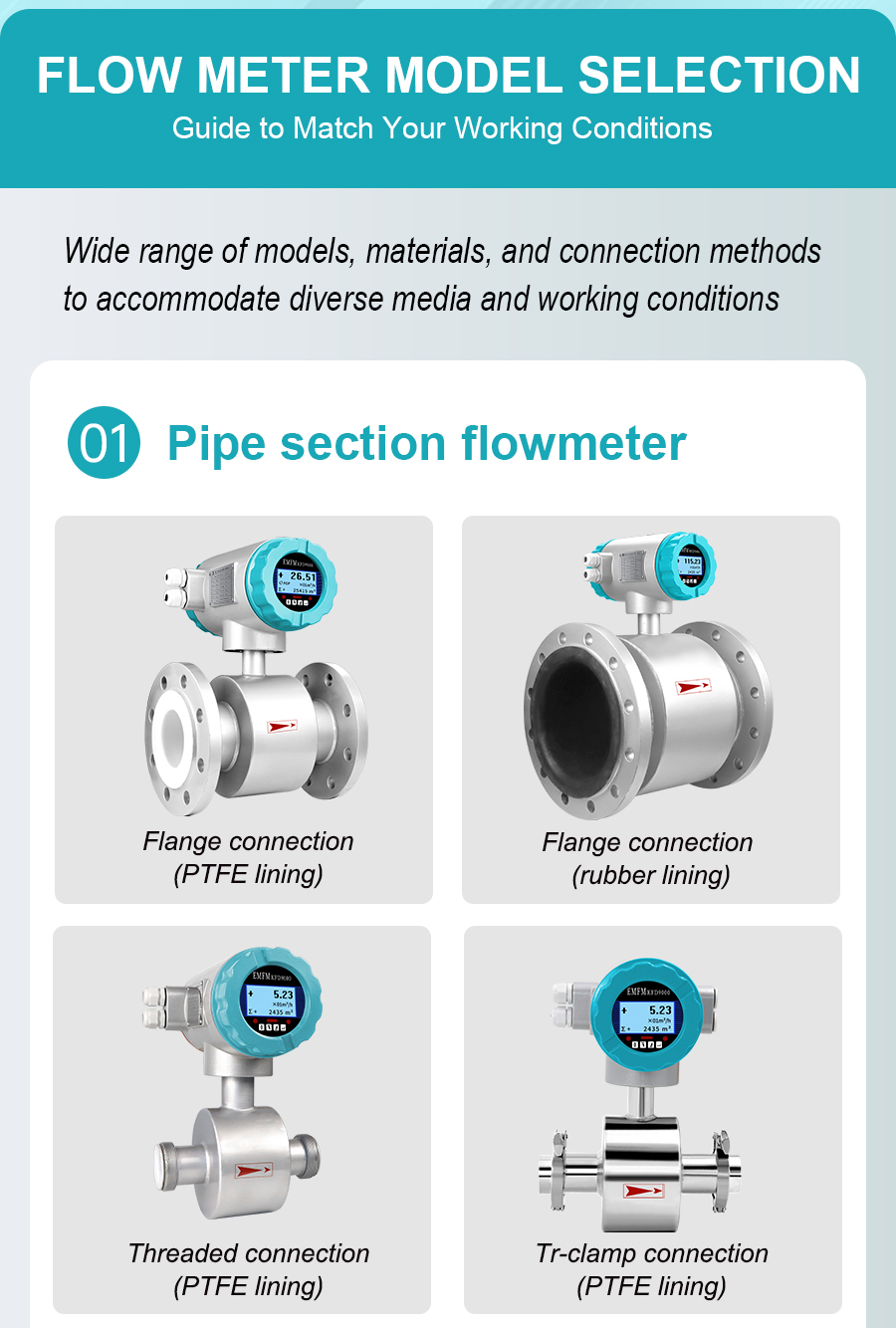

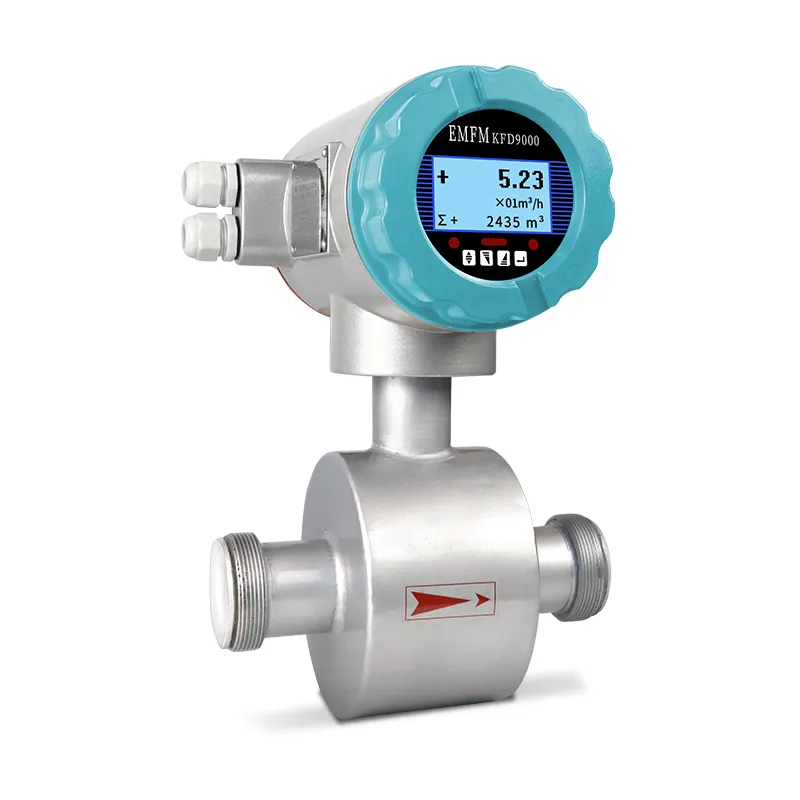

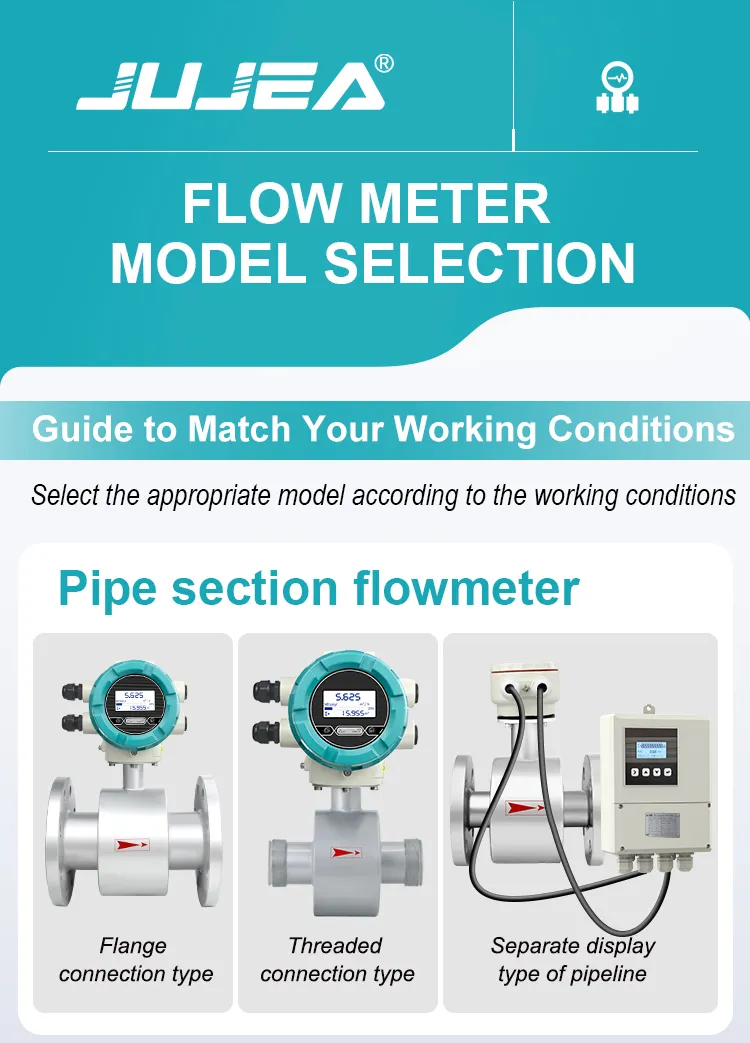

| Connection Method | Flange, thread, clamp |
| Explosion-proof Mark | Ex db mb IIC T6 Gb |
| Ambient Temperature and Humidity | -25℃ ~ +60℃; 5%RH～95%RH |
| Total Power Consumption | <20W |
