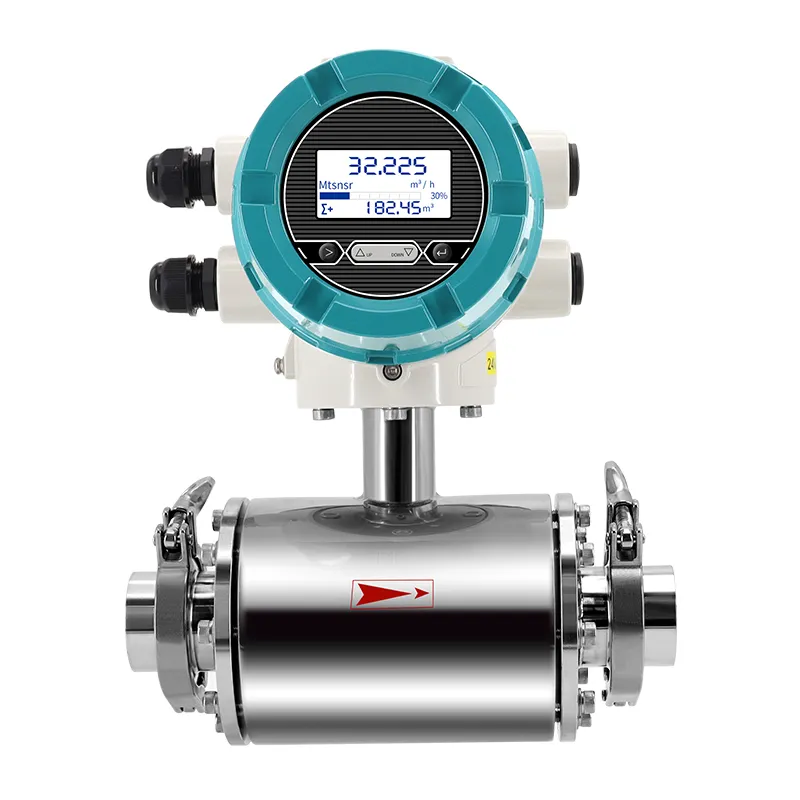

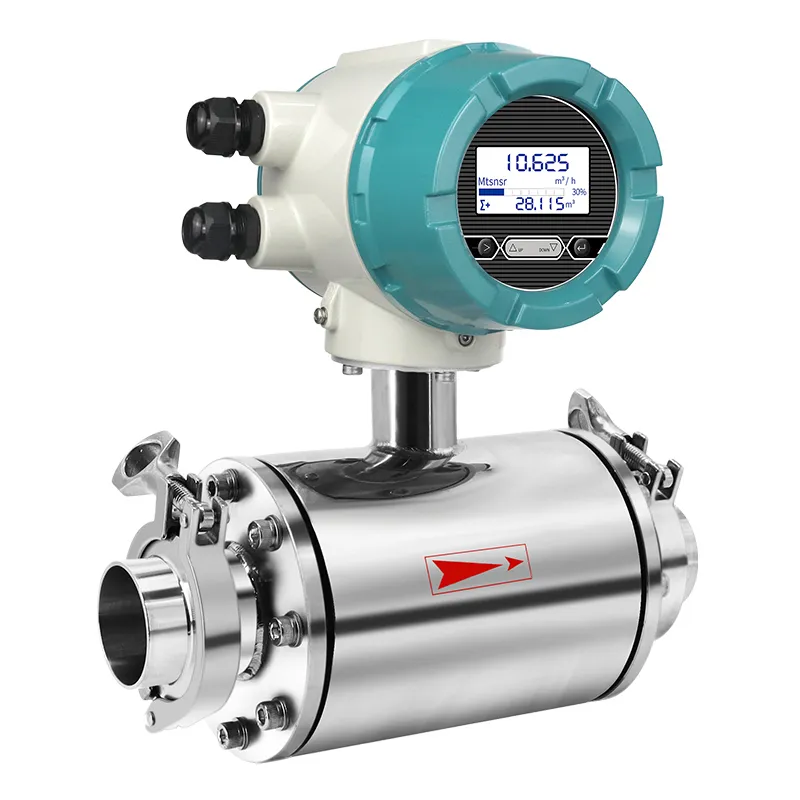

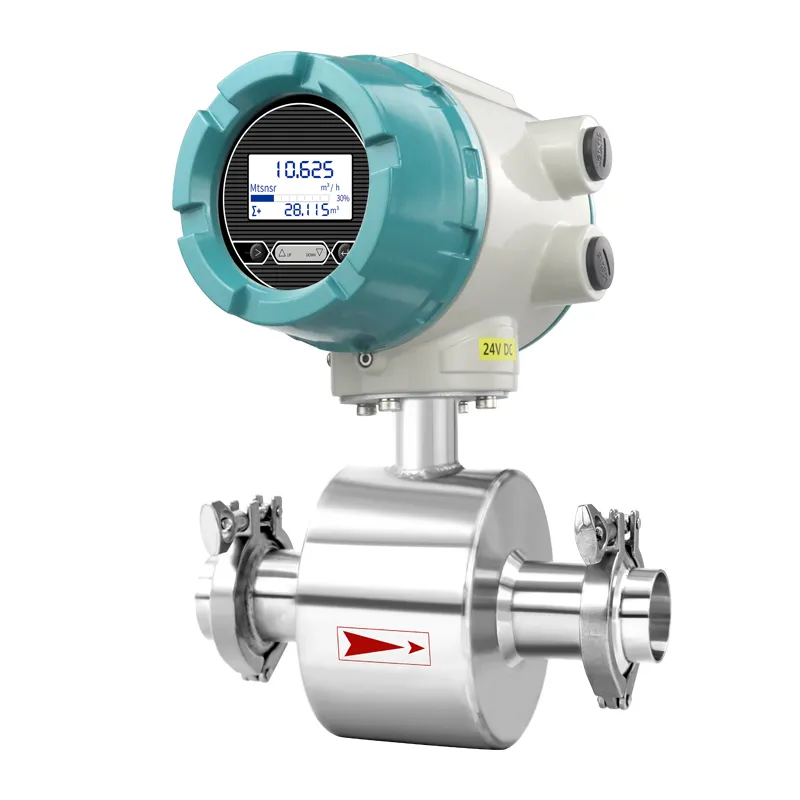

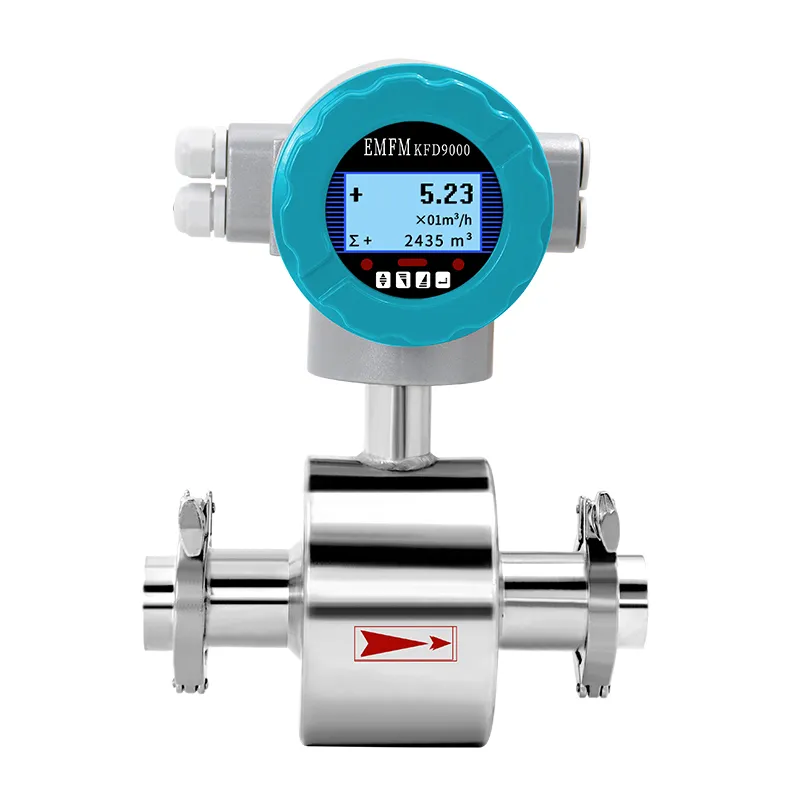

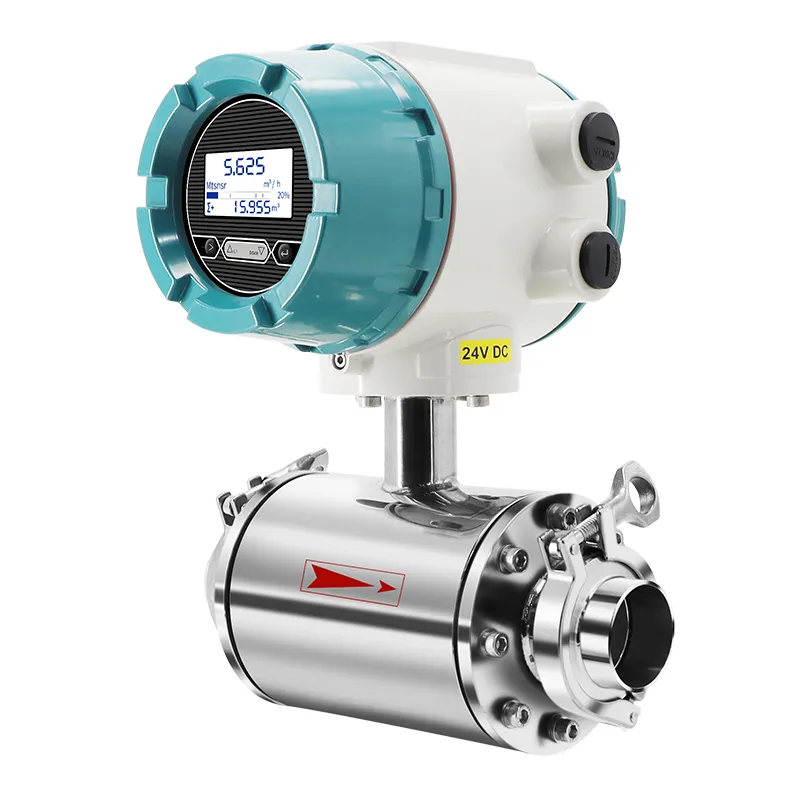

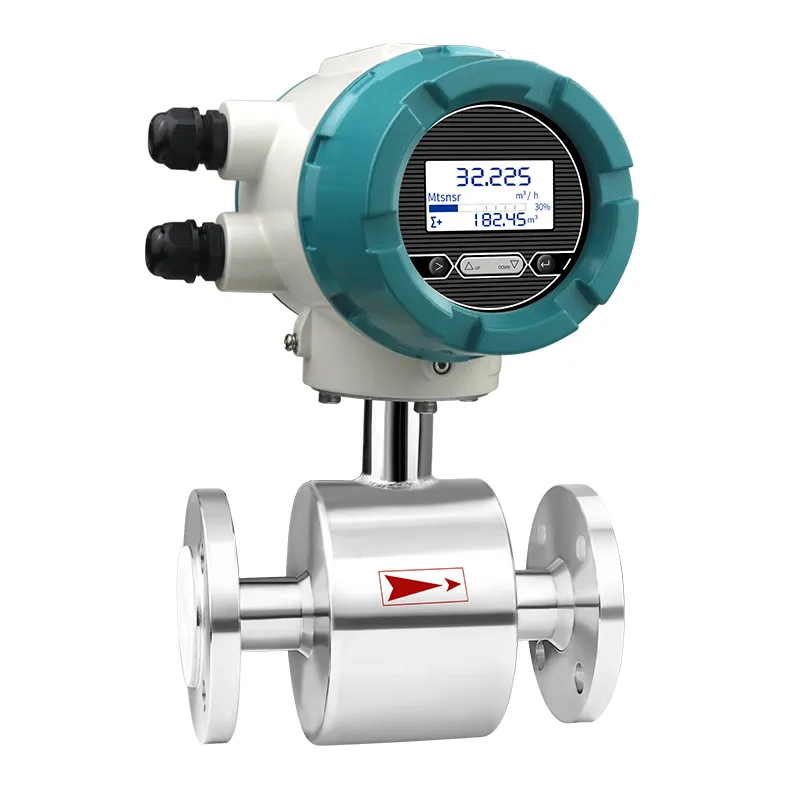

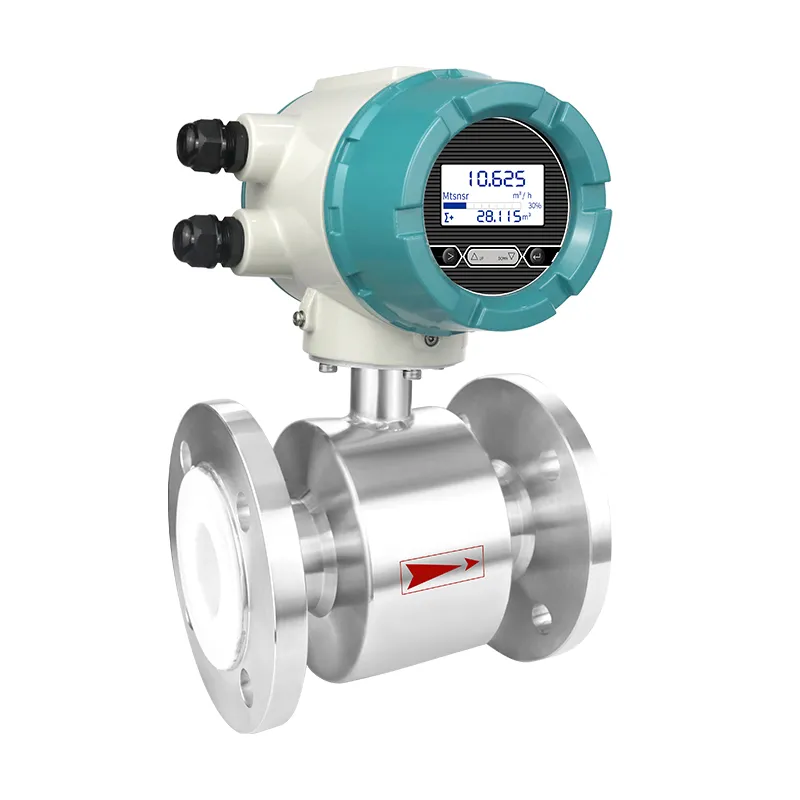

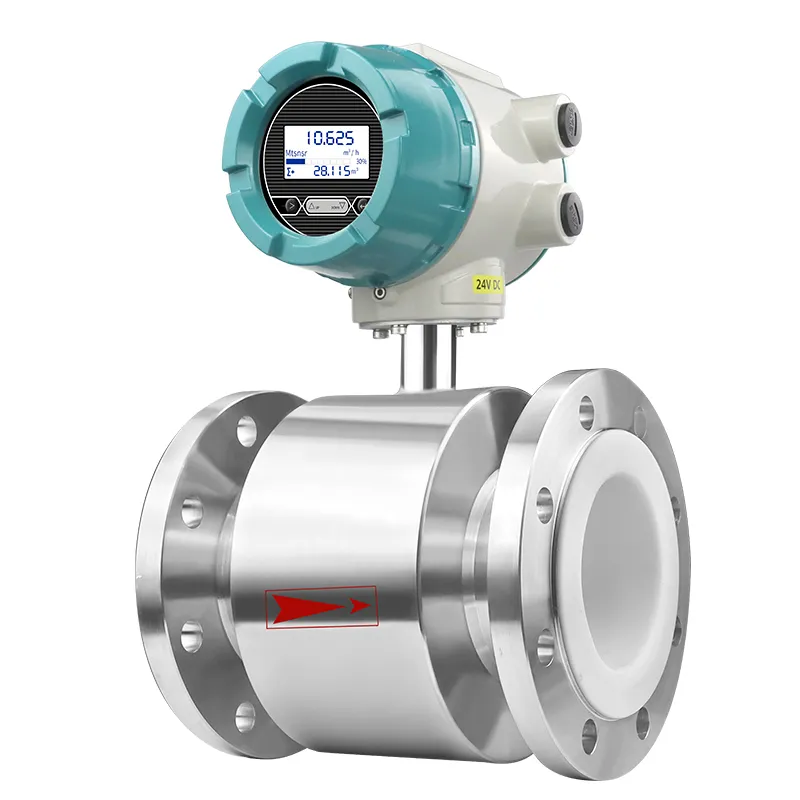

Stainless steel electromagnetic flowmeter adopts full stainless steel measuring tube, suitable for strong acid, alkali and high external corrosion sites. Equipped with PTFE lining and anti-corrosion electrodes, it achieves 0.5% accuracy and supports 4-20mA, RS485 and HART multi-signal transmission.
All stainless steel body, superior anti-external corrosion performance
Double anti-corrosion structure, fit strong acid & alkali working conditions
Avoid medium contamination, meet food & pharmaceutical sanitary standards
High structural strength, suitable for high-pressure pipelines
0.5% high measurement accuracy, stable measuring signals
Multiple outputs: pulse,4-20mA, pulse, RS485, HART

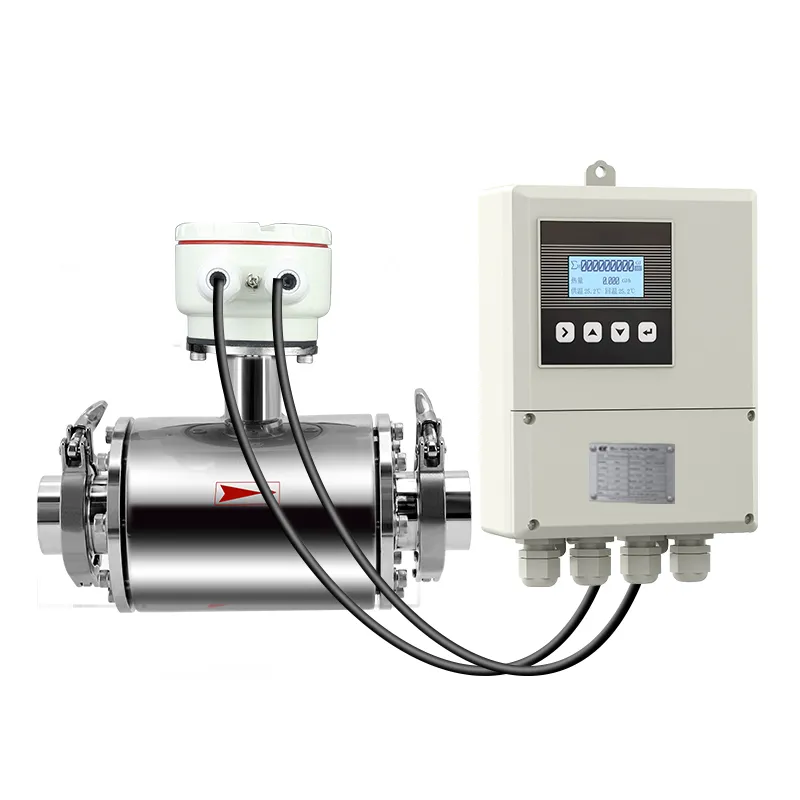

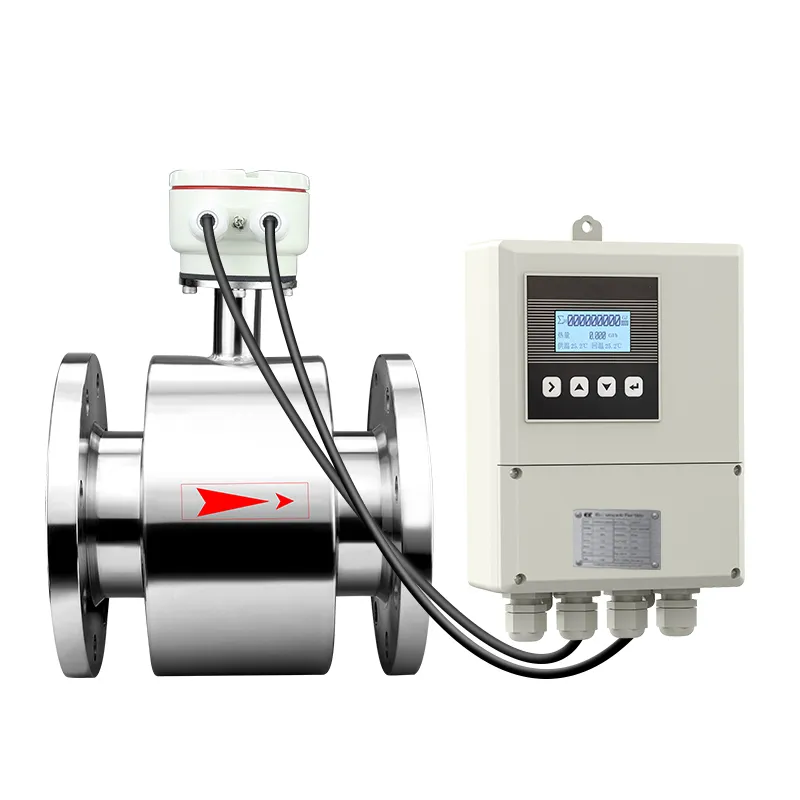

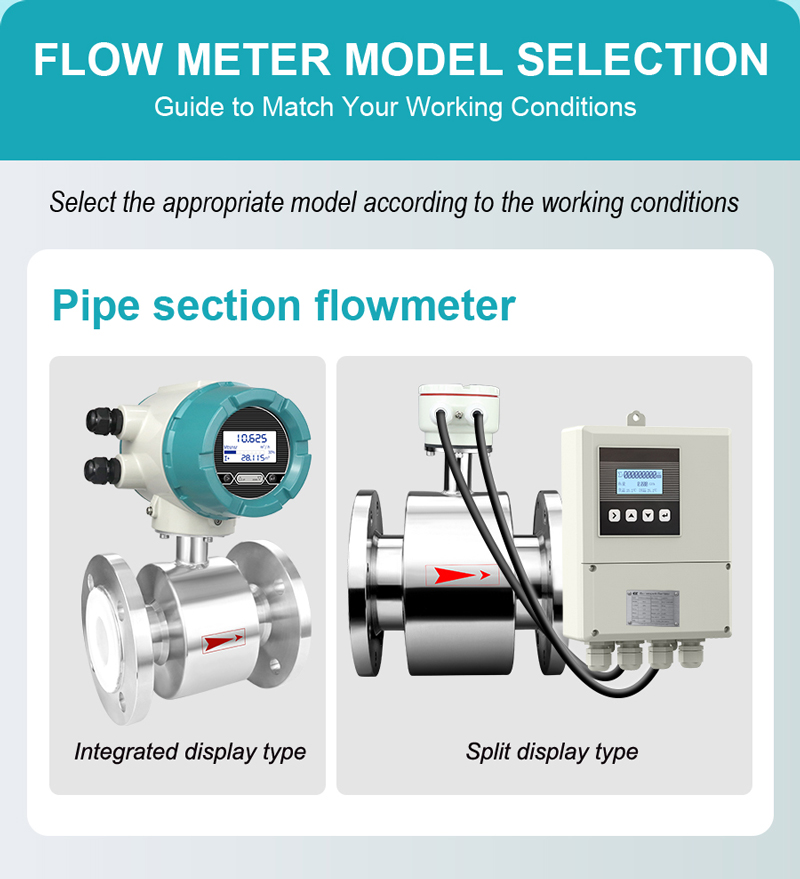

DN15~DN1200 full sizes, integrated/split type optional
No internal moving parts, low maintenance cost

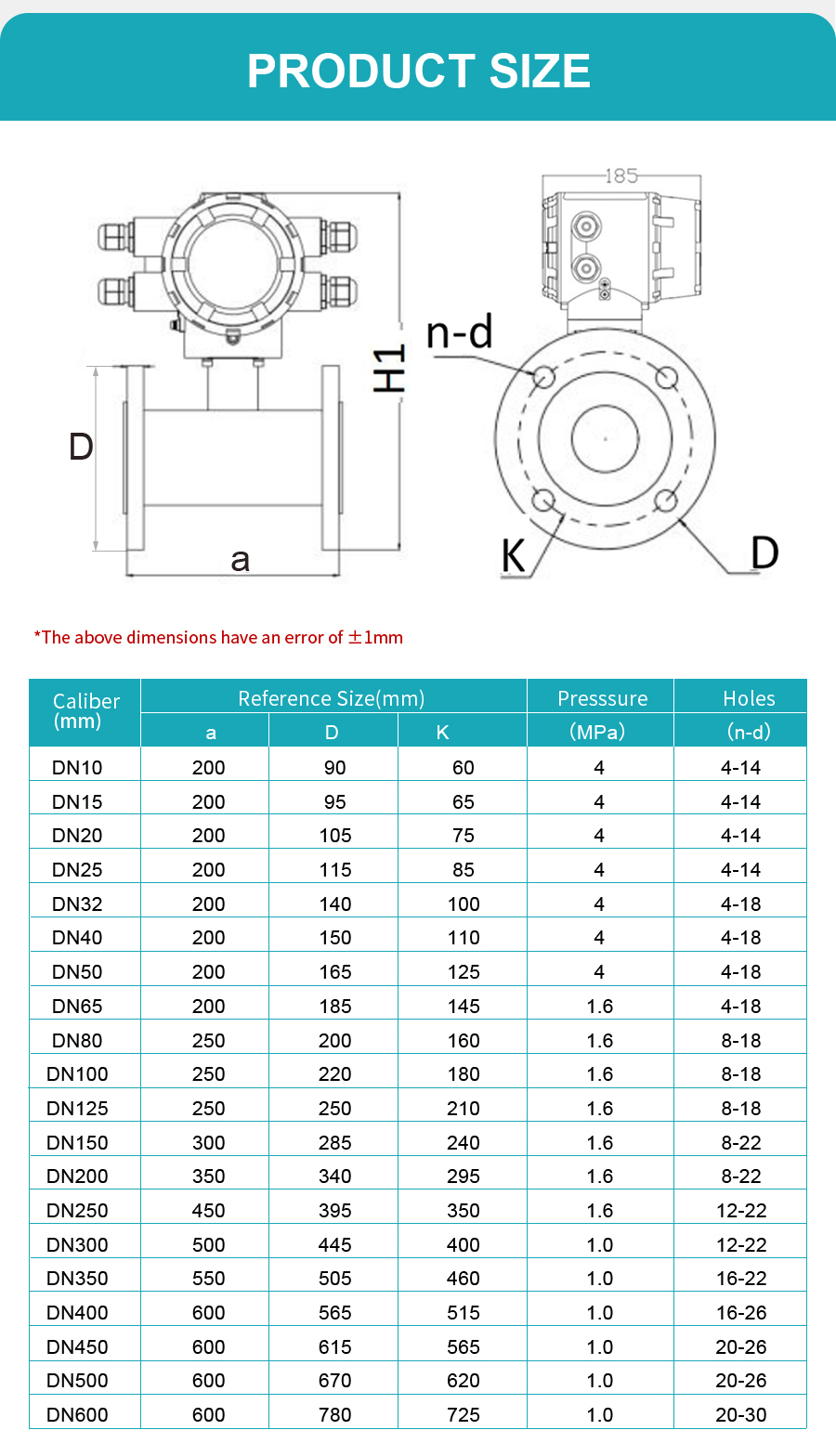

| Nominal Diameter (mm) | Pipe type with PTFE lining: DN10 ~ DN500; Pipe type with rubber lining: DN65 ~ DN1200 |
| Accuracy Class | Class 0.5; Class 1.0 |
| Medium Temperature | Ordinary rubber lining: -20 ~ +70℃; PTFE lining: -20 ~ +120℃ |
| Pressure Class | 0.6MPa, 1.0MPa, 1.6MPa, 4.0MPa (higher pressure can be customized) |
| Flow Measurement Range | The flow measurement range corresponds to a flow velocity range of 0.5～5m/s |
| Conductivity Range | Fluid conductivity ≥50μs/cm, the conductivity of water is in the range of 200-800μs/cm |
| Signal Output | Pulse, 4-20mA, RS485 |
| Digital Frequency Output | The frequency can be set within 1-5000Hz, the maximum collector current is 250mA when the external power supply ≤35V is turned on |
| Power Supply | 220V, DC24V; Battery power supply |

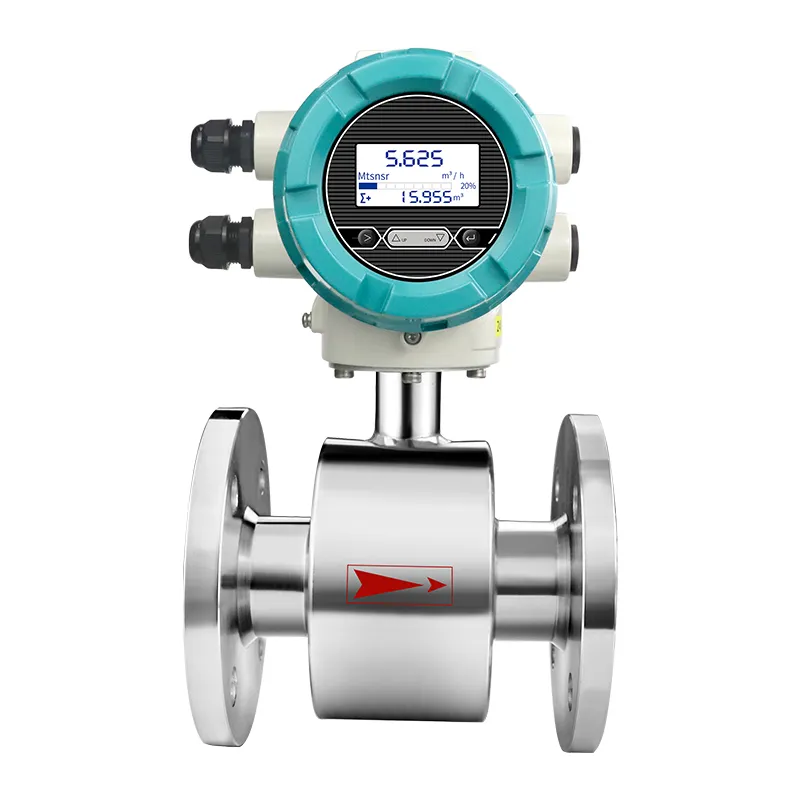

| Connection Method | Flange, thread, clamp |
| Explosion-proof Mark | Ex db mb IIC T6 Gb |
| Ambient Temperature and Humidity | -25℃ ~ +60℃; 5%RH～95%RH |
| Total Power Consumption | <20W |
