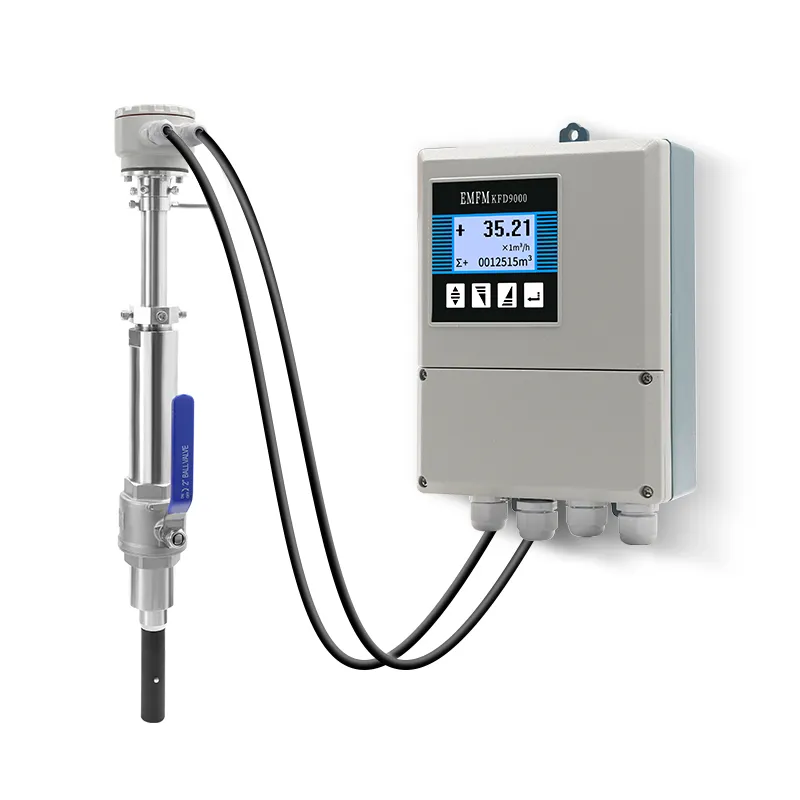

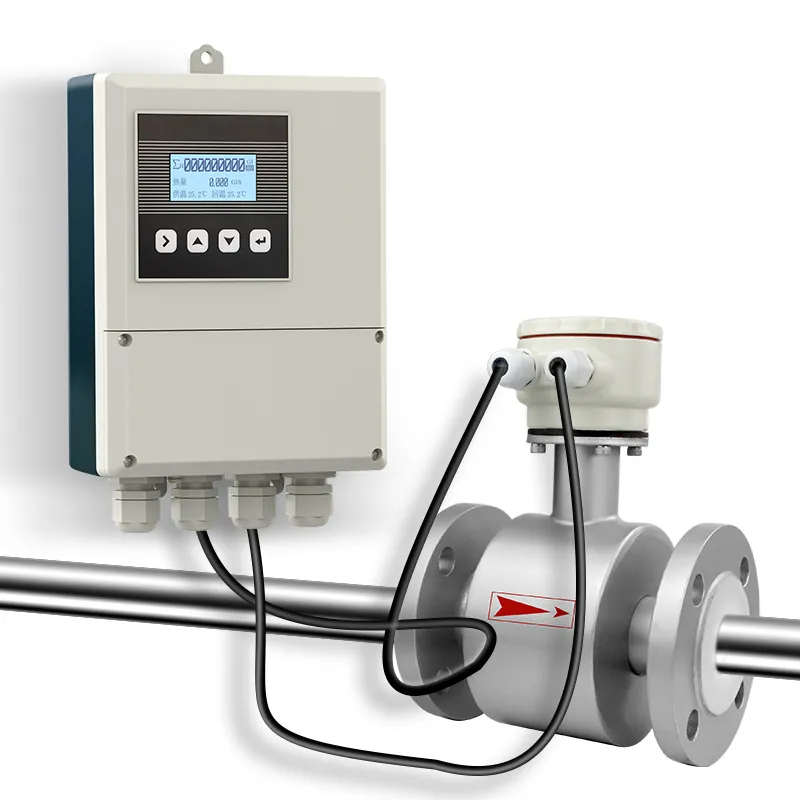

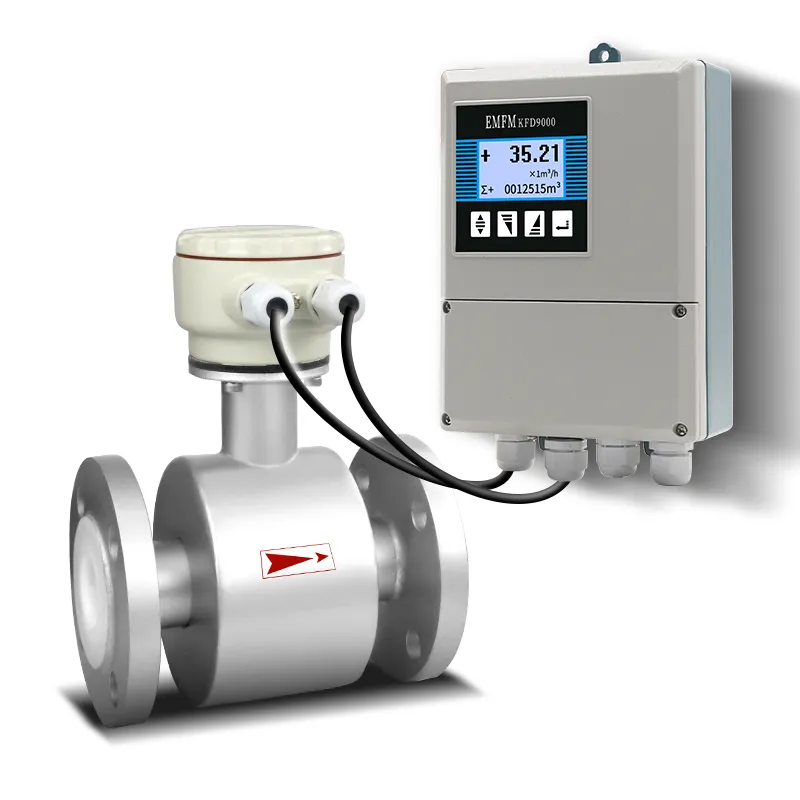

Remote split electromagnetic flowmeter separates sensor and converter with dedicated signal cables, supporting up to 50m transmission distance. It features 0.5% accuracy, multi-signal outputs and IP68 sensor for underground or high-temperature harsh pipelines.

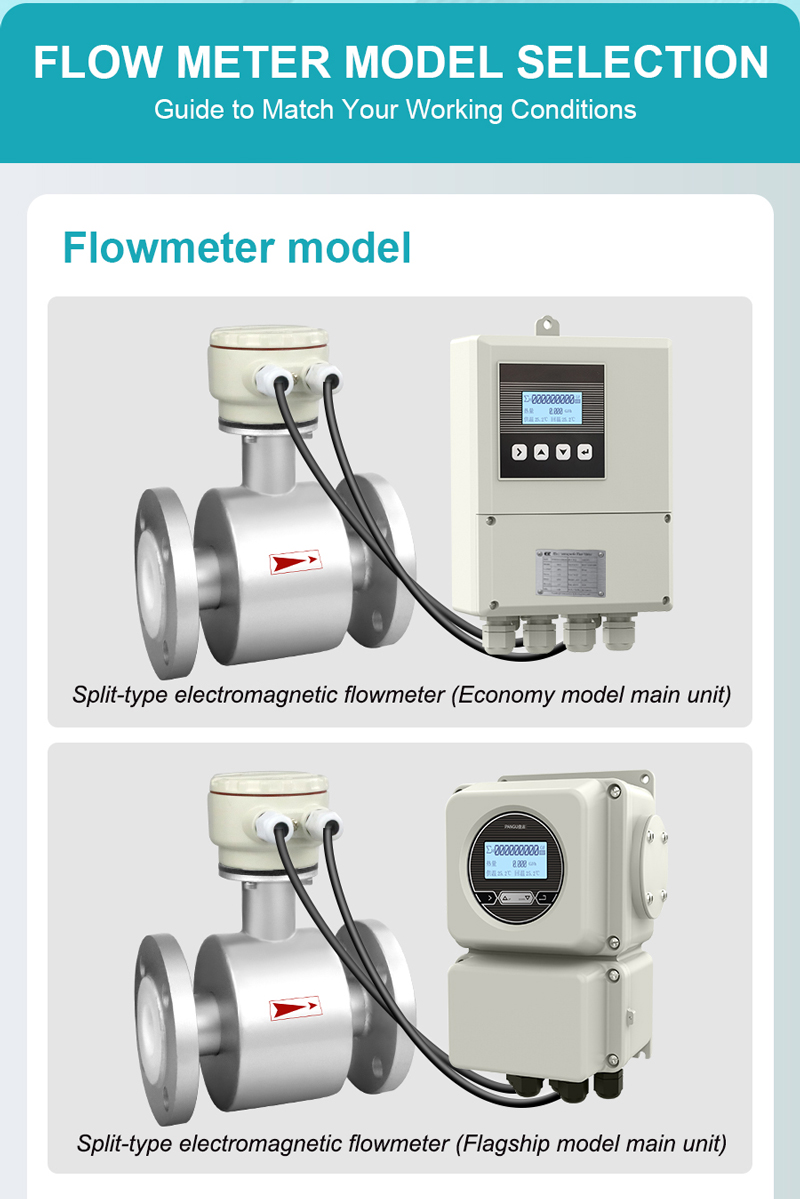

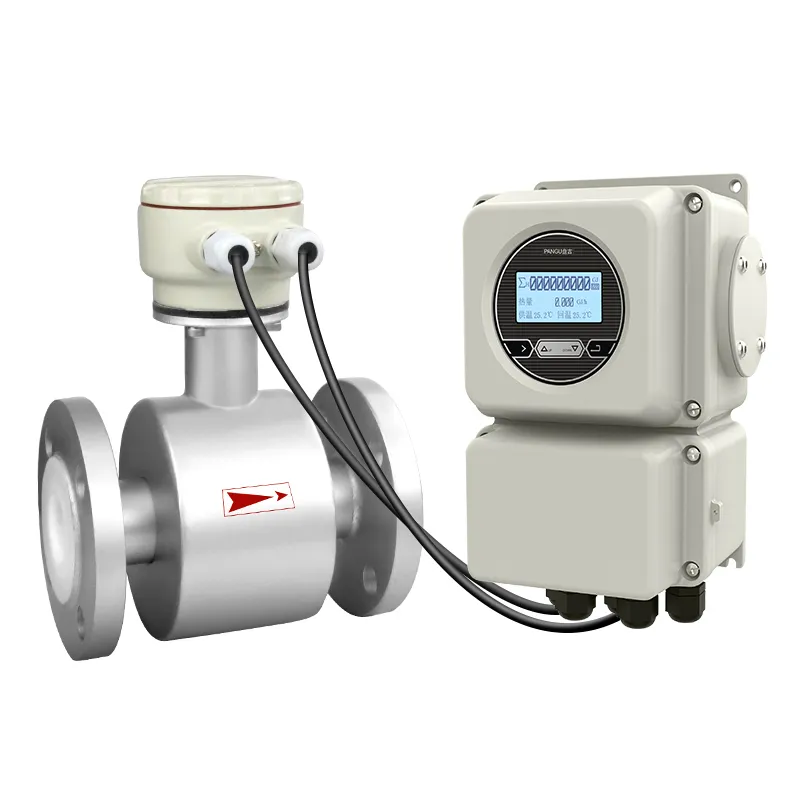

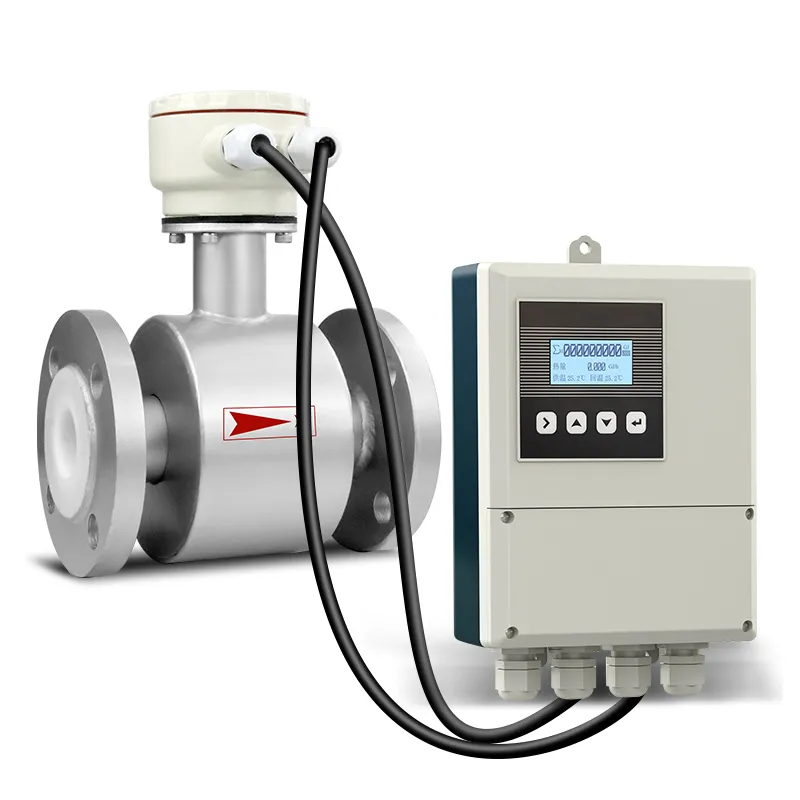

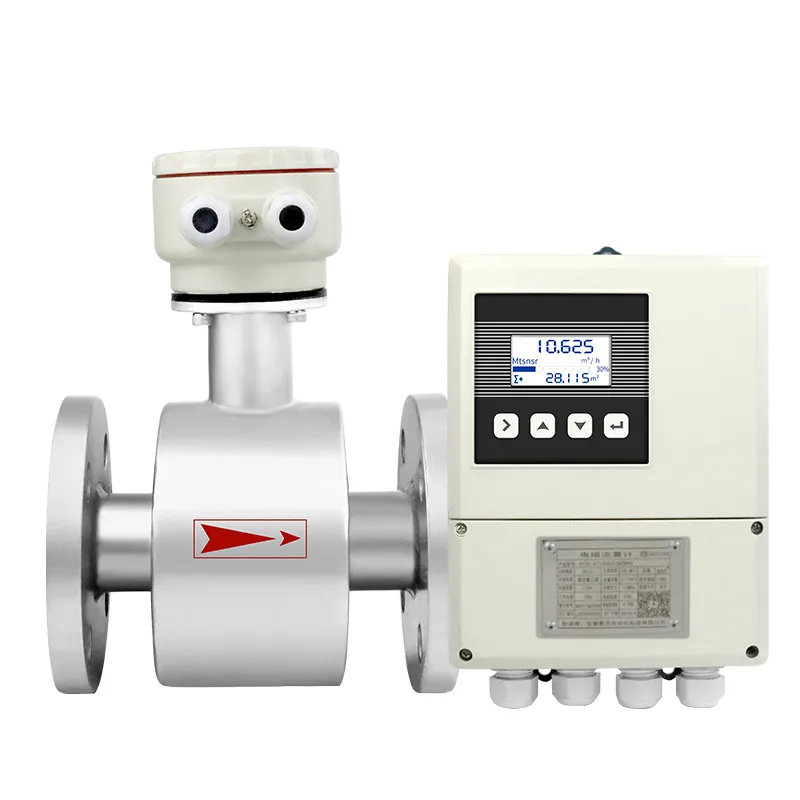

Split design: sensor separated from converter, connected by dedicated signal cable
Sensor optional IP68, can be buried or installed underwater

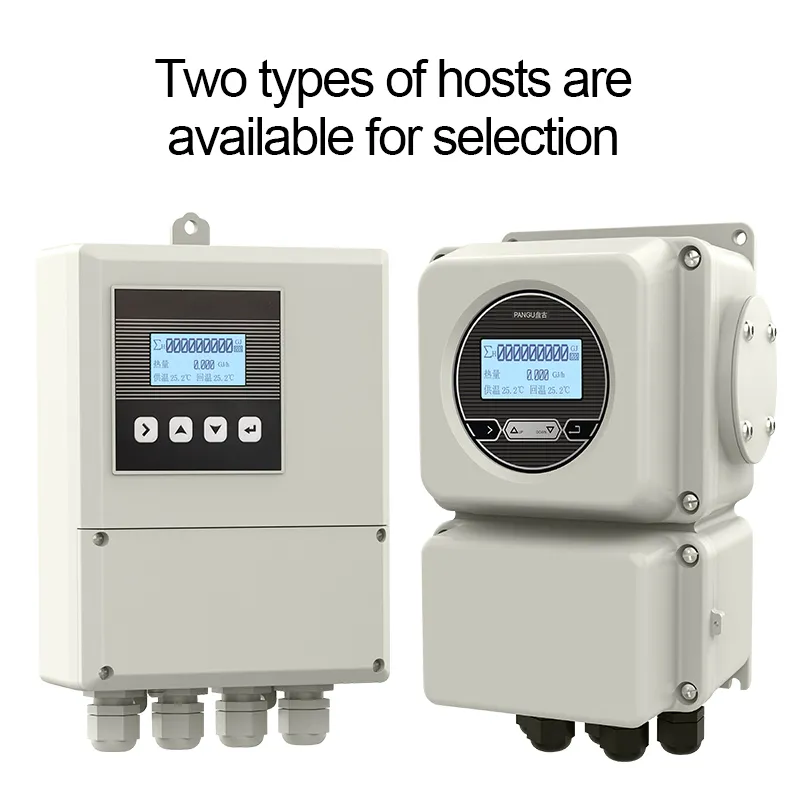

Avoid high temperature/vibration damage to display converter

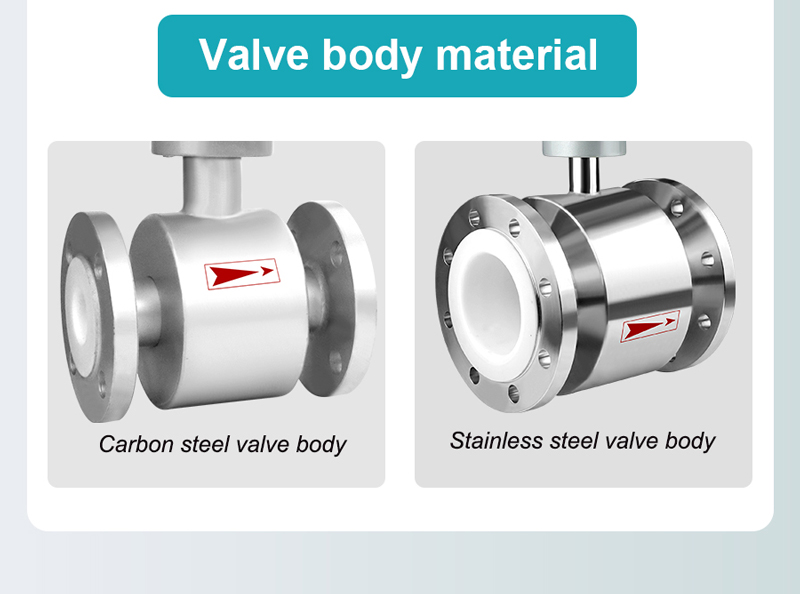

Carbon steel/stainless steel body, various lining & electrode options
0.5% measurement accuracy, supports pulse,4-20mA, RS485, HART
Complete self-diagnosis: empty pipe, high/low flow alarm
Suitable for underground, outdoor and high-temperature industrial pipelines
| Nominal Diameter (mm) | Pipe type with PTFE lining: DN10 ~ DN500; Pipe type with rubber lining: DN65 ~ DN1200 |
| Accuracy Class | Class 0.5; Class 1.0 |
| Medium Temperature | Ordinary rubber lining: -20 ~ +70℃; PTFE lining: -20 ~ +120℃ |
| Pressure Class | 0.6MPa, 1.0MPa, 1.6MPa, 4.0MPa (higher pressure can be customized) |
| Flow Measurement Range | The flow measurement range corresponds to a flow velocity range of 0.5～5m/s |
| Conductivity Range | Fluid conductivity ≥50μs/cm, the conductivity of water is in the range of 200-800μs/cm |
| Signal Output | Pulse, 4-20mA, RS485 |
| Digital Frequency Output | The frequency can be set within 1-5000Hz, the maximum collector current is 250mA when the external power supply ≤35V is turned on |
| Power Supply | 220V, DC24V; Battery power supply |
| Connection Method | Flange, thread, clamp |
| Explosion-proof Mark | Ex db mb IIC T6 Gb |
| Ambient Temperature and Humidity | -25℃ ~ +60℃; 5%RH～95%RH |
| Total Power Consumption | <20W |
