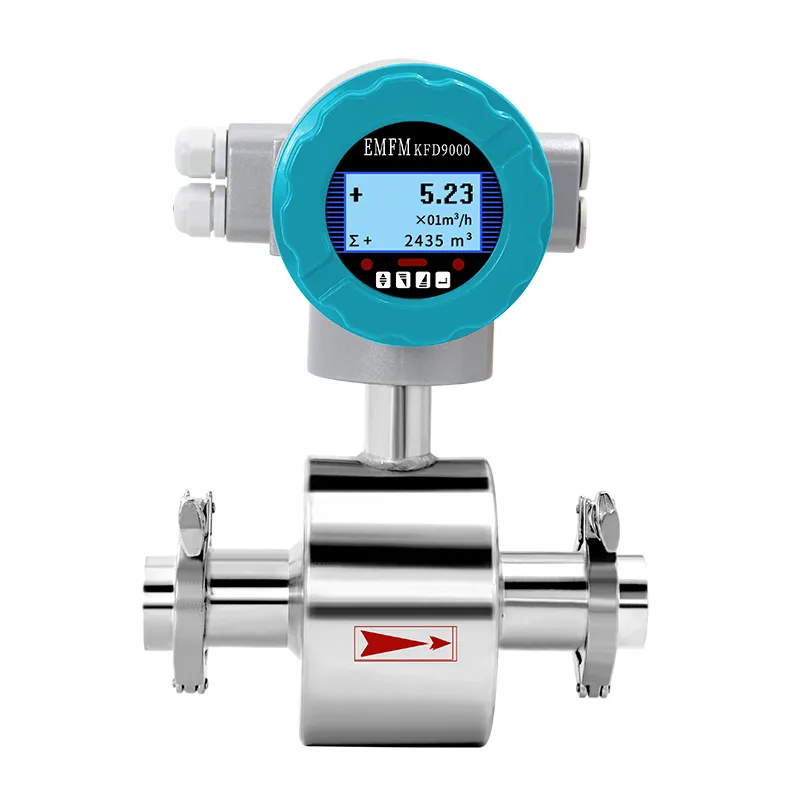

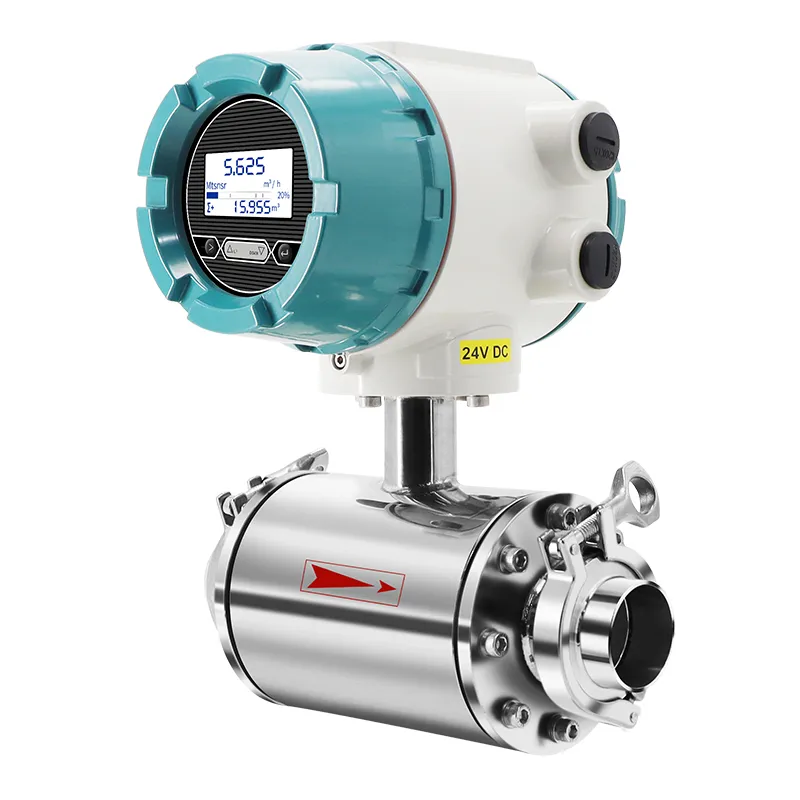

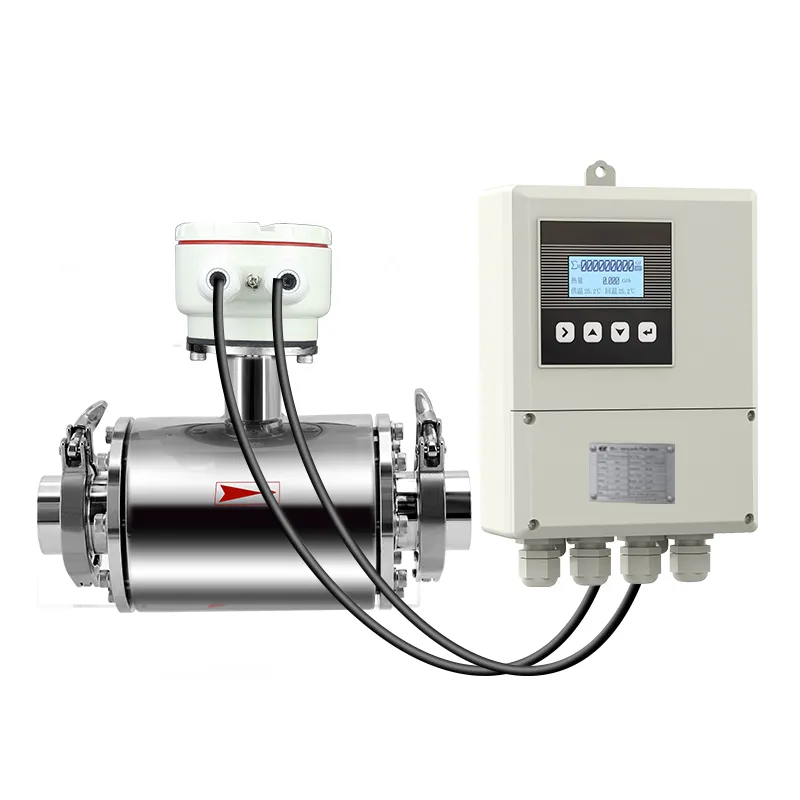

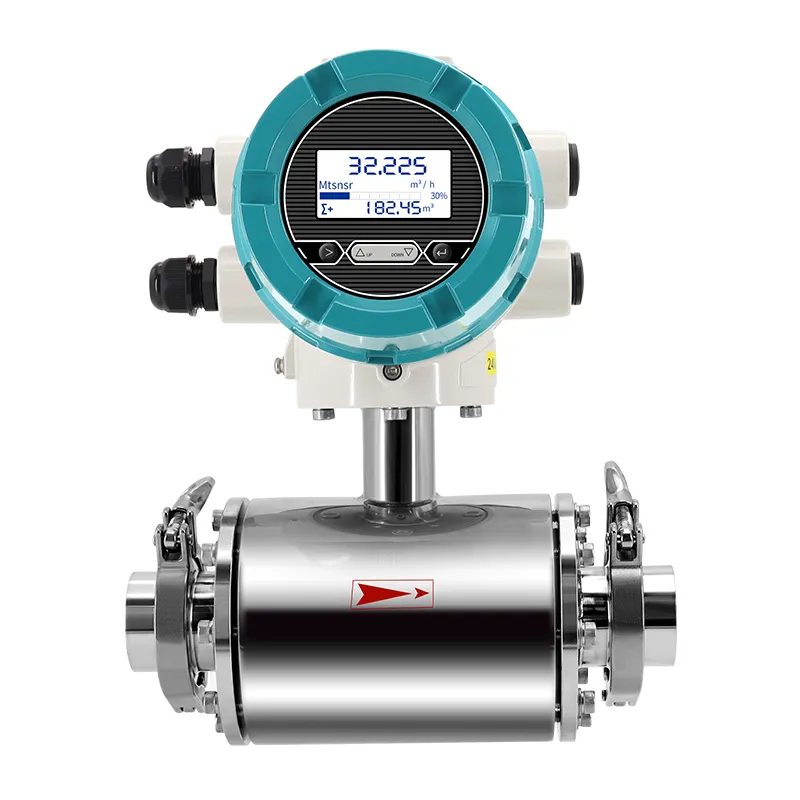

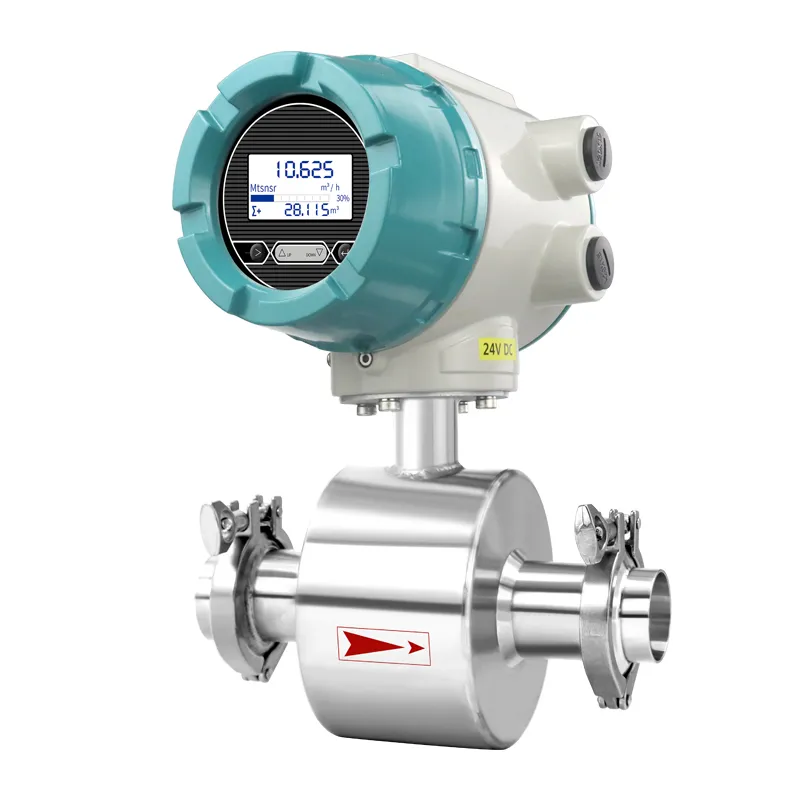

Sanitary clamp electromagnetic flowmeter adopts quick clamp connection and full stainless steel sanitary structure, with smooth PTFE lining. It meets food & pharmaceutical hygiene standards, delivers 0.5% accuracy and multi-signal outputs for beverage, medicine and food liquid measurement.
Quick sanitary clamp connection, easy disassembly for cleaning & sterilization
Full stainless steel wetted parts, no dead corners to avoid medium residue
Smooth PTFE lining, compliant with food and pharmaceutical hygiene standards
Resistant to cleaning agents such as hot water and disinfectant
0.5% high precision, supports forward/reverse/net flow accumulation
Multiple signal outputs: 4-20mA, pulse, RS485

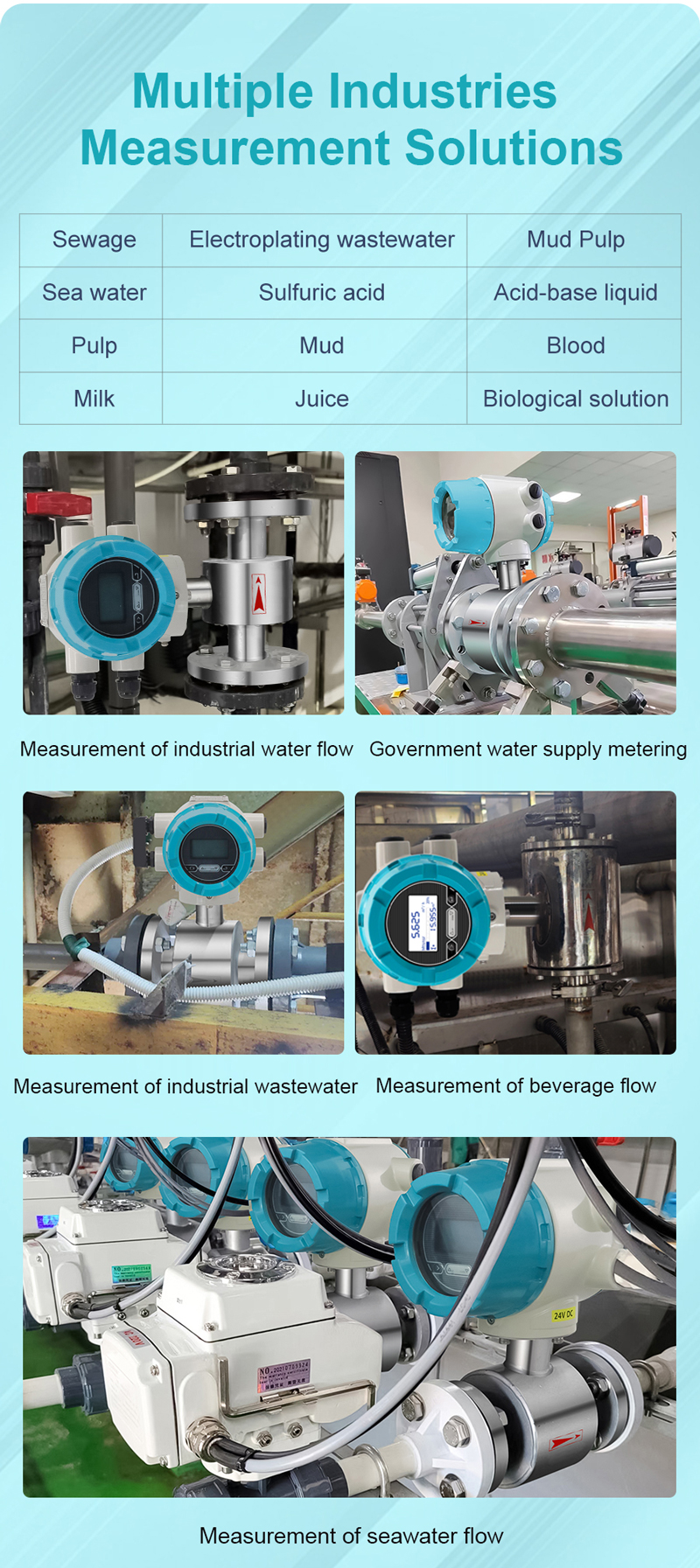

Small DN15–DN100 calibers, ideal for milk, Chemical liquid and drink water
No internal moving parts, low pressure loss and easy maintenance
| Nominal Diameter (mm) | Pipe type with PTFE lining: DN10 ~ DN500; Pipe type with rubber lining: DN65 ~ DN1200 |
| Accuracy Class | Class 0.5; Class 1.0 |
| Medium Temperature | Ordinary rubber lining: -20 ~ +70℃; PTFE lining: -20 ~ +120℃ |
| Pressure Class | 1.0MPa(higher pressure can be customized) |
| Flow Measurement Range | The flow measurement range corresponds to a flow velocity range of 0.5～5m/s |
| Conductivity Range | Fluid conductivity ≥50μs/cm, the conductivity of water is in the range of 200-800μs/cm |
| Signal Output | Pulse, 4-20mA, RS485 |
| Digital Frequency Output | The frequency can be set within 1-5000Hz, the maximum collector current is 250mA when the external power supply ≤35V is turned on |
| Power Supply | 220V, DC24V; Battery power supply |
| Connection Method | Clamp |
| Explosion-proof Mark | Ex db mb IIC T6 Gb |
| Ambient Temperature and Humidity | -25℃ ~ +60℃; 5%RH～95%RH |
| Total Power Consumption | <20W |
