Explosion-proof electromagnetic flowmeter holds ExdIICT6 explosion certification, applicable to flammable and explosive chemical environments. It supports DN15–DN1200, 0.5% accuracy, with 4-20mA, RS485 and HART outputs and complete safety isolation design.
Certified ExdIICT6 explosion-proof grade, safe for flammable & explosive sites
Special sealed explosion-proof converter housing with isolated internal circuit
Full electrical isolation design to prevent spark ignition risks
Available in carbon steel / stainless steel body for different corrosion needs
0.5% high precision, supports pulse,4-20mA, RS485, HART signals

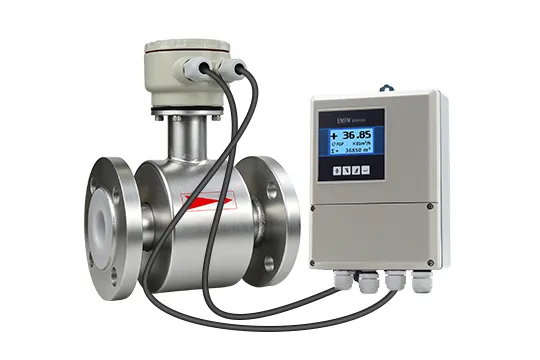

DN15~DN1200 full calibers, integrated,split and insertion structure optional
Built-in empty pipe and over-limit flow alarm functions
No internal moving parts, stable performance
| Nominal Diameter (mm) | Pipe type with PTFE lining: DN10 ~ DN500; Pipe type with rubber lining: DN65 ~ DN1200 |
| Accuracy Class | Class 0.5; Class 1.0 |
| Medium Temperature | Ordinary rubber lining: -20 ~ +70℃; PTFE lining: -20 ~ +120℃ |
| Pressure Class | 0.6MPa, 1.0MPa, 1.6MPa, 4.0MPa (higher pressure can be customized) |
| Flow Measurement Range | The flow measurement range corresponds to a flow velocity range of 0.5～5m/s |
| Conductivity Range | Fluid conductivity ≥50μs/cm, the conductivity of water is in the range of 200-800μs/cm |
| Signal Output | Pulse, 4-20mA, RS485 |
| Digital Frequency Output | The frequency can be set within 1-5000Hz, the maximum collector current is 250mA when the external power supply ≤35V is turned on |
| Power Supply | 220V, DC24V; Battery power supply |
| Connection Method | Flange, thread, clamp |
| Explosion-proof Mark | Ex db mb IIC T6 Gb |
| Ambient Temperature and Humidity | -25℃ ~ +60℃; 5%RH～95%RH |
| Total Power Consumption | <20W |
