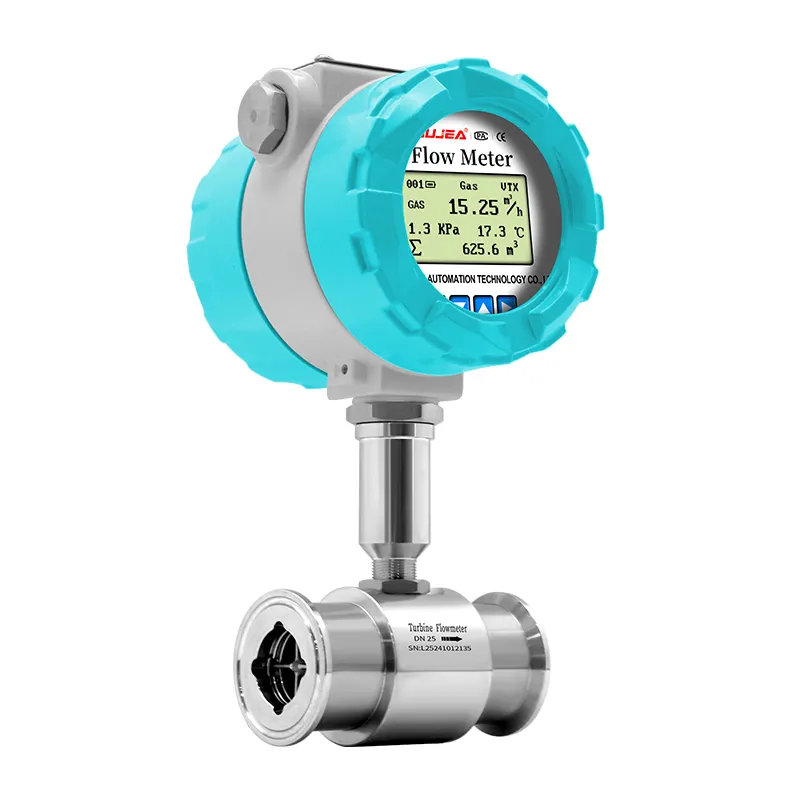

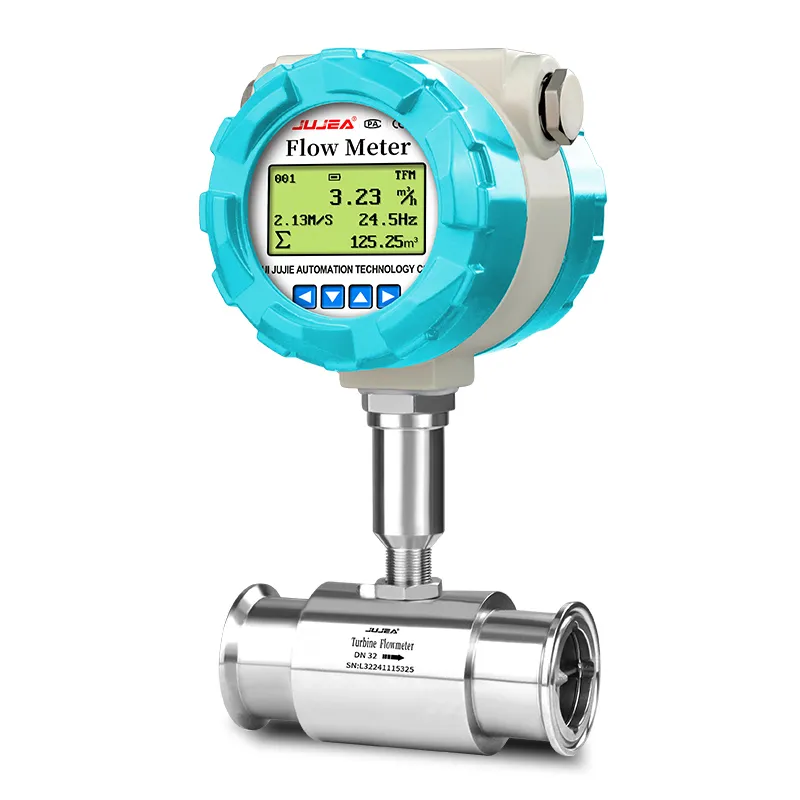

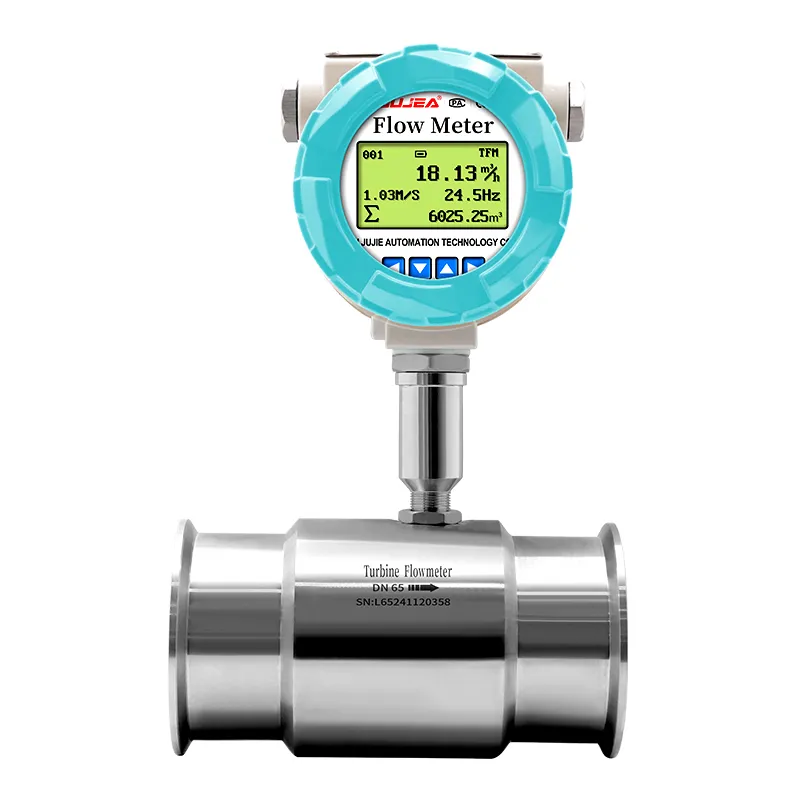

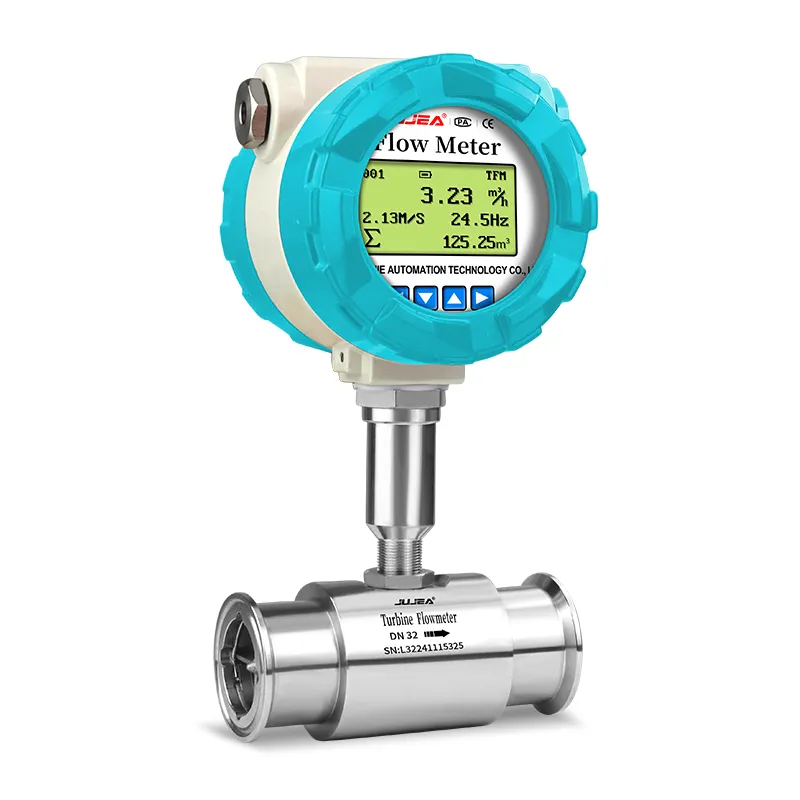

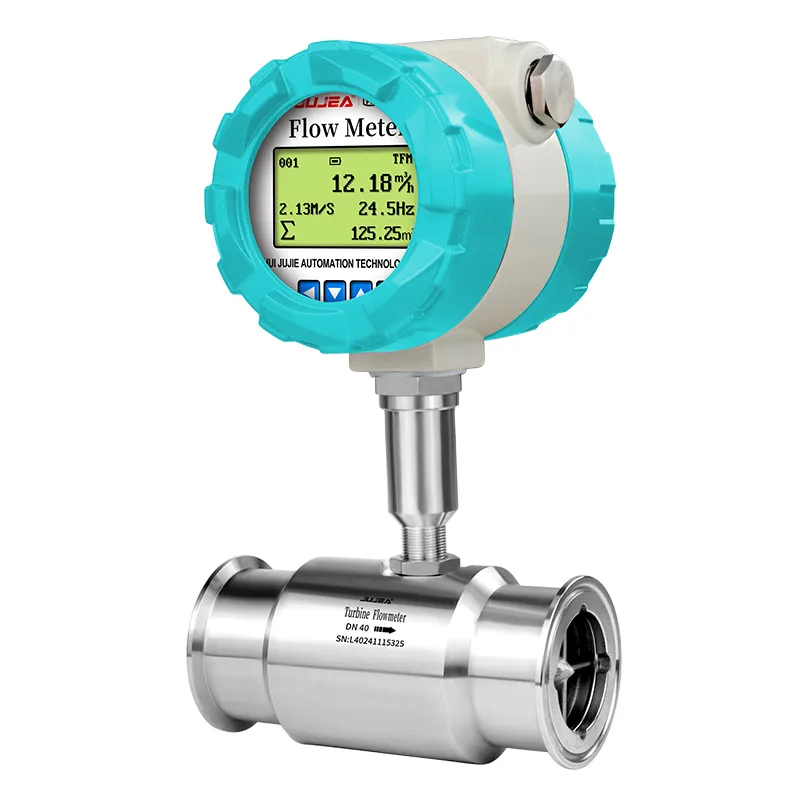

Clamp Turbine Flow Meter

Name: Clamp Turbine Flow Meter
Brand: Anhui Jujie Automation Technology Co., LTD.
Availability: InStock

Sanitary clamp turbine flow meter adopts quick clamp connection, all stainless steel body, no dead space. It offers high precision for food, beverage and pharmaceutical clean liquids, supporting pulse and 4-20mA and RS485 signal output for sanitary pipeline measurement.

Send Mail

Features of Clamp Turbine Flow Meter

Quick sanitary clamp connection, fast disassembly for regular cleaning and sterilization.
0.5% High precision, specially designed for food, beverage and pharmaceutical clean liquids.
Compact structure DN4~DN100 size,easy to install and maintain on sanitary pipelines.
Supports pulse, 4-20mA and RS485 multi-signal transmission.
Low flow resistance, stable performance for low-viscosity sanitary media.

Specification of Clamp Turbine Flow Meter

Measured Medium	Impurity-free, low-viscosity, non-strongly corrosive liquid
Execution Standard	Turbine flow sensor (JB/T9246-2016)
Verification Regulation	Turbine flowmeter (JJG1037-2008)
Instrument Caliber and Connection Method	Clamp connection type: DN4-DN200; Clamp hoop connection type: DN4-DN100
Accuracy Class and Corresponding Repeatability	Accuracy class*1	±1%R	±0.5%R	±0.2%R (customization required)
	Repeatability	≤0.33%	≤0.17%	≤0.07%
Range Ratio	6:1, 10:1, 20:1
Verification Conditions	Verification device	Standard meter method liquid flow verification device; Static mass method liquid flow verification device
	Environmental conditions	Ambient temperature: 20℃; Relative humidity: 65%
Operating Conditions	Medium temperature	Standard: -20℃~80℃; T: -40℃~180℃
	Ambient temperature	-20℃~60℃
	Relative humidity	5%~90%
	Atmospheric pressure	86Kpa~106Kpa
Output Function	Signal output	Pulse signal, 4-20mA signal
	Communication output	RS485 communication, HART protocol
Working Power Supply	External power supply	+24VDC, suitable for 4-20mA output, pulse output, RS485, etc
	Internal power supply	CM0, CM4 (1 set of 3.6V 19Ah lithium battery)
Signal Line Interface	N type	Hirschmann connector DIN43650 or aviation plug CX165P
	Full series	Metal waterproof buckle internal thread M20×1.5
Explosion-proof Grade	ExdIIC T6 Gb
Protection Grade	IP65 or higher (customizable)

Diagram of Clamp Turbine Flow Meter

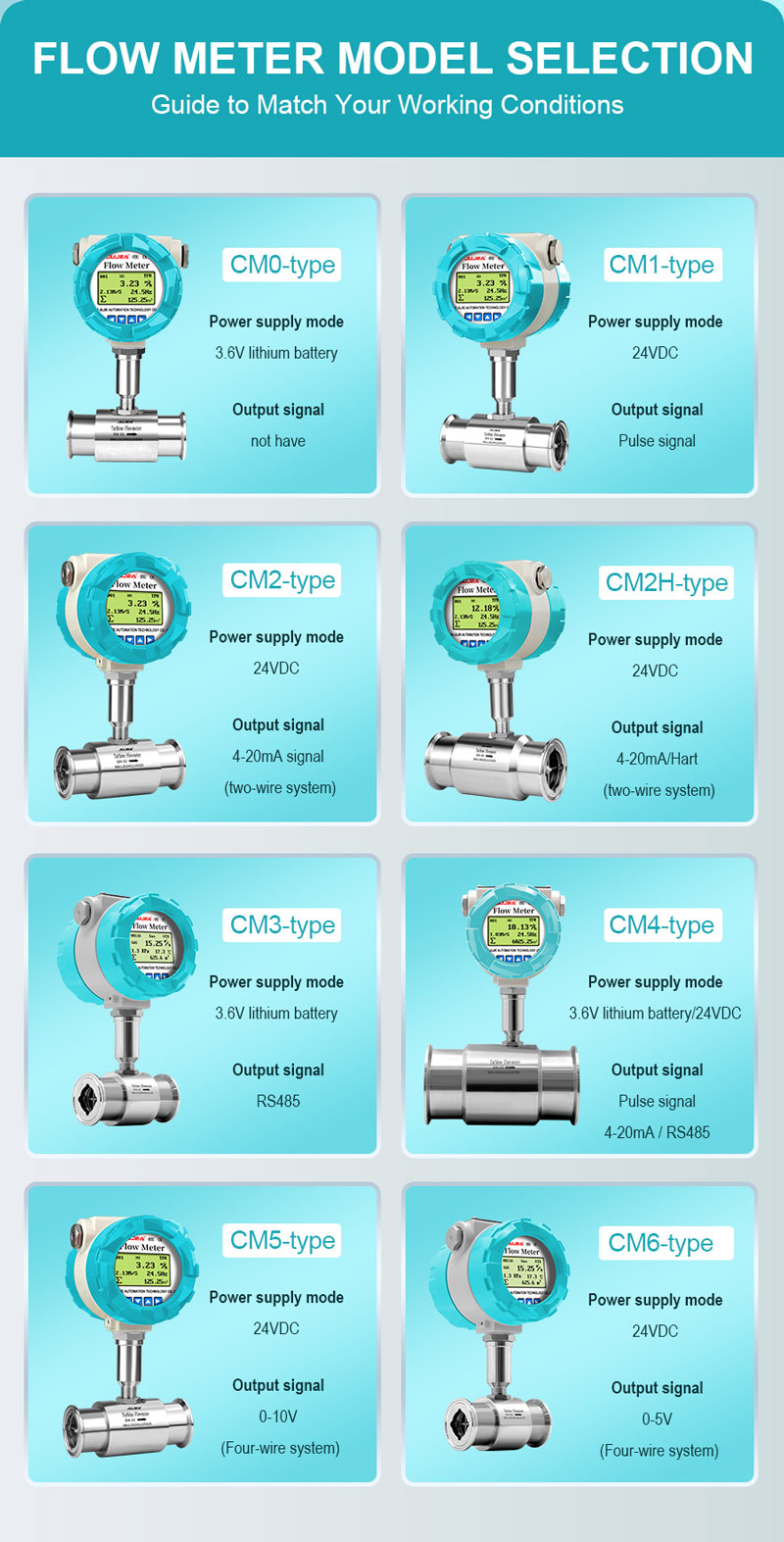

Clamp Turbine Flow Meter for Control and Instrumentation

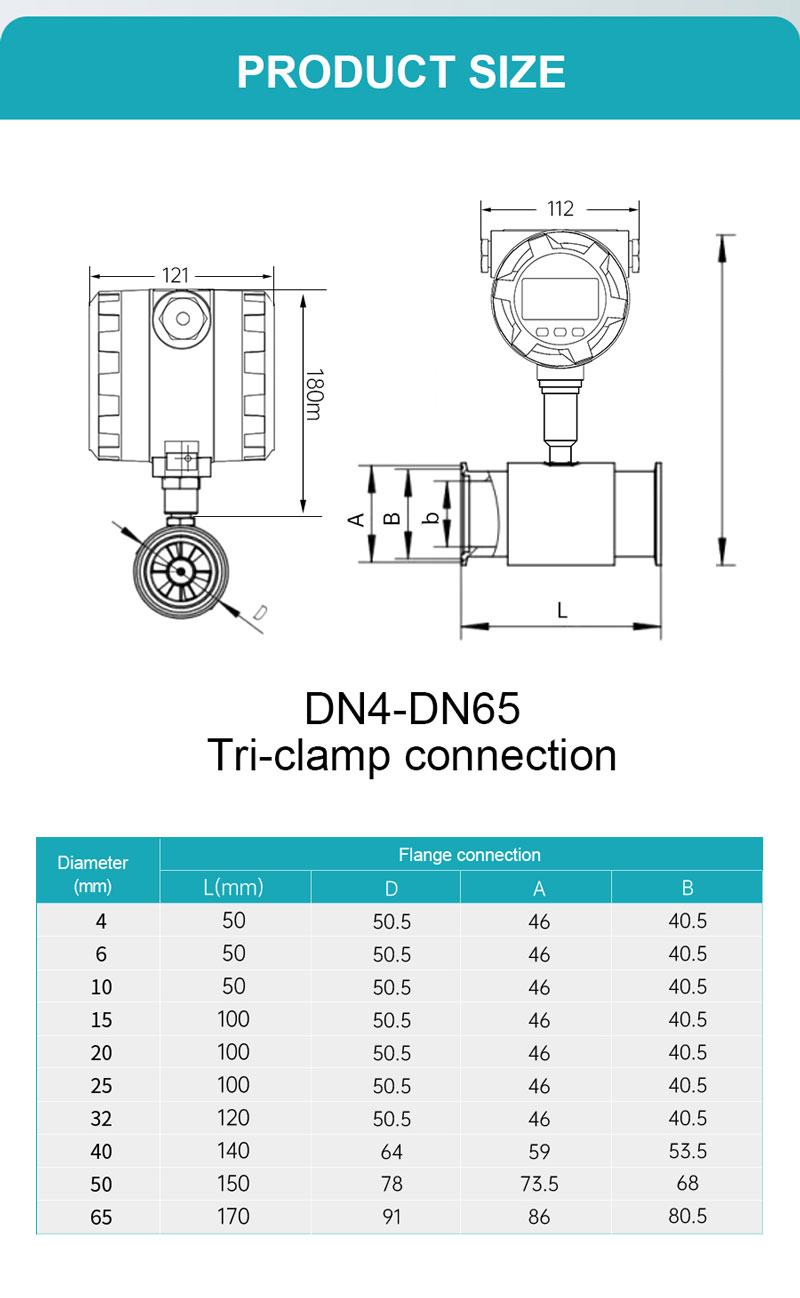

Clamp Turbine Flow Meter for Chemical Process Instrumentation
