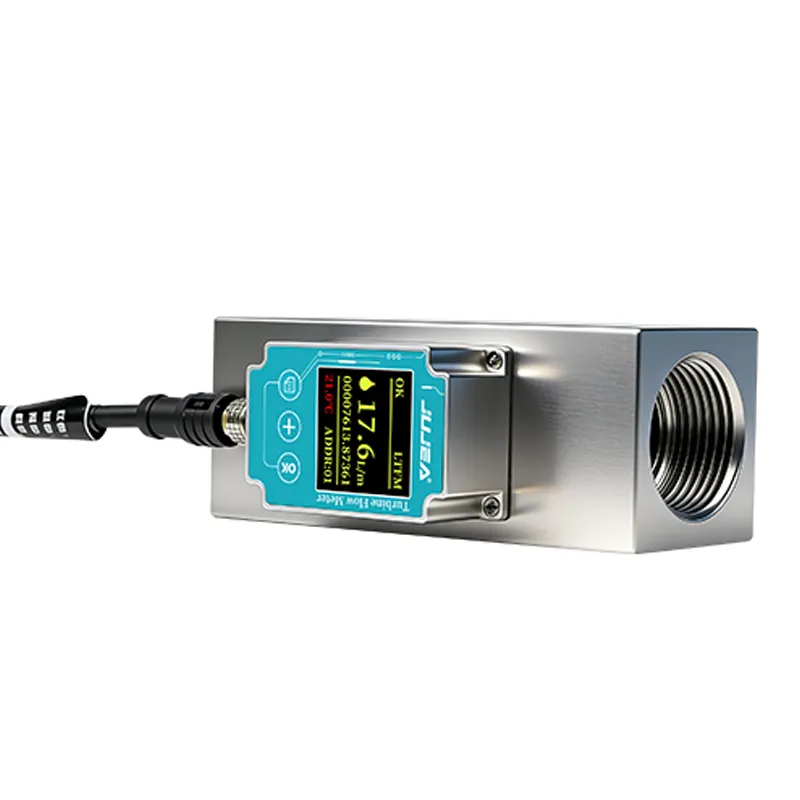

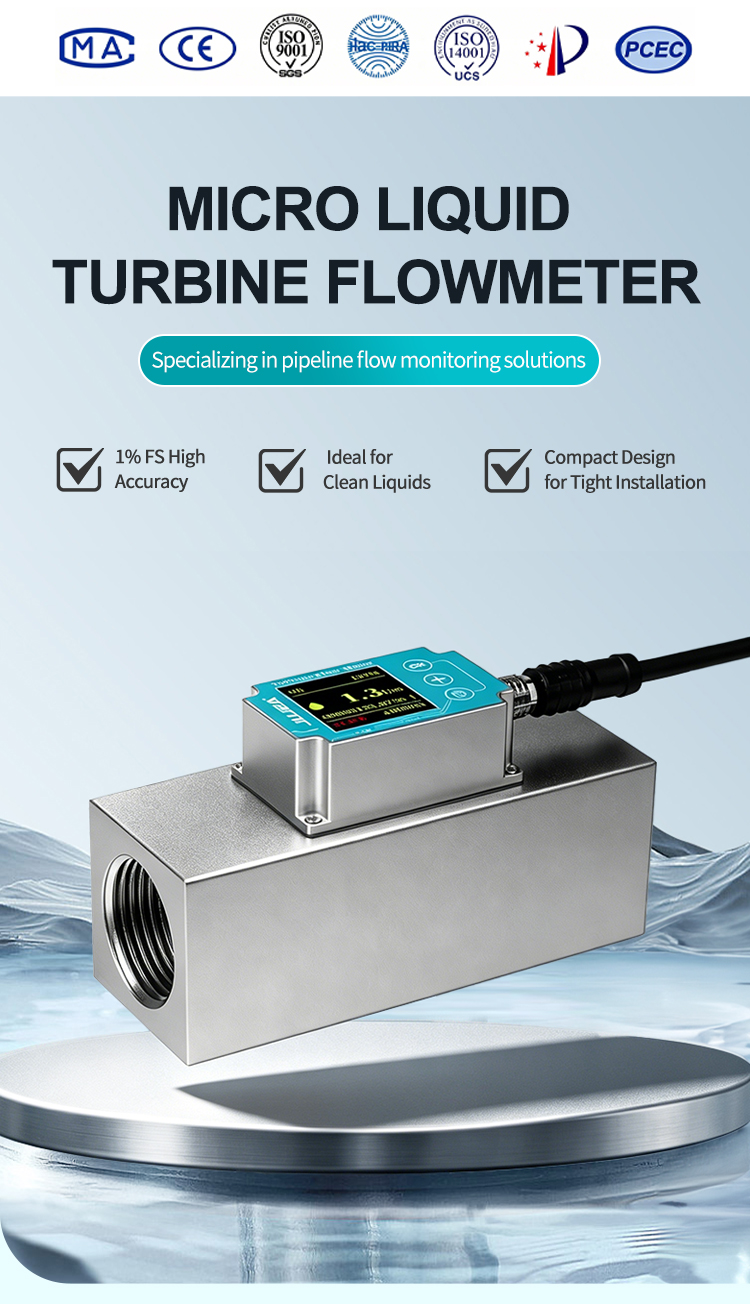

Micro turbine flow meter with tiny DN4~DN50 sizes, compact threaded structure, 304 stainless steel body. It delivers high-precision measurement for low-flow clean liquids, supporting pulse, 4-20mA and RS485 signals for laboratory and small pipeline metering.
Ultra-small caliber DN4–DN50, compact threaded structure for narrow tiny pipelines
Sensitive mini impeller, fast response to slight flow fluctuations
Multiple signal outputs: pulse, 4-20mA, RS485 Modbus
Simple installation & disassembly, ideal for lab, instrument and small chemical lines
Wide turndown ratio, stable performance under small flow working conditions

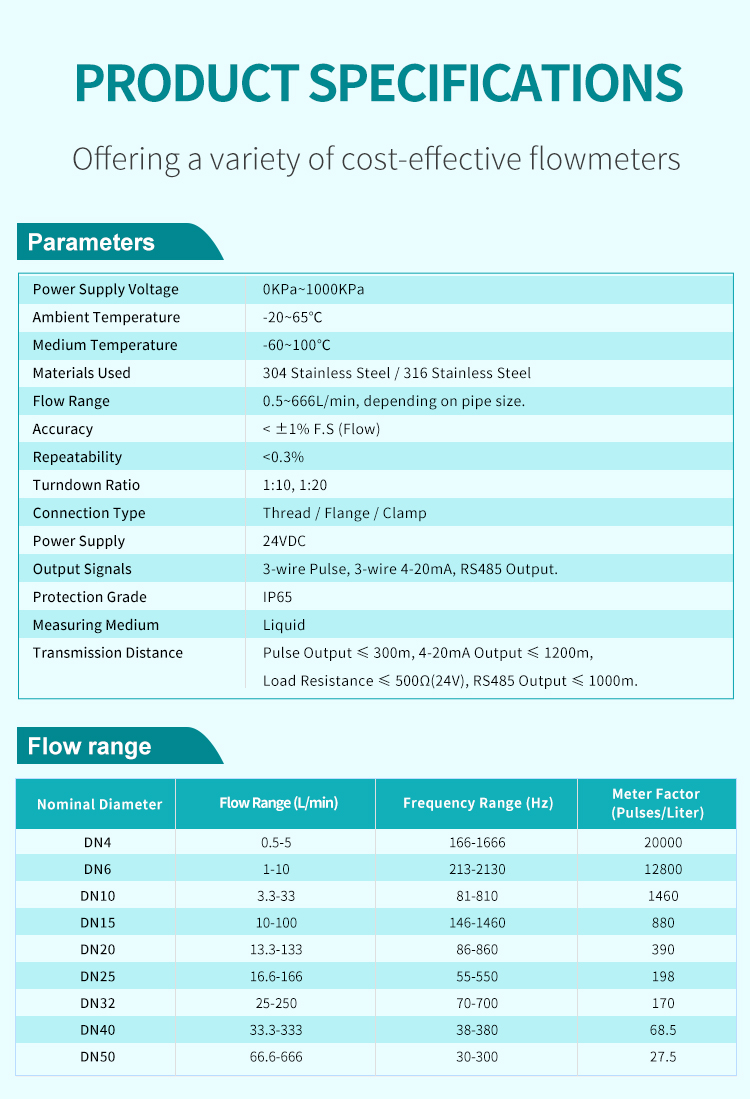

| Nominal Pressure (kPa) | 0kPa ~ 1000kPa |
| Ambient Temperature | -20 ~ 65°C |
| Medium Temperature | -60 ~ 100°C |
| Material | 304 Stainless Steel / 316 Stainless Steel |
| Flow Rate Range | 0.5 ~ 666L/min, depending on pipe size. |
| Accuracy | < ±1% F.S (flow rate) |
| Repeatability | < 0.3% |
| Range Ratio | 1:10, 1:20 |
| Connection Method | Thread / Flange / Clamp |
| Power Supply | 24VDC |

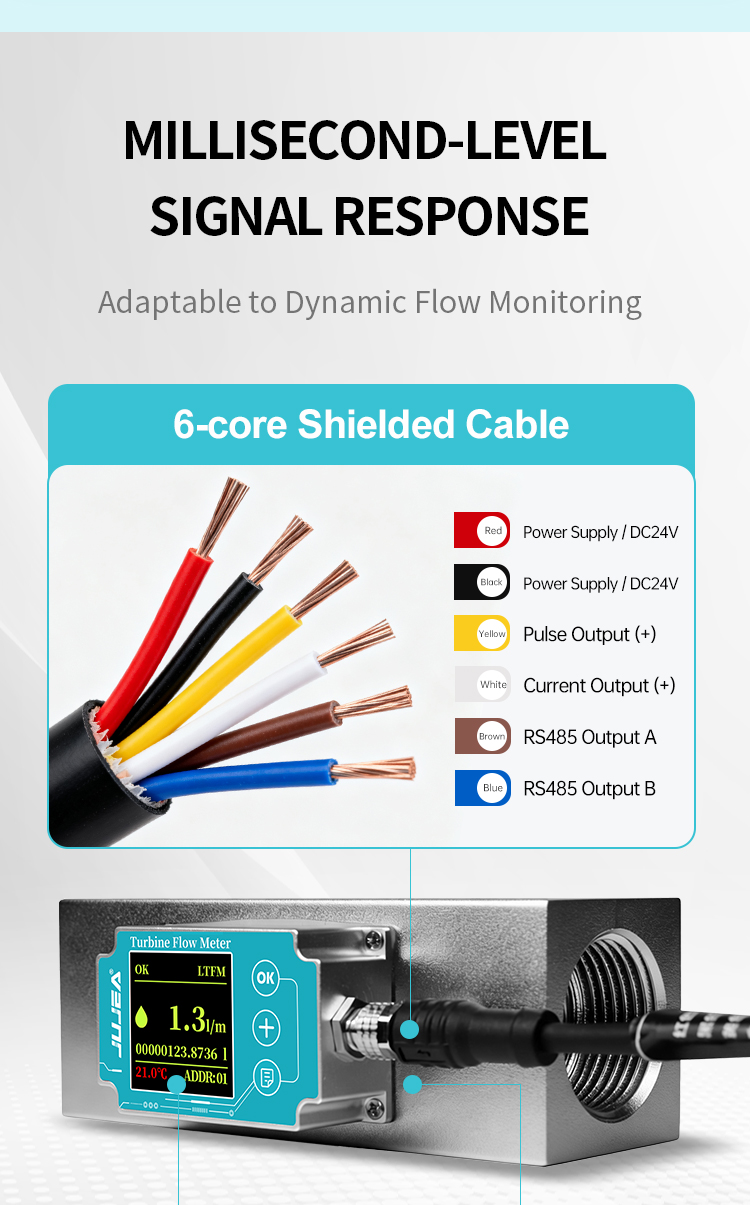

| Output Signal | Three-wire pulse output, three-wire 4-20mA output, RS485 output |
| Protection Rating | IP65 |
| Measurement Medium | Liquid |
| Transmission Distance | Pulse output ≤300m, 4-20mA output ≤1200m, load resistance ≤500Ω (24V), RS485 output ≤1000m |
