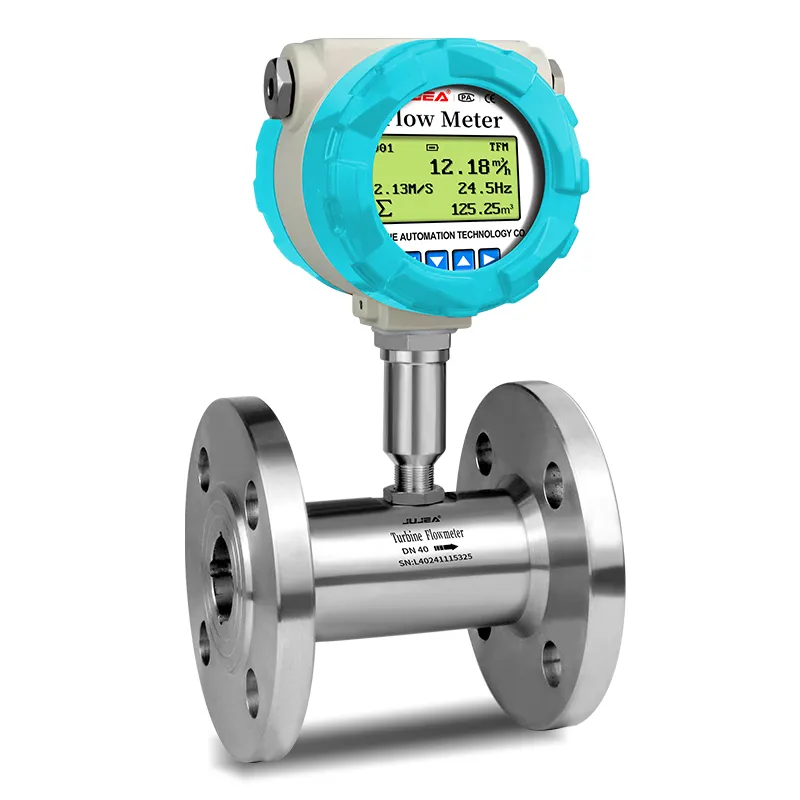

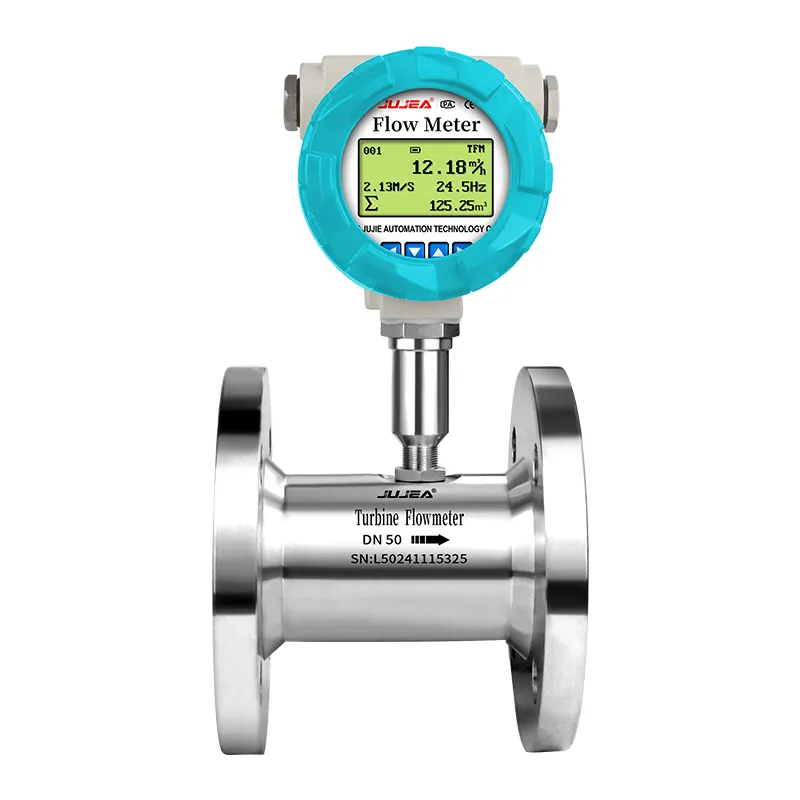

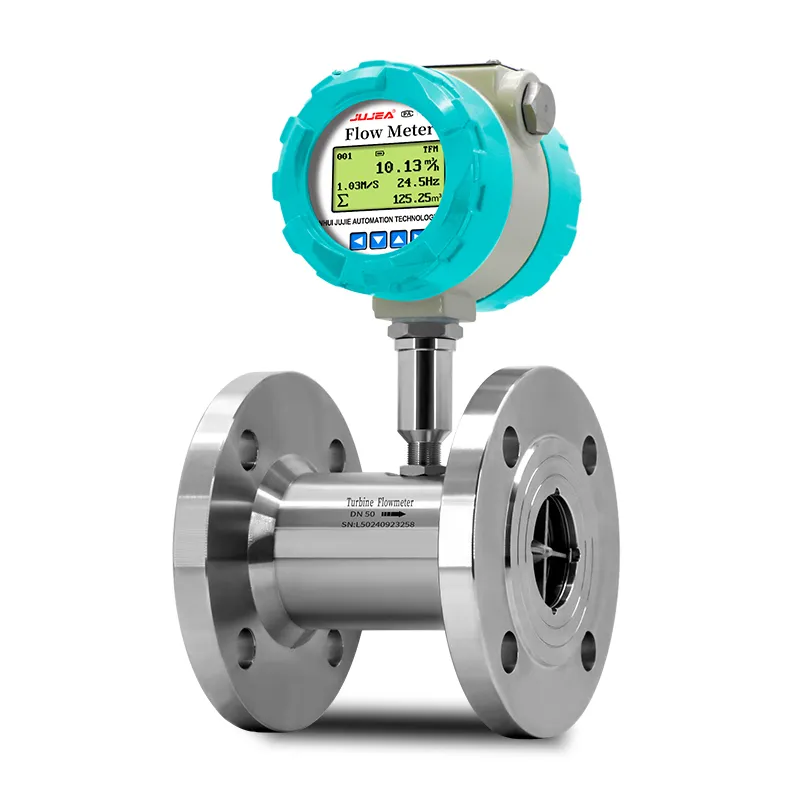

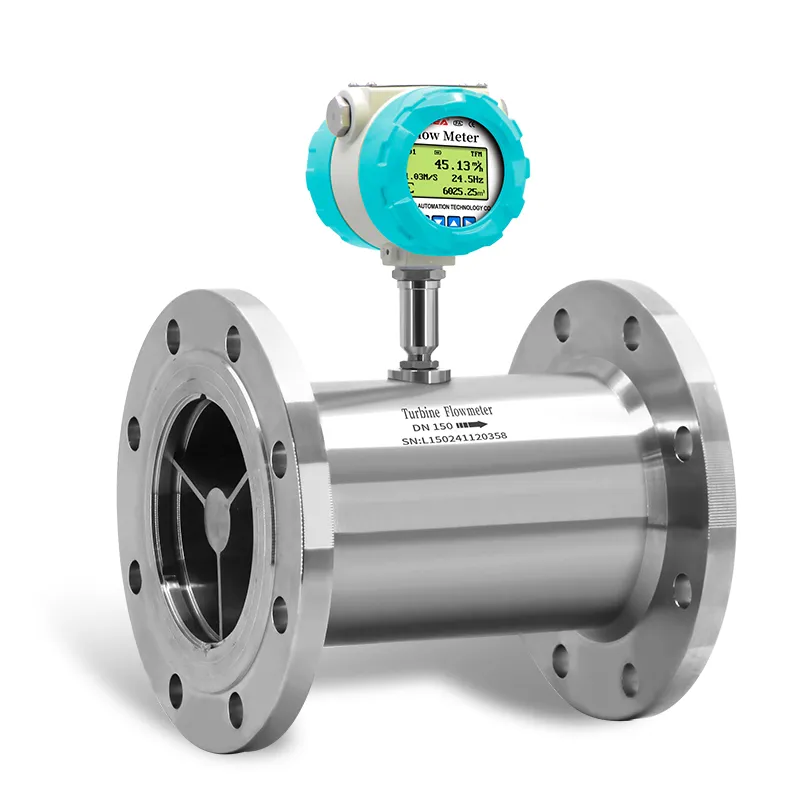

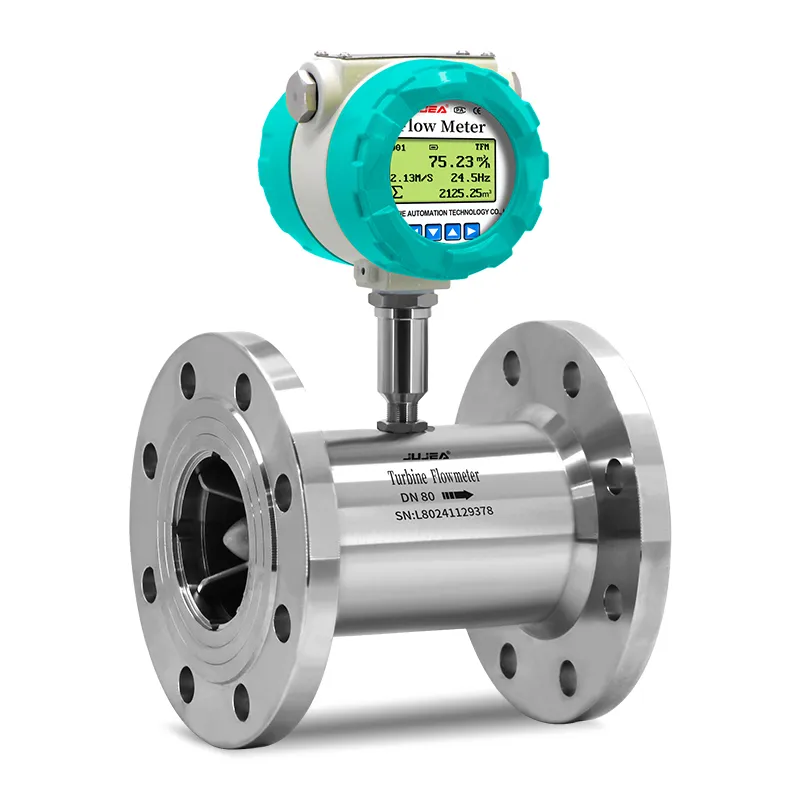

Flange liquid turbine flow meter adopts impeller induction measurement, with full stainless steel body and high measuring accuracy up to ±0.5%. It supports DN4-DN200 flange connection, outputs pulse, 4-20mA,hart and RS485 signals, ideal for clean low-viscosity liquids like fuel, water and solvent in petrochemical pipelines.
High precision up to ±0.5% with excellent repeatability for clean low-viscosity liquids.
Full stainless steel wetted components, resistant to mild corrosion and abrasion.
Standard flange connection, DN4~DN200 multiple sizes fit industrial pipelines.
Wide turndown ratio, stable measurement across flow changes.
Multi-signal output: pulse, 4-20mA,Hart and RS485 Modbus for control systems.
Compact integral design, easy installation and field parameter calibration.
Explosion-proof ExdIICT6 optional, suitable for petrochemical flammable liquid sites.

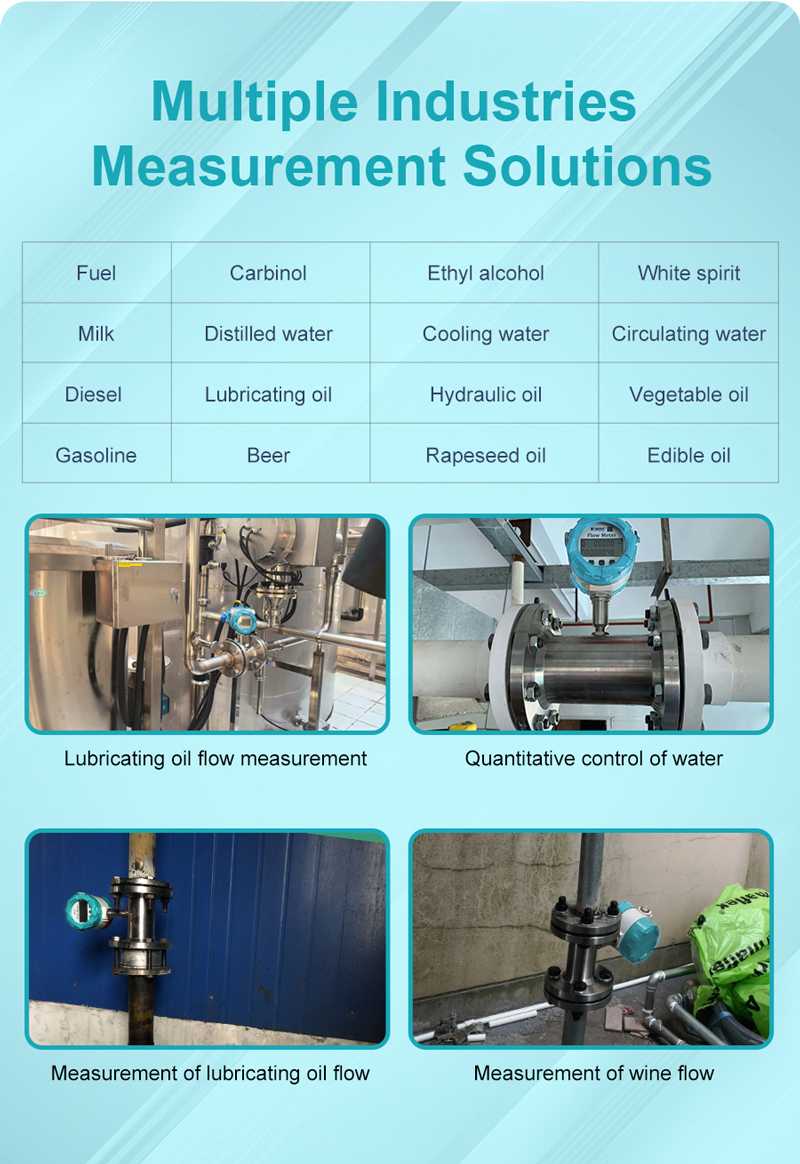

| Measured Medium | Impurity-free, low-viscosity, non-strongly corrosive liquid | |||
| Execution Standard | Turbine flow sensor (JB/T9246-2016) | |||
| Verification Regulation | Turbine flowmeter (JJG1037-2008) | |||

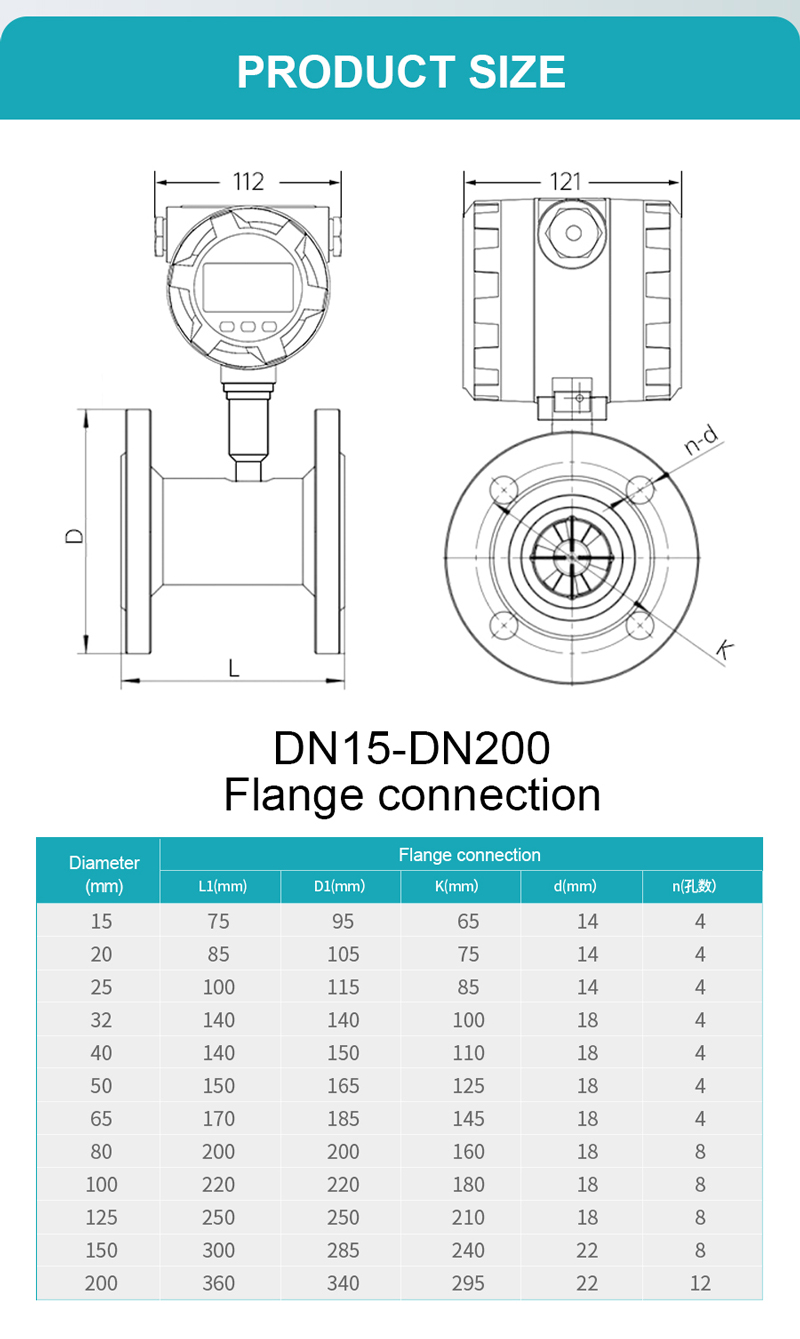

| Instrument Caliber and Connection Method | Flange connection type: DN15-DN200 | |||
| Flange Standard | Conventional standard | HG/T 20592-2009 | ||
| Other standards | International pipe flange standards | Such as German DIN, American ANSI, Japanese JS | ||
| Domestic pipe flange standards | Such as Ministry of Chemical Industry standards, Ministry of Machinery standards | |||
| Accuracy Class and Corresponding Repeatability | Accuracy class*1 | ±1%R | ±0.5%R | ±0.2%R (customization required) |
| Repeatability | ≤0.33% | ≤0.17% | ≤0.07% | |
| Range Ratio | 6:1, 10:1, 20:1 | |||
| Verification Conditions | Verification device | Standard meter method liquid flow verification device; Static mass method liquid flow verification device | ||
| Environmental conditions | Ambient temperature: 20℃; Relative humidity: 65% | |||
| Operating Conditions | Medium temperature | Standard: -20℃~80℃; T: -40℃~180℃ | ||
| Ambient temperature | -20℃~60℃ | |||
| Relative humidity | 5%~90% | |||
| Atmospheric pressure | 86Kpa~106Kpa | |||

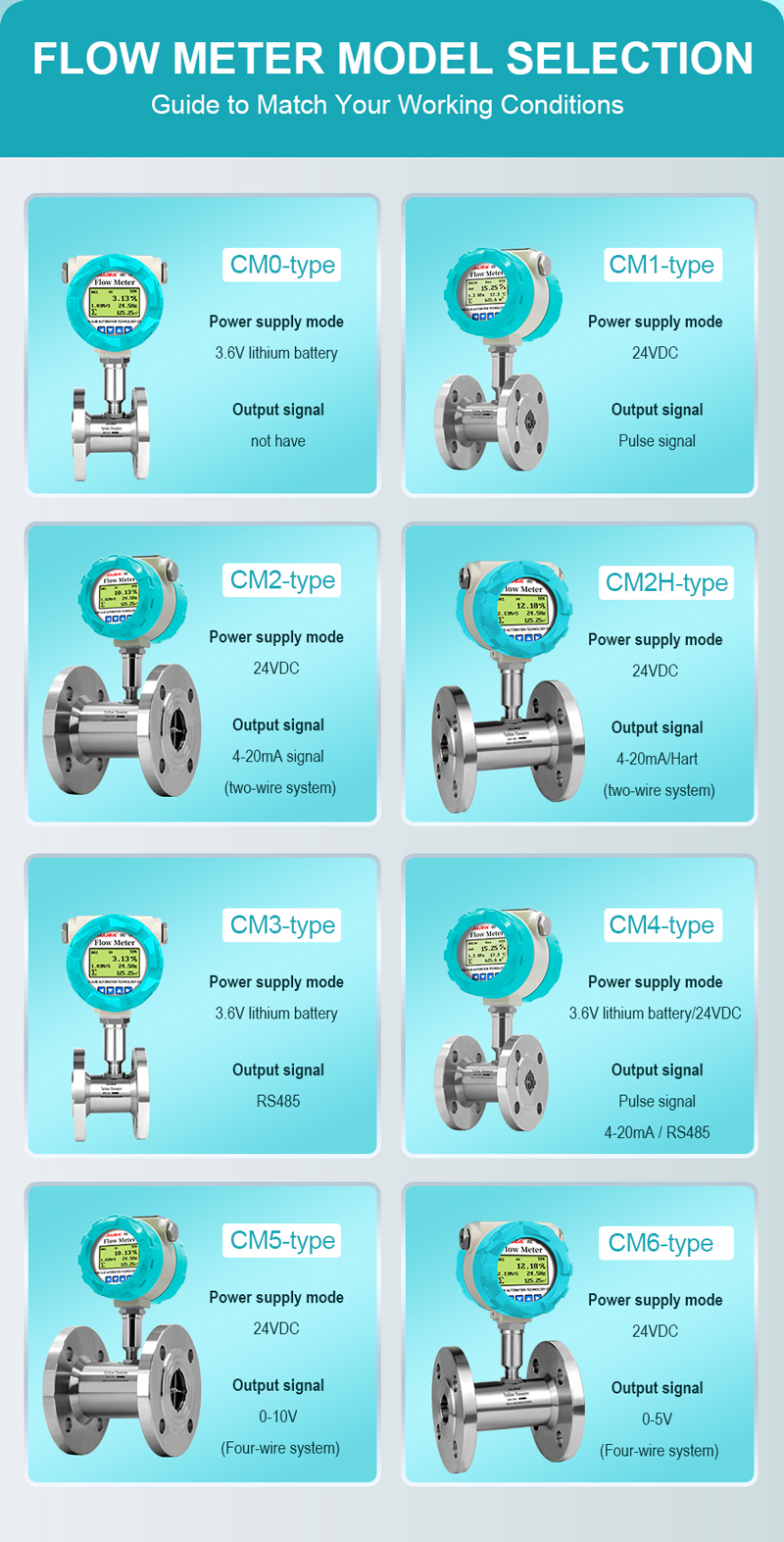

| Output Function | Signal output | Pulse signal, 4-20mA signal | ||
| Communication output | RS485 communication, HART protocol | |||
| Working Power Supply | External power supply | +24VDC, suitable for 4-20mA output, pulse output, RS485, etc | ||
| Internal power supply | CM0, CM4 (1 set of 3.6V 19Ah lithium battery) | |||
| Signal Line Interface | N type | Hirschmann connector DIN43650 or aviation plug CX165P | ||
| Full series | Metal waterproof buckle internal thread M20×1.5 | |||
| Explosion-proof Grade | ExdIIC T6 Gb | |||
| Protection Grade | IP65 or higher (customizable) | |||
