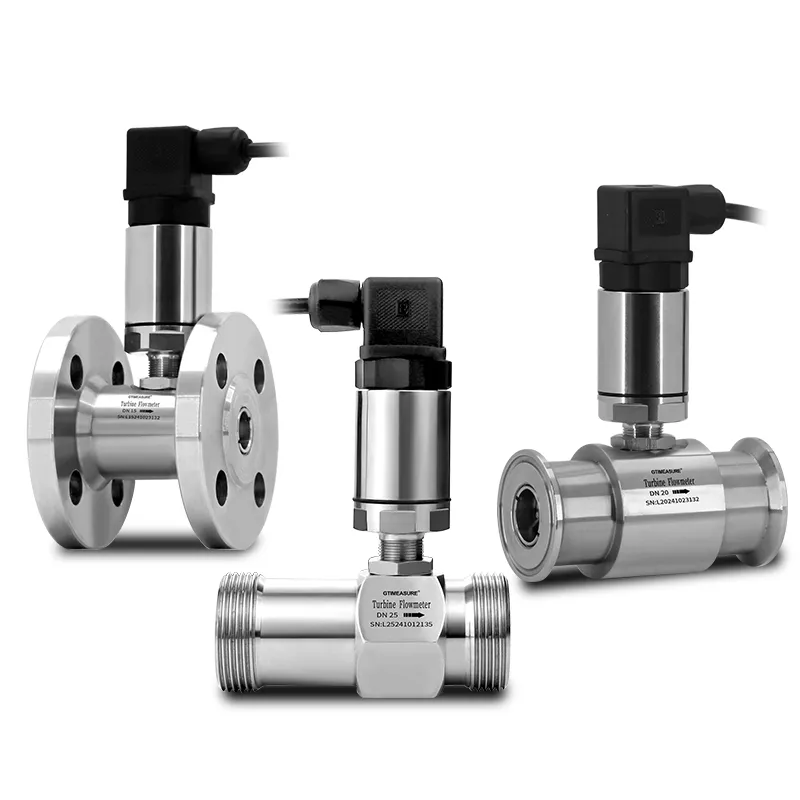

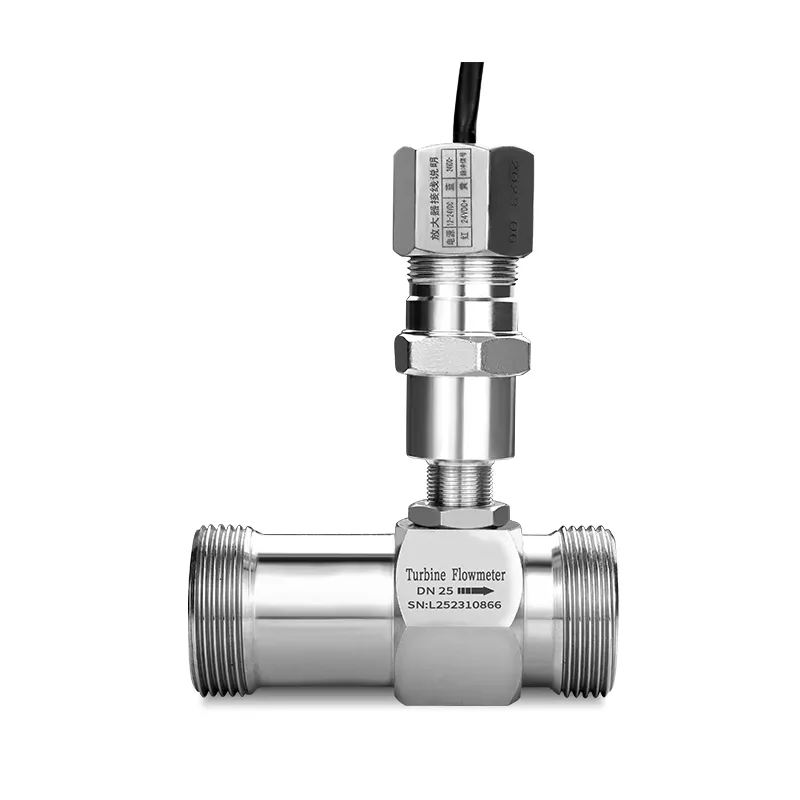

Thread liquid turbine flow meter features compact threaded connections for DN4-DN80 pipelines, with stainless steel body delivering high-precision measurement of clean low-viscosity liquids. It supports pulse and 4-20mA,hart and RS485 signals output, ideal for fuel, water and solvent small-bore pipeline metering.
Compact small-size threaded structure, suitable for DN4~DN50 narrow pipeline installation.
High accuracy and good repeatability for clean, low-viscosity liquid media.
Stainless steel wetted parts with good mild corrosion resistance.
Convenient thread mounting without complicated flange welding.
Multiple signal outputs: pulse, 4-20mA and RS485 optional.
Small pressure loss, lightweight and easy disassembly for maintenance.
Optional explosion-proof design for small chemical fuel pipelines.
| Measured Medium | Impurity-free, low-viscosity, non-strongly corrosive liquid | |||
| Execution Standard | Turbine flow sensor (JB/T9246-2016) | |||
| Verification Regulation | Turbine flowmeter (JJG1037-2008) | |||

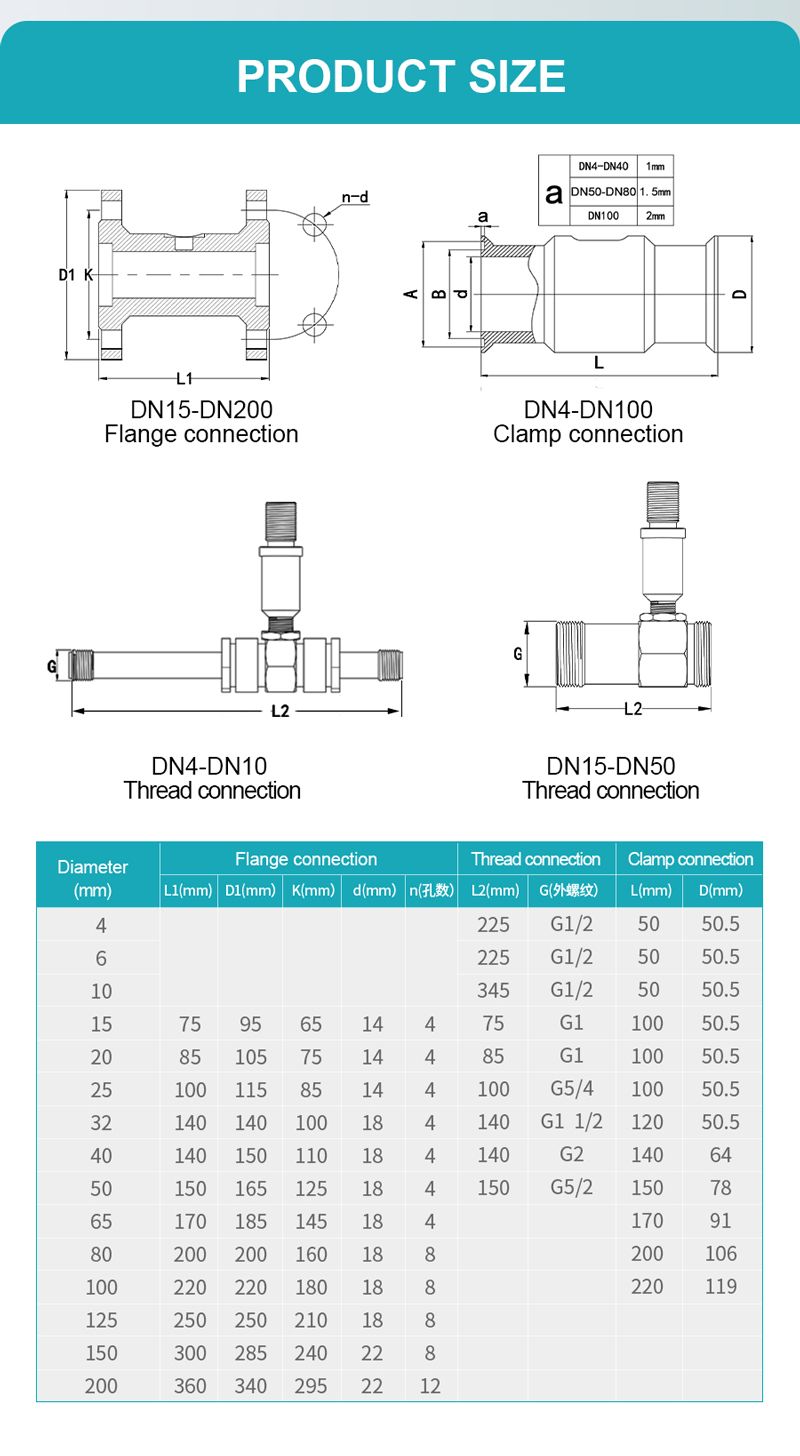

| Instrument Caliber and Connection Method | Thread connection type: DN4-DN50 | |||
| Thread Specification | Conventional specification | British pipe thread (external thread) | ||
| Other specifications | Internal thread, spherical thread, NPT thread, etc. | |||
| Accuracy Class and Corresponding Repeatability | Accuracy class*1 | ±1%R | ±0.5%R | ±0.2%R (customization required) |
| Repeatability | ≤0.33% | ≤0.17% | ≤0.07% | |
| Range Ratio | 6:1, 10:1, 20:1 | |||
| Verification Conditions | Verification device | Standard meter method liquid flow verification device; Static mass method liquid flow verification device | ||
| Environmental conditions | Ambient temperature: 20℃; Relative humidity: 65% | |||
| Operating Conditions | Medium temperature | Standard: -20℃~80℃; T: -40℃~180℃ | ||
| Ambient temperature | -20℃~60℃ | |||
| Relative humidity | 5%~90% | |||
| Atmospheric pressure | 86Kpa~106Kpa | |||

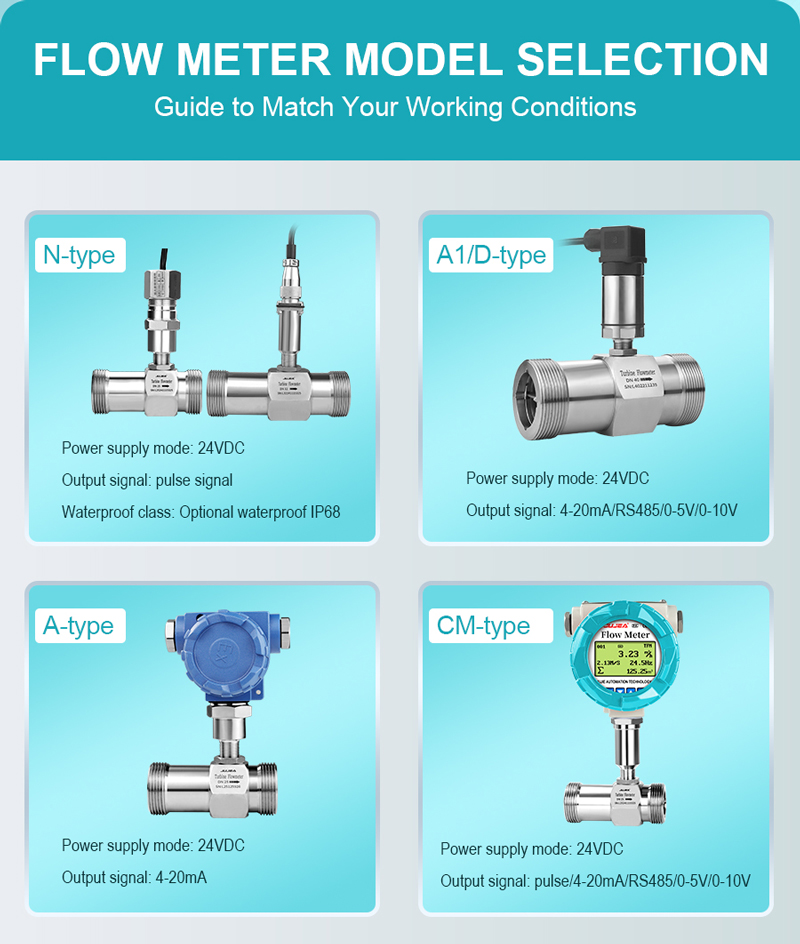

| Output Function | Signal output | Pulse signal, 4-20mA signal | ||
| Communication output | RS485 communication, HART protocol | |||
| Working Power Supply | External power supply | +24VDC, suitable for 4-20mA output, pulse output, RS485, etc | ||

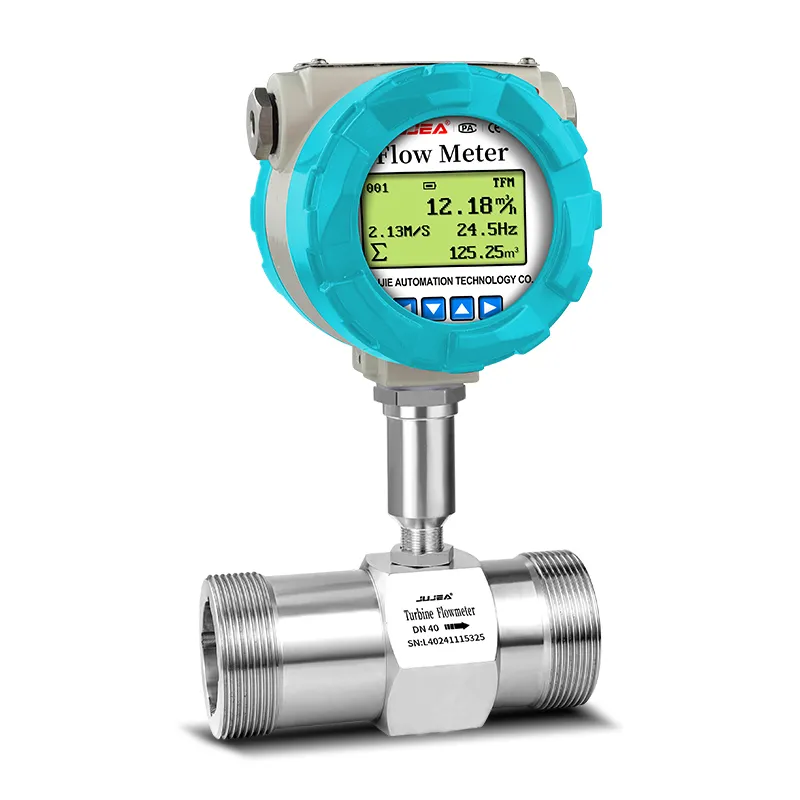

| Internal power supply | CM0, CM4 (1 set of 3.6V 19Ah lithium battery) | |||

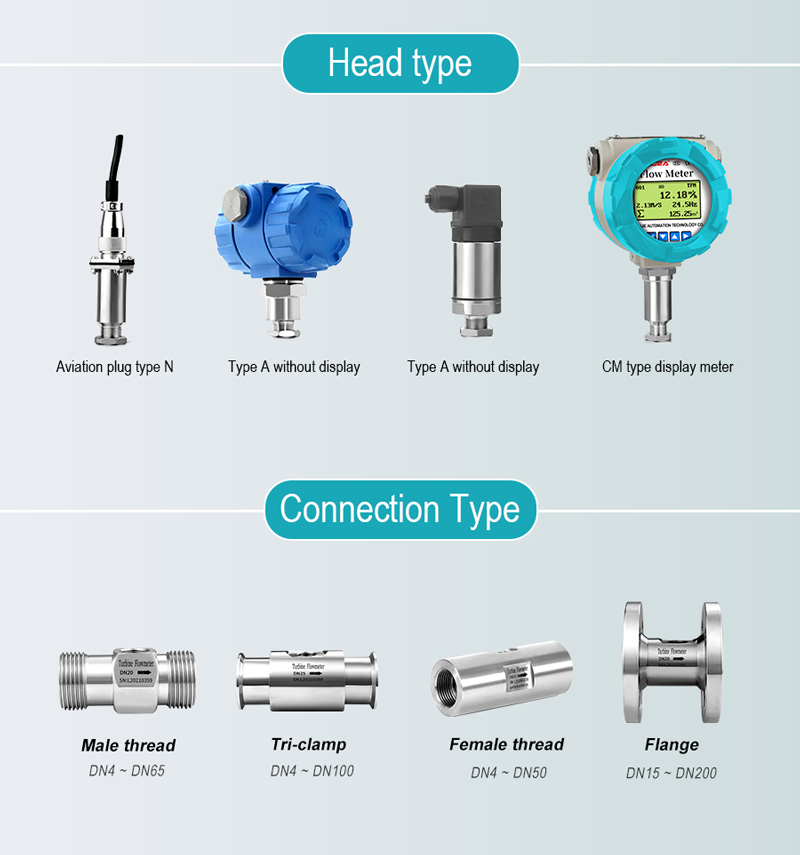

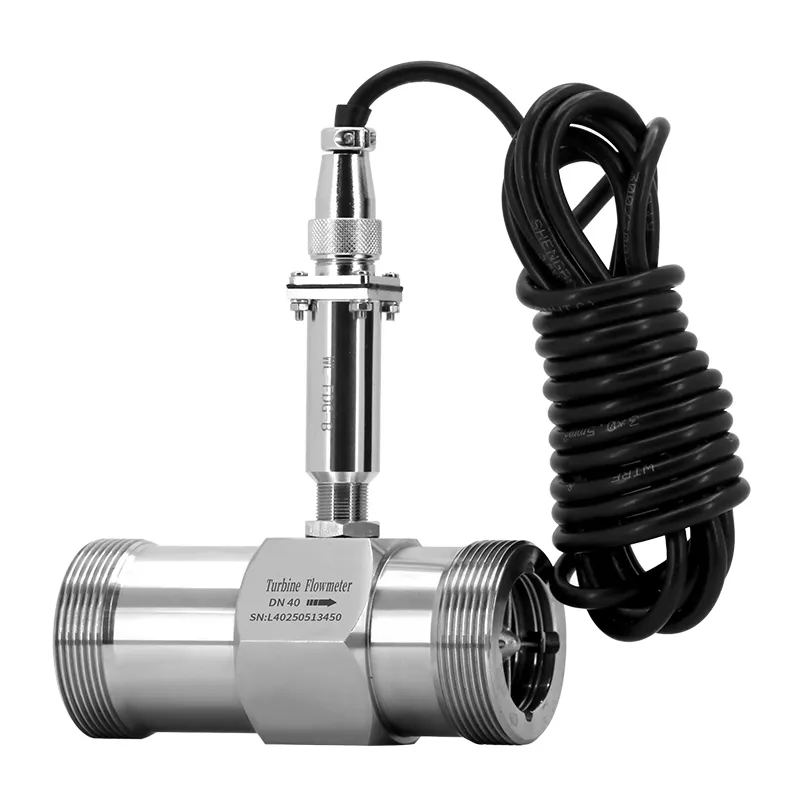

| Signal Line Interface | N type | Hirschmann connector DIN43650 or aviation plug CX165P | ||
| Full series | Metal waterproof buckle internal thread M20×1.5 | |||

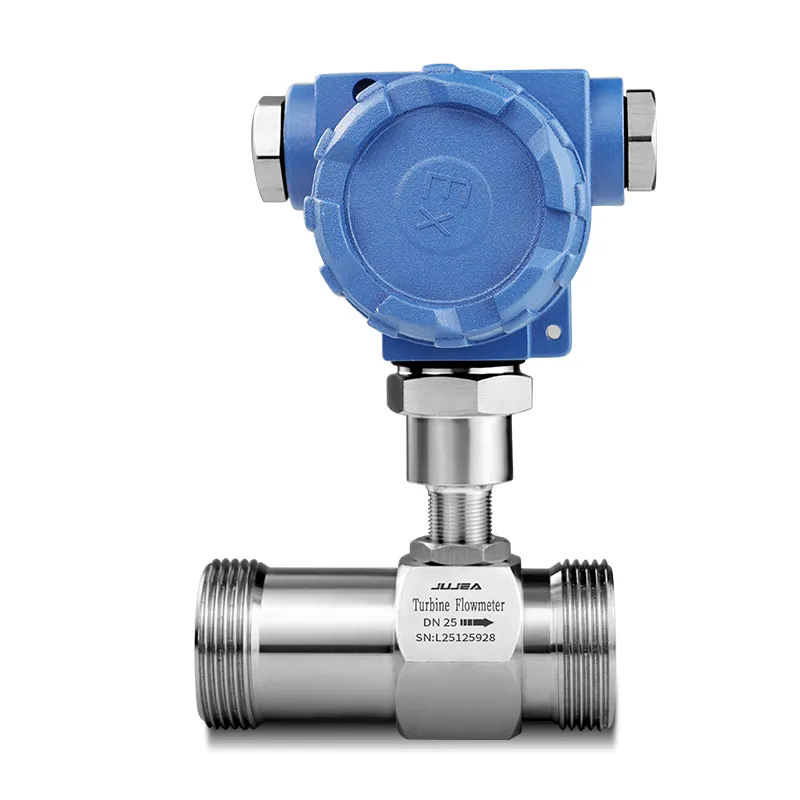

| Explosion-proof Grade | ExdIIC T6 Gb | |||
| Protection Grade | IP65 or higher (customizable) | |||
